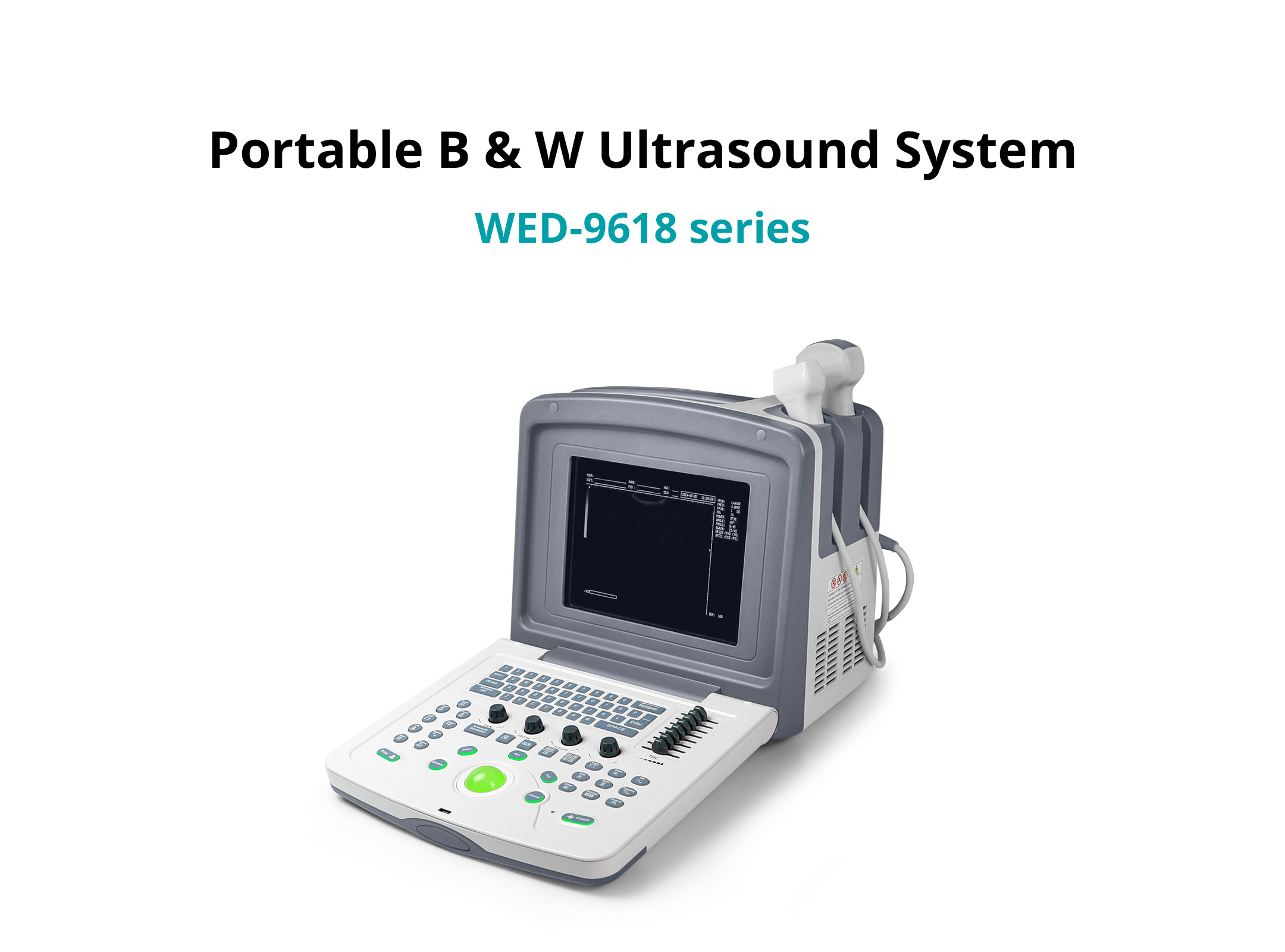

Model

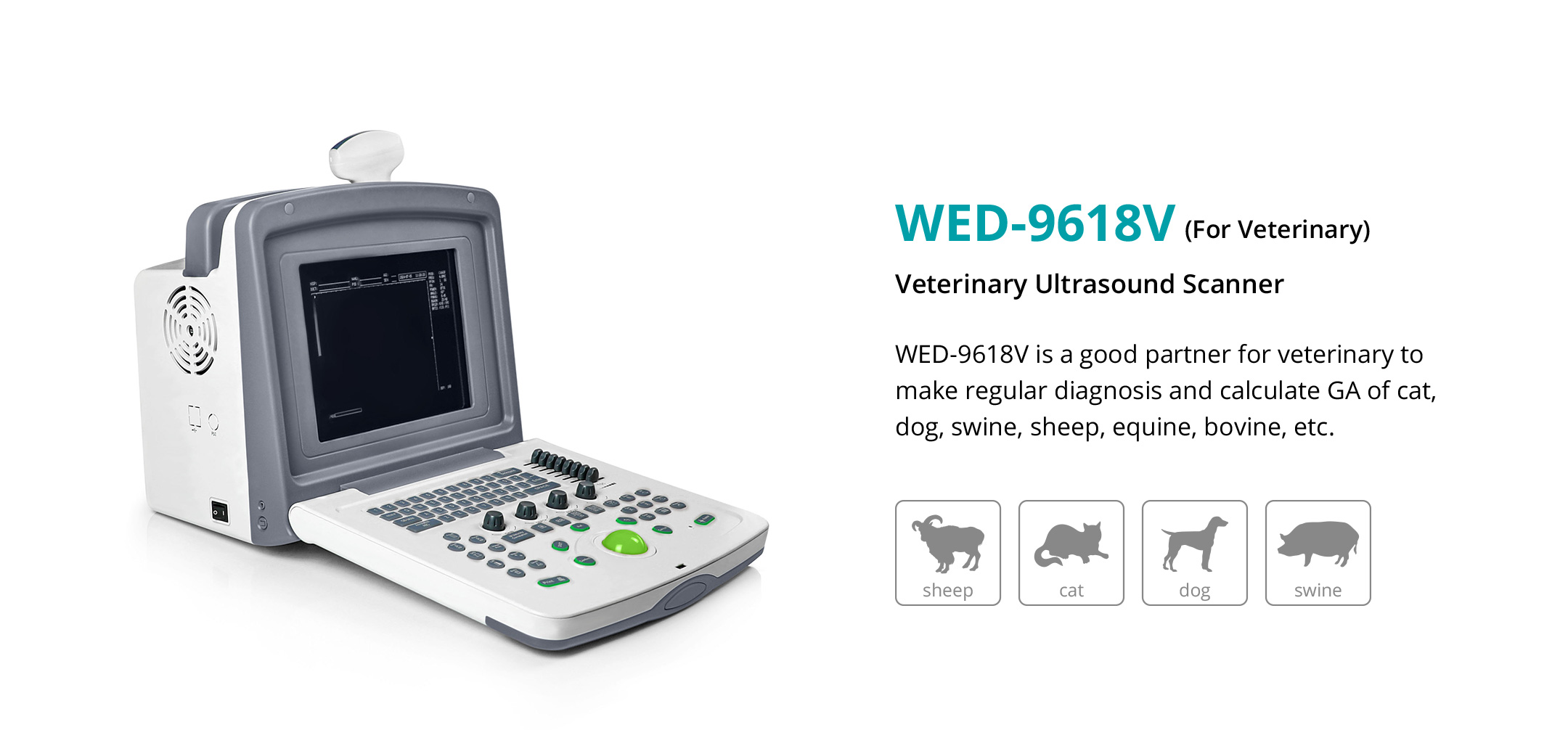

WED 9618V

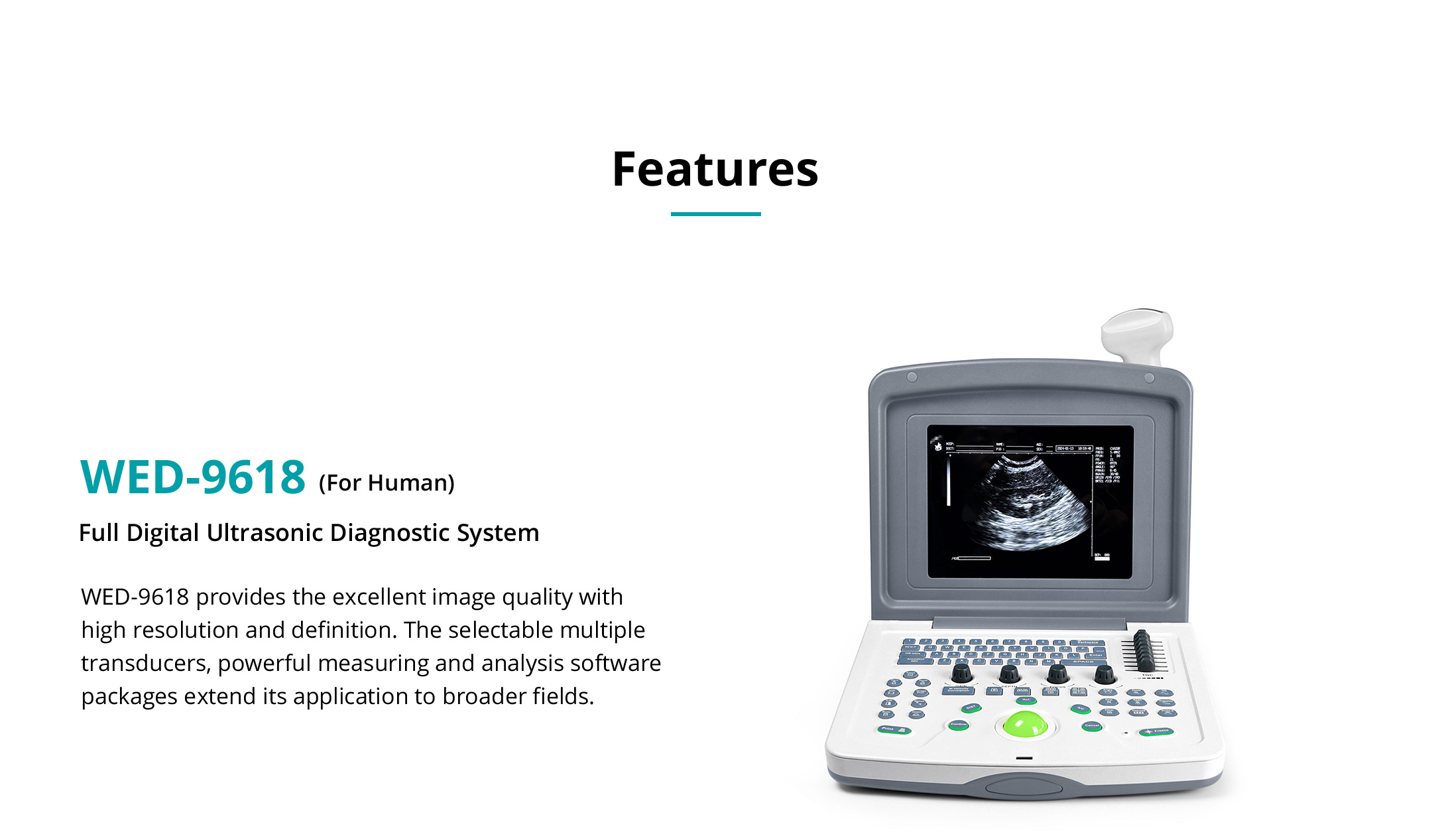

WED 9618

Usage

For  veterinary

For human

Monitor

9.7 inch LCD

Cine loop

≥ 400 frames.

Display depth

≥ 250 mm

Scanning angle

Visible and adjustable

Display mode

B, B + B, B + M, M, 4B

Gain adjustment

8-segment TGC, total gain adjustable.

Focus control

Focus number, focus space, focus position adjustable.

Image process

Pseudo color, dynamic range, THI, image sharpening, gama correction, histogram.

Image magnification

16 levels of real-time depth enhancement and local zoom;

Report

≥ 4 types

Body mark

≥ 40 types

Notation

Date, time, name, sex, age, doctor, hospital, full screen annotation edit.

External port

Video Port, RS-232 Port, USB Port.

Probe specifications

Probe connector

≥ 2 automatic identification

Scanning mode

Electronic convex array, electronic linear array

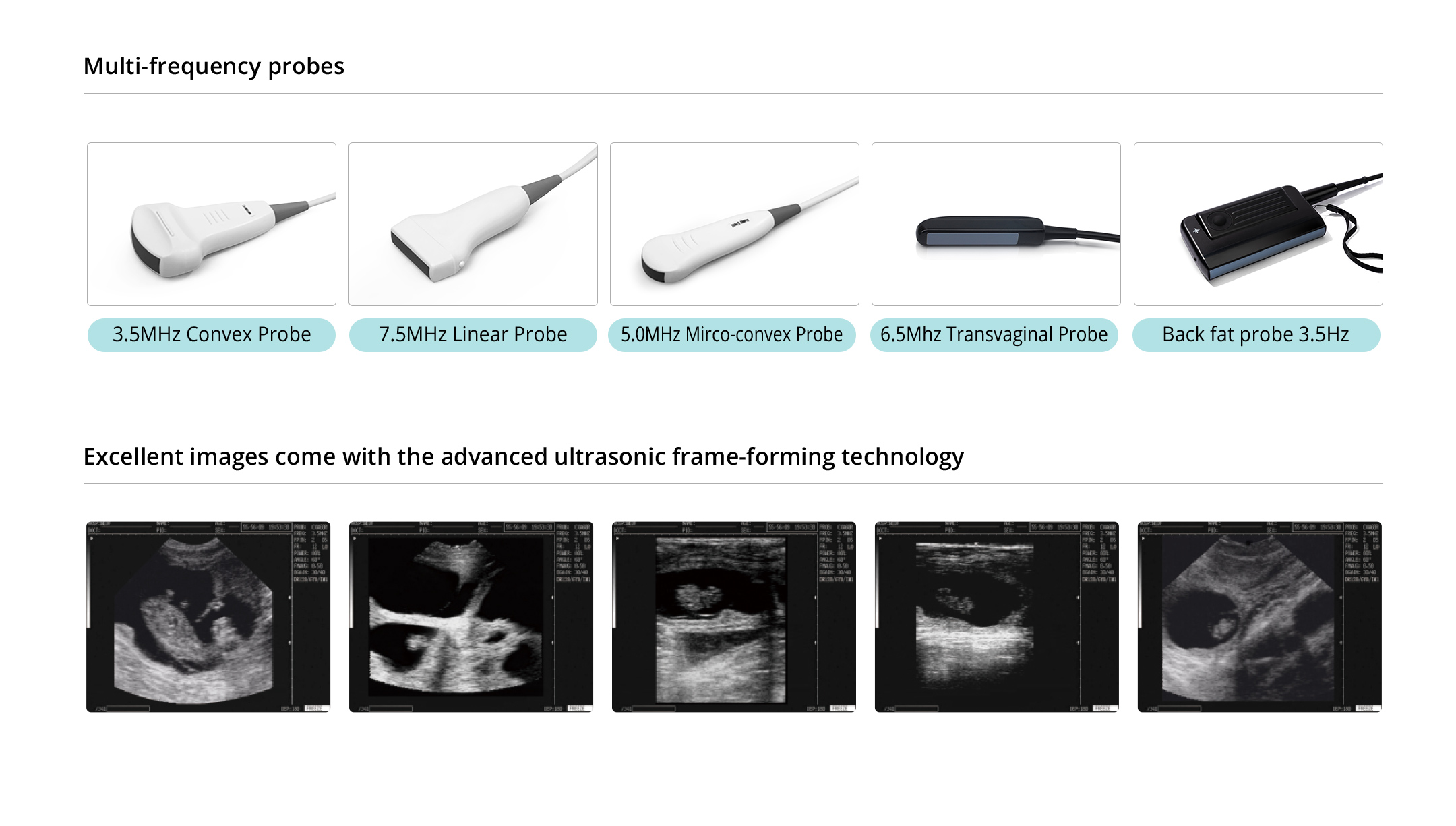

Probe frequency

Equipped with wide-band frequency conversion technology, frequency conversion ≥ 3.

Measurement and analysis

Normal measurement

Distance, circumference, area, volume

Cardiac measurement

Left ventricle (LV), aortic valve (AV), mitral valve (MV), pulmonary valve (PV), tricuspid valve (TV), heart rate (HR).

Obstetric measurement

Biparietal diameter, femoral length, abdominal circumference, head circumference, crown-rump length, abdominal diameter, gestational sac, last menstrual period, gestational age, due date, fetal weight.

Configuration

Standard configuration

1 main unit,

1 convex probe,

1 power cable,

1 bottle ultrasound gel,

2 fuses.

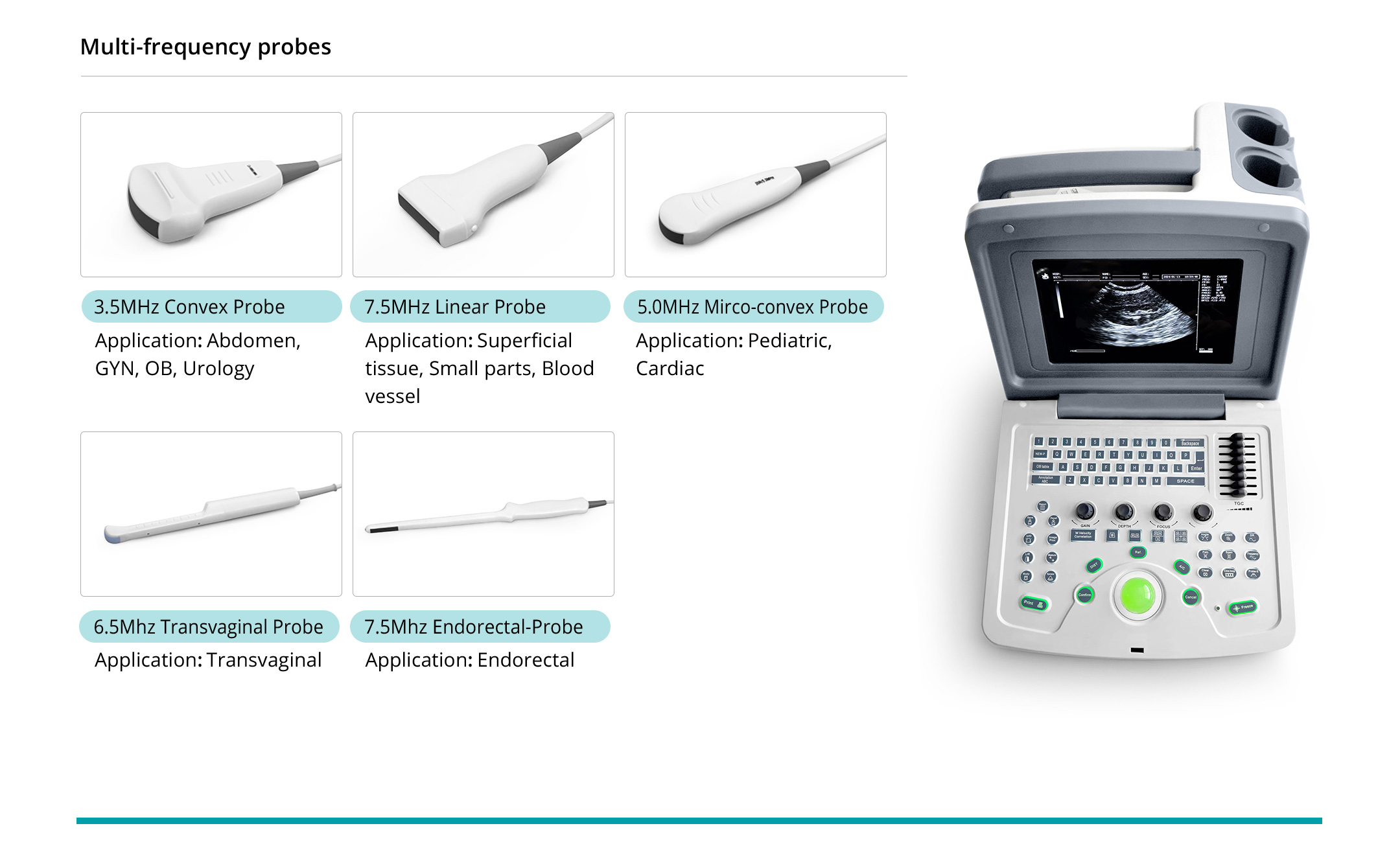

Optional probes

Micro-convex probe,

Trans-vaginal probe,

High frequency linear probe.
