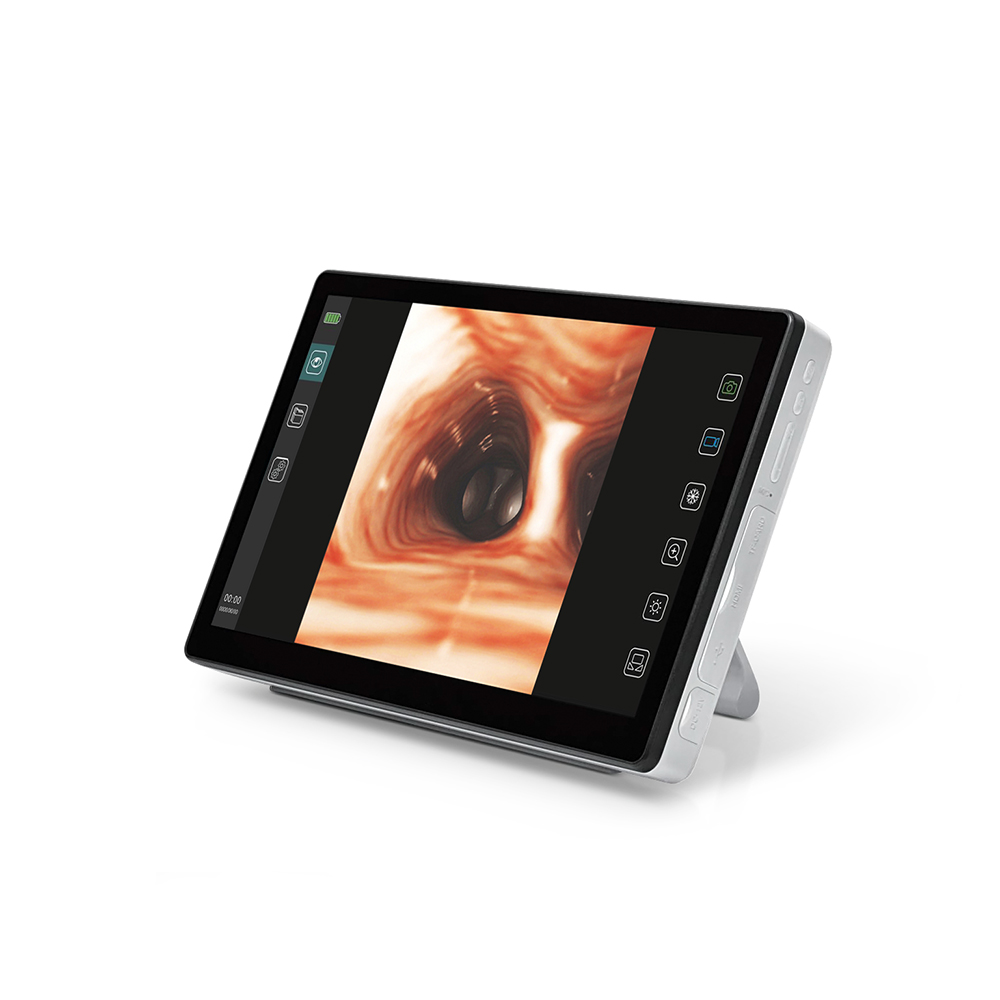

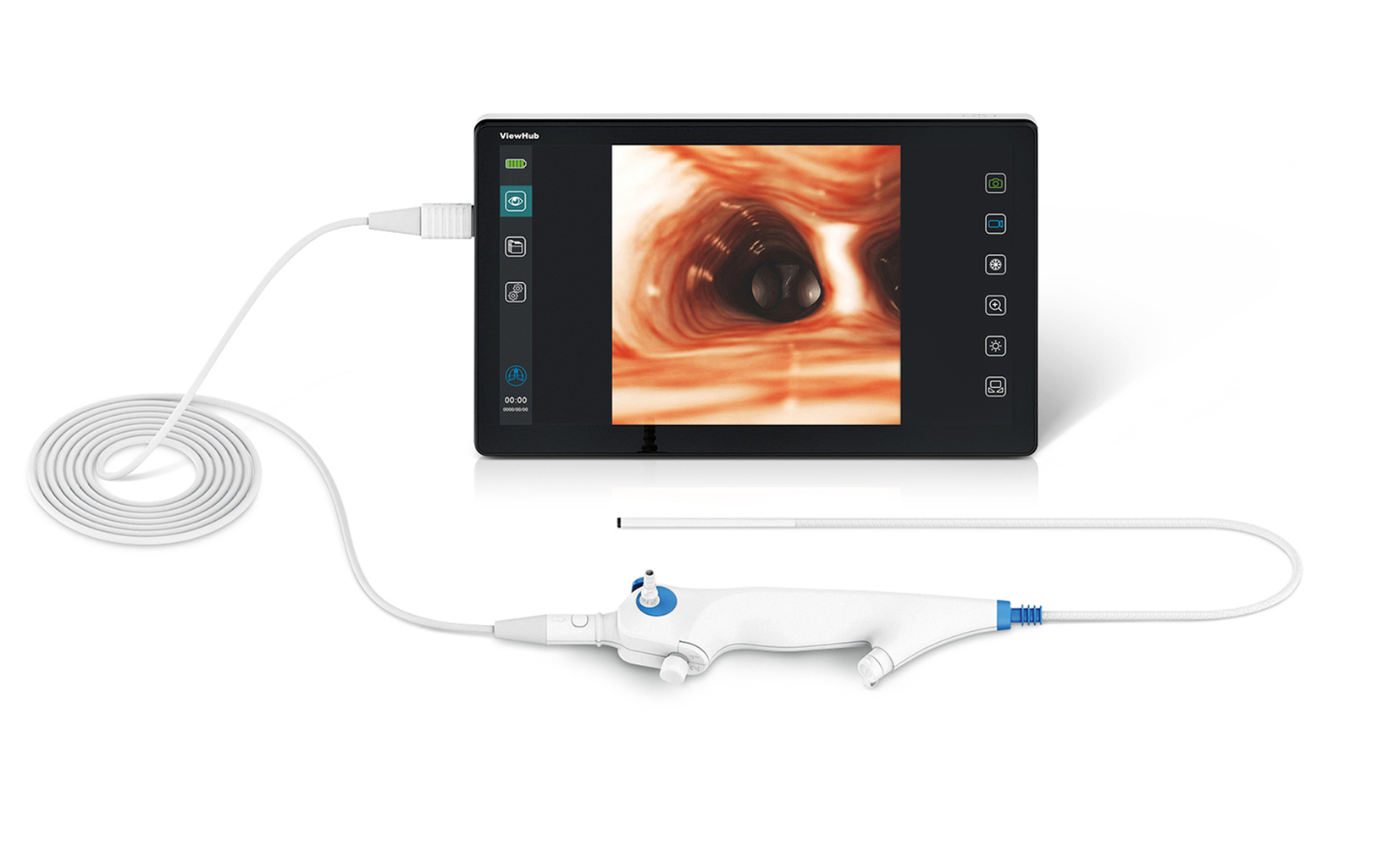

Image Processor

Model

S13

Display

13.3” TFT LCD touch screen

Resolution

1920 × 1080 pixels

Digital signal output

HDMI

Storage

128 GB

Function

Snapshot, Video recording, Brightness control, White balance, Image zooming,

Image freezing, Image management, Image mode switch, Structural enhancement

Power supply

100 - 240 V, 50 / 60 Hz

Electric power consumption

200 VA

Dimensions (L×W×H)

324 mm × 200 mm × 44 mm

Weight

2.2 kg

Type of protection against electric shock

Protection Class I

IP classification

IPX0

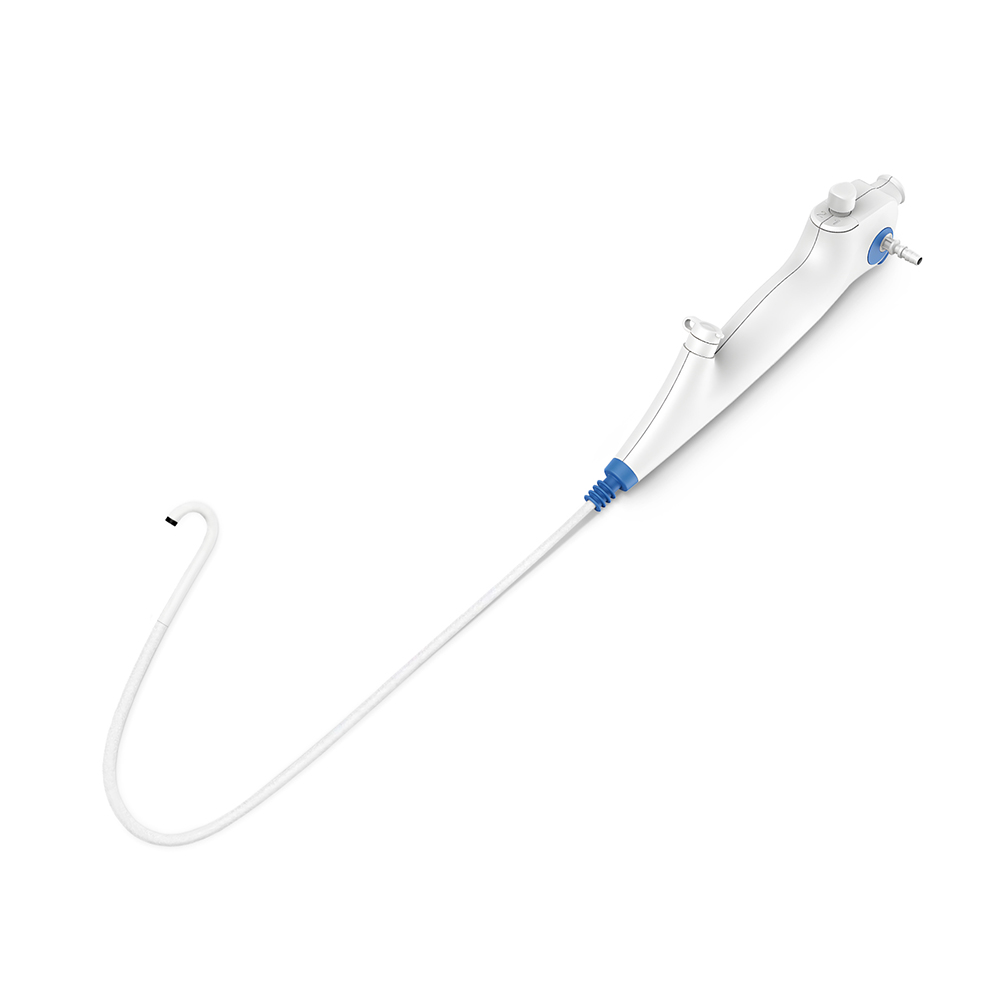

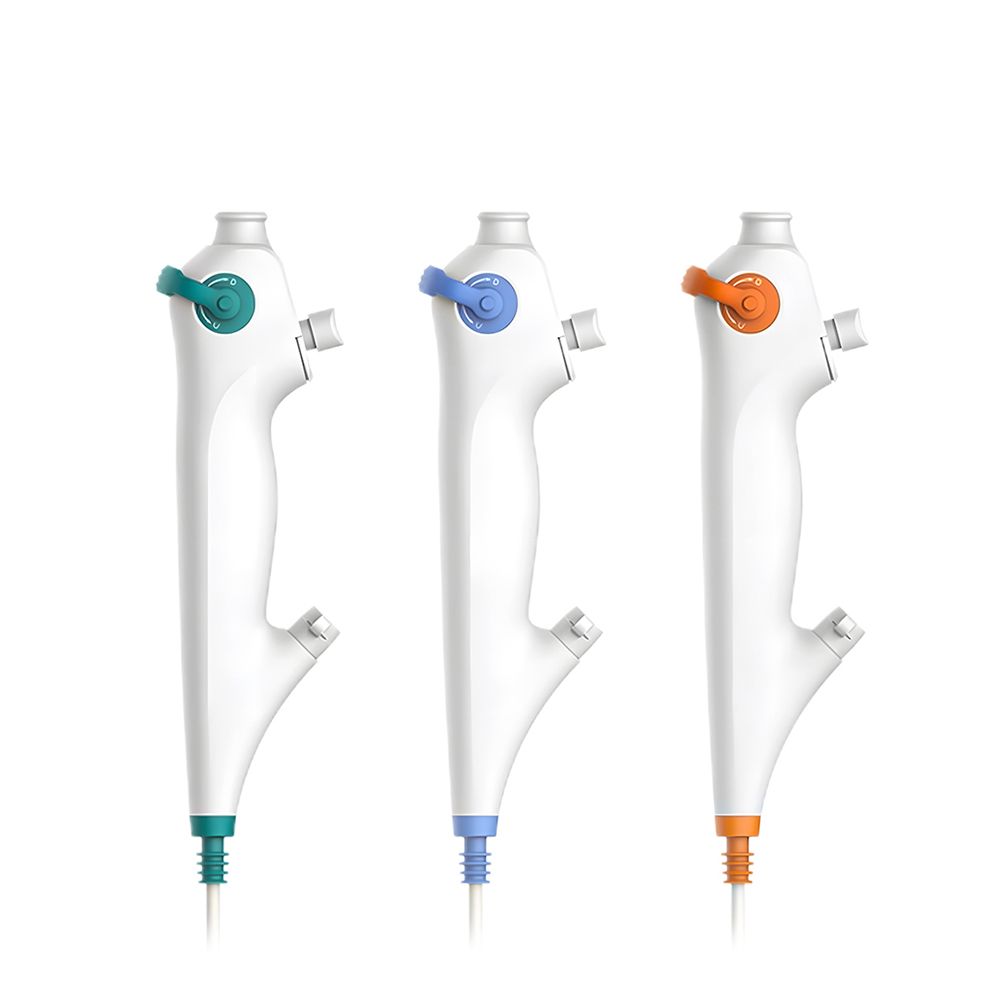

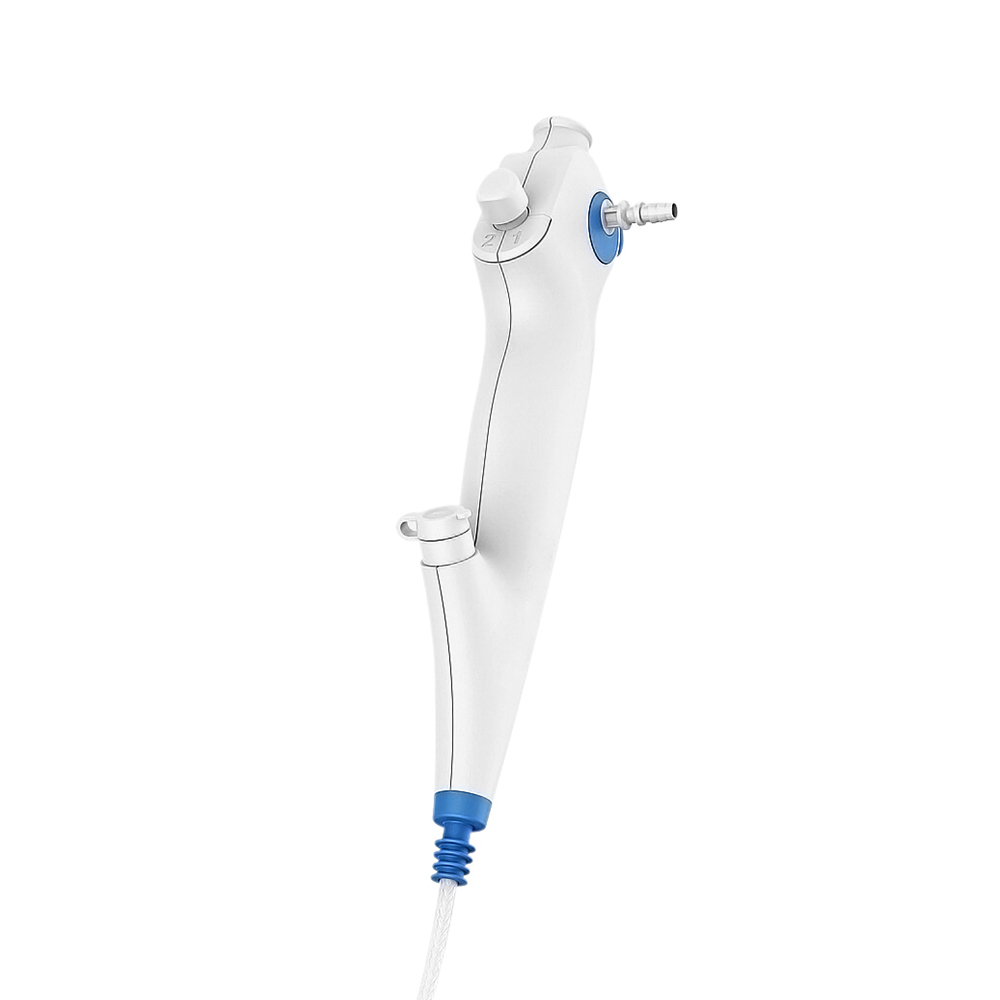

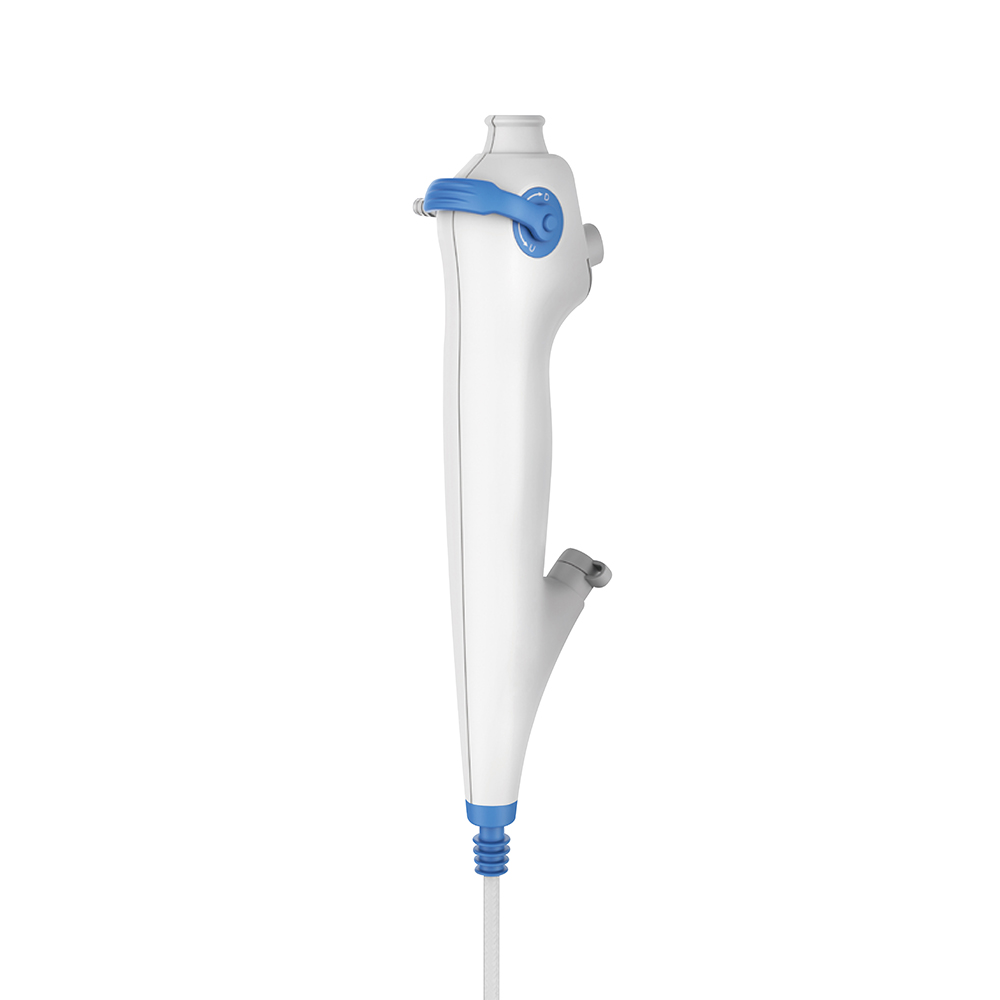

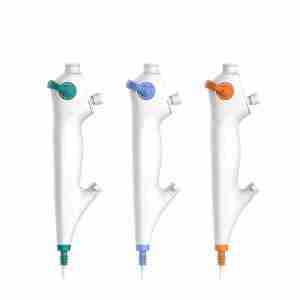

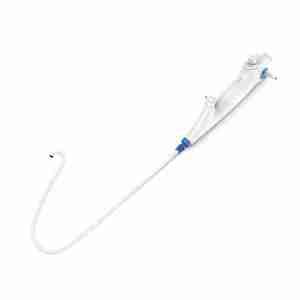

Single-use Flexible Bronchoscope

Model

B38

B50

B58

Optical system

Field view

125°

Direction of view

0°

Depth of field

3 ~ 100 mm

Illumination

LED

Insertion tube

Distal end outer diameter

4.2 mm

5.4 mm

6.3 mm

Insertion tube outer diameter

3.8 mm

4.8 mm

5.5 mm

Working length

600 mm

Instrument channel width

2.0 mm

2.2 mm

2.8 mm

Bending angulation

210° up / down

Total length

750 mm
