Model no.

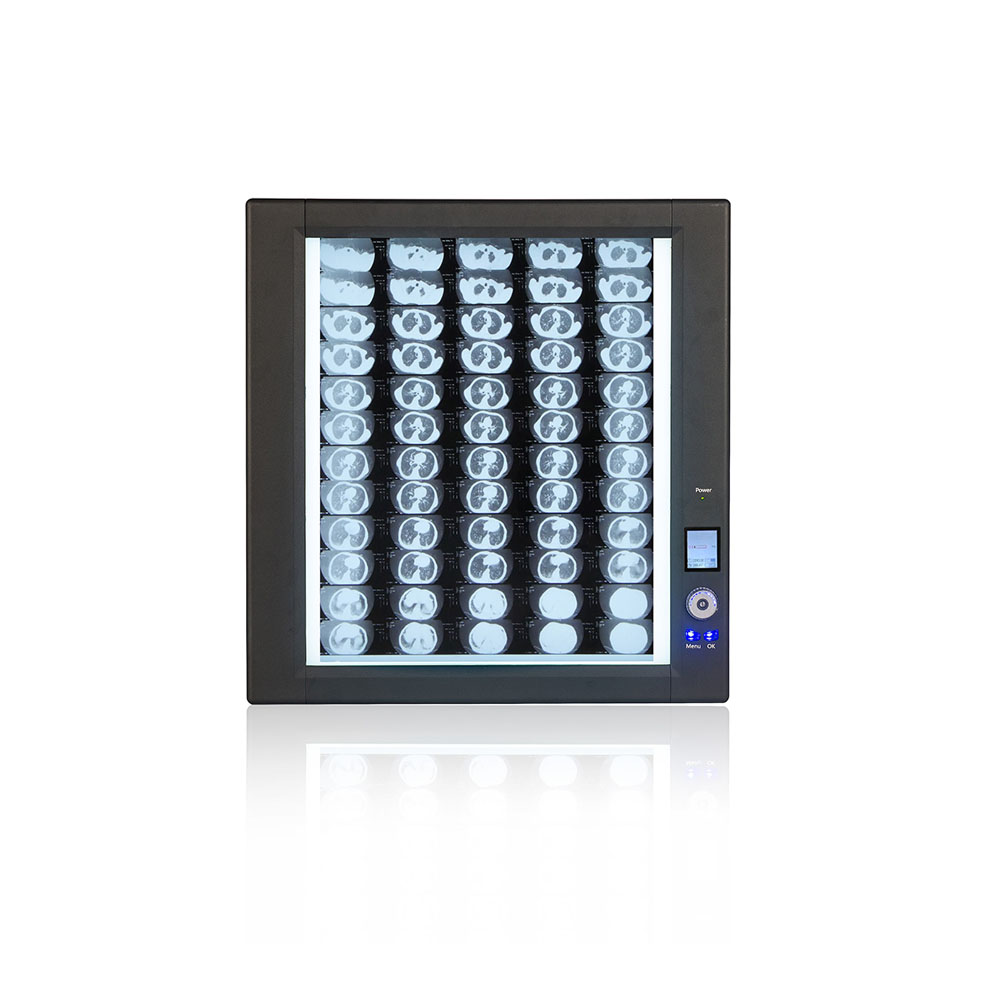

Single (ZG-1)

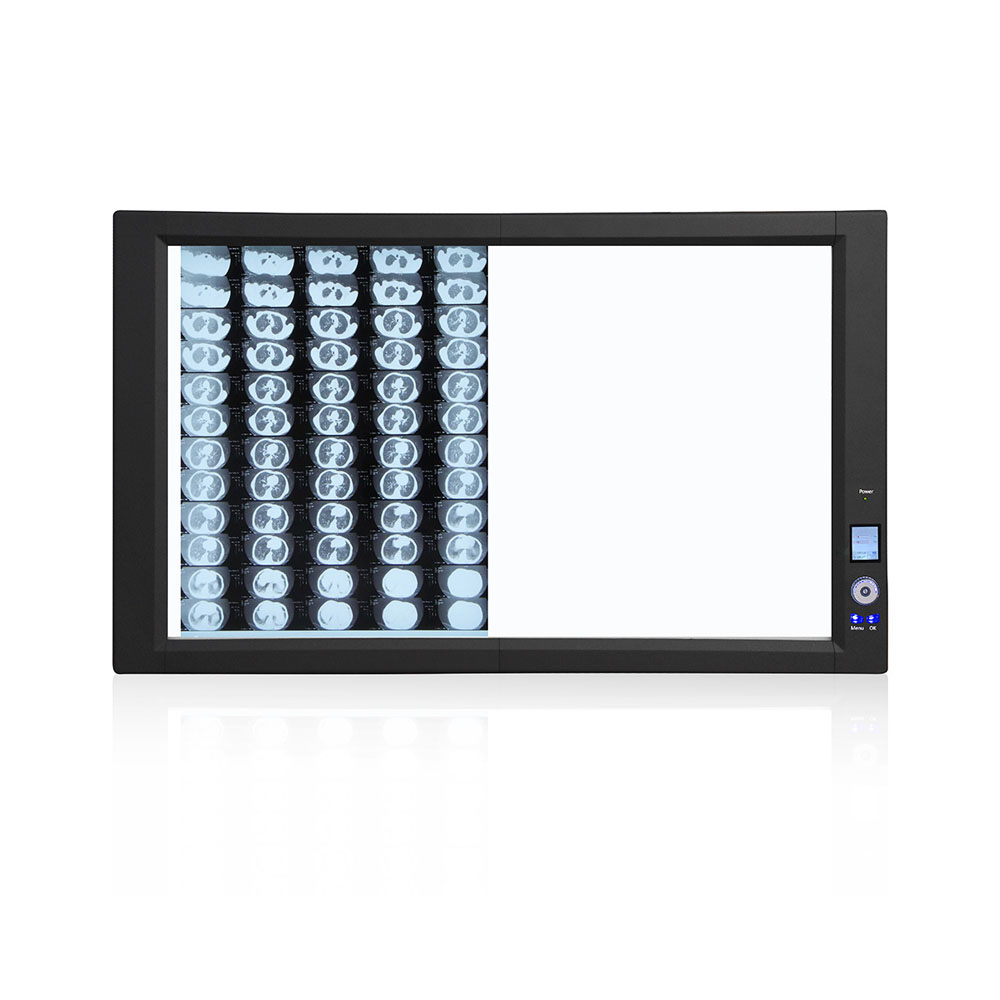

Double (ZG-2)

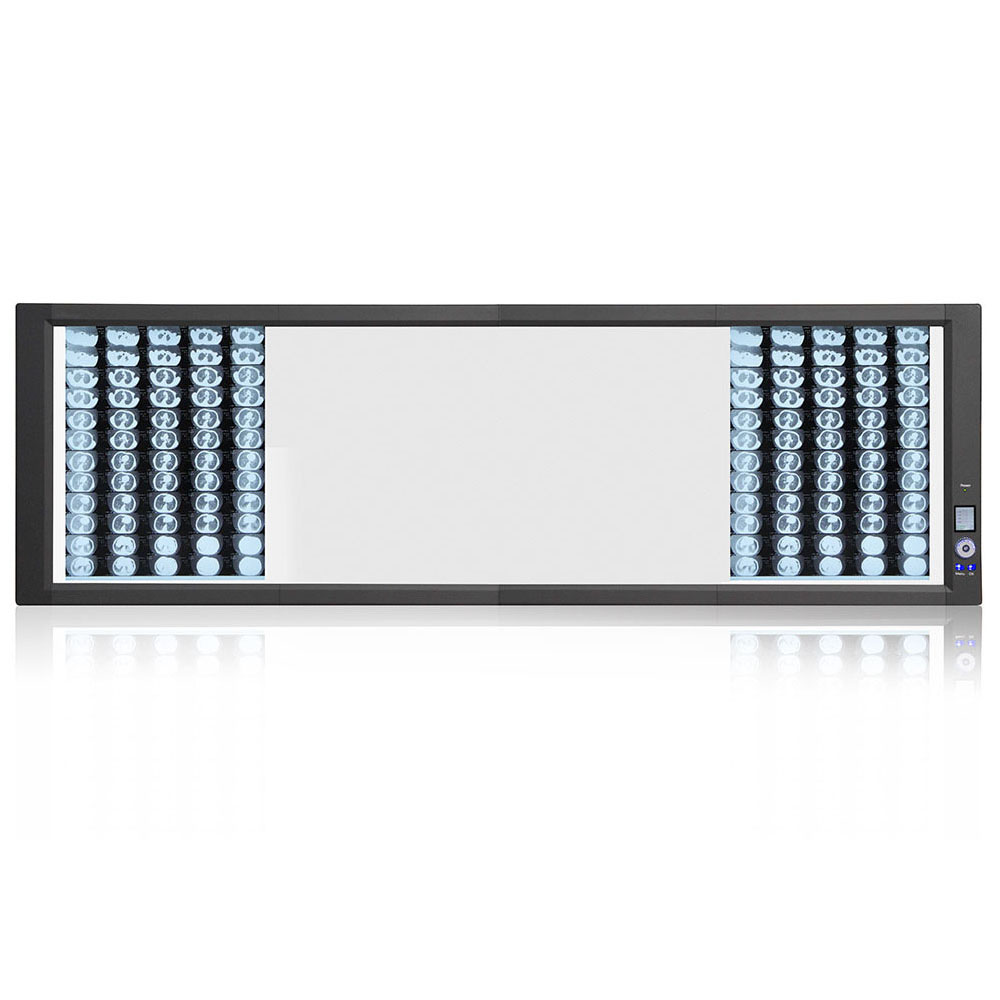

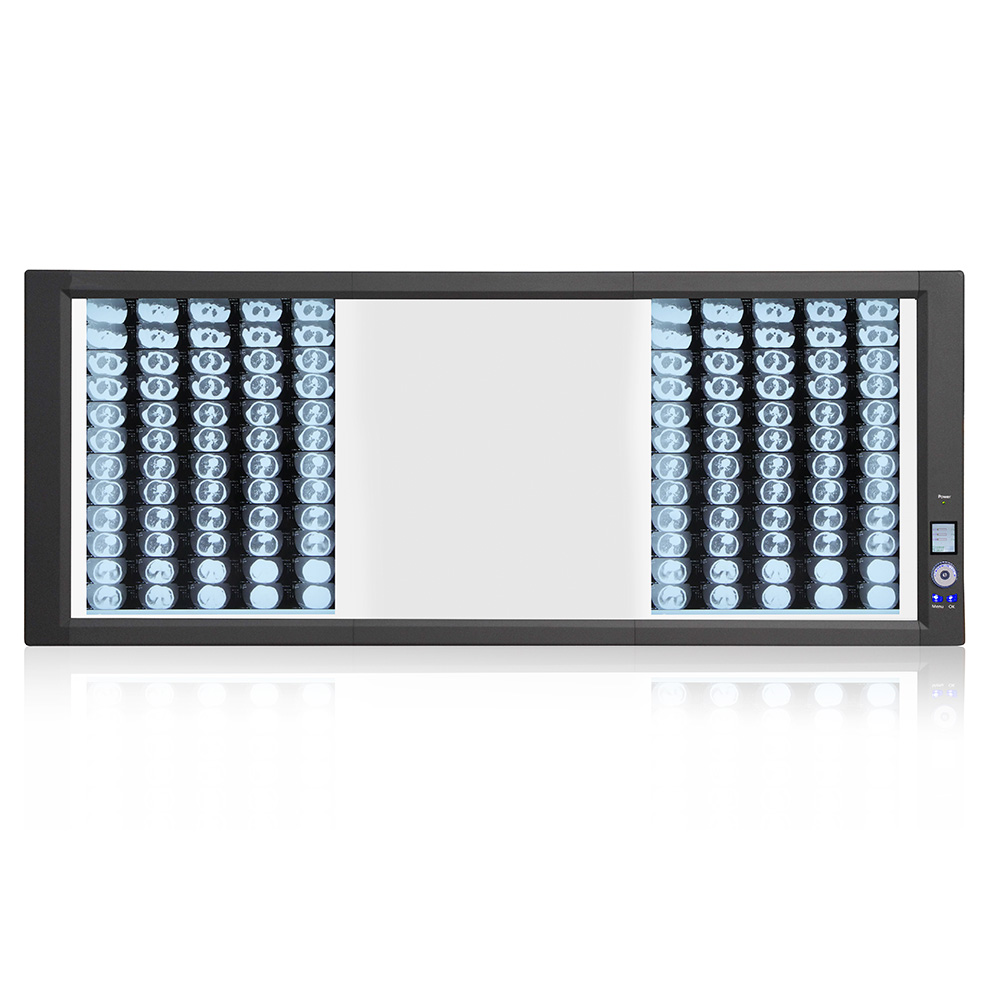

Triple (ZG-3)

Quadruple (ZG-4)

External size (mm)

480 × 502 × 38

840 × 502 × 38

1200 × 502 × 38

1560 × 502 × 38

Visual size (mm)

360 × 420

720 × 420

1080 × 420

1440 × 420

Max.power

30 W

60 W

90 W

120 W

Maximum x-ray film reading size

17 × 14 inch (355.6 × 431.8 mm)

Light source mode

Back light mode

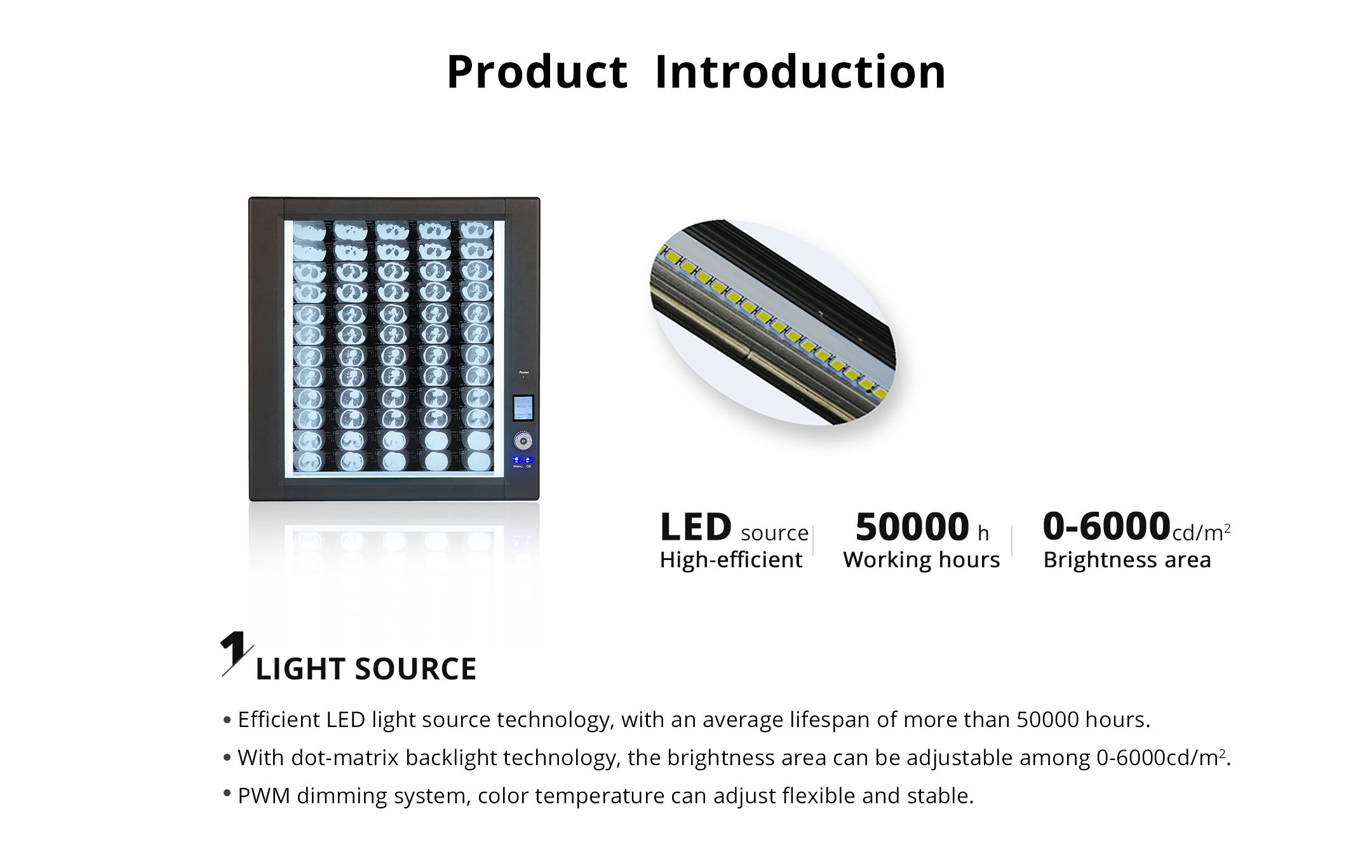

Light source

Super brightness SMD LED 780 pcs/panel,

8000K color temperature, lifespan is over 50000 h

Electric parameters

Global voltage adaptive built-in power, AC 90 V - 240 V, 50 / 60 Hz

Brightness adjustment range

0 - 6000 cd/m²

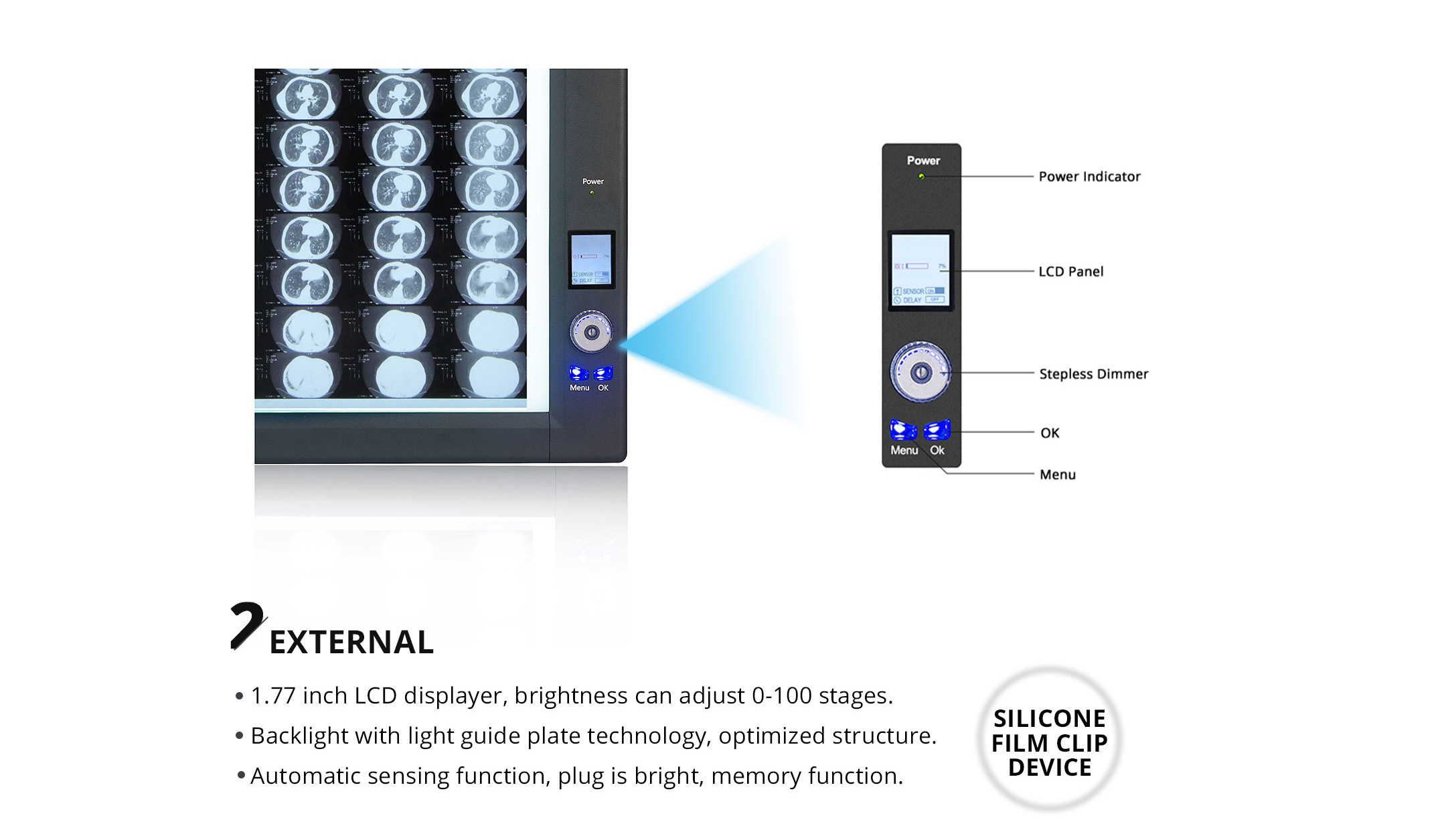

Clip device

Silicone clip device

Mount type

Wall installation and bracket installation

Applicable film

General analog X-ray film, high-density digital X-ray film, mammography breast film

Application function

Separate control of each panel, film sensor, lighting up by inserting film, brightness memory, delay shutdown.

Viewing uniformity

≥ 90 %

Environment conditions for use

It is suggested that the environmental illumination of film reading room should not be greater than 100 lx.
