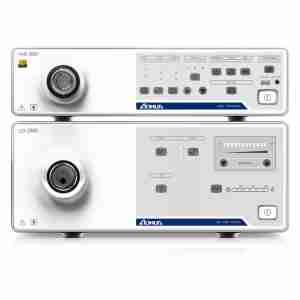

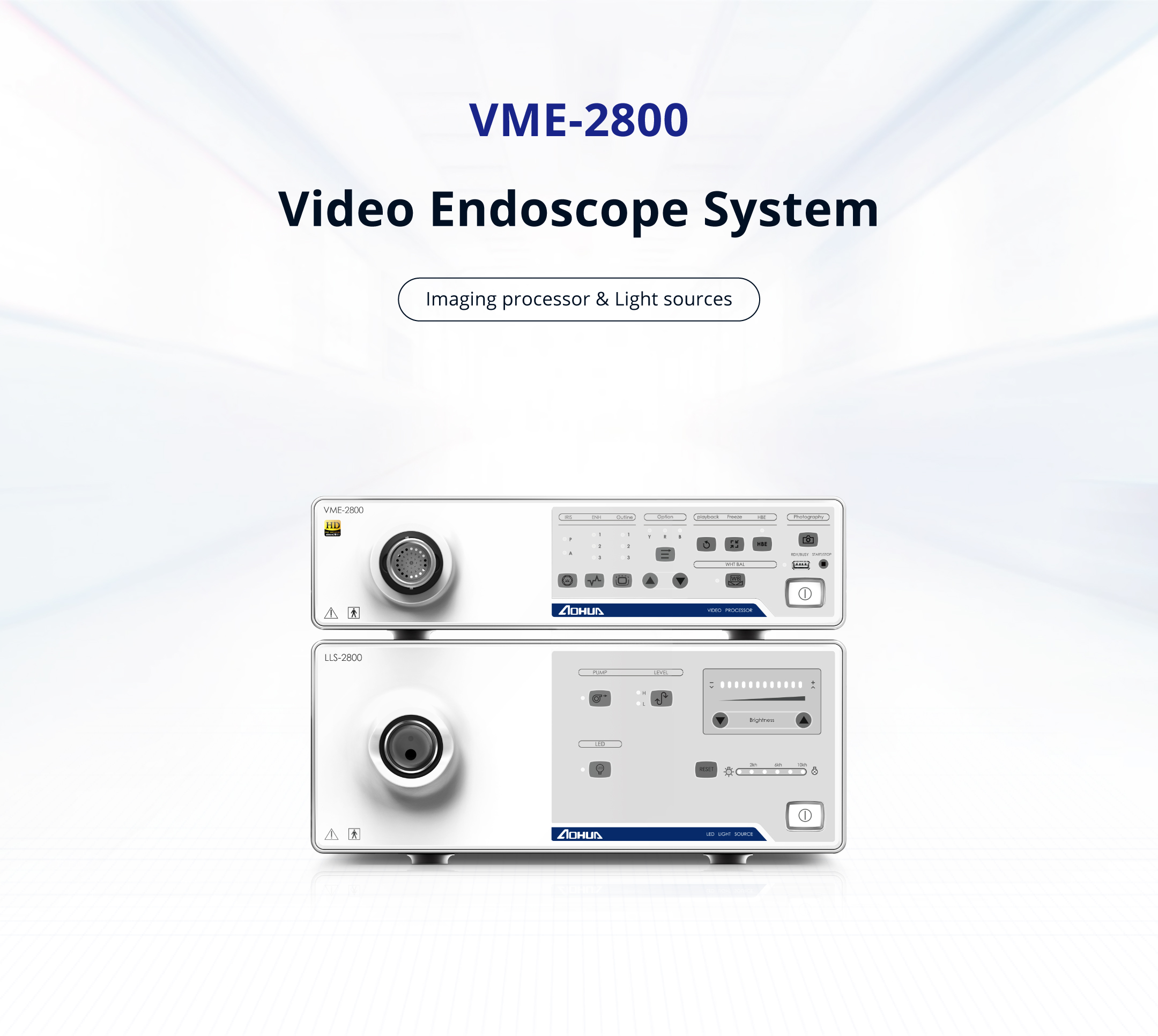

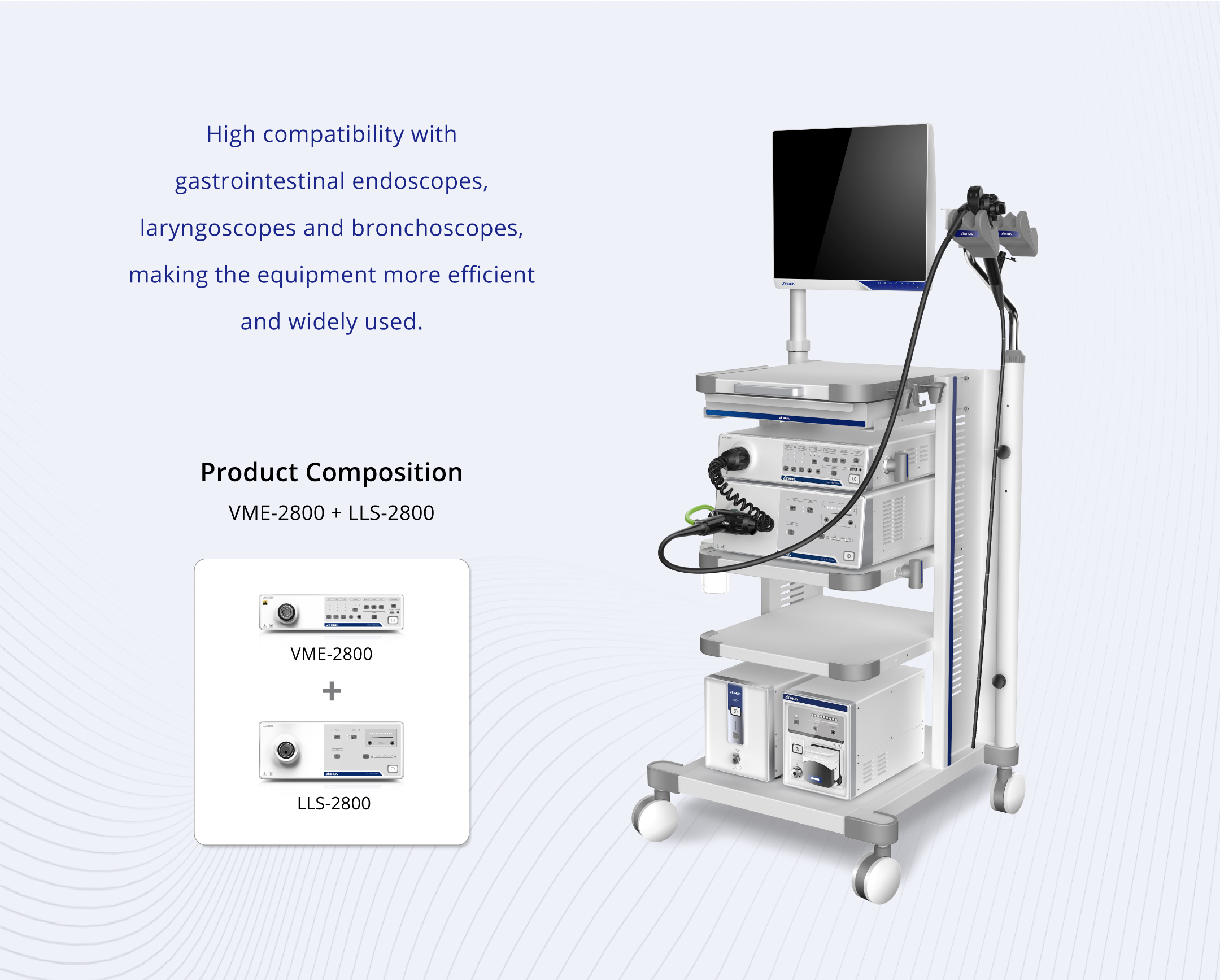

Endoscope Image Processor

Model

VME-2800

Type of protection against electric shock

Class I

Operation model

Continuous operations

Voltage

100 ~ 240 V AC

Frequency

50 / 60 Hz

Input power

50 VA

Digital signal output interface

DVI

Analog signal output interface

AV, Y/C (Y/G, Pb/B, Pr/R, SYNC)

Light Source

Model

LLS-2800

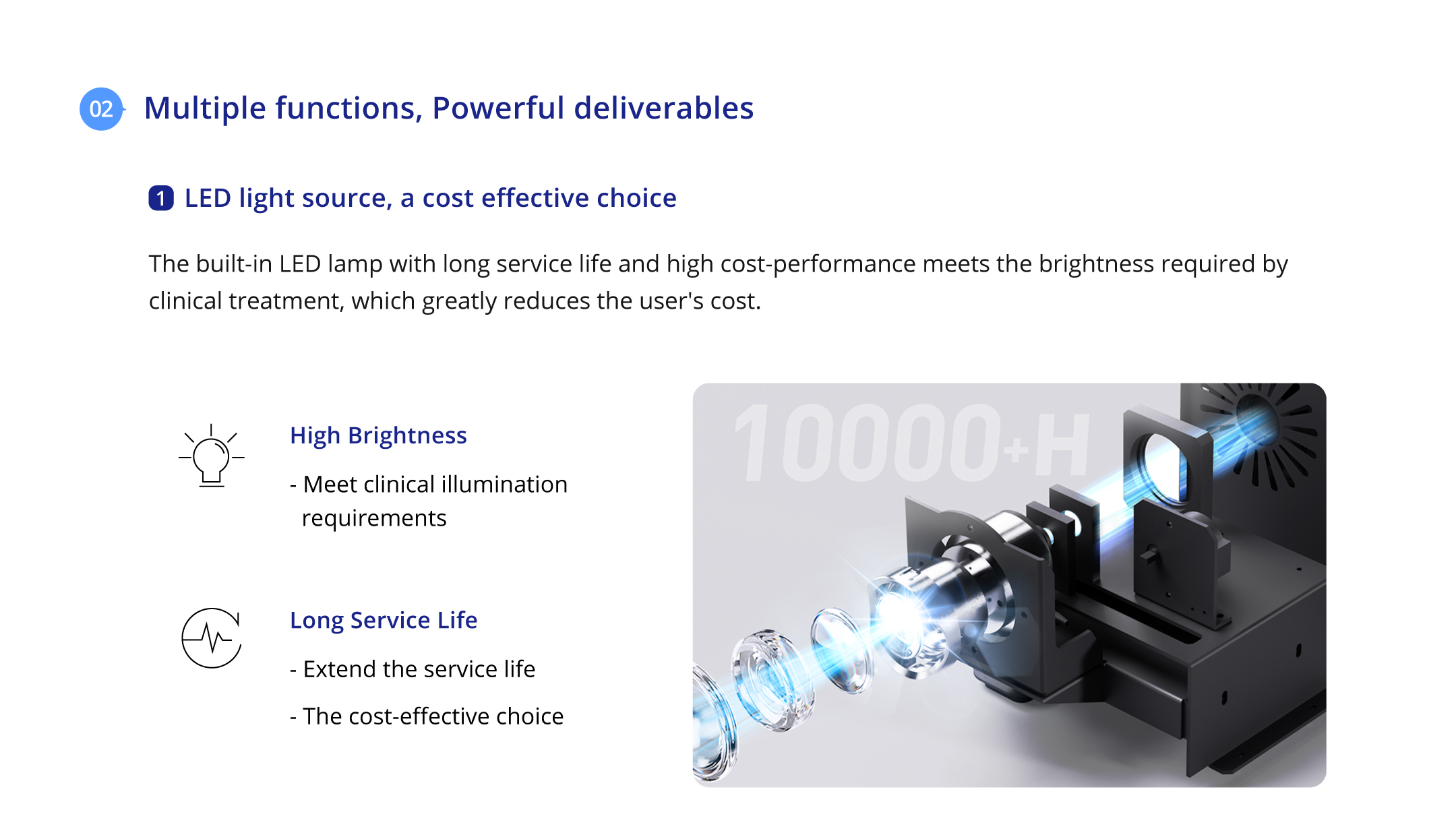

Light source

LED lamp

Frequency

50 / 60 Hz

Average life of bulb

About 10000 h

Color rendering index

≥ 90

Color temperature

3000 ~ 7000 k

Air pump flow

Off, L and H Level

Brightness adjustment

Brightness adjustment with 12 stage options

Functions & Features

White balance

It makes the image color closer to reality.

HbE enhancement

Can highlight the mucosal capillary morphology.

Structure enhancement

Enhanced display of lesion range and profile with increase image sharpness.

Metering mode

Average, Peak

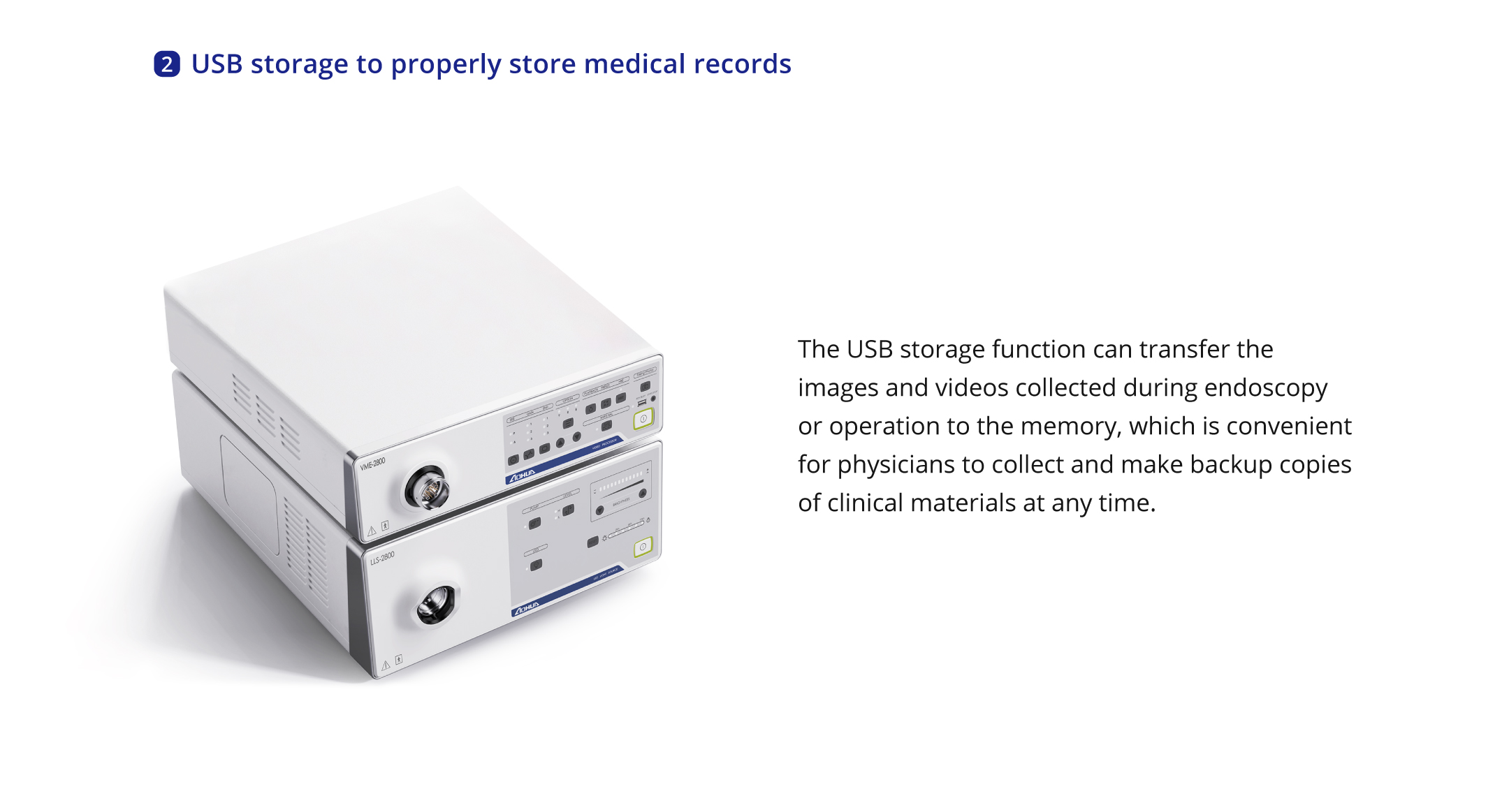

USB storage

High definition images and videos can be stored at any time, convenient to carry.

Tone adjustment

Adjustment of R and B: ± 50

Color tone adjustment

Y adjustment: ± 50

Image enhancement

When the distal end of the endoscope is too far away from the mucous membrane

and the brightness is not enough, adjust to increase the image brightness.

Freeze and playback

It can freeze a real-time image and play back the frozen image.
