Vertical vacuum freeze dryer with manifold
Overview
Details & Parameters
Chat Now

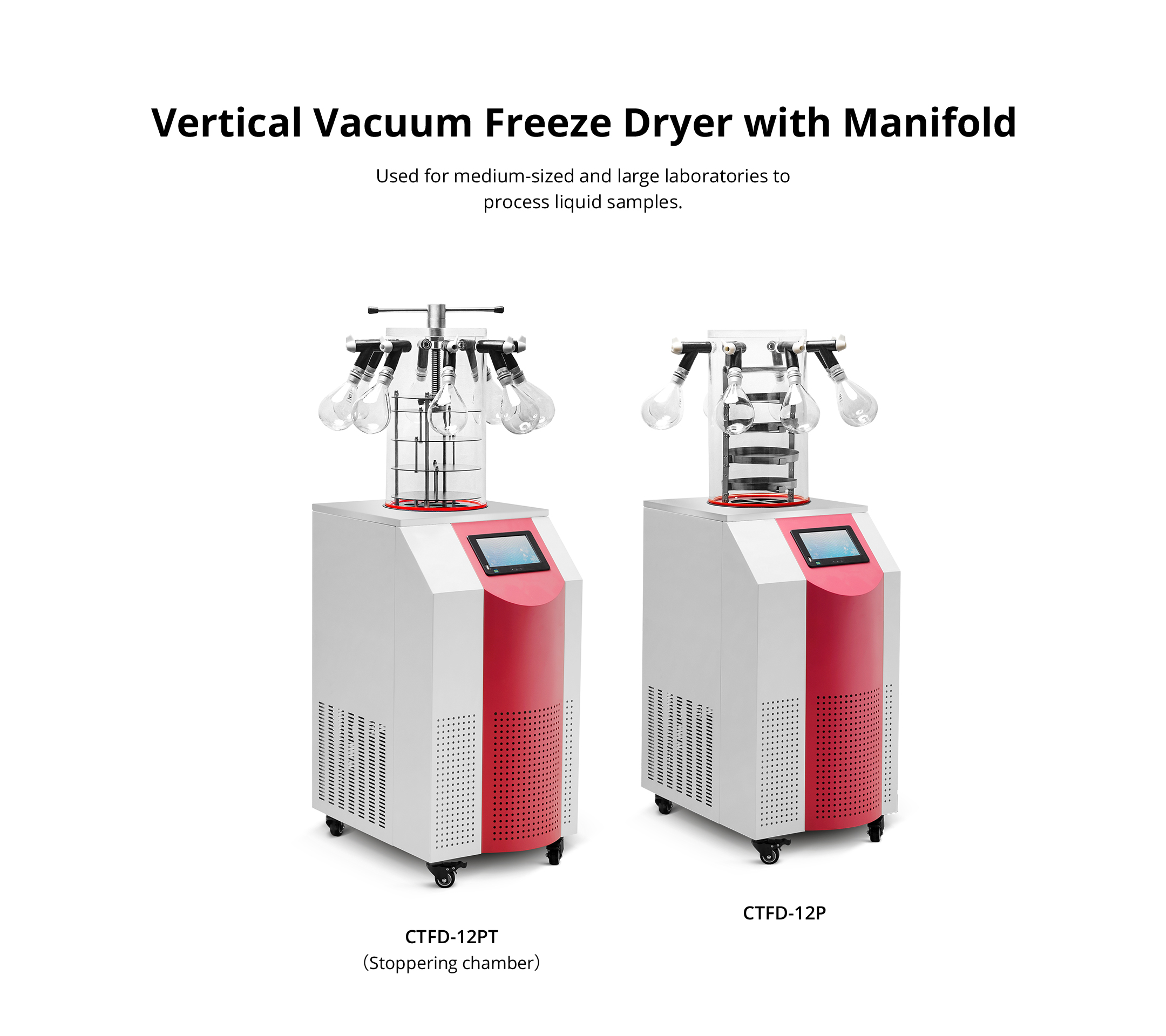

Vertical vacuum freeze dryer with manifold
Product ID: MD87995
P/N: MD879951
Used for medium-sized and large laboratories to process liquid samples.
Model
CTFD-12P
CTFD-12PT
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Medmay QRS Quickly meets your needs
Recommend related products
Pipette / Pipettor
Centrifuge
Rotary Evaporator
Vacuum Filtration
Vacuum Freeze Dryer
Shaker
Pipette linear stand
$ Inquiry after Sign-In
Adjustable volume pipette - I, single-channel
$ Inquiry after Sign-In
Fixed volume pipette - I, single-channel
$ Inquiry after Sign-In
Adjustable volume pipette - II, single-channel
$ Inquiry after Sign-In
Fixed volume pipette - II, single-channel
$ Inquiry after Sign-In
Adjustable volume pipette - III, single-channel (fully autoclavable)
$ Inquiry after Sign-In
Fixed volume pipette - III, single-channel (fully autoclavable)
$ Inquiry after Sign-In
8-channel adjustable volume pipette - I
$ Inquiry after Sign-In
12-channel adjustable volume pipette - I
$ Inquiry after Sign-In
8-channel adjustable volume pipette - II
$ Inquiry after Sign-In
12-channel adjustable volume pipette -II
$ Inquiry after Sign-In
8-channel adjustable volume pipette - III, fully autoclavable
$ Inquiry after Sign-In
12-channel adjustable volume pipette - III, fully autoclavable
$ Inquiry after Sign-In
Electronic pipette (single channel)
$ Inquiry after Sign-In
Pipette pump
$ Inquiry after Sign-In
Electronic pipette filler
$ Inquiry after Sign-In
Electronic pipette filler
$ Inquiry after Sign-In
Pipette controller
$ Inquiry after Sign-In
Bottle-top dispenser
$ Inquiry after Sign-In
Electronic titrator with magnetic stirrer / Electronic burette
$ Inquiry after Sign-In
Electronic bottle-top dispenser
$ Inquiry after Sign-In
Stepper-StepMate
$ Inquiry after Sign-In
Pipette round stand
$ Inquiry after Sign-In
Hydrophobic filter for pipette filler or pipette controller
$ Inquiry after Sign-In
Syringes/Tips for StepMate stepper, high-quality materials (Piston: PE-HD, Cylinder: PP)
$ Inquiry after Sign-In
Premium bottle-top dispenser, DispensMate-Pro
$ Inquiry after Sign-In
Pipette round stand
$ Inquiry after Sign-In
Pipette round stand
$ Inquiry after Sign-In
Pipette linear stand
$ Inquiry after Sign-In
Triangular pipette holder
$ Inquiry after Sign-In
Adjustable volume pipette - IV, single-channel, fully autoclavable
$ Inquiry after Sign-In
Fixed volume pipette - IV, single-channel, fully autoclavable
$ Inquiry after Sign-In
Mini pipette
$ Inquiry after Sign-In
Mini fixed pipette
$ Inquiry after Sign-In
Genex adjustable volume pipette, single channel
$ Inquiry after Sign-In
Genex fixed volume pipette, single channel
$ Inquiry after Sign-In
Color adjustable pipette, single-channel
$ Inquiry after Sign-In
Color 8-channel adjustable pipette
$ Inquiry after Sign-In
Color 12-channel adjustable pipette
$ Inquiry after Sign-In
Genex 8-channel adjustable volume pipette
$ Inquiry after Sign-In
Genex 12-channel adjustable volume pipette
$ Inquiry after Sign-In
HiPette pipettor, fully autoclavable mechanical pipette
$ Inquiry after Sign-In
Stepper pipette
$ Inquiry after Sign-In
Mini pipette
$ Inquiry after Sign-In
Economical adjustable volume pipette -ECI , single-channel
$ Inquiry after Sign-In
Economical adjustable volume pipette -ECII , single-channel
$ Inquiry after Sign-In
Fully autoclaved single-channel mechanical pipettor
$ Inquiry after Sign-In
Multi-functional 8-channel electronic pipette
$ Inquiry after Sign-In
Product Details
Parameters

Model

CTFD-12P

CTFD-12PT

Style

Standard chamber with 8 port manifold

Stoppering chamber with 8 port manifold

Final condenser temp (℃)

-60℃

Vacuum degree (Pa)

< 10 Pa

Condenser volume (L)

9.5 L

Freeze drying area (m2)

0.12

0.09

Water condenser capacity (Kg / 24h)

4

Qty of shelf

4

3



Loading capacity per shelf (ml)

300

Loading capacity (ml)

1200

900

USB interface

Yes

Drying chamber (standard)

Transparent acrylic

Speed of vacuum pump

2 L / S

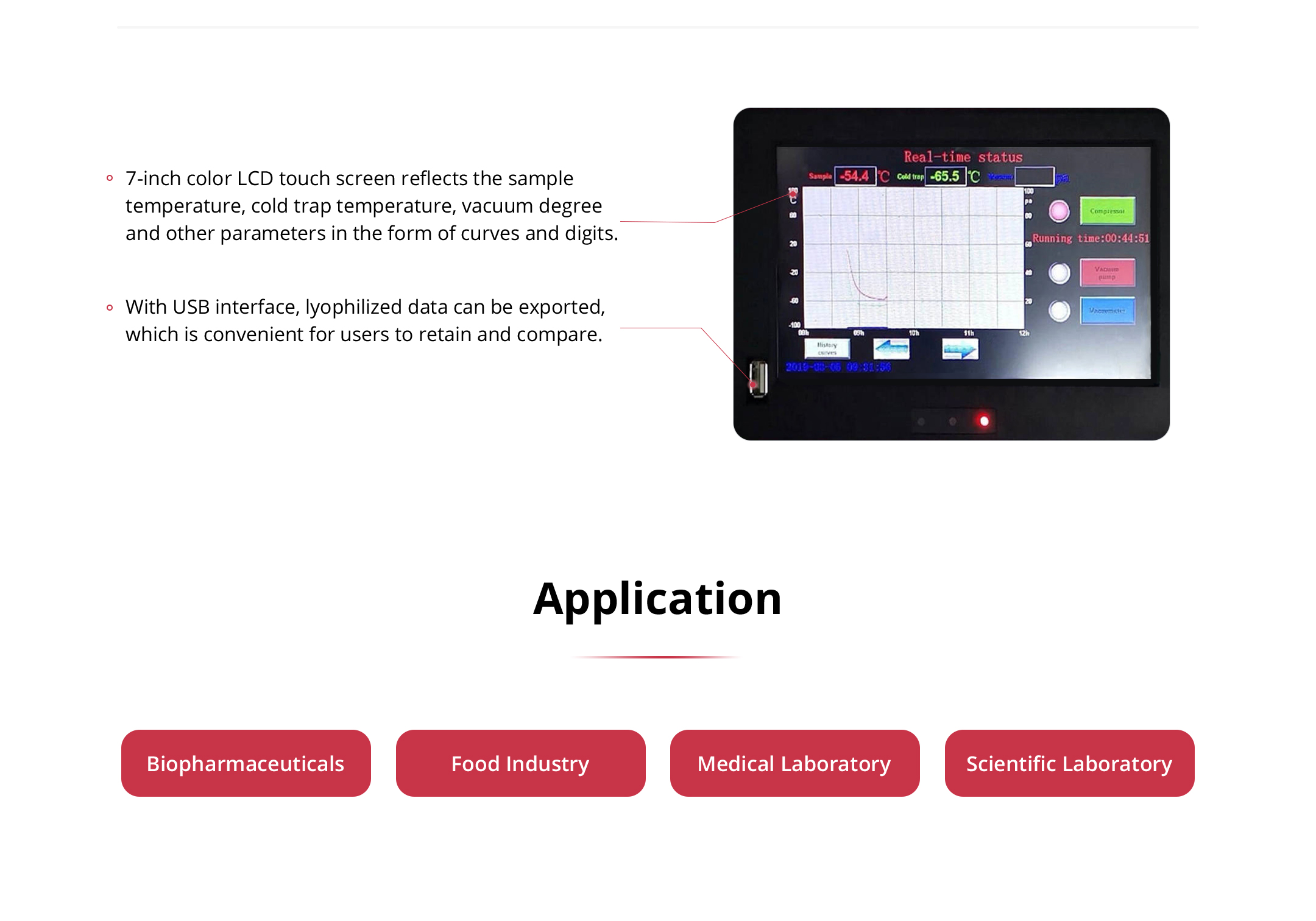

Control system

Microprocessor, touch screen

Ultimate vacuum (Pa)

1

Noise (Db)

< 66

Voltage & Frequency

110 ~ 220 V & 50 ~ 60 Hz

Power (Kw)

0.95

Condenser chamber dimension  (Φ × h mm)

217 × 250

Sample tray dimension  (Φ × h mm)

200 × 20

Sample shelf dimension (Φ × h mm)

210 × 365

234 × 518

Sample shelf distance average (mm)

76

70

Host size (W × D × H mm)

480 × 610 × 905

Vacuum hood dimension (upper / lower Φ × h mm)

260 / 240 × 450

Exterior dimension (W × D × H mm)

480 × 610 × 1355

480 × 610 × 1415

Host net weight (Kg)

70

Host package (W × D × H mm)

730 × 600 × 1180

Vacuum hood package (W × D × H mm)

410 × 410 × 640

Vacuum pump package (W × D × H mm)

220 × 580 × 370

Weight (Kg)

135
