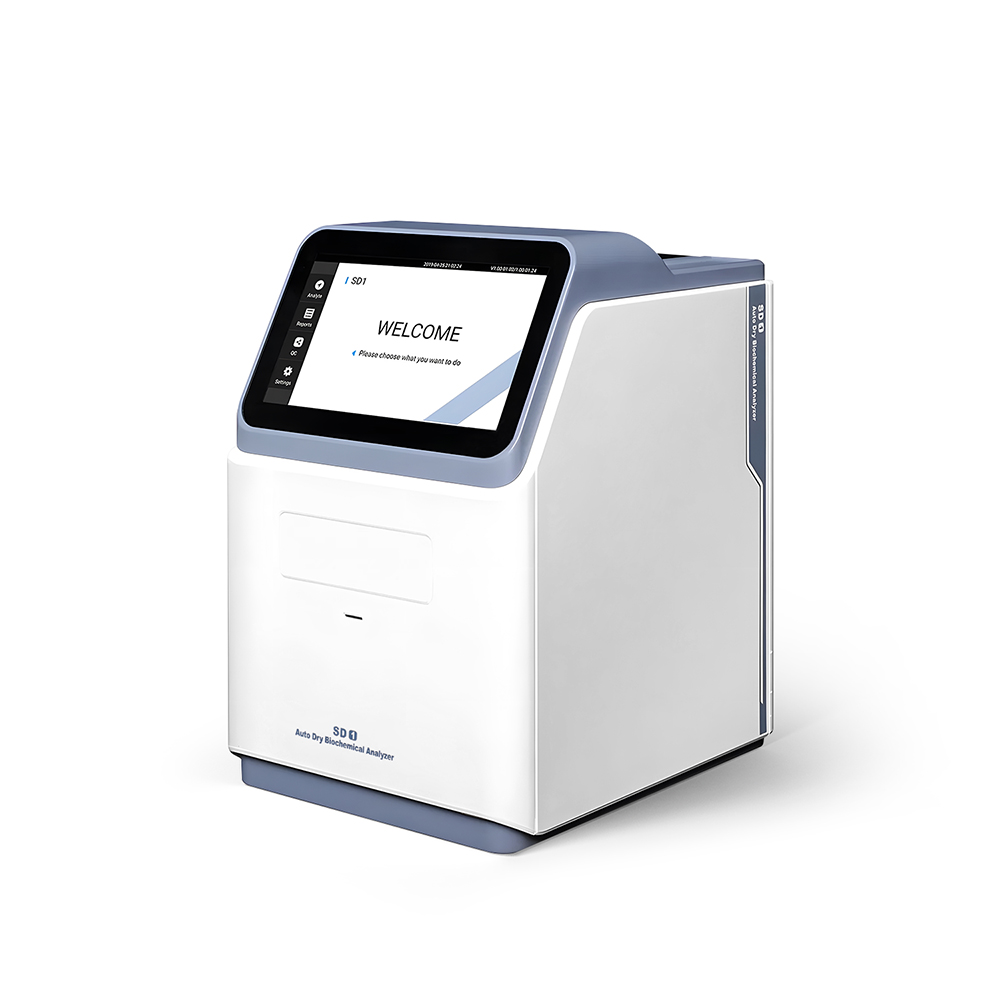

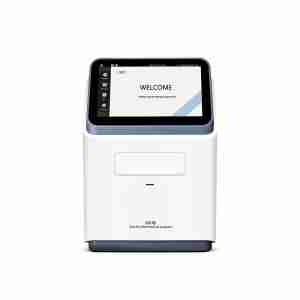

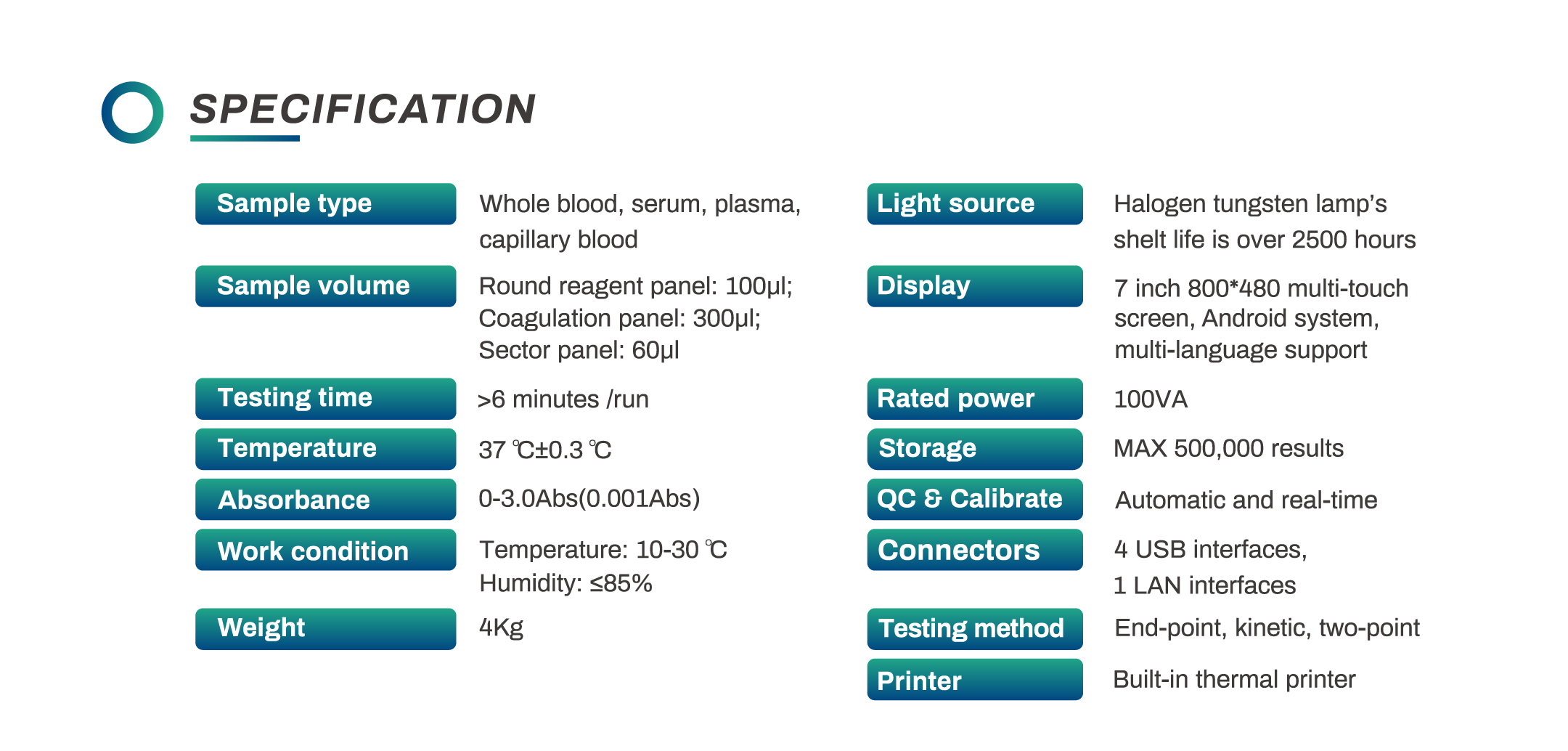

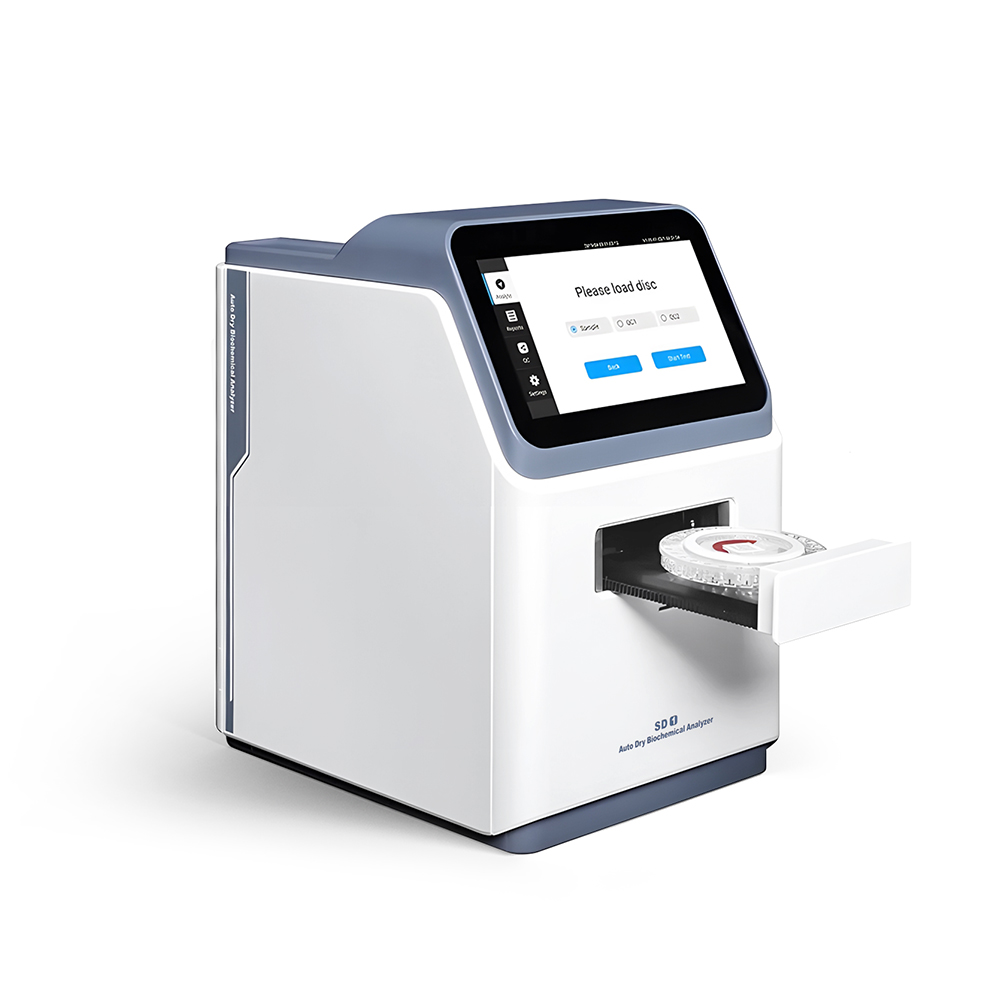

Model

SD1

Sample type

Whole blood, Serum and Plasma

Sample volume

90 ~ 120 μL

Time to results

12 minutes

Testing principle

Absorption spectroscopy, Transmission turbidimetry

Testing Method

Endpoint, Kinetic, Fixed time, Turbidimetry, etc.

Resolution

0.001 Abs

Cross contamination

0

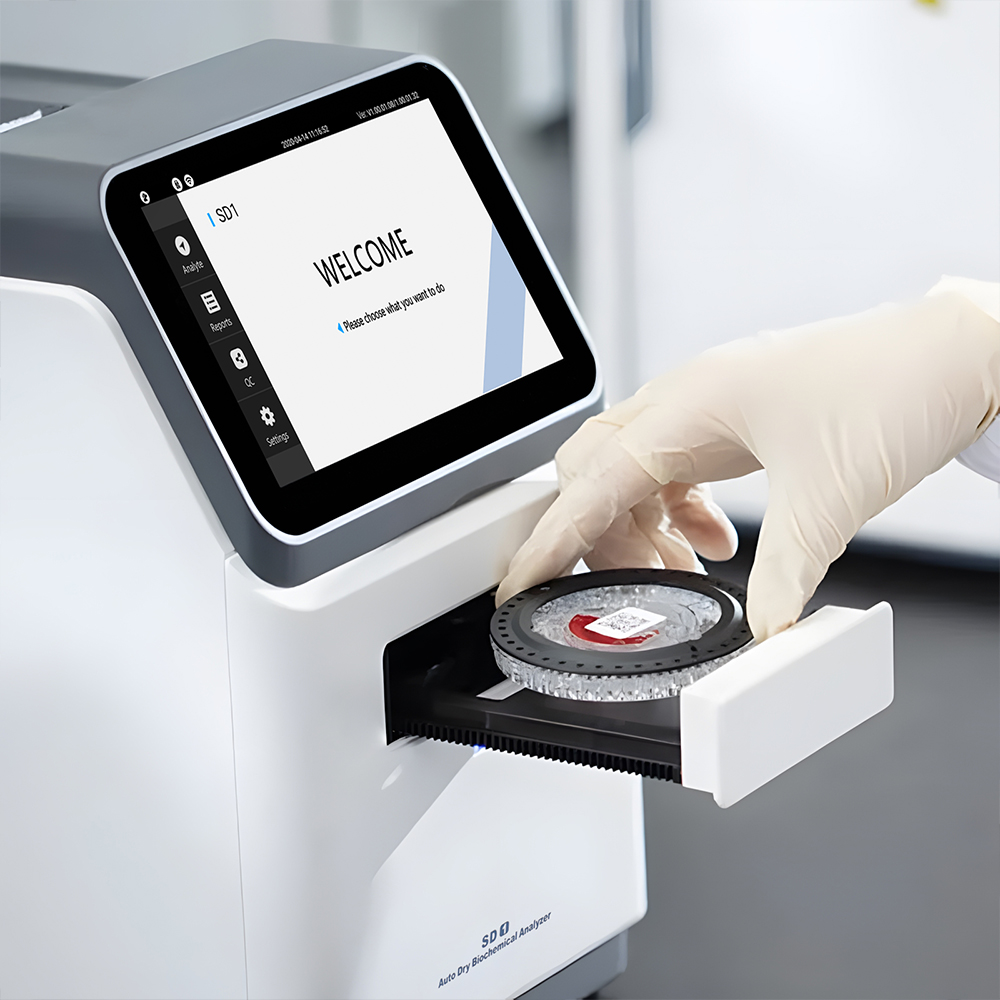

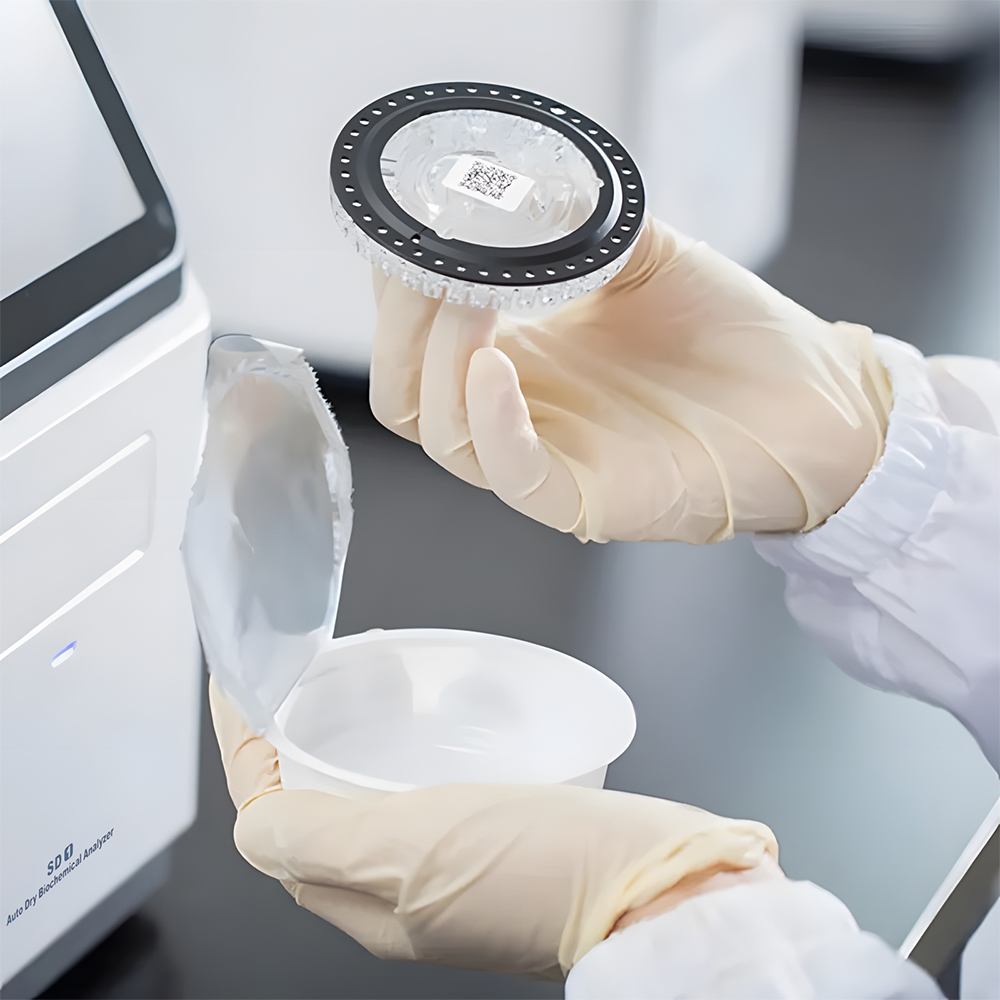

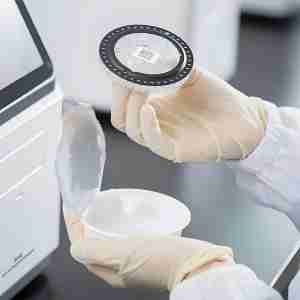

Reagent disc

Disposable, prepacked with self-contained lyophylized reagent

Reaction temperature

37 ℃ ± 0.3 ℃

Quality control & Calibration

Intelligent QC

Light source

12V/20W, halogen tungsten lamp with lifespanover 2500 hours

Optical system

After the filter spectral, 8 wavelength synchronous detection: 340, 405, 450, 505, 546, 600, 630, 850nm

Display

Android 7.0 inch 800*480, multi-point capacitive touch screen

Connection interface

4 USB ports, 1 LAN port

Print mode

Built-in thermal printer

Data capcity

500000 test results

Operation enviroment

Temperature 10 ~ 30 ℃, humidity 30 ~ 70%

Power

120 VA, Input: AC 220V, 50Hz

Dimensions

200 mm × 252 mm × 299 mm

Net weight

4.6 kg
