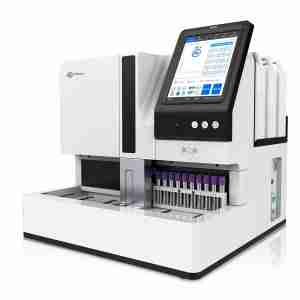

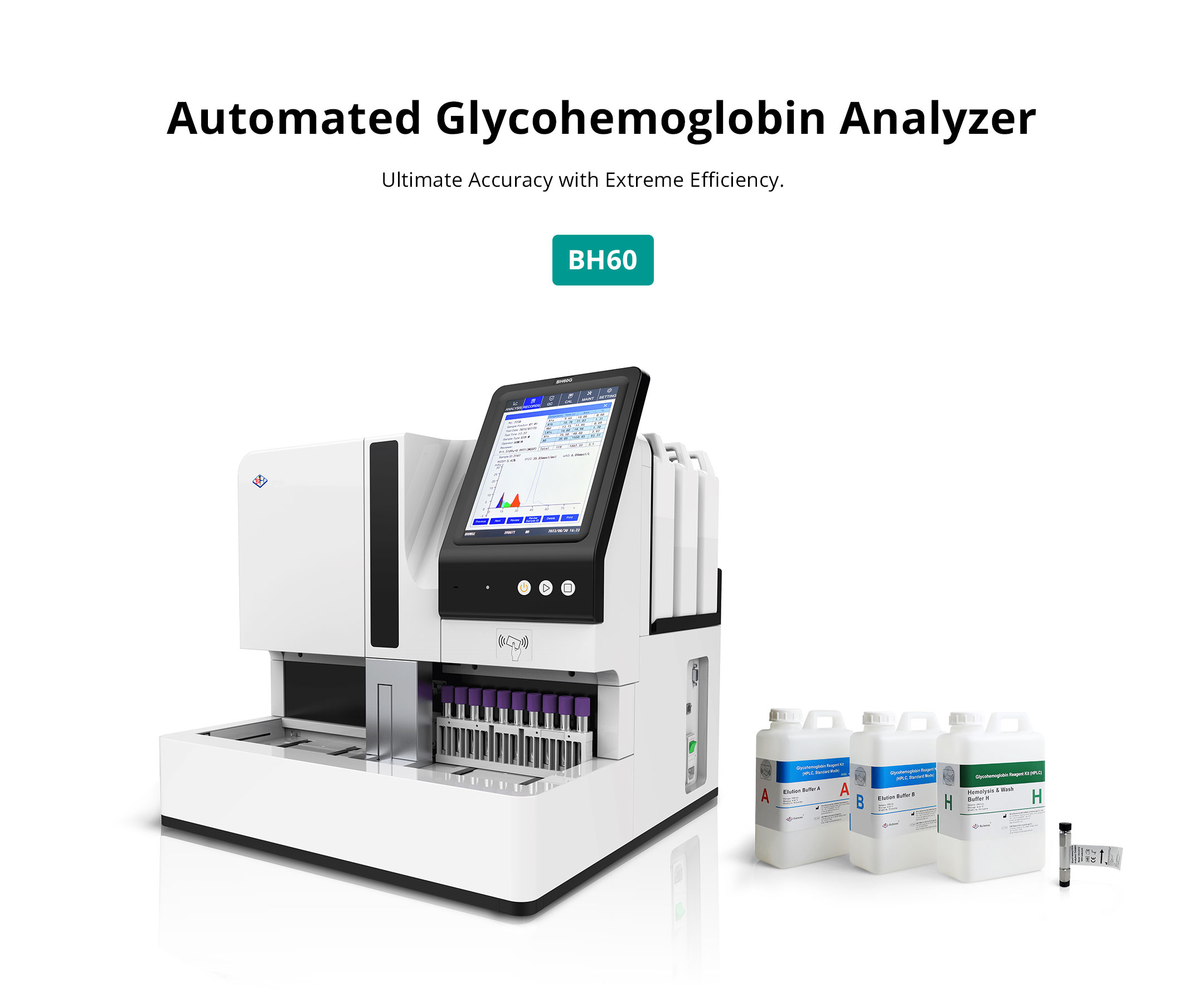

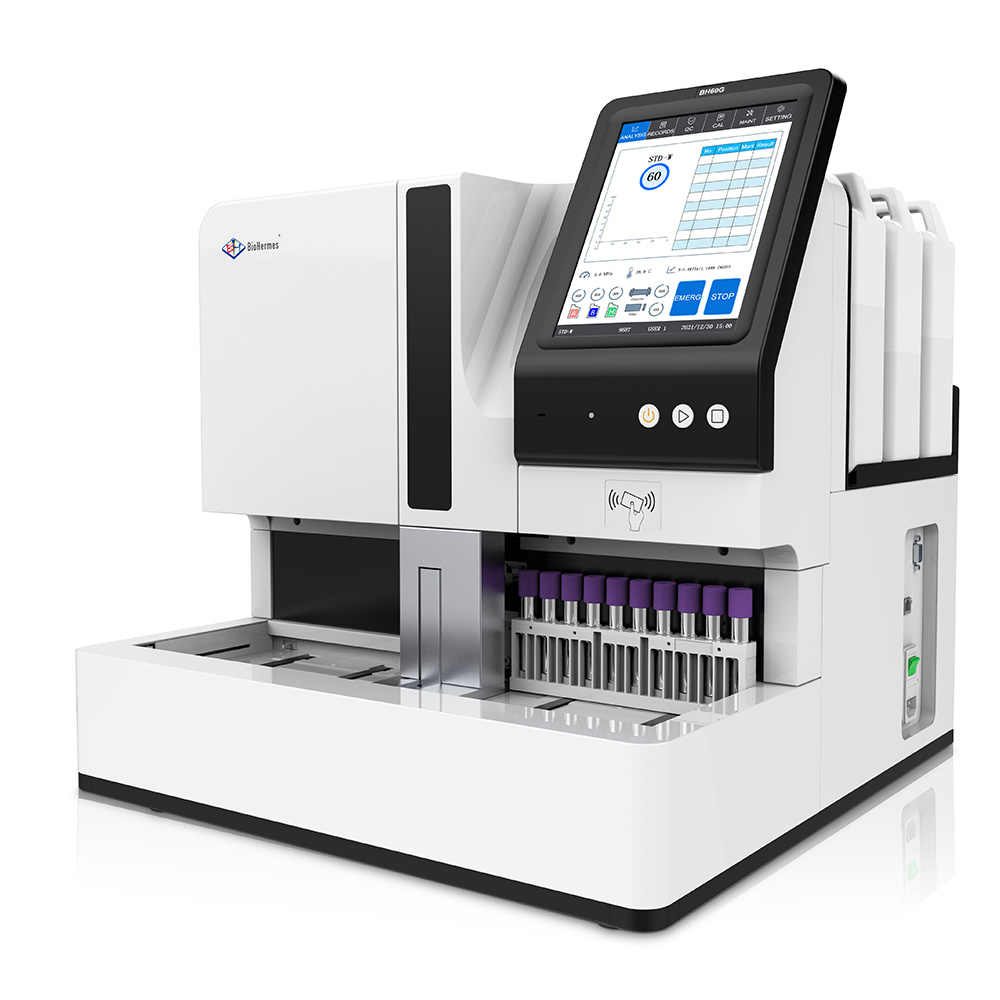

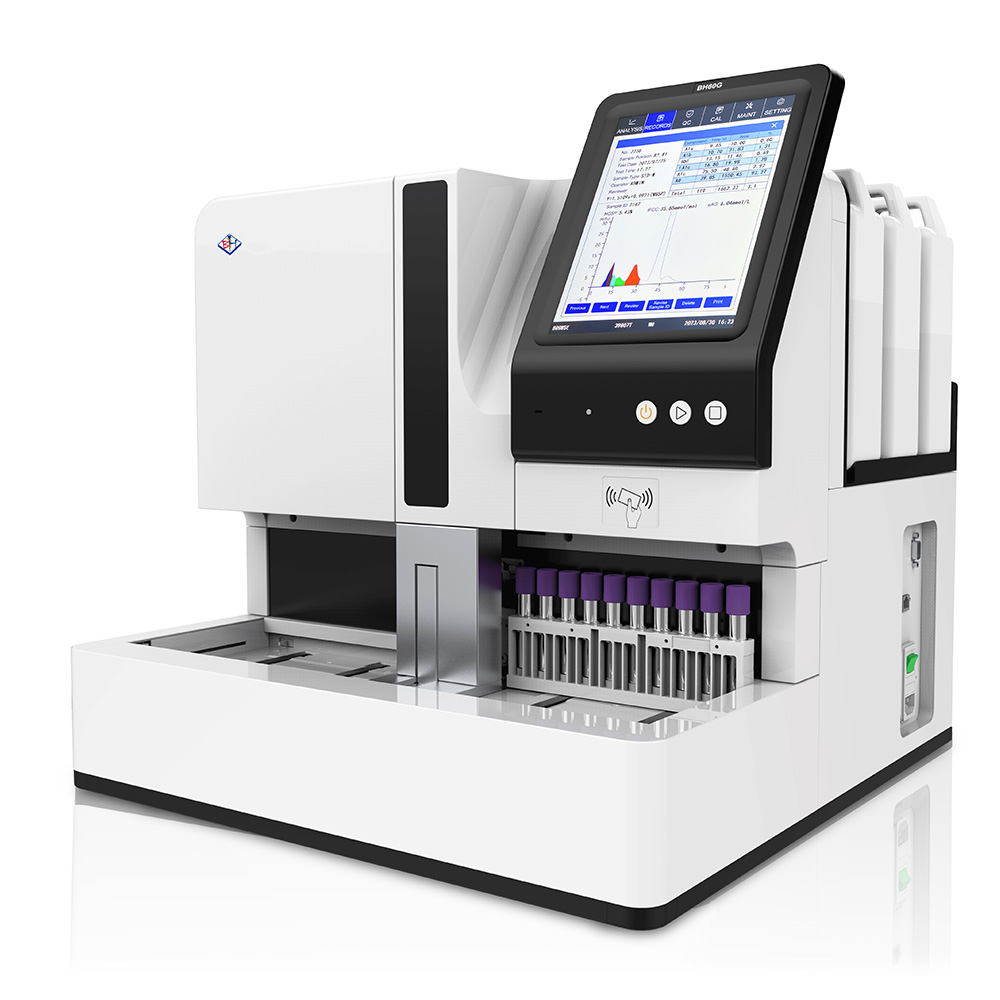

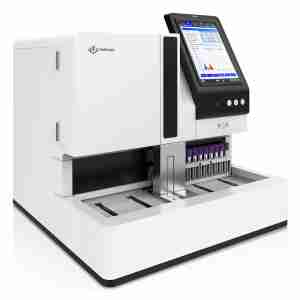

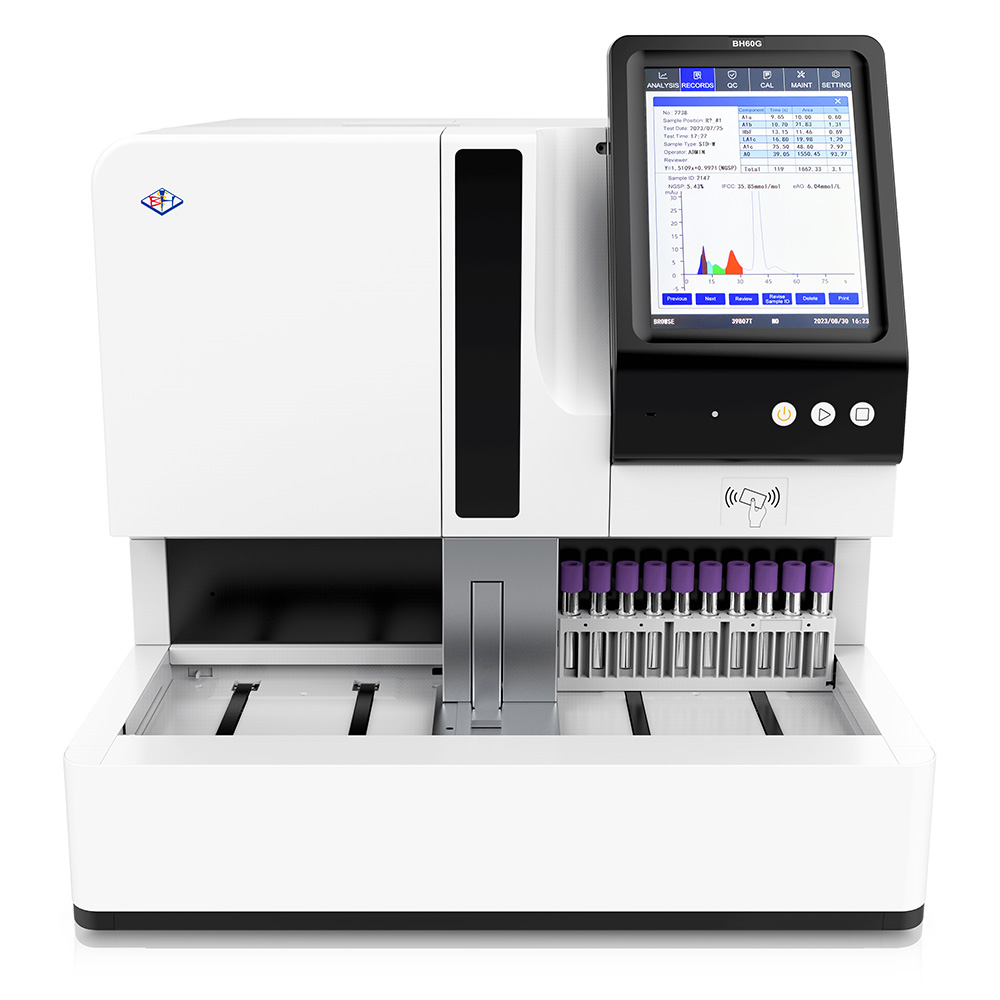

BH60 automated glycohemoglobin analyzer / HbA1c analyzer (HPLC)
Product ID: ME31345
P/N: ME313451
lon-Exchange HPLC methodology, 60 seconds / sample (standard mode), up to 110 samples at a time (support blood tube and sample cup).
Hot commodity
Model
BH60
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Always bought together
Recommend related products

Model

BH60

Principle

Ion-Exchange HPLC

2-wavelength absorbance (detection length: 415nm)

Test Items

HbA1c (s-A1c), HbF

Sampling Volume

Whole blood: 5ul, Pre-dilution: 5ul

Minimum Sample Volume

Blood collection tube: 1ml, Sample cup: 0.5ml

Maximum Loading Capacity

Up to 110 samples at a time, automated continuous loading

Analysis Mode

Whole blood mode, Pre-dilution mode

Testing Time

Standard analysis mode: 60 seconds / T

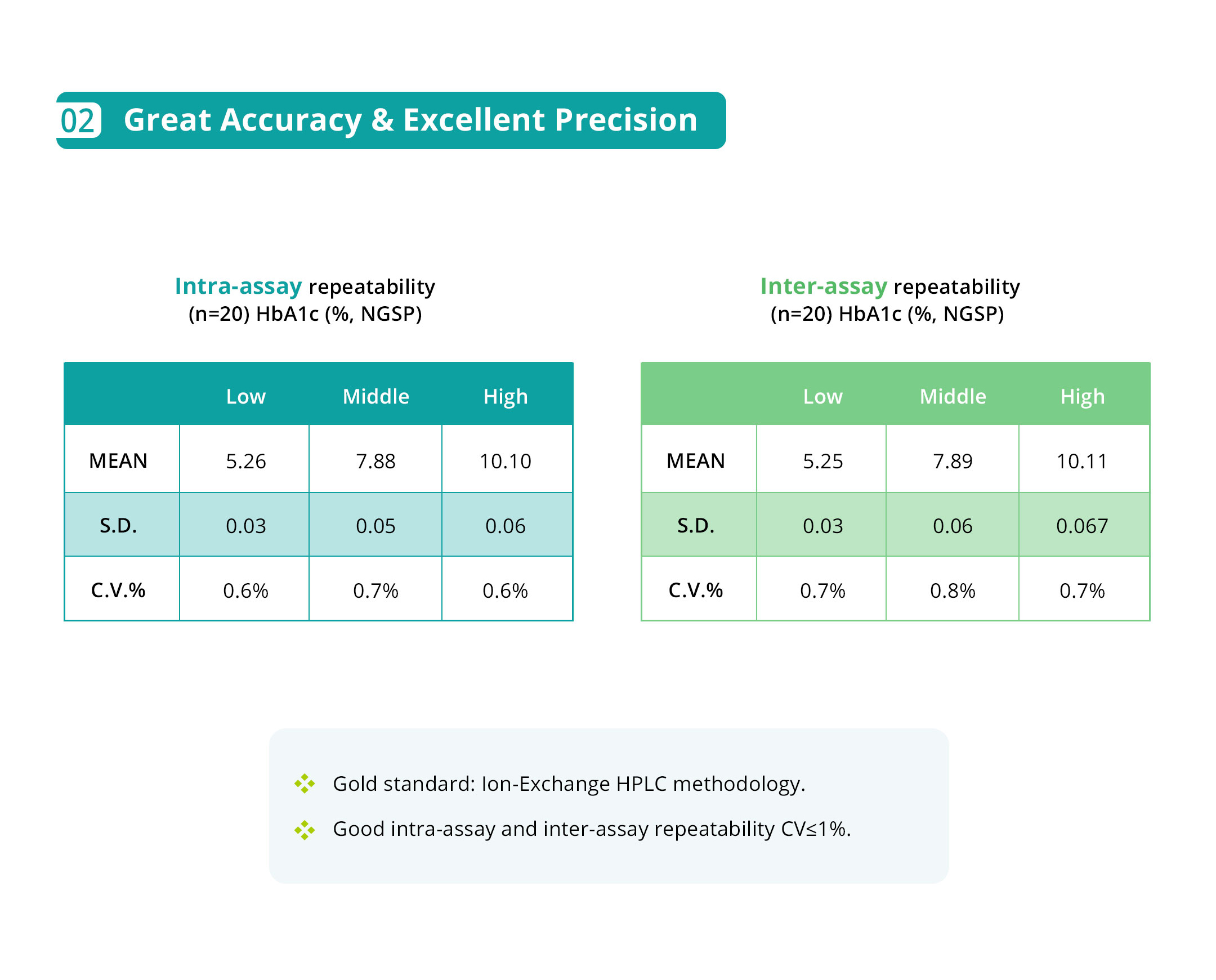

Precision

CV 1 %

Detection Range

3 % ~ 20 %

Result Unit

NGSP (%), IFCC (mmol / mol)

Working Condition

Temperature: 10 ~ 35 , Humidity: 10 % ~ 85 %

Data Storage

20000 analysis data with chromatogram, 2000 QC data with chromatogram,
100 calibration data

Expected Life

10 years

Power Supply

(AC110 ~ 220 V) ± 10 %, (50 ~ 60Hz) ± 3 %

Input power: 200 VA

Storage and Transport Condition

Temperature: -10 ~ 40 , Humidity: 10 % ~ 90 %, Atomospheric pressure: 70 ~ 106 Kpa

Package Size (W*D*H)

550 × 540 × 570 mm

Gross Weight

45 kg
