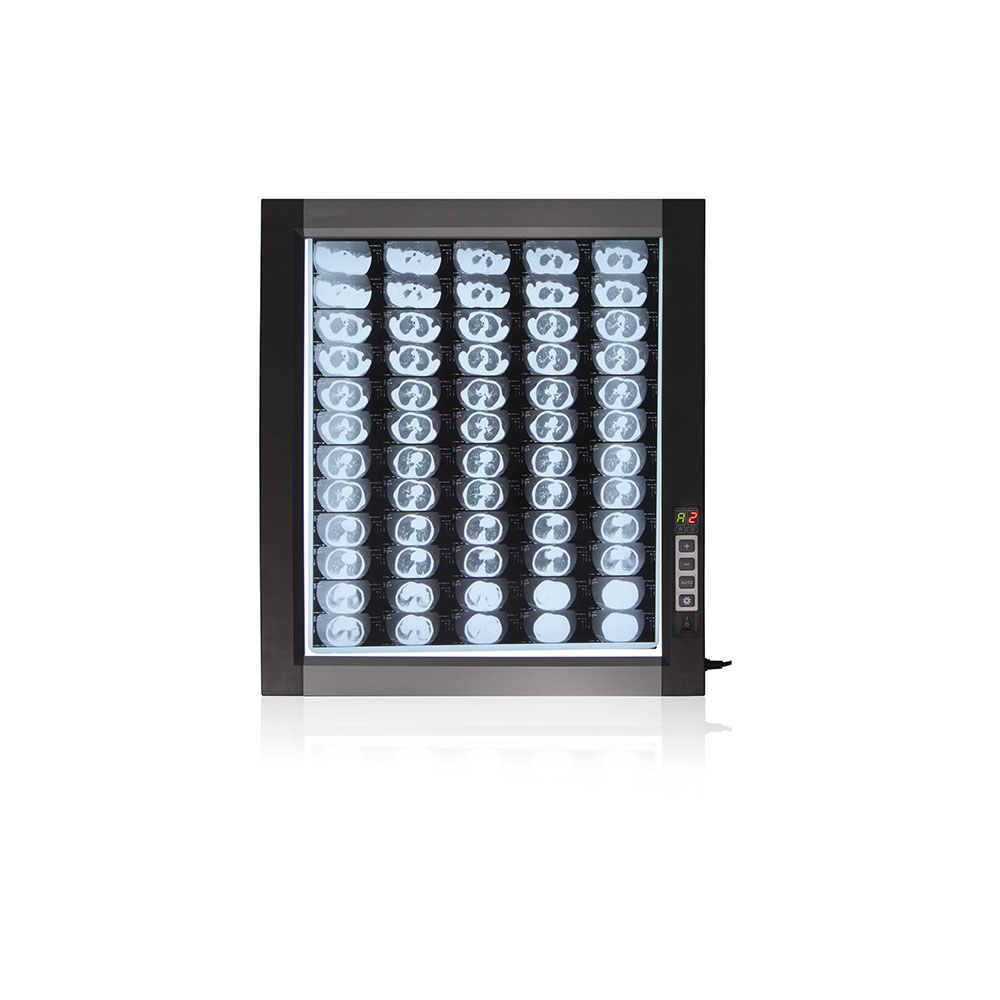

LED X-ray film viewer
Product ID: MV87106
P/N: MV871061
Used for observing medical imaging films.
Type
Single screen
Double screen
Triple screen
Quadruple screen
Quantity
Please note:
unit ( MOQ:  2 units )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model no.

Single (ZG-1D)

Double (ZG-2D)

Triple (ZG-3D)

Quadruple (ZG-4D)

External size (mm)

450 × 500 × 25

810 × 500 × 25

1170 × 500 × 25

1530 × 500 × 25

Visual size (mm)

360 × 420

720 × 420

1080 × 420

1440 × 420

Max. power

30 W

60 W

90 W

120 W

Maximum x-ray film reading size

17 × 14 inch (355.6 × 431.8 mm)

Light source mode

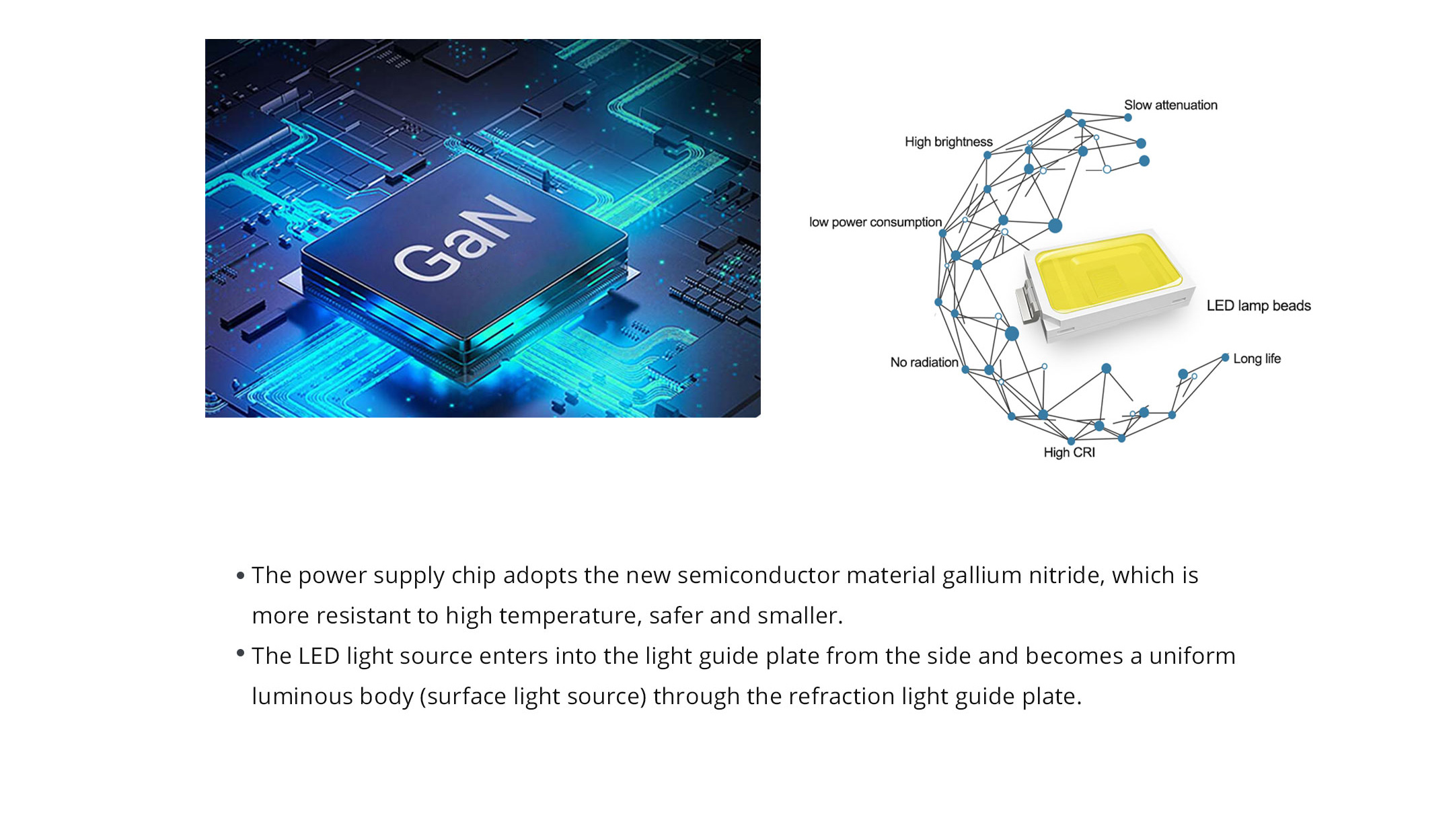

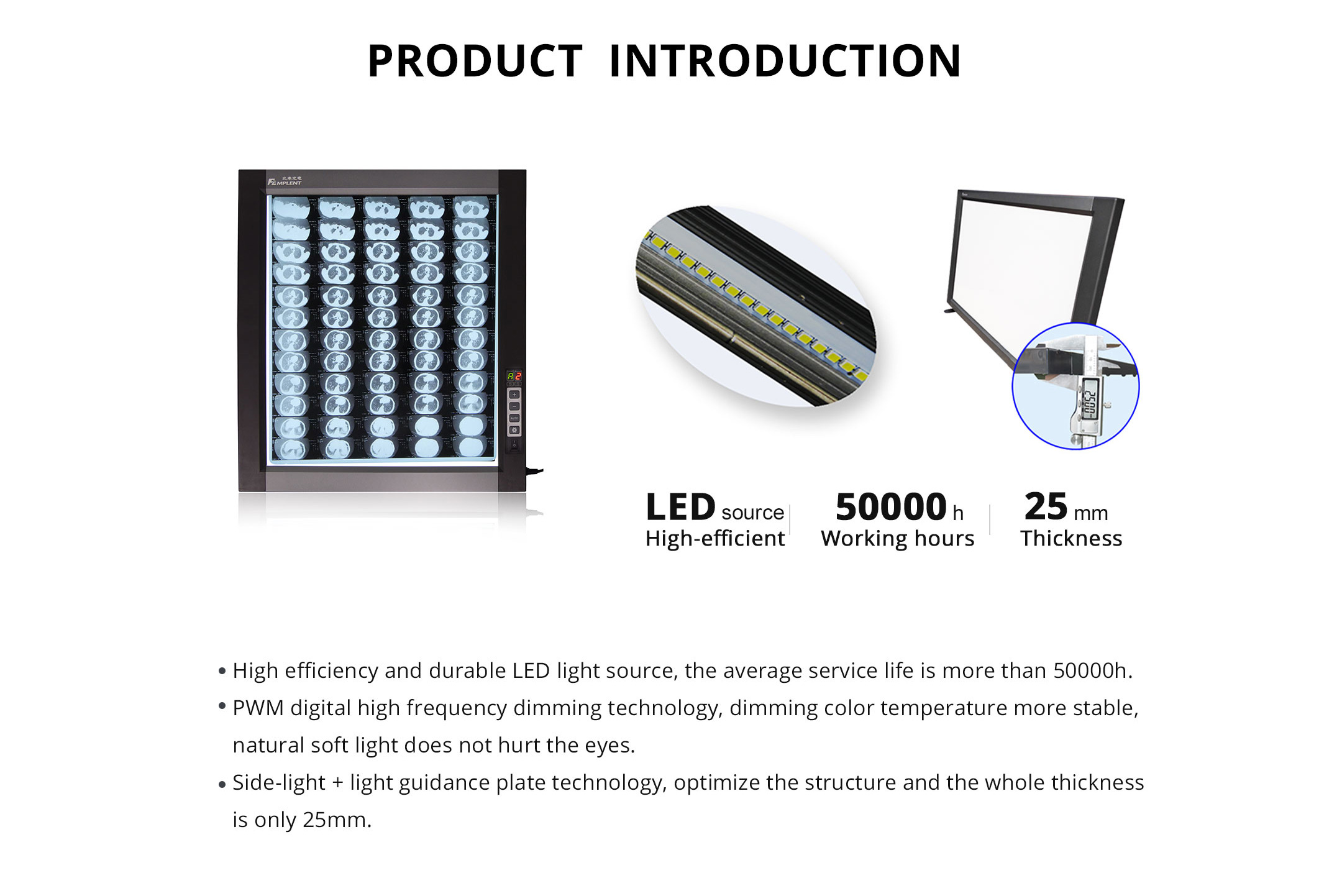

Side-lit light mode

Light source

Super high brightness SMD LED 144 pcs/panel,

8000 K color temperature, lifespan is over 50000 h

Electric parameters

Global voltage adaptive built-in power, AC 90 V - 240 V, 50 / 60 Hz

Brightness adjustment range

0 - 4000 cd/m2 (customizable brightness)

Clip device

Silicone clip device

Mount type

Wall installation and bracket installation

Applicable film

General analog X-ray film, high-density digital X-ray film, mammography breast film

Application function

Separate control of each panel, film sensor, lighting up by inserting film, brightness memory, delay shutdown.

Viewing uniformity

≥ 90 %

Environment conditions for use

It is suggested that the environmental illumination of film reading room should not be greater than 100 lx.
