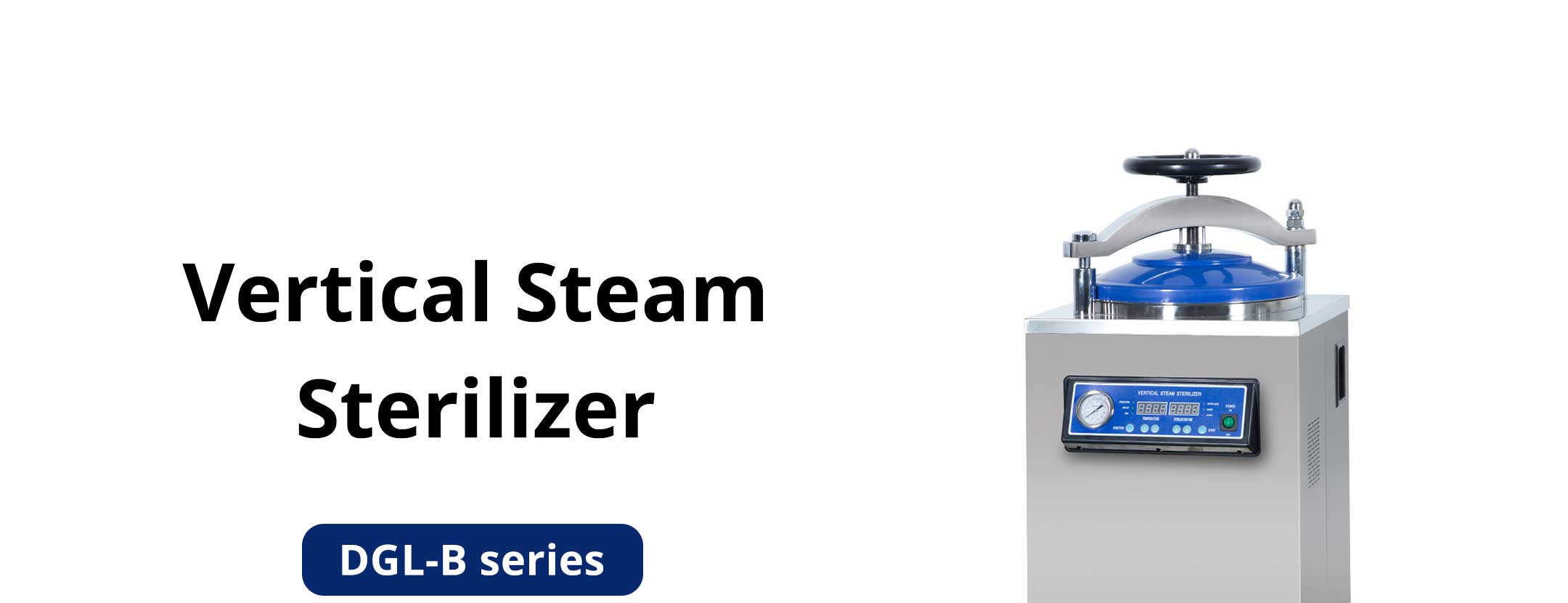

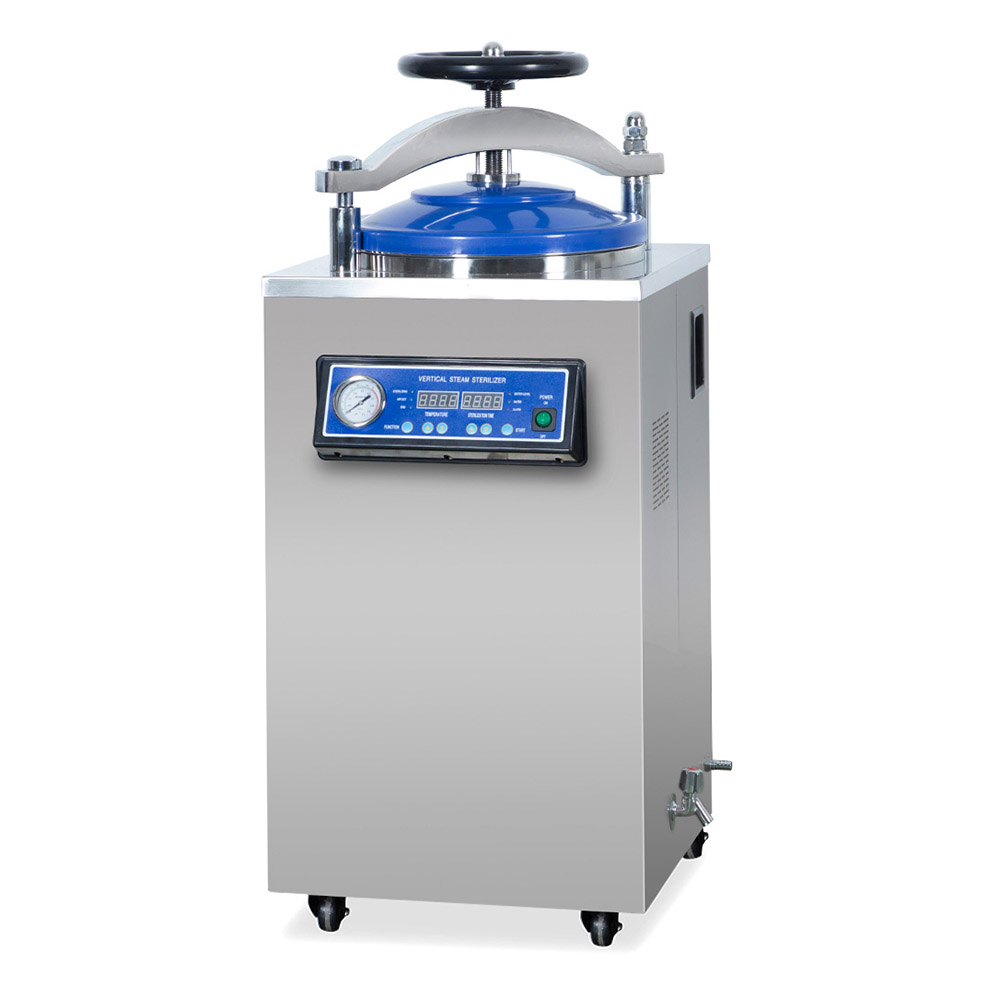

Vertical steam sterilizer digital display and automatic control (DGL-B series)
Product ID: MU44884
P/N: MU448842
This machine has a microcomputer automatic control and set sterilization parameters arbitrarily.
Model
DGL-35B (capacity: 35L)
DGL-50B (capacity: 50L)
DGL-75B (capacity: 75L)
DGL-100B (capacity: 100L)
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products
$ Inquiry after Sign-In
$ Inquiry after Sign-In

Model

DGL-35B

DGL-50B

DGL-75B

DGL-100B

Volume

35 L

50 L

75 L

100 L

Power

3.5 KW

3.5 KW

4.5 KW

4.5 KW

Voltage

AC 220 V, 50 HZ

Rated working pressure

0.22 Mpa

Rated working temperature

134 ℃

Sterilization temperature

50 ℃ ~ 134 ℃

Sterilization time setting range

4 ~ 120 min

Drying time setting range

0 ~ 240 min

Chamber volume (mm)

Ø 350 × 400

Ø 350 × 525

Ø 400 × 625

Ø 450 × 650

Bucket dimension (mm)

Ø 330 × 320

Ø 330 × 480

Ø 380 × 540

Ø 430 × 550

Basket dimension (optional)

Ø 320 × 350

Ø 320 × 240 × 2

Ø 360 × 280 × 2

Ø 410 × 300 × 2

Outer dimension (mm)

480 × 480 × 1020

480 × 480 × 1050

525 × 525 × 1200

555 × 555 × 1250

Packing size (L × W× H) (mm)

580 × 630 × 1130

580 × 630 × 1230

630 × 680 × 1290

690 × 650 × 1410

Gross / Net weight

79 / 58 kg

106 / 80 kg

120 / 90 kg

133 / 106 kg
