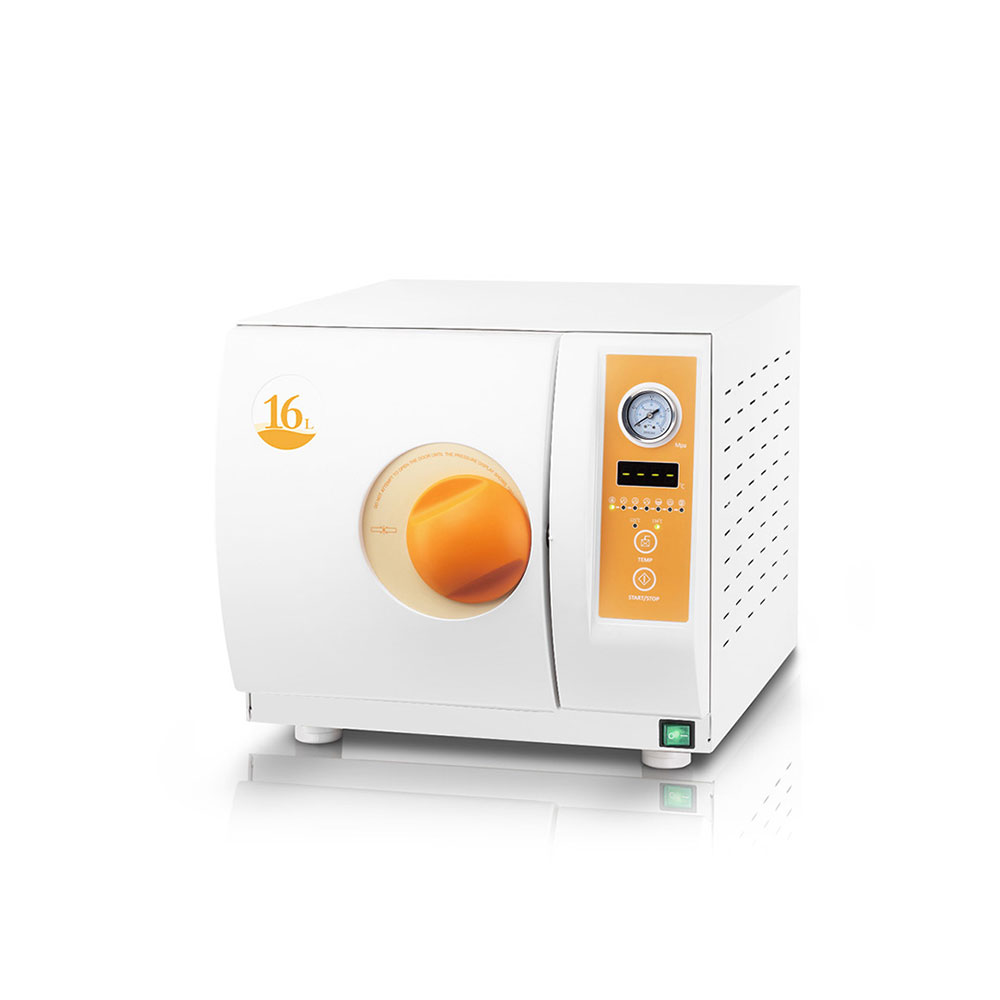

Model

CAL-16L

Capacity

16 L

Chamber dimensions

230 mm × 360 mm

Product size

440 mm × 575 mm × 370 mm

Water capacity

3.2 L

Voltage

220 V / 50 Hz

Input power

1800 W

Sterilization temperature

121 ℃ / 134 ℃

Sterilization temperature difference

± 0.5 ℃

Temperature control accuracy

Temperature sensing control，≤ ± 1 ℃

Display

LED; Temperature digital display

Program

B&D / Helix test program / Leak test program

Standard

European N standard

Locks

Double door lock protection, mechanical lock equipped with air lock, the machine cannot be opened when the pressure in the pot is not about to reach 0

Water tank

Open water tank

Water supply system

Open double water tank for disinfection and cleaning

Water quality testing

It can detect whether the water quality meets the requirements of this equipment

Sterilization pressure

Maximum sterilization pressure ≥ 2.0 bar

Drying procedure

Base drying

Cleaning procedure

Automatic cleaning of internal piping and steam generator

Security

A safety valve is provided to ensure that the machine safely relieves the pressure in the pot in case of emergency, fault self-test

Fault alarm

Automatically display fault information and display fault alarms

The number of error messages

7

Sterilized items

Suitable for disinfecting generally solid metal instruments
