Model

iAED-S1

Dimensions

198 mm × 197 mm × 67 mm

Weight

≤ 2 kg (including battery and pads)

Waveform

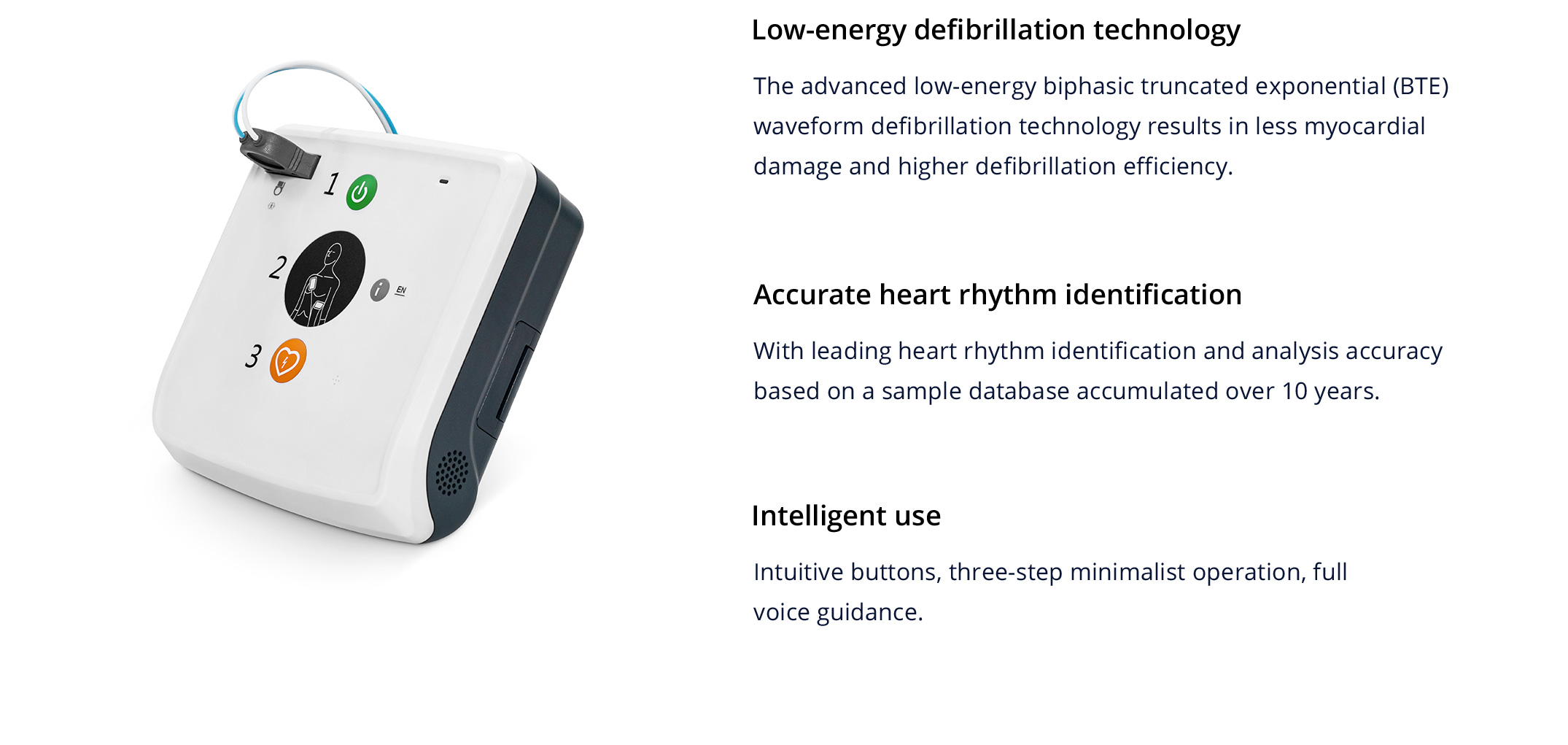

Biphasic truncated exponential.

Waveform parameters are automatically adjusted to patients’ impedances.

Mode

Adult, child

Energy

150 J nominal (± 15 %) delivered into a 50 ohm load.

When the system detects impedance ≤ 20 Ω  or  ≥ 200 Ω, device will not deliver a shock.

Charge time from shock-advised

≤ 7 seconds with a new battery

Analysis & charging time

≤ 10 seconds

Battery capacity

New battery ≥ 200 shocks (20 ℃ ± 2 ℃)

New battery ≥ 100 shocks (0 ℃ ± 2 ℃)

Standby time

≥ 5 years

Drop resistance

1.22 m

 Ingress protection

IP55

Operating temperature

0 ℃ ~ + 50 ℃

Standby temperature

+ 5 ℃ ~ + 35 ℃

Storage and transport temperature

- 30 ℃ ~ + 65 ℃ for up to 24 hours

Operating humidity

5 % ~ 95 % RH (non-condensing)

Standby humidity

5 % ~ 95 % RH (non-condensing)

Storage and transport humidity

5 % ~ 95 % RH (non-condensing)

Altitude

0 - 15000 feet
