Model

IE-12A

Power supply

AC / DC

AC / DC power supply

100 V ~ 240 V, 50 Hz / 60 Hz, 110 VA

Battery power supply

Rechargeable lithium battery, 14.8 V, 4400 mAh

Battery capacity

Support more than 3.0 hours for continuous operation.

Battery charge time

Approximately 4 hours from total charge.

Dimensions

345 mm × 260 mm × 128.5 mm

Net weight

About 3.4 kg

ECG interpretation

CardioPro ECG analysis program for adults and pediatrics.

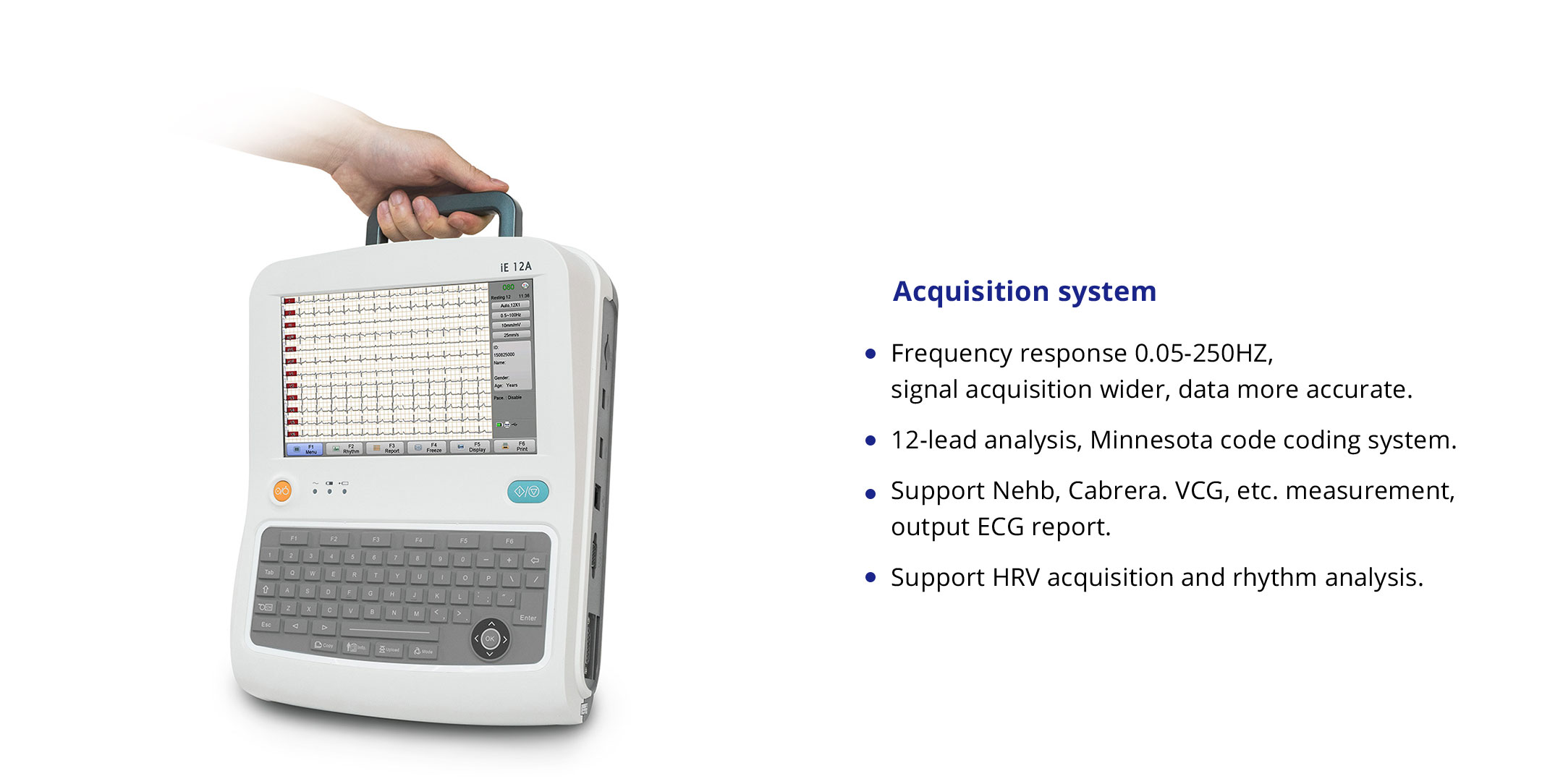

Acquisition mode

Simultaneous standard 12-lead in pre-acquisition or post-acquisition.

A/D conversion

24 bit

Sampling rate

8,000 samples / second / channel

Dynamic range

± 9 mV

Frequency response

0.01 Hz ~ 250 Hz

Common mode rejection ratio

> 105 dB

Polarization voltage

± 550 mV

Input circuit

Floating circuit input

Input impedance

≥ 50 MΩ

Input CIR current

≤ 0.1 μA

Patient leakage current

< 10 μA

Time constant

≥ 3.2 s

Noise level

< 15 μV p-p

Sensitivity threshold

≤ 20 μV p-p

Calibration voltage

1 mV ± 5 %

Sensitivity

Eight levels as (1.25, 2.5, 5, 10, 20, 10/5, 20/10) mm/mV, auto gain

Filter setting

EMG filter: 25 / 35 / 75 / 100 / 150 / 250 Hz

Baseline wander filter: 0.01 / 0.02 / 0.05 / 0.35 / 0.5 / 0.8 Hz

AC filter

50 Hz, 60 Hz

Heart rate range

30 ~ 300 bpm

Special acquisition functions

Lead-off detection, lead overflow, AC interference, baseline wander interference, EMG interference

Acquisition time

10 ~ 24 seconds

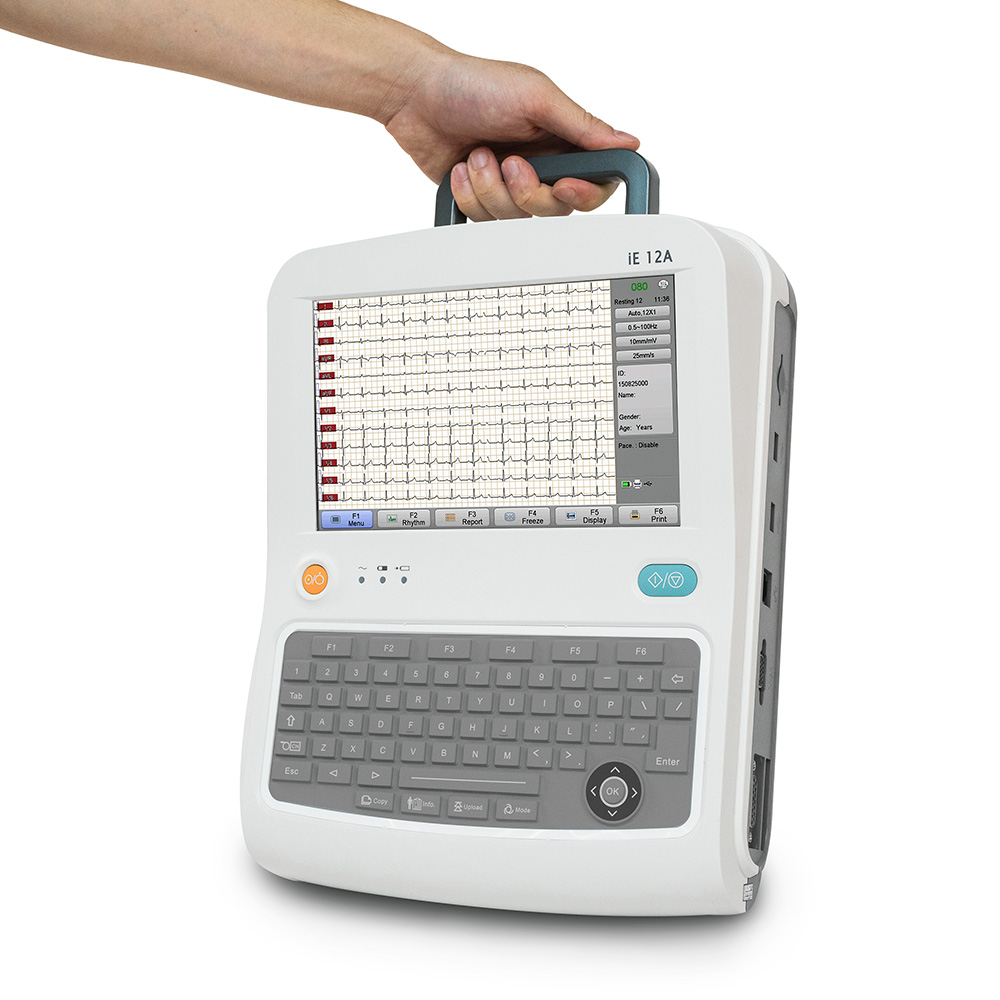

Display type

8.9 inch TFT LCD with touch screen

Display resolution

1280 × 768

Display data

Waveforms, heart rate, lead connection, clock, record mode, filters, sensitivity, paper speed, patient ID,
name, gender, age, system prompt, alarming messages, battery, power indicator, SD card label

Waveform display mode

Same screen display: 3 × 4, 3 × 4 + 1R, 6 × 2, 6 × 2 + 1R, 12 × 1

Split-screen display: 3 × 4, 6 × 2

Keyboard type

Waterproof material, integrated full alphanumeric keyboard with quick-access function keys.

Recorder technology

Thermal dot matrix word printing system.

Recorder resolution

8 points/mm (perpendicular)

40 points/mm (horizontal, 25 mm/s)

Recorder speed

(5, 6.25, 10, 12.5, 25, 50) mm/s ± 5 %

Recording paper

Z - fold paper: 210 mm × 150 mm × 140 p

Measurement and interpretation

Supports measurement and interpretation with CardioPro ECG analysis program for adults and pediatrics.

Measurement values

HR, PR interval, QRS duration, QT/QTC interval, P/QRS/T axis, RV5/SV1 voltage, RV5+SV1 voltage.

Minnesota code

With newest Minnesota code.

Working mode

Automatic mode, Manual mode, Rhythm mode, Trigger mode, Economic mode, Cycle mode, Upload mode

DEMO mode

Normal ECG, Arrhythmia ECG

QTC formula

Bazett, Fridercia, Framingham, Hodges

Rhythm analysis

Single rhythm mode: 30 - 300 seconds

Three rhythms mode: 30 - 100 seconds for each lead

Auto-trigger mode

Auto-trigger printing when arrhythmia is detected during the examination.

Extended printing in arrhythmia

Supports extended arrhythmia waveform printing in automatic mode.

Waveform frozen

Supports 300 seconds of waveform frozen.

Pacemaker detection

Weak, Normal, Enhance

Report auto-saved

Selectable auto-saved file

Report preview

Preview the report before printing.

Data format

JPEG, XML, DICOM, PDF, ECG

Alarming system

Voice and visual alarming for: lead off, no paper, low battery.

Patient information setting

Record No., Name, Gender, D.O.B, Height, Weight, BP, Race, Pacemaker, Medication, Accession No.,
Ref-physician, Technician, Physician, Room No., User-define.

Language

Chinese, English, Russian, Spanish, French, Italian, Polish, Czech, German, Portuguese, Ukrainian, Turkish

Local memory capacity

More than 3000 files

Report type

Manual report, Simple report, Detail report, MVB report (Media beat report)

Record format

3 × 4, 3 × 4 + 1R, 3 × 4 + 3R; 6 × 2, 6 × 2 + 1R, 6 × 2 + 3R, 12 × 1, 12 × 1 + 1R

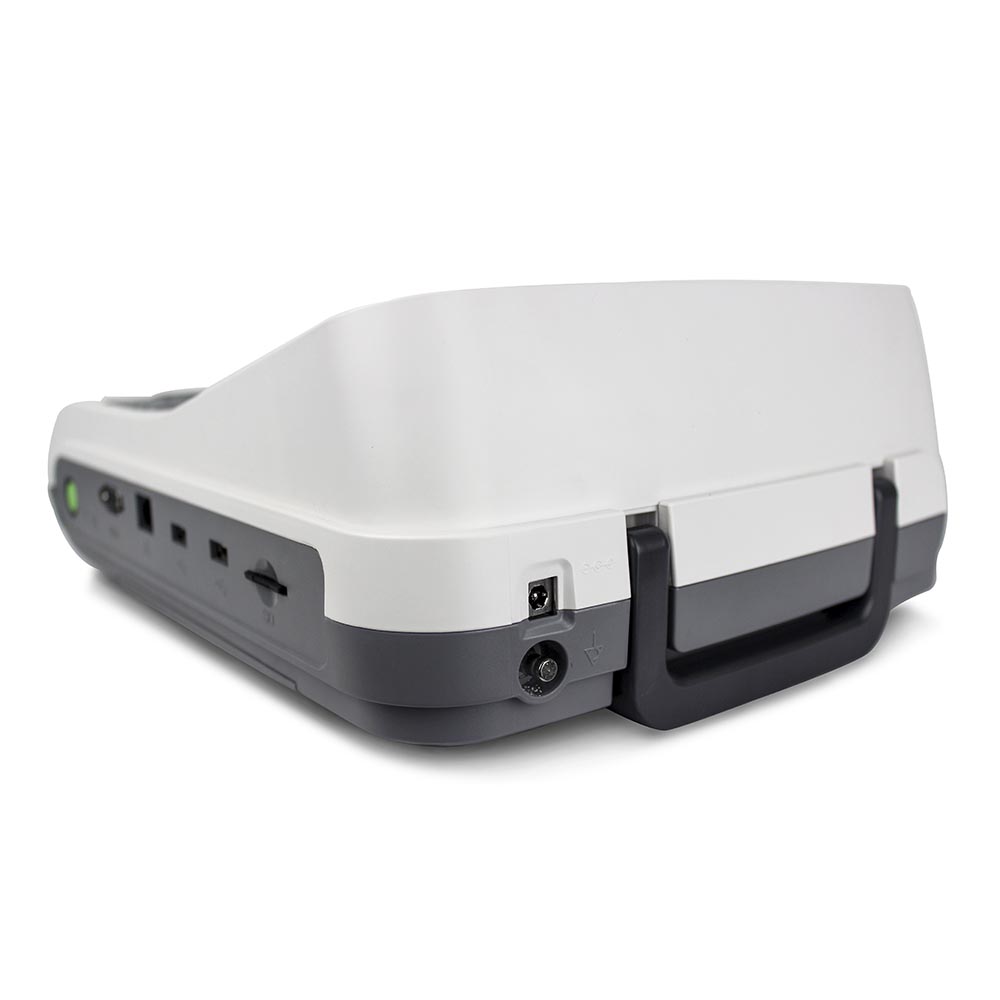

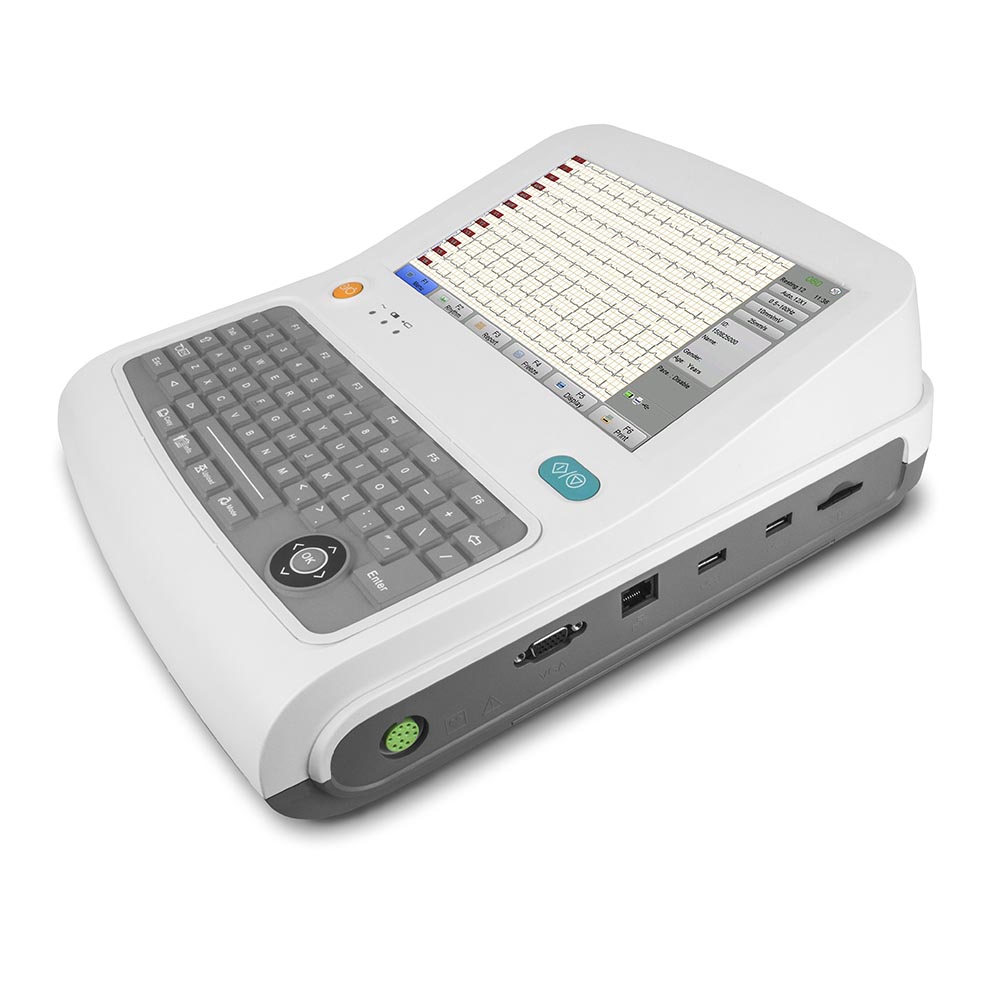

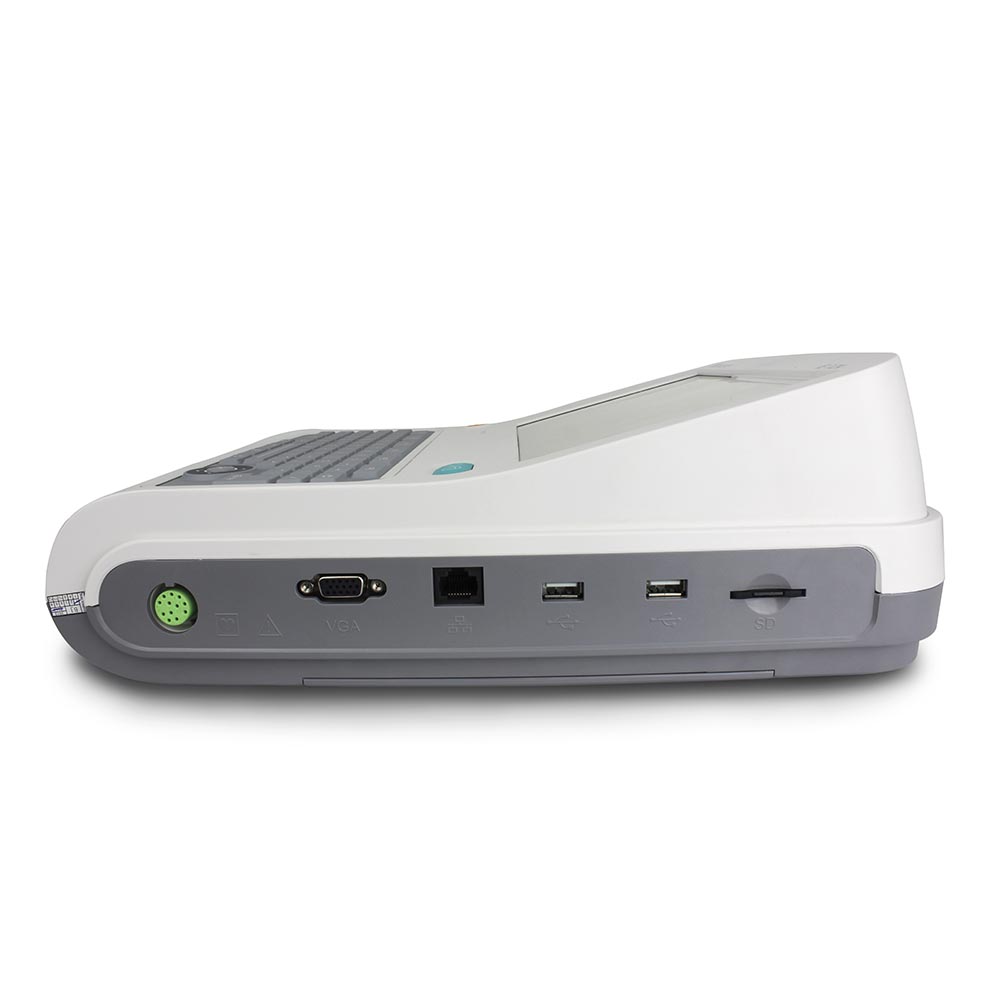

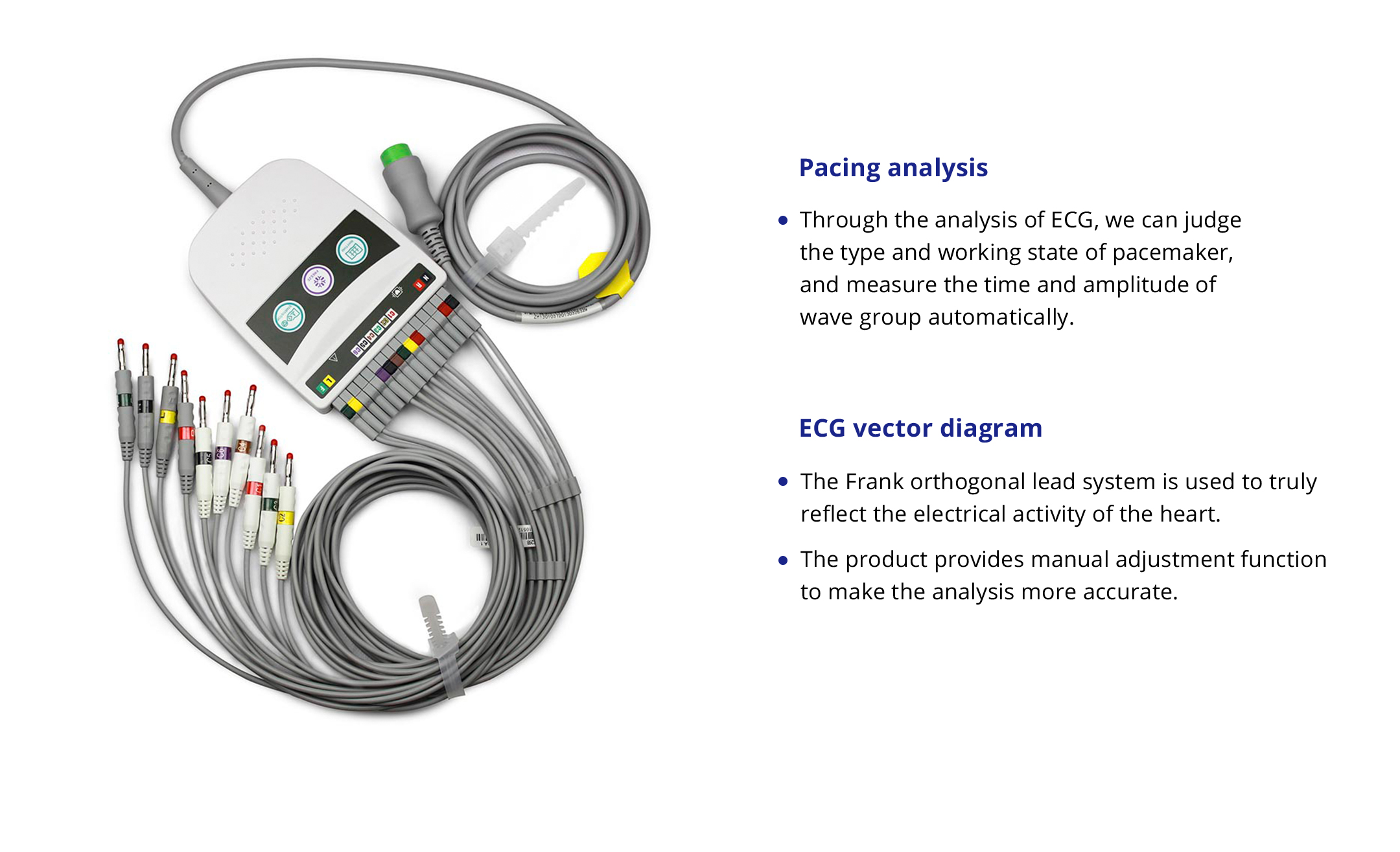

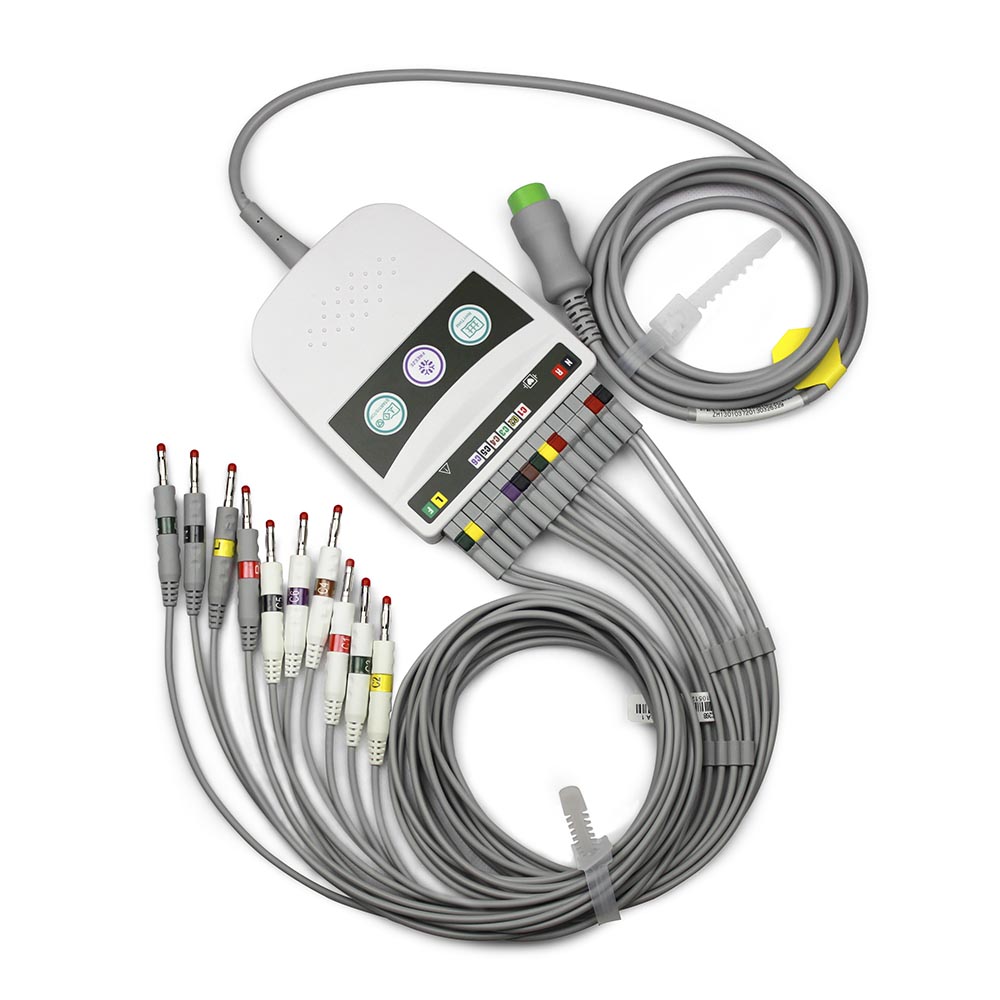

Patient cable socket

Connect to the patient cable.

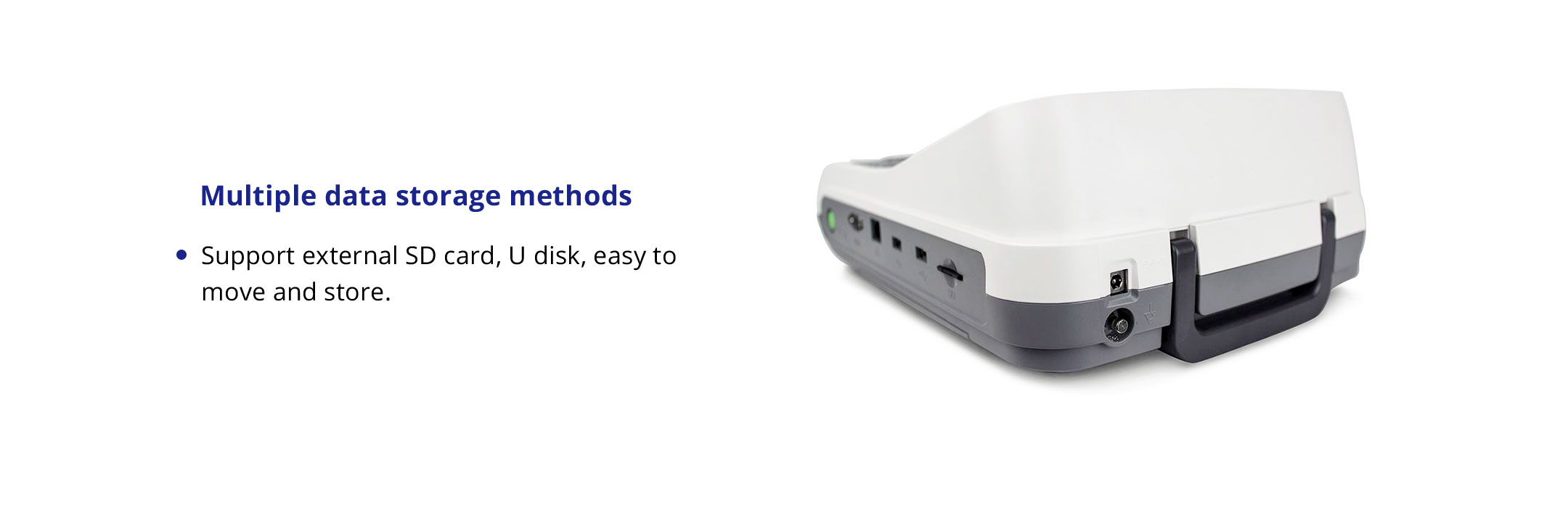

SD card port

8 GB SD card for data transfer

Two USB ports

Support USB flash disk and barcode scanner

LAN port

Communication with ECG-1000 workstation software on PC

VGA port

Connect to external monitor

Transportation

Environment temperature: - 20 ℃ ~ + 55 ℃

Relative humidity: ≤ 95 % (No condensation)

Air pressure: 70 kPa ~ 106 kPa

In accordance with the requirements stipulated in the contract order, the transport process to prevent rain and sun.

Storage

Environment temperature: - 20 ℃ ~ + 55 ℃

Relative humidity: ≤ 95 % (No condensation)

Air pressure: 70 kPa ~ 106 kPa

The packaging of ECG stored in the non-corrosive gases and well-ventilated room.

Using

Environment temperature: + 5 ℃ ~ + 40 ℃

Relative humidity: ≤ 95 % (No condensation)

Air pressure: 86 kPa ~ 106 kPa
