Model

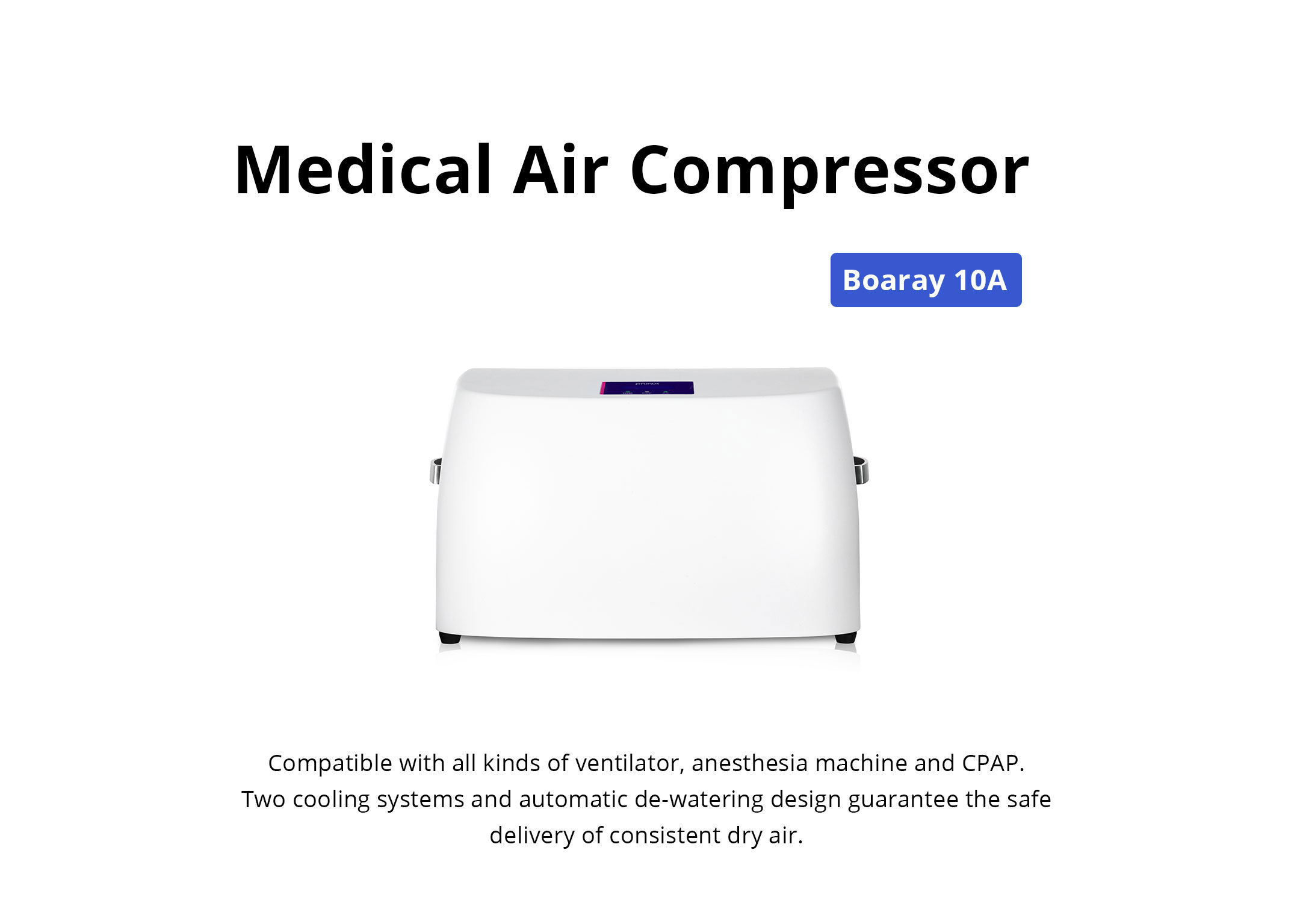

Boaray 10A

Dimension

482 × 296 × 350 mm (W × D × H)

Net weight

29 kg

Power

220 V, 50 Hz, 3 A

110 V, 60 Hz, 6 A

Rated output pressure

400 ± 20 kpa

Output flow

≥ 40 L/min (350 kPa)

Filtration of air

5 μm

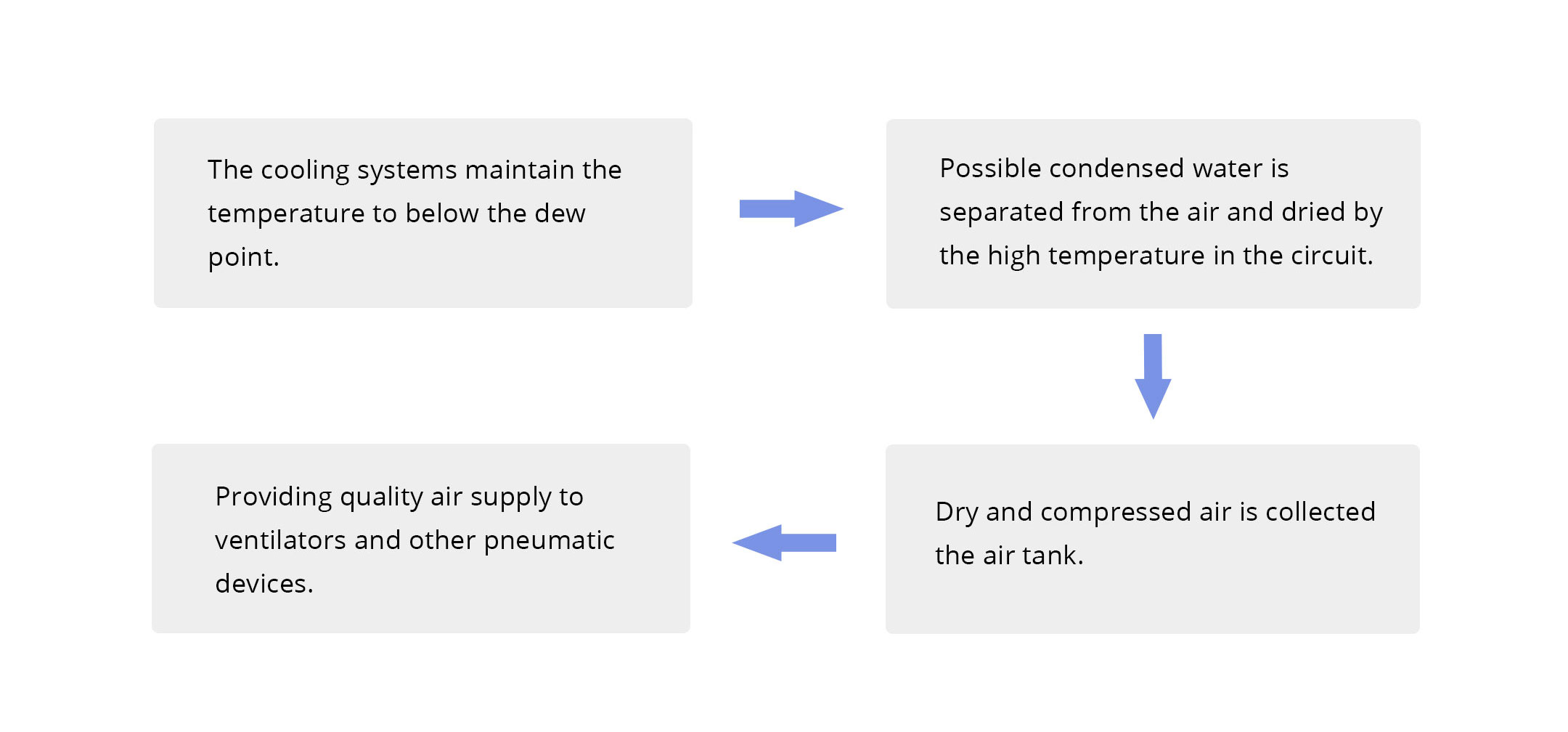

Dew point suppression

> 8 ℃ below room temperature at peak output pressure

Noise

≤ 50 dB (at 1 m)

Continuous operating time

10000 hours

Monitoring data

Working hours, output pressure, output temperature, error code

Alarms

Pressure high and low, output temperature high, system temperature high
