Model

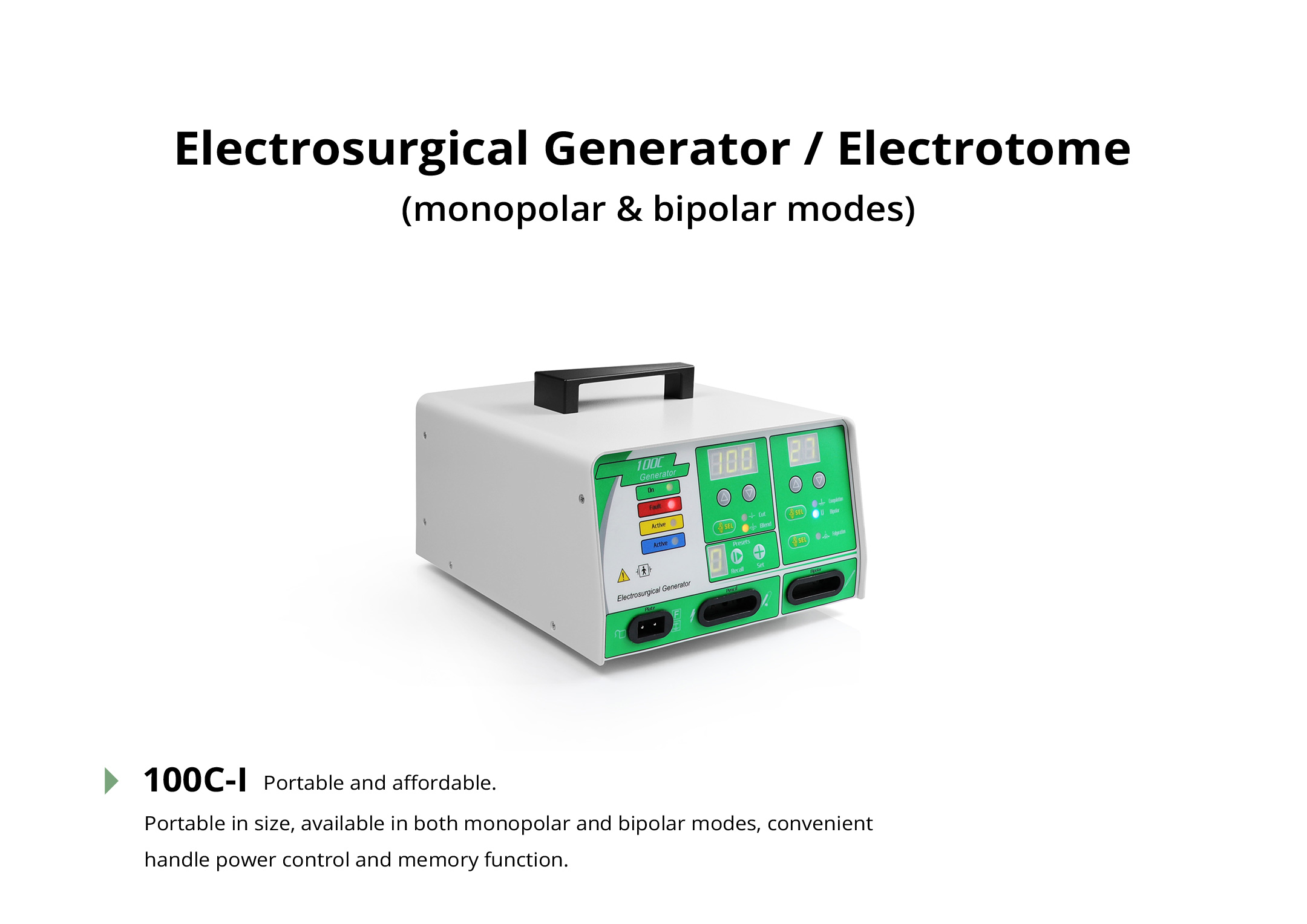

100C series (100C-I)

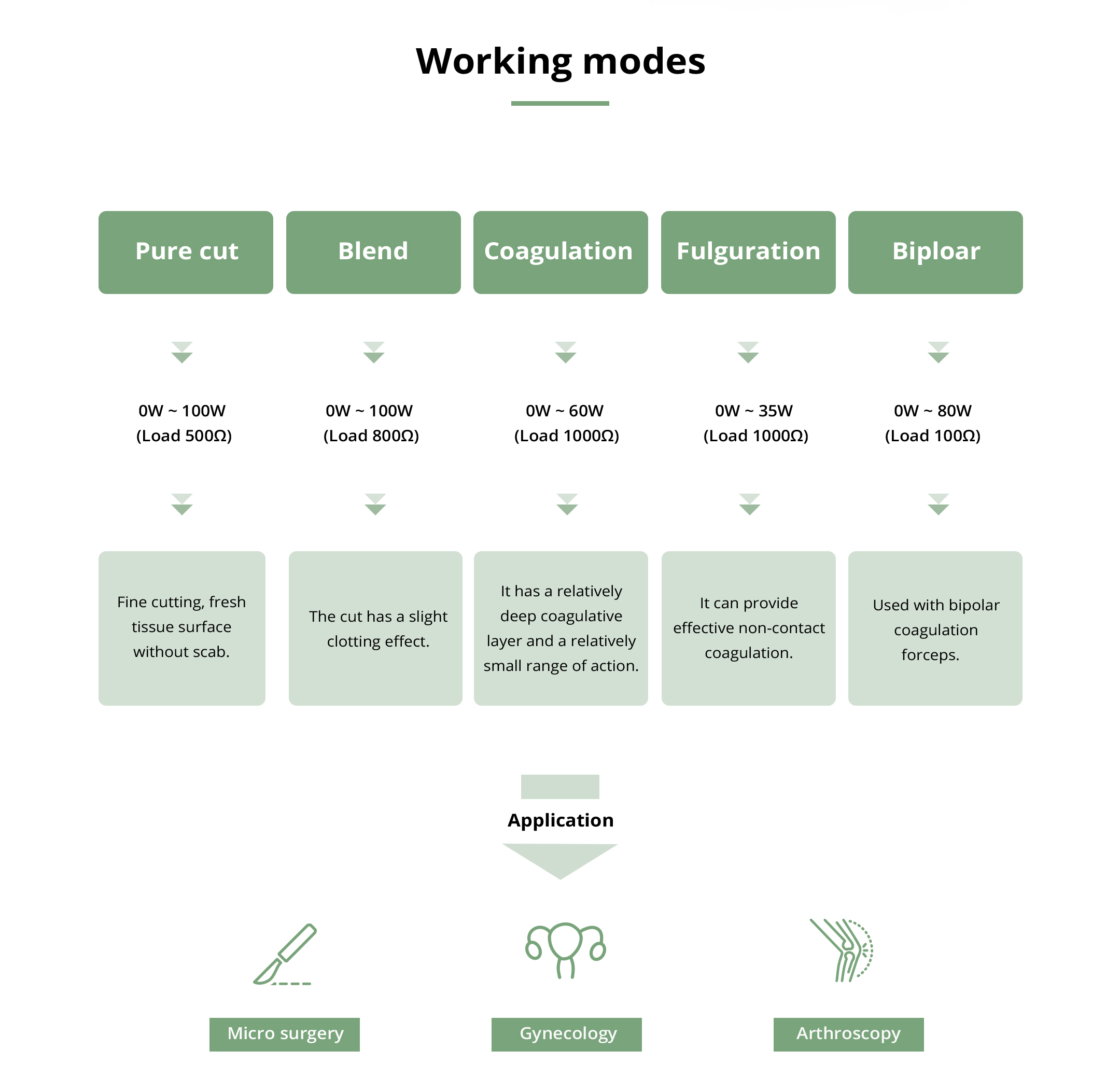

Working modes

Pure cut: 0 ~ 100 W (load: 500 Ω)

Blend: 0 ~ 100 W (load: 800 Ω)

Coagulation: 0 ~ 60 W (load: 1000 Ω)

Fulguration: 0 ~ 35 W (load: 1000 Ω)

Bipolar: 0 ~ 80 W (load: 100 Ω)

Environmental temperature range

5 ℃ ~ 40 ℃

Relative humidity range

≤ 80 %

Atmosphere pressure range

86.0 ~ 106.0 kPa

Power supply

120 / 230 V, 60 / 50 Hz

Working frequency

330 ~ 460 kHz

Equipment rated power

600 VA

Leakage currents to ground

Less than 0.5 mA

Leakage currents to patient

Less than 0.01 mA

 Size (L × W × H)

27 cm × 22 cm × 13 cm

Weight

6.2 kg

Packing

1 unit/carton
