Model

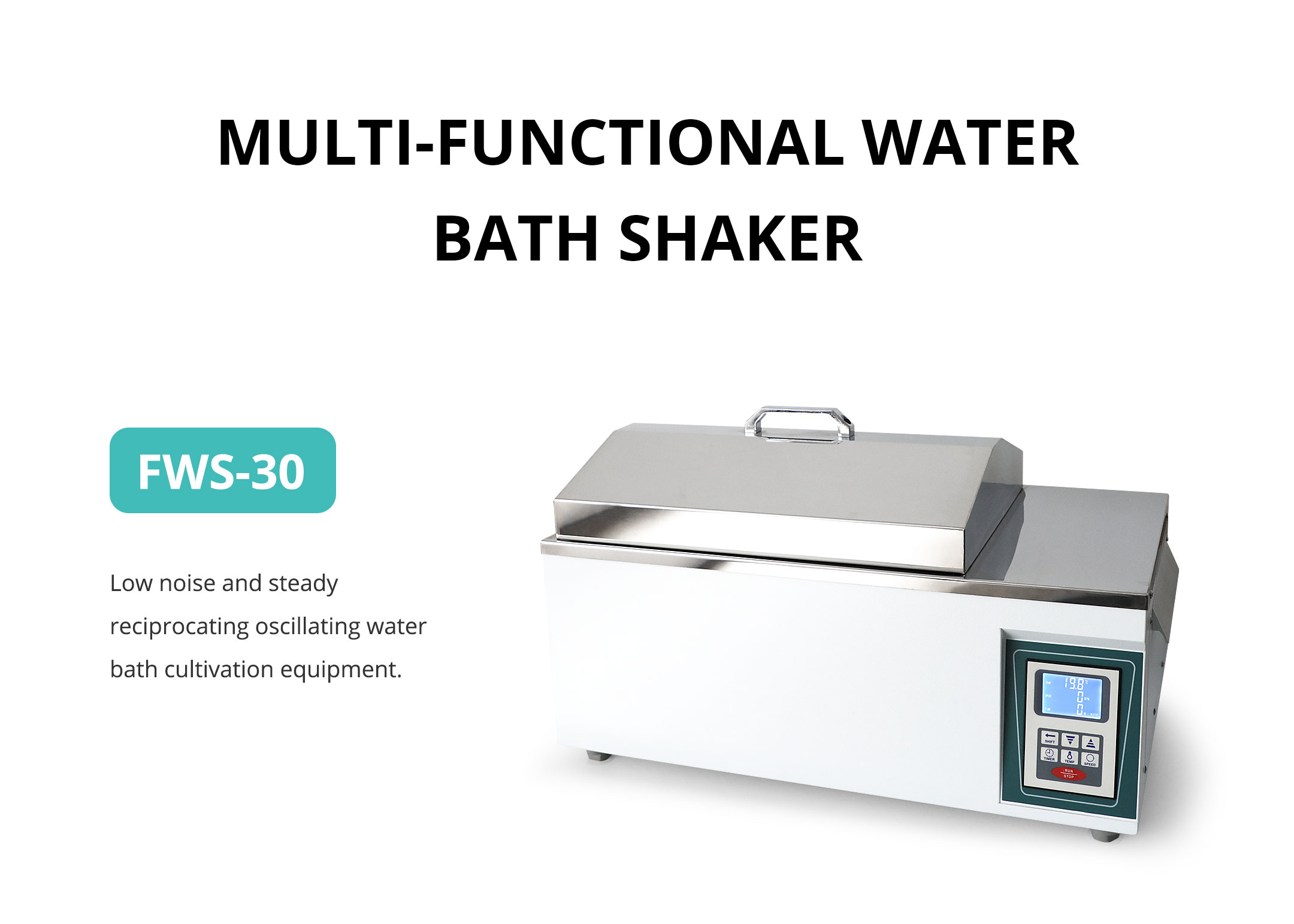

FWS-30

Mode

 Reciprocating oscillation +  thermostatic water bath

Function

Operating temp range

 RT ～ 100 ℃

Tem. resolution ratio

 0.1 ℃

Tem. motion

 ± 0.1 ℃

Tem. uniformity

 ± 0.2 ℃

Reciprocal oscillation

amplitude

16 or 24 mm (Ex-factory is 16mm)

Reciprocating frequency

range

 20 ～ 180 (r / min)

Reciprocating frequency

accuracy

 ± 1 rpm

Structure

Water tank

Mirror stainless steel

Outer shell

Cold rolling steel electrostatic spraying exterior

Upper cover

Mirror stainless steel

Insulating layer

Polyurethane

Heater

Stainless Steel Heater

Driving mode

Crankshaft + double link + four wheels

Shelf

Mirror stainless steel

Power rating

1.5 kW

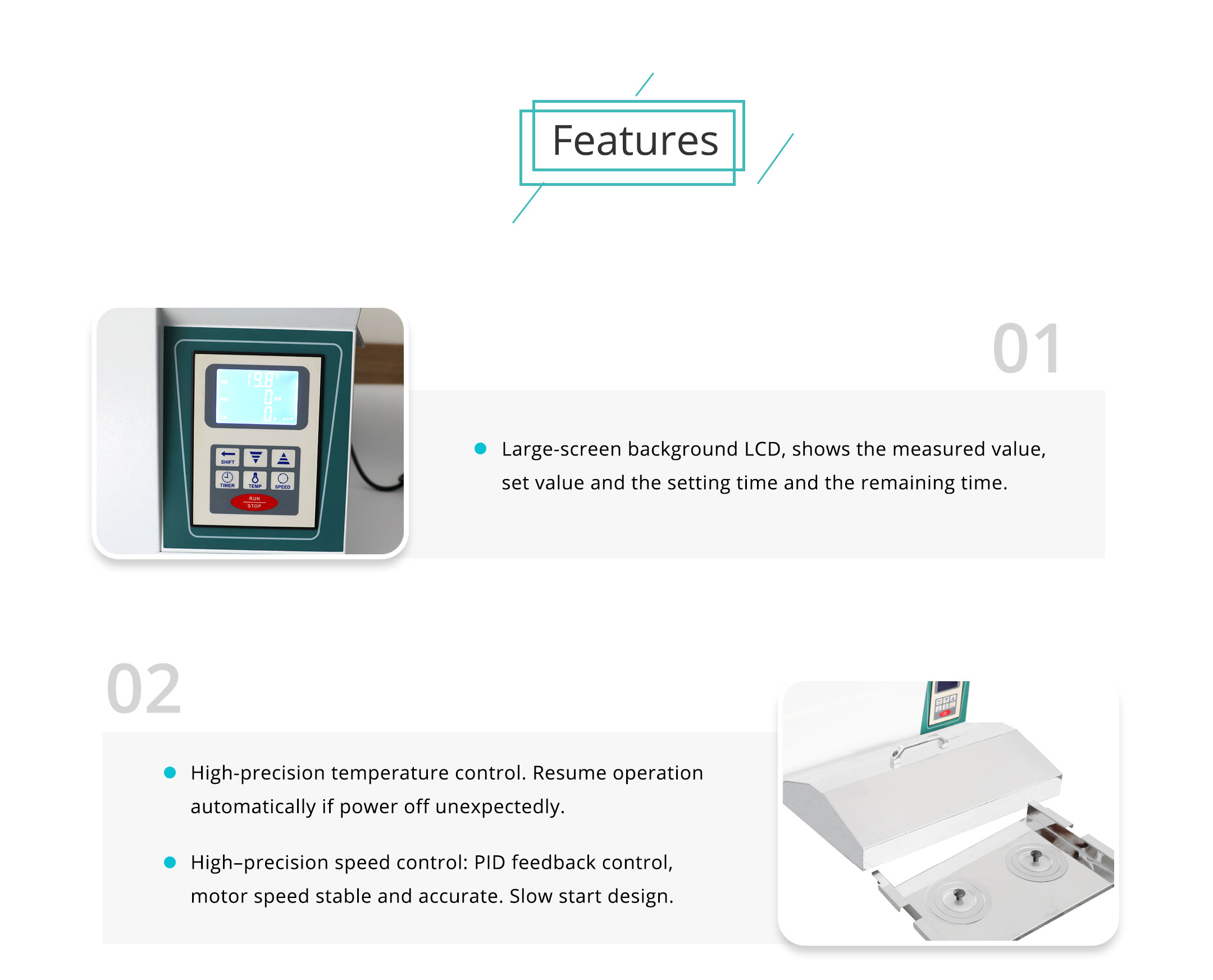

Controller

Tem. control mode

LCD PID intelligent control

Reciprocating control mode

Setting mode

Touch button setting

Tem. display mode

LCD display

Speed display mode

Timer

 0 ～ 9999 min

Operation function

Fixed value operation, timing function, auto stop, quickly stop start

Temperature sensor

Pt100

Speed sensor

Hoare

Additional function

Deviation correction, menu keys locked, power-off memory

Safety device

Over temperature alarm, menu locked, water full or

 shortage protection, motor shaft lock protection

pecification

Water tank size

 (W * L * H) (mm)

 500 * 310 * 200

Exterior size

(W * L * H) (mm)

 828 * 360 * 425

Packing size

(W * L * H) (mm)

 910 * 500 * 600

Spring shock basket

Size (mm)

 395 * 250

Shock basket largest  single

size (ml /piece)

 100 ml * 12 / 250 * 8 / 500 * 6

Inside volume

 31 L

Shock basket bearing

 5kg/layer

Current rating (50 Hz)

 AC 220 V / 6.8 A

NW / GW (kg）

 20 / 30

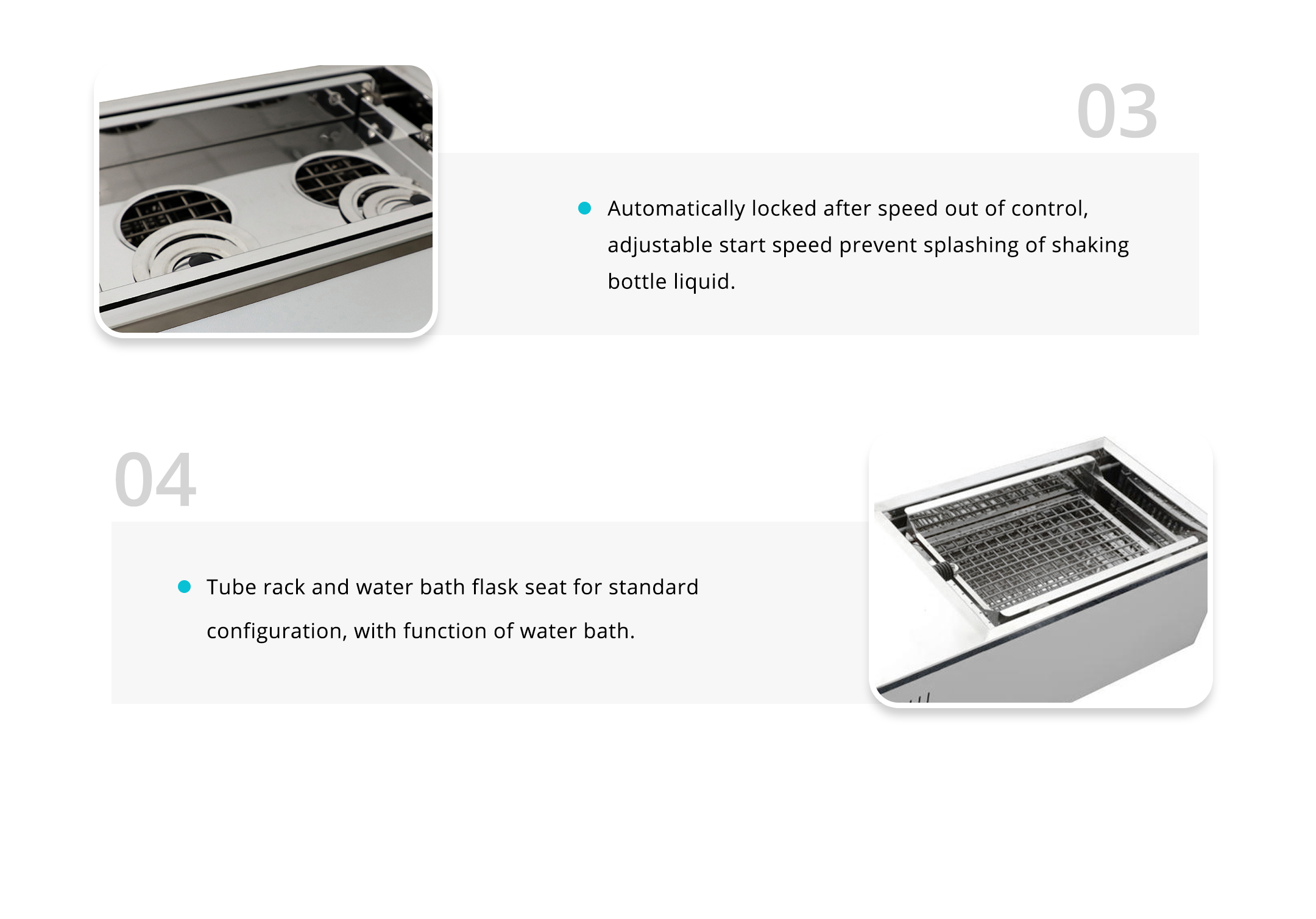

Accessories

Water bath flask seat, tube rack
