Model

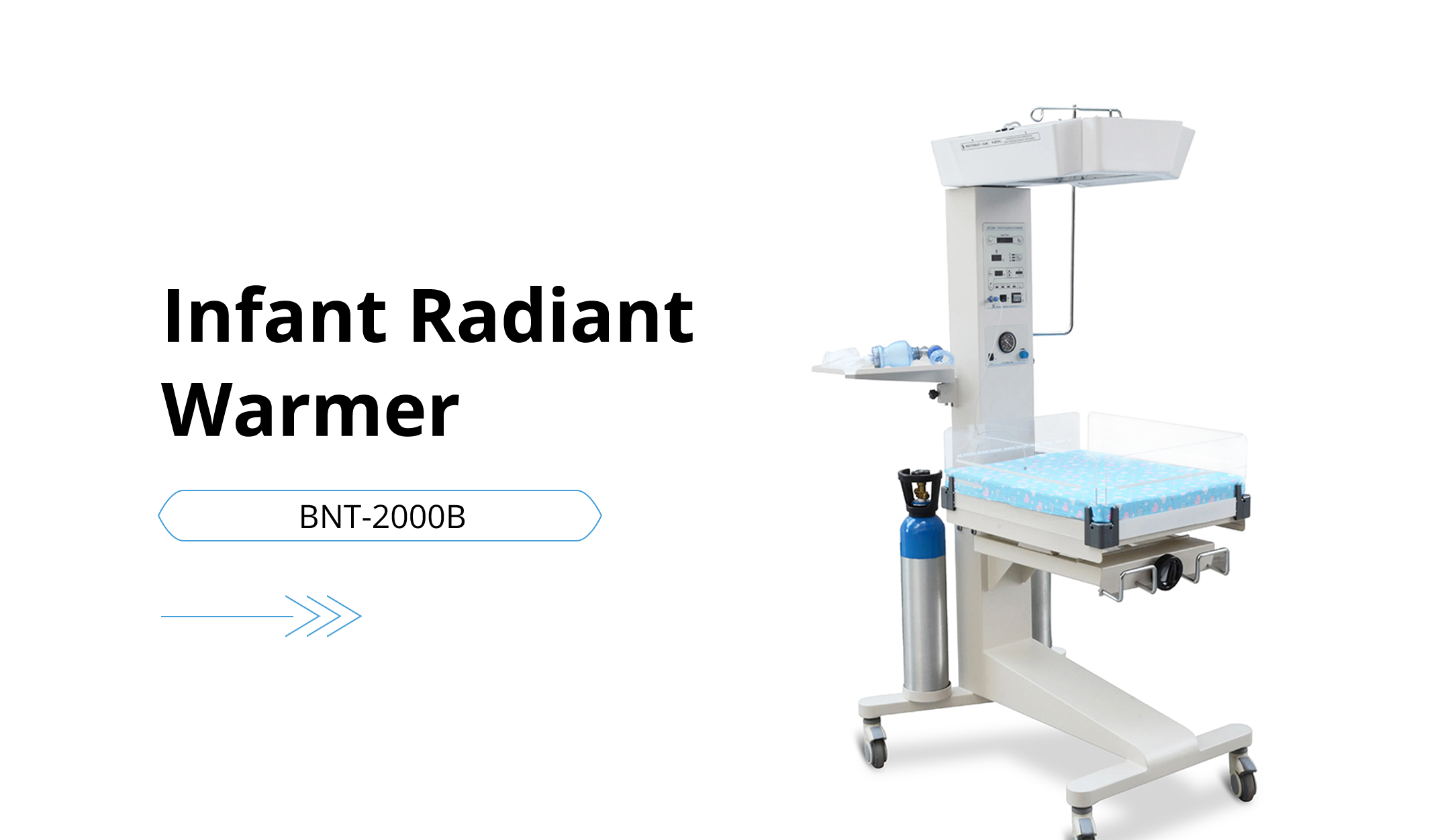

BNT-2000B

Screen

LED

Power consumption

≤ 1000VA

Control mode

Pre-heating control, servo control & manual control

Instant parameter display

Set temp, skin temp, heat power rate

Temperature control range

20.0℃ ~ 37.0℃

Temperature override mode

37.1℃ ~ 38.0℃

Temperature sensor accuracy

≤ 0.3℃

Mattress surface temperature uniformity

≤ 2.0℃

Temperature rise time

≤ 45mins

Heat output indicate

0 ~ 100%

Radiant box horizon angle adjust range

0 ~ 90°adjustable in step-less

Bed tilt adjustment

Continues adjustable in ± 10°

Mattress tray size

68cm×54cm

Mattress tray Max. load

10kg

Transfusion pole Max. load

2kg

Shelf Max. load

2kg

Distance from mattress to radiation head

81cm

Heater infrared wavelength

1 ~ 3 μm

Audible and visual alarm

Temp deviation, sensor failure, power failure, temp override

Air mode temp. alarm

≤ 38.0℃, ≤ 39.0℃

Deviation alarm

± 1℃

APGAR time

Alarm with audible when run between 50 seconds to 1 minute,

4 minutes 50 seconds to 5 minutes,

9 minutes 50 seconds to 10 minutes.

Product feature

X-ray cassette tray under infant bed, examination light of high illuminance

Use anti-blast quartz infrared tube as radiant heating source,

With two LED phototherapy unit

With two 7L oxygen cylinders, pressure meter and flow meter,

With Suction, with neonate resuscitation.

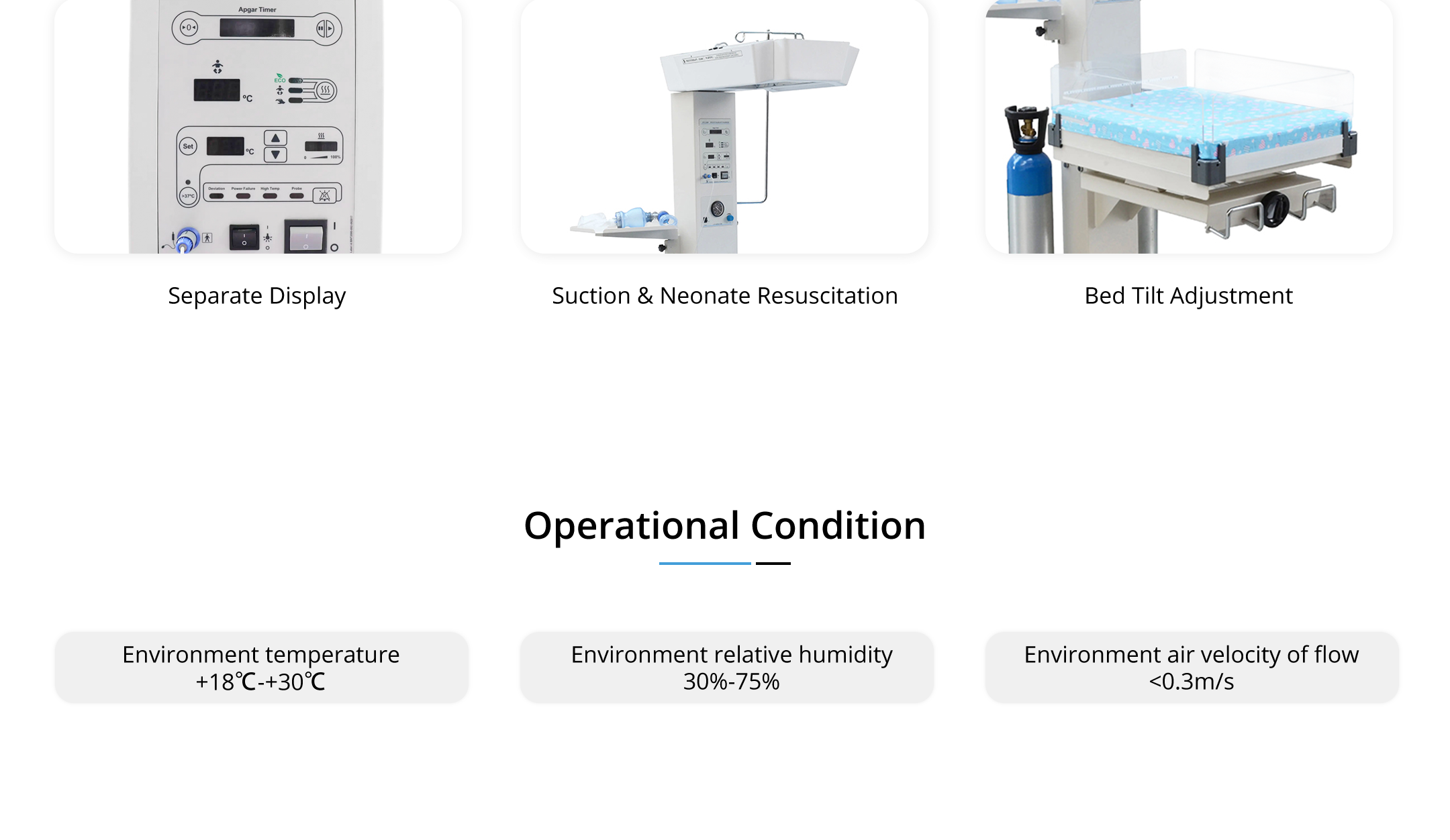

Operational condition

Environment temperature

18℃ ~ 30℃

Environment relative humidity

30% ~ 75%

Environment air velocity of flow

< 0.3m/s

Product packaging

Dimension

110cmx90cmx110cm

Gross weight

140kg

Net weight

110kg
