Application |
|
|
Modular Design |
Compatible Surgical Procedures |
|
Includes the Surgical Module, ESD Module, ERCP Module, Ablation Module, Snare Module, and Argon Plasma Coagulation Module. |
Compatible with open surgery, minimally invasive rigid endoscopy, and flexible endoscopy. Supporting ESD, ERCP, POEM, STER, EMR, polypectomy, radiofrequency ablation, etc. |
|
Working modes |
||||
|
Function |
Modes |
Output power (load) |
V-PP |
CF |
|
Monopolar cut |
Pure cut |
1 - 300 W (load: 500 Ω) |
2.6 KV |
1.5 |
|
Blend 1 |
1 - 200 W (load: 500 Ω) |
4 KV |
1.8 |
|
|
Blend 2 |
1 - 150 W (load: 500 Ω) |
4.2 KV |
2.1 |
|
|
Monopolar coag |
Spray |
1 - 80 W (load: 500 Ω) |
5.3 KV |
7.4 |
|
Forced |
1 - 120 W (load: 500 Ω) |
5 KV |
3.8 |
|
|
Soft |
1 - 120 W (load: 500 Ω) |
720 V |
1.6 |
|
|
Bipolar |
Standard coag |
1 - 120 W (load: 200 Ω) |
550 V |
1.6 |
|
Forced bipolar |
1 - 120 W (load: 200 Ω) |
350 V |
1.6 |
|
|
Argon flow control system parameter |
|
|
Flow rate range |
0.1 - 15.0 L/min |
|
Regulating step |
0.1 L/min |
|
Pressure of nozzle |
0 - 0.1 MPa |
|
Power consumption |
< 100 VA |
|
Argon purity |
≥ 99.99 % |
|
Argon capacity |
4 L |
|
Pressure of inputting |
0.20 - 0.50 MPa |
|
AC power |
AC 90 - 250 V, 50 Hz |
|
Basic parameters |
||
|

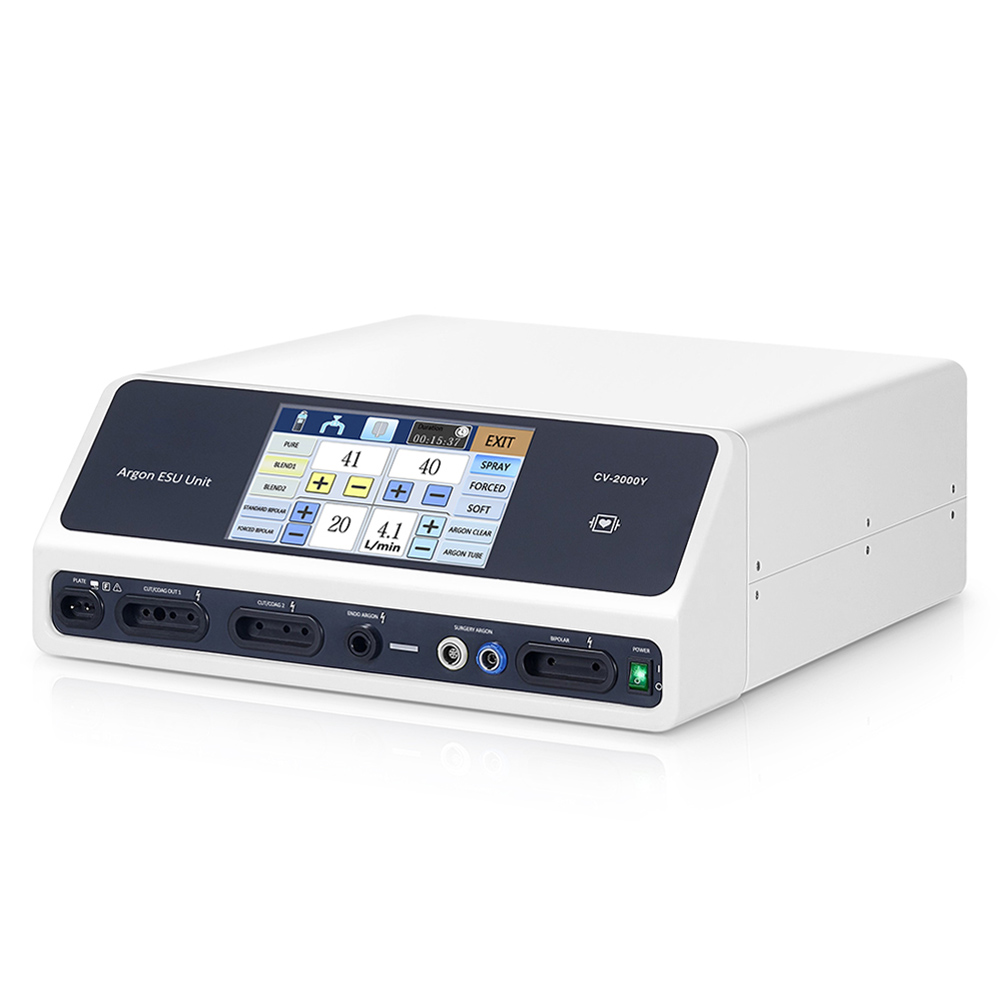

Model |
CV-2000Y |
CV-2000YC |
|
Display |
8-inch LCD full touch screen display |
7-inch LCD touch screen display |
|
Dimensions |
51 cm × 42 cm × 16 cm |
|
|
Weight |
10 kg |
|
|
Input voltage |
100 - 240 V - ± 10 % |
|
|
Mains line frequency range |
50 - 60 Hz |
|
|
Power rating |
1100 VA |
|
|
Power consumption |
≤ 1100 VA |
|
|
Fuses (two) |
5 A / 10 A |
|
|
Working frequency |
416 KHz |
|
|
Monopolar RF leakage current |
< 150 mA |
|
|
Bipolar RF leakage current |
< 50 mA |
|
|
Ambient temperature range |
5 ℃ - 40 ℃ |
|
|
Relative humidity |
≤ 80 % |
|
|
Atmospheric pressure |
86 kPa - 106 kPa |
|
|
Standard accessories |
|||
|
Main unit |
1 set |
Laparoscopic electrode |
1 pc |
|
Electrosurgical pencil |
5 pcs |
Argon gas probe |
1 pc |
|
Electrosurgical pad |
10 pcs |
Electrosurgical snare |
1 pc |
|
Electrosurgical pad cable |
1 pc |
Argon gas canister |
1 bottle |
|
Monopolar footswitch |
1 set |
Pressure reducing valve |
1 pc |
|
Bipolar footswitch |
1 set |
Ventilation connector |
1 pc |
|
Bipolar forceps with cable |
1 set |
Trolley |
1 set |
|
Tip clean sponge |
1 pc |
Power cable |
1 pc |
|
Argon pencil |
1 pc |
Fuse |
3 pcs |
