Model |

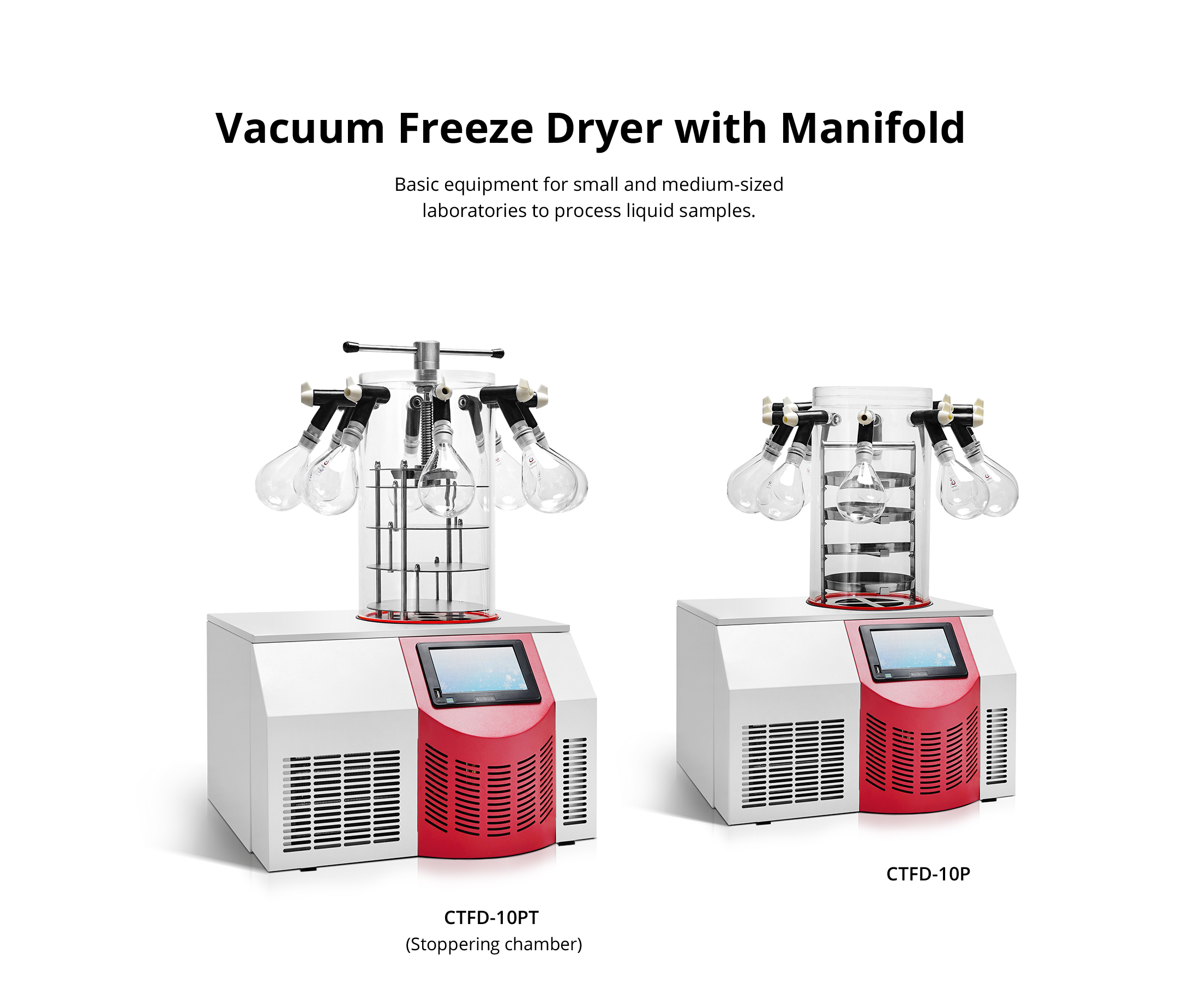

CTFD-10P |
CTFD-10PT |
Style |

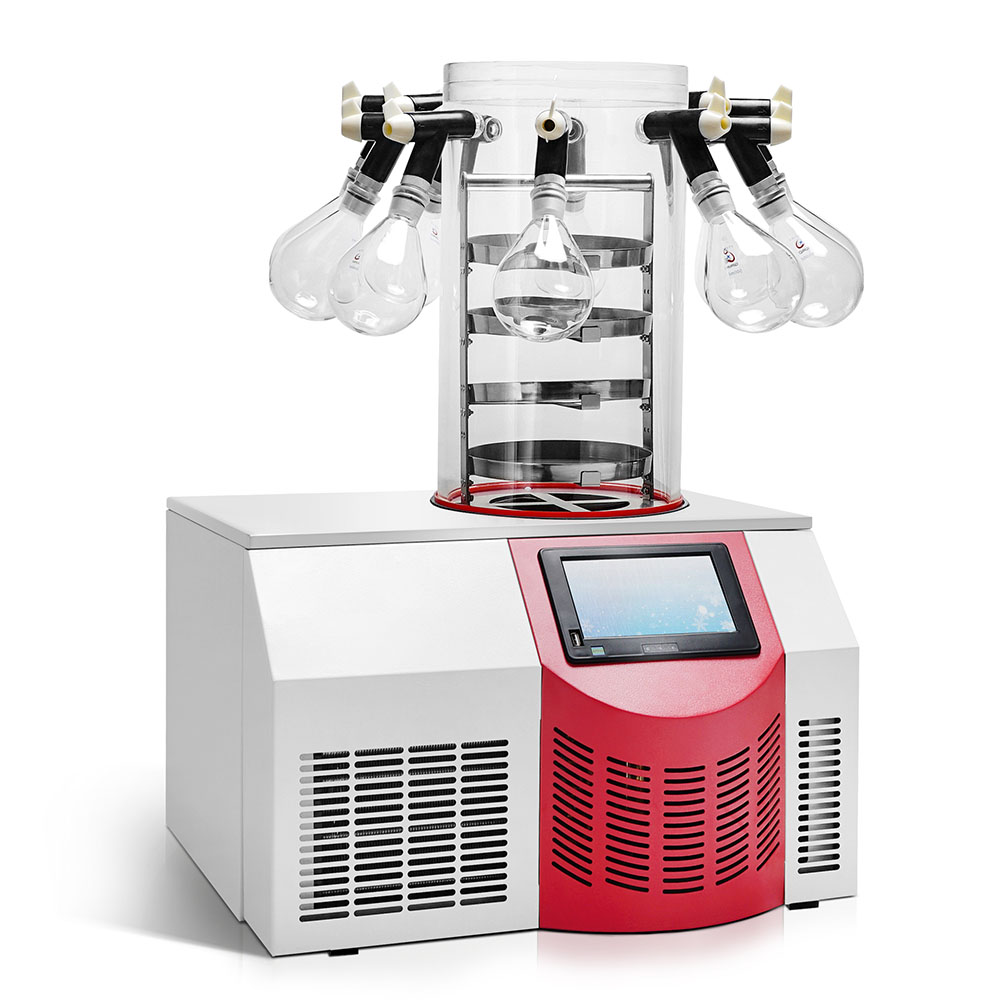

Standard chamber with 8 port manifold |

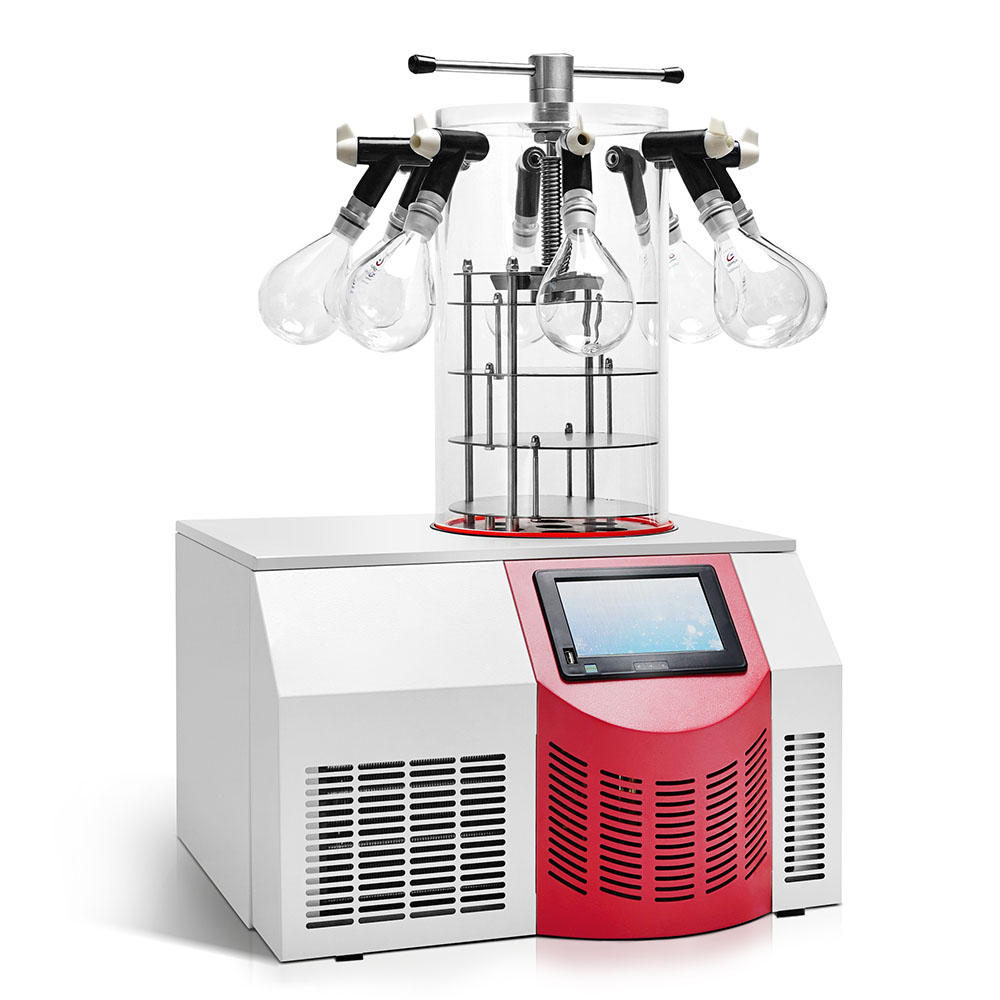

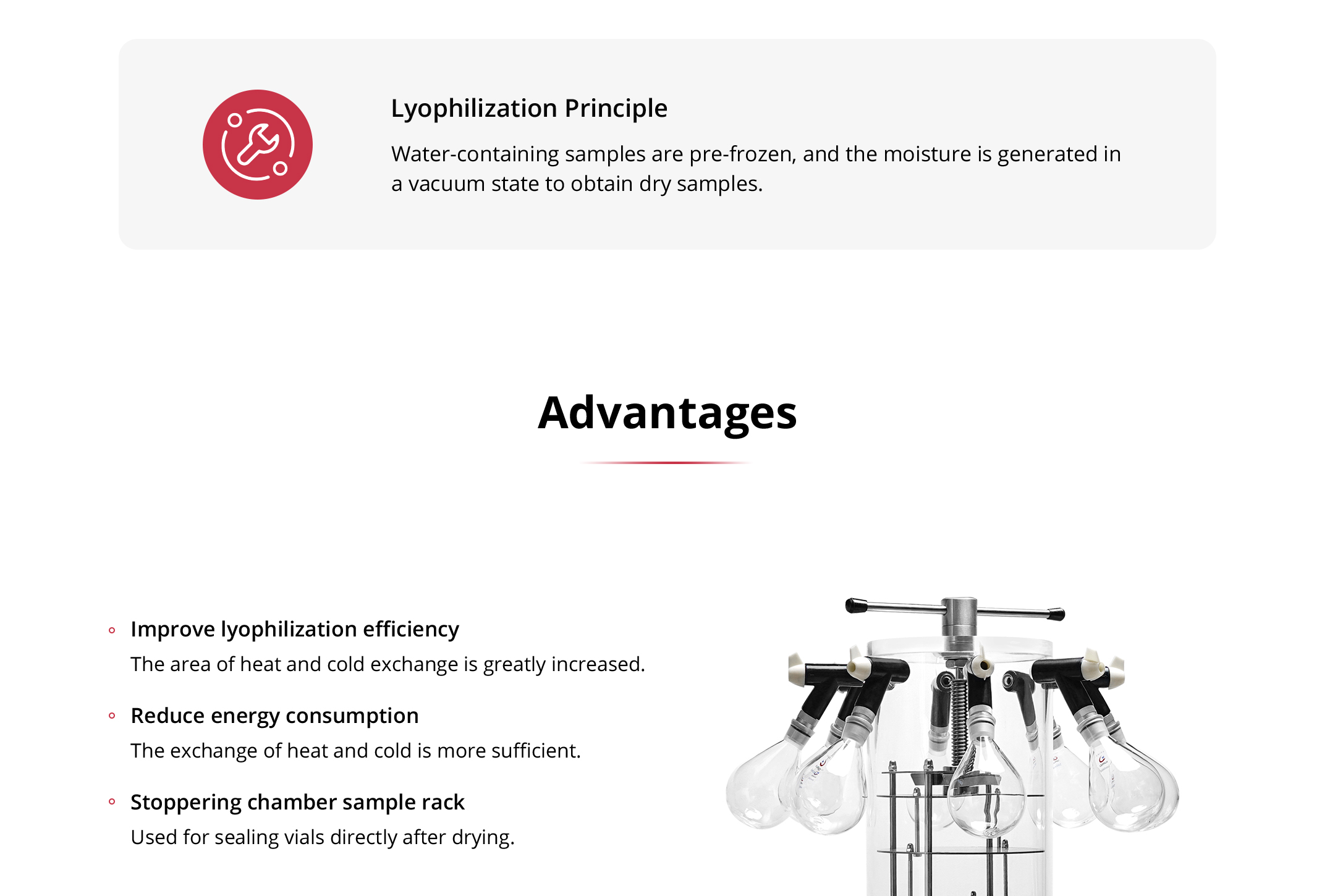

Stoppering chamber with 8 port manifold |
Final condenser temp (℃) |
-60℃ |
|
Vacuum degree (Pa) |
< 10 Pa |
|
Condenser volume (L) |
6.5 L |
|
Freeze drying area (m2) |
0.12 |
0.09 |
Water condenser capacity (Kg / 24h) |
3 |
|
Qty of shelf |
4 |
3 |
Loading capacity per shelf (ml) |
300 |
|
Loading capacity (ml) |
1200 |
900 |
USB interface |
Yes |
|
Drying chamber (standard) |
Transparent acrylic |
|
Speed of vacuum pump |
2 L / S |
|
Control system |

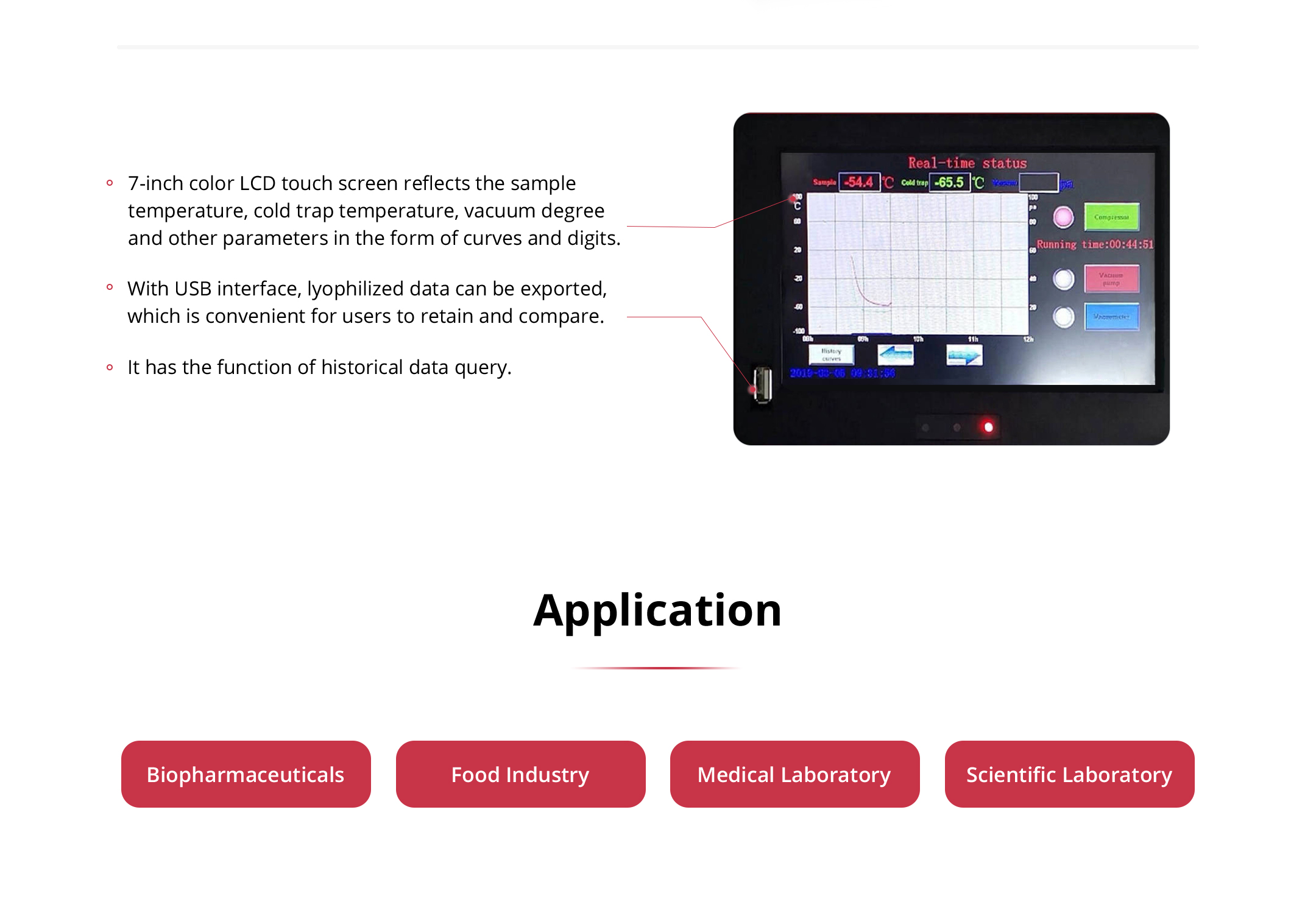

Microprocessor, touch screen |
|
Ultimate vacuum (Pa) |
1 |
|
Noise (Db) |
< 66 |
|
Voltage & Frequency |
110 ~ 220 V & 50 ~ 60 Hz |
|
Power (Kw) |
0.85 |
|
Condenser chamber dimension (Φ × h mm) |
215 × 190 |
|
Sample tray dimension (Φ × h mm) |
200 × 20 |
|
Sample shelf dimension (Φ × h mm) |
210 × 365 |
234 × 518 |
Sample shelf distance average (mm) |
76 |
70 |
Host size (W × D × H mm) |
600 × 540 × 374 |
|
Vacuum hood dimension (upper / lower Φ × h mm) |
260 / 240 × 450 |
|
Exterior dimension (W × D × H mm) |
600 × 540 × 820 |
600 × 540 × 880 |
Host net weight (Kg) |
46 |
|
Host package (W × D × H mm) |
670 × 700 × 560 |
|
Vacuum hood package (W × D × H mm) |
410 × 410 × 640 |
|
Weight (Kg) |
110 |
