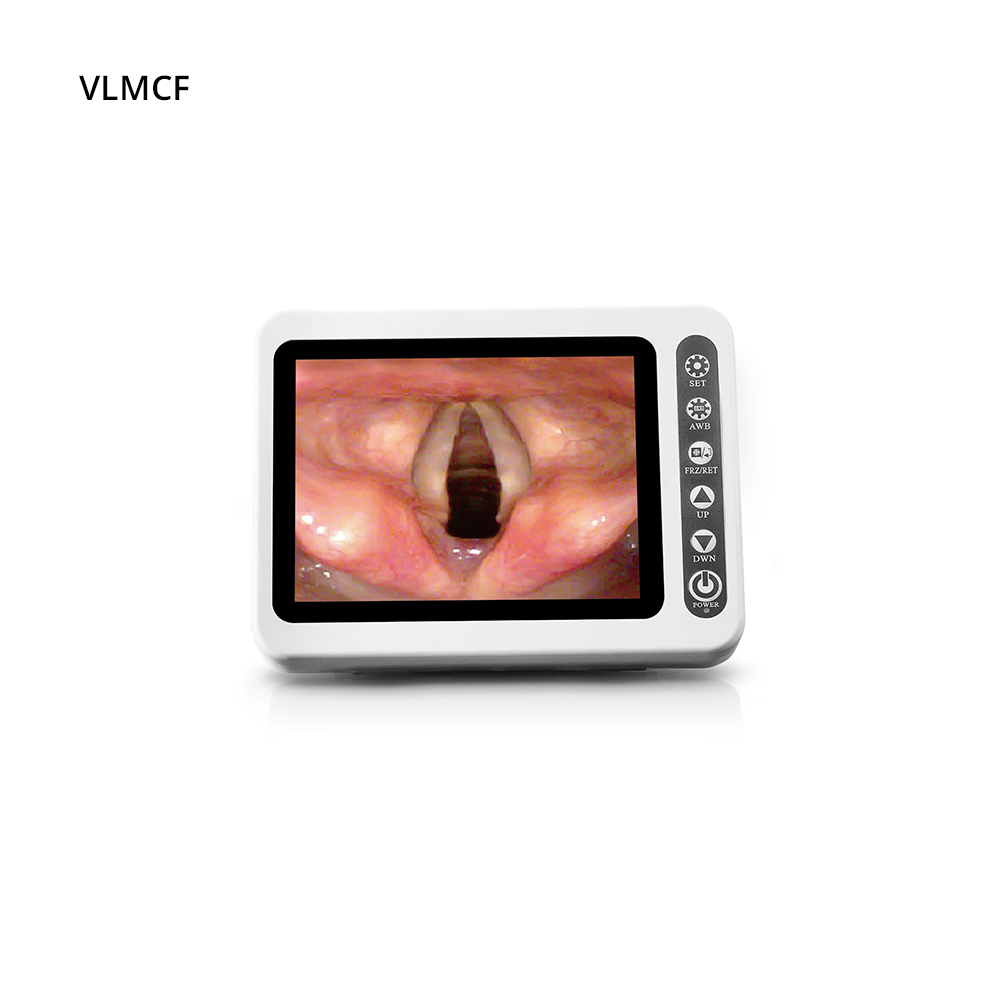

Image Processor - 1

Model

VLMCF

Screen

8 inches LCD screen

Screen ratio

4 : 3

Display resolution

1024 × 768 pixels

Function

Photo, Video, White balance, Freeze

Memory capacity

Built-in 32 GB memory card

Battery

Rechargeable 6400 mAh lithium-ion battery, continuous working time ≥ 4 h

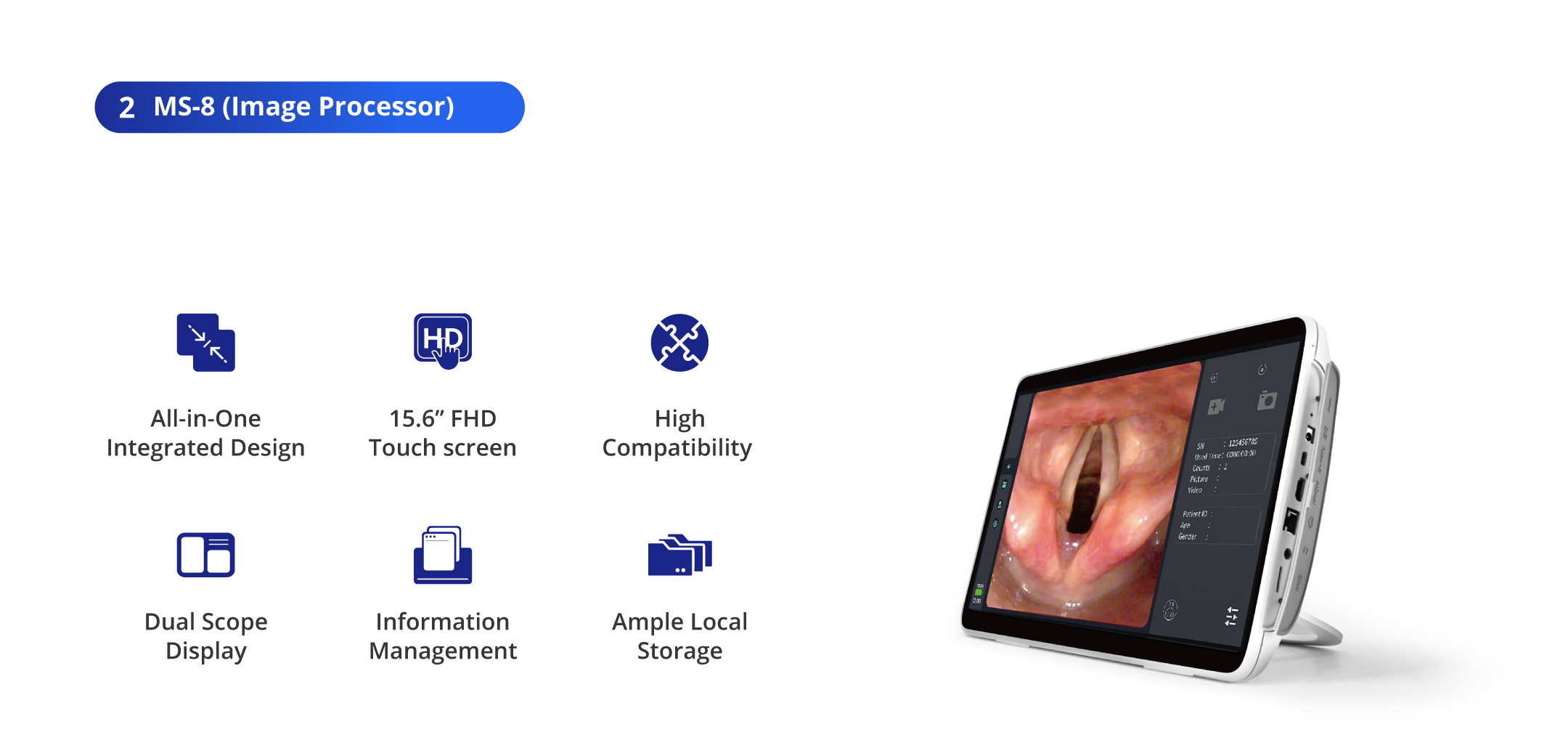

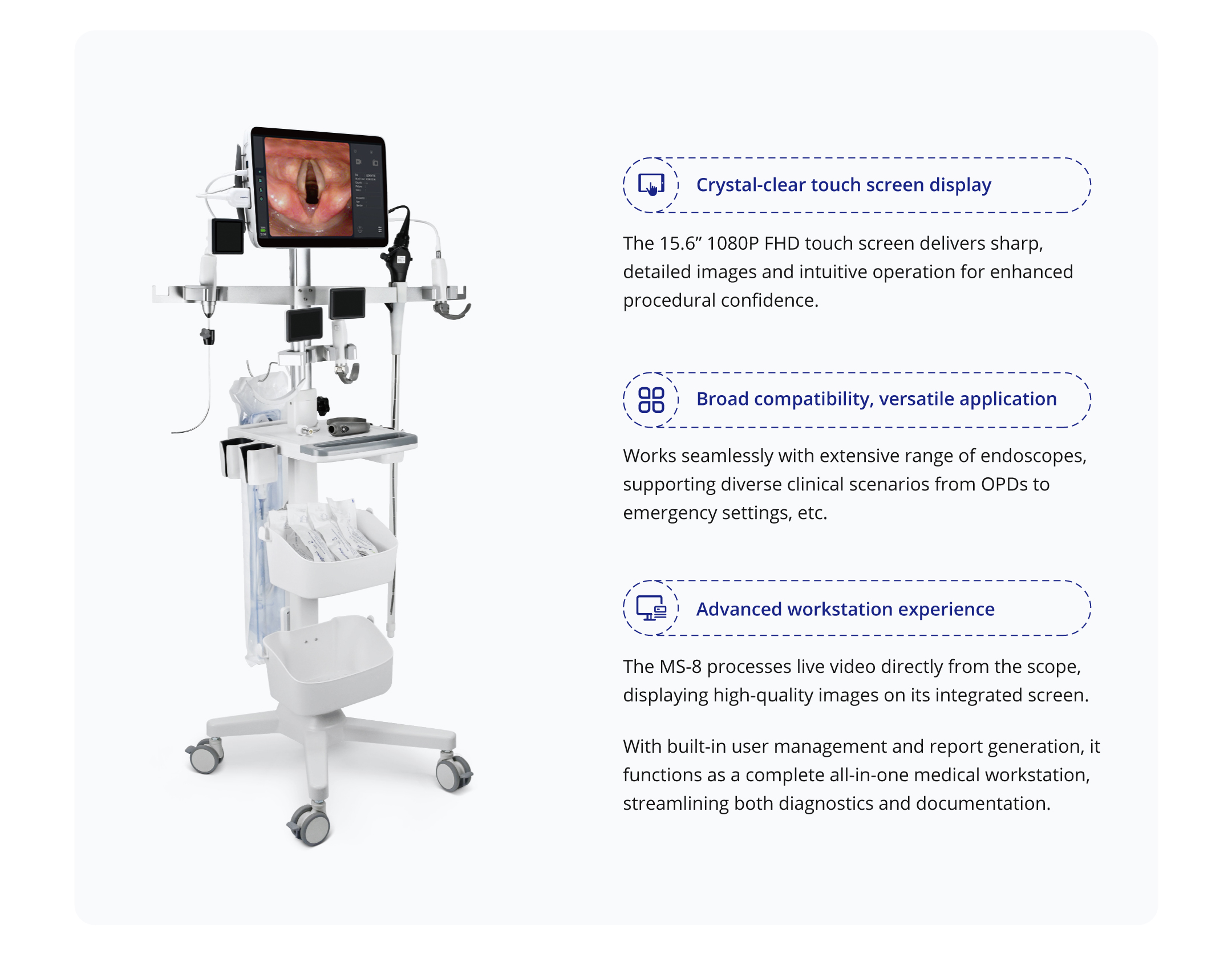

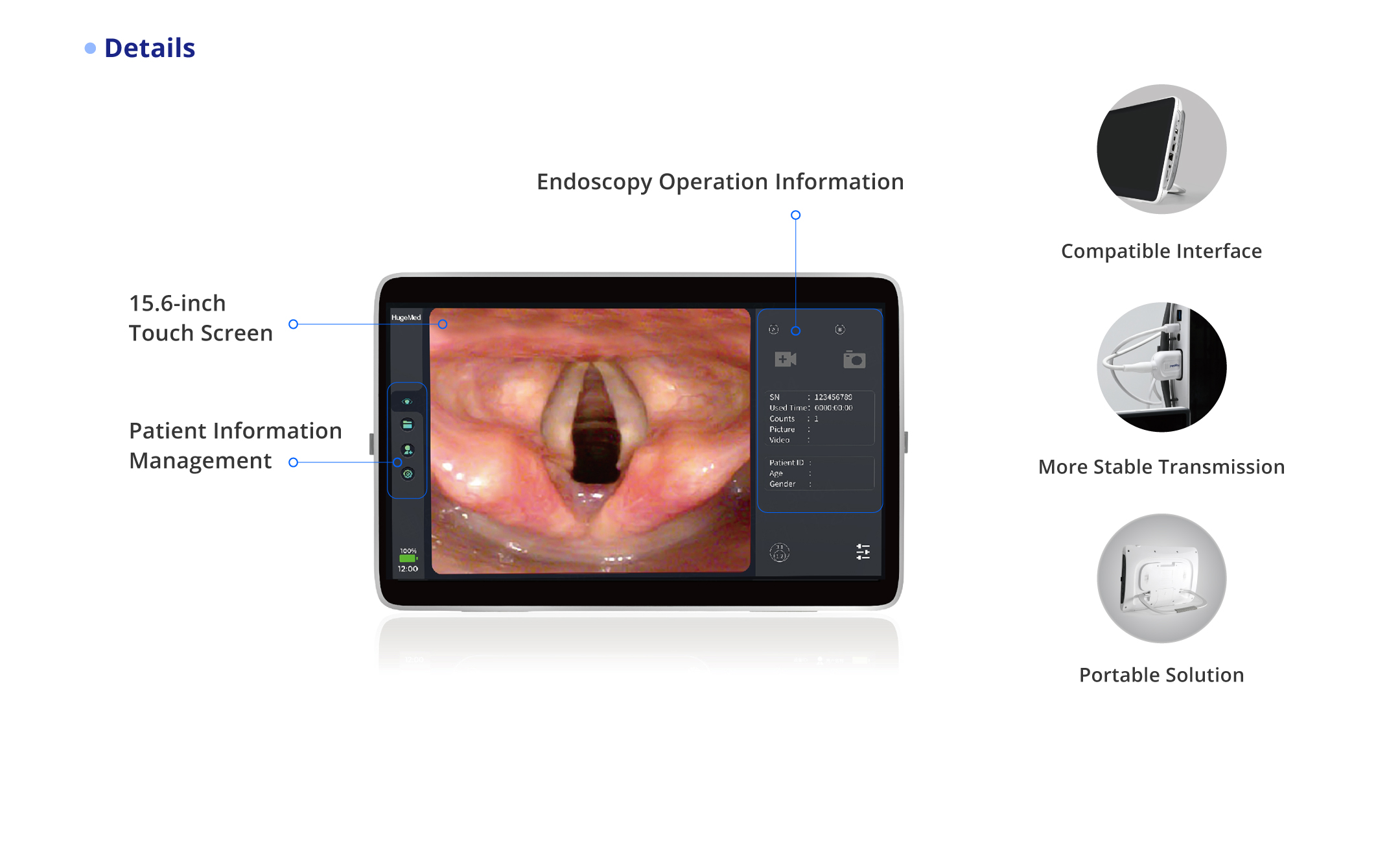

Image Processor - 2

Model

MS-8

Screen

15.6 inches TFT LCD touch screen

Display resolution

1920 × 1080 pixels

Dimensions (L×W×H)

386.4 mm × 38.5 mm × 253.6 mm

Weight

2.6 kg

Memory capacity

Built-in SD card standard 64 GB

Working time

Continuous working time ≥ 4 h

Function

Dual view, WIFI, Brightness control, Contrast control, Using time calculator, etc.

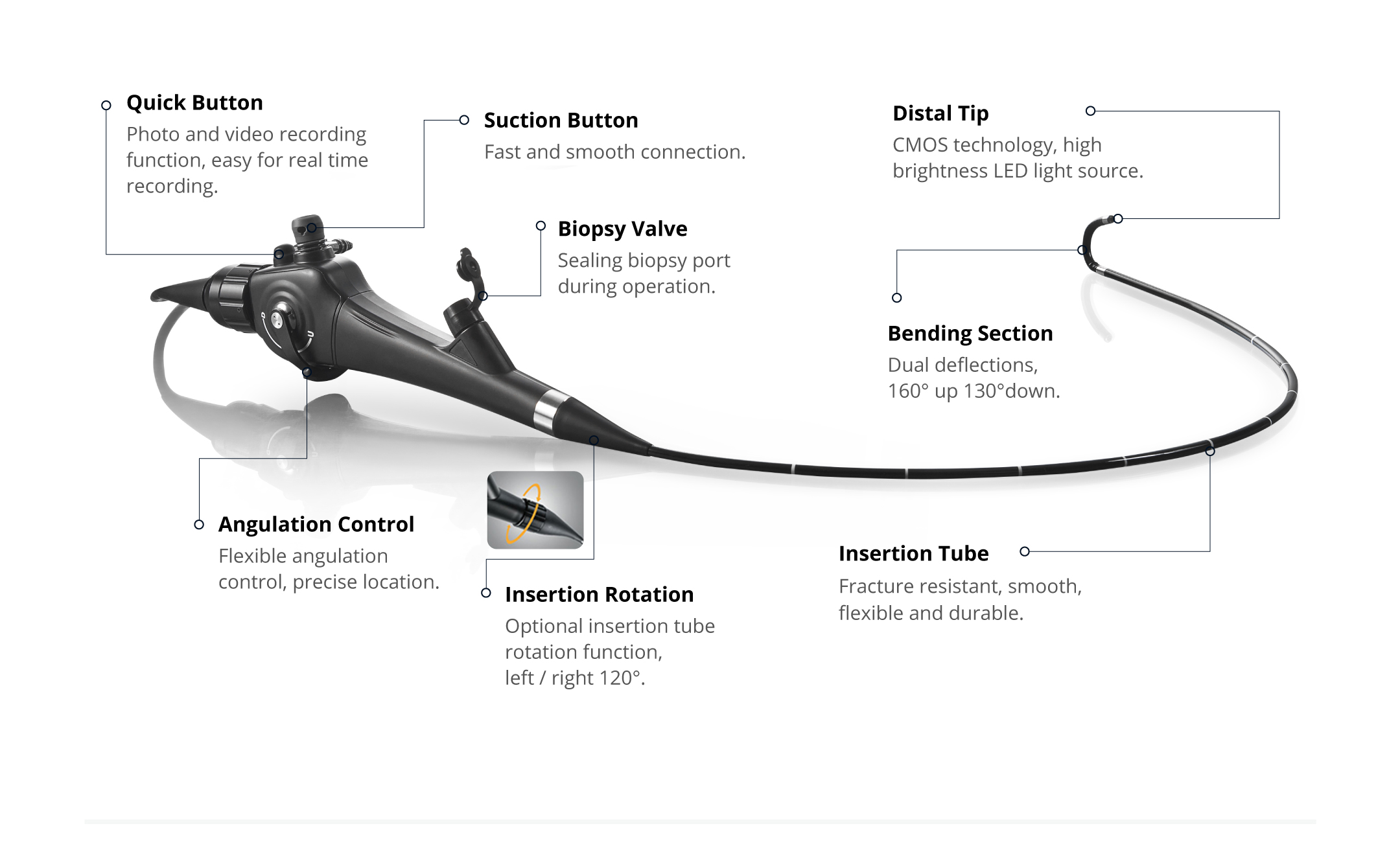

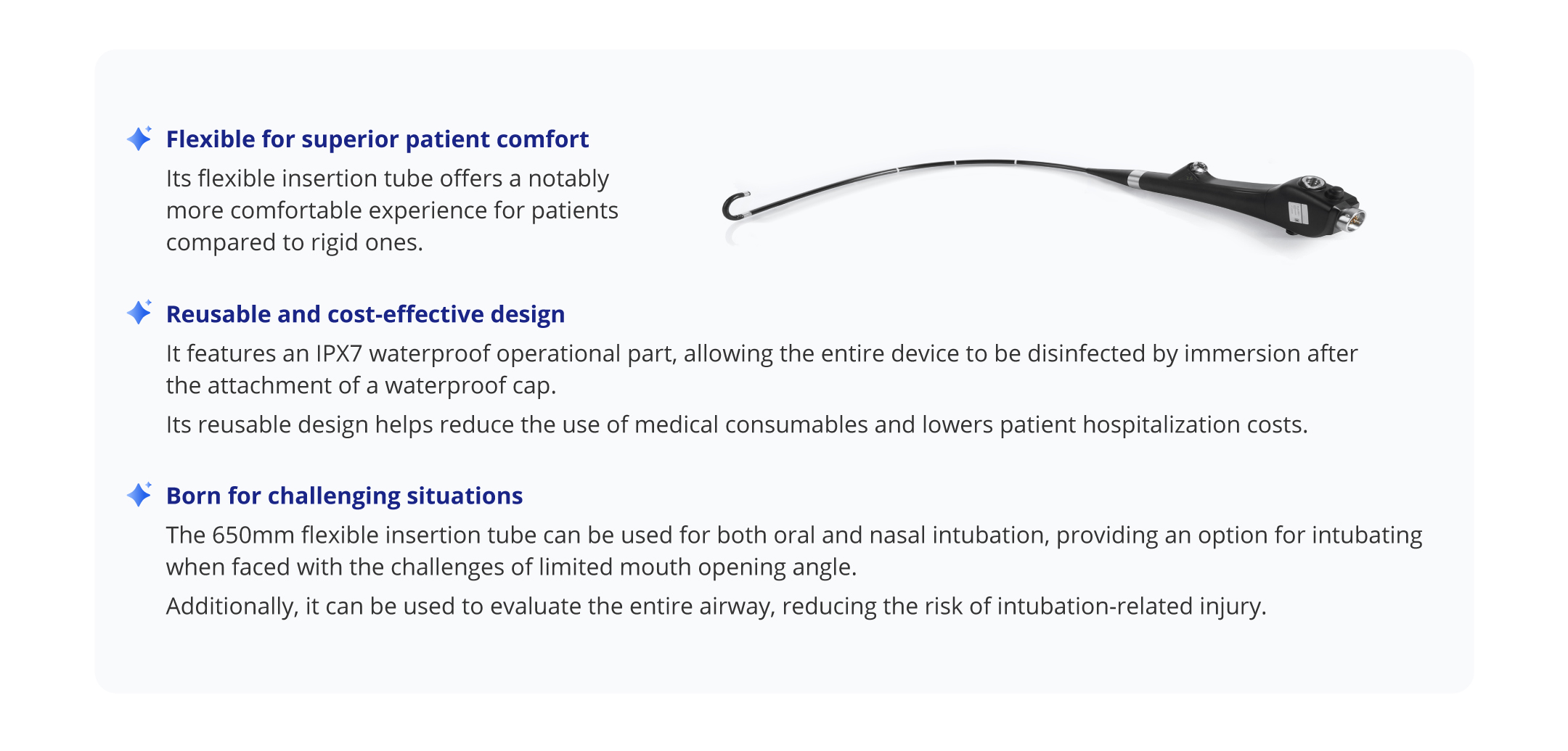

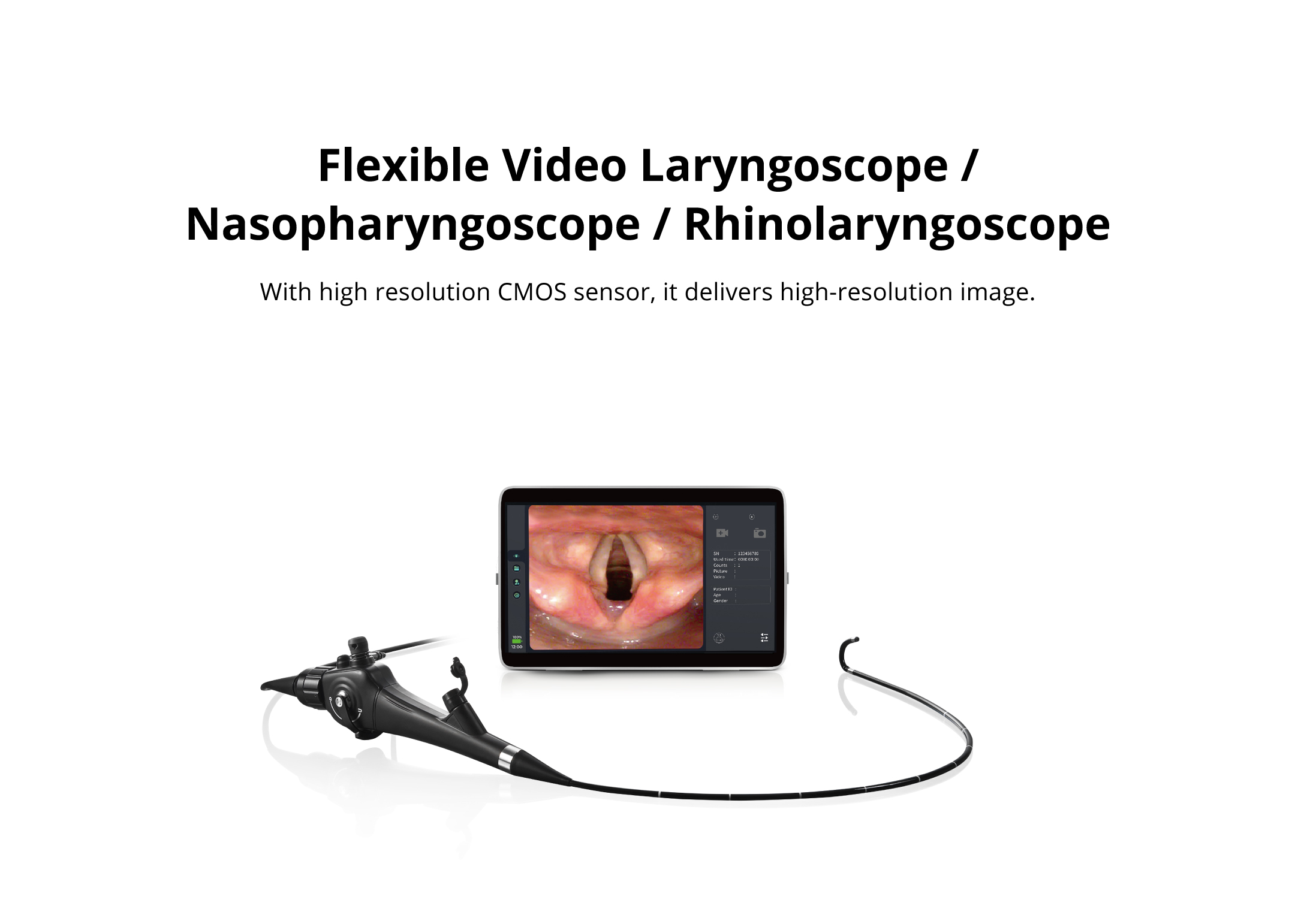

Reusable Flexible Laryngoscope

Model

M28

M30

M39

M40

M52

M58

M28-1

M39-1

M40-1

M52-1

Insertion tube outer diameter

2.8 mm

3.0 mm

3.9 mm

4.0 mm

5.2 mm

5.8 mm

2.8 mm

3.9 mm

4.0 mm

5.2 mm

Instrument channel inner diameter

/

1.2 mm

1.2 mm

2.0 mm

2.6 mm

3.0 mm

/

1.2 mm

2.0 mm

2.6 mm

Working length

650mm

350 mm

Deflection

160° up / 130° down

Field of view

110° ± 10 %

Water resistance

IPX7 when waterproof cap is attached.
