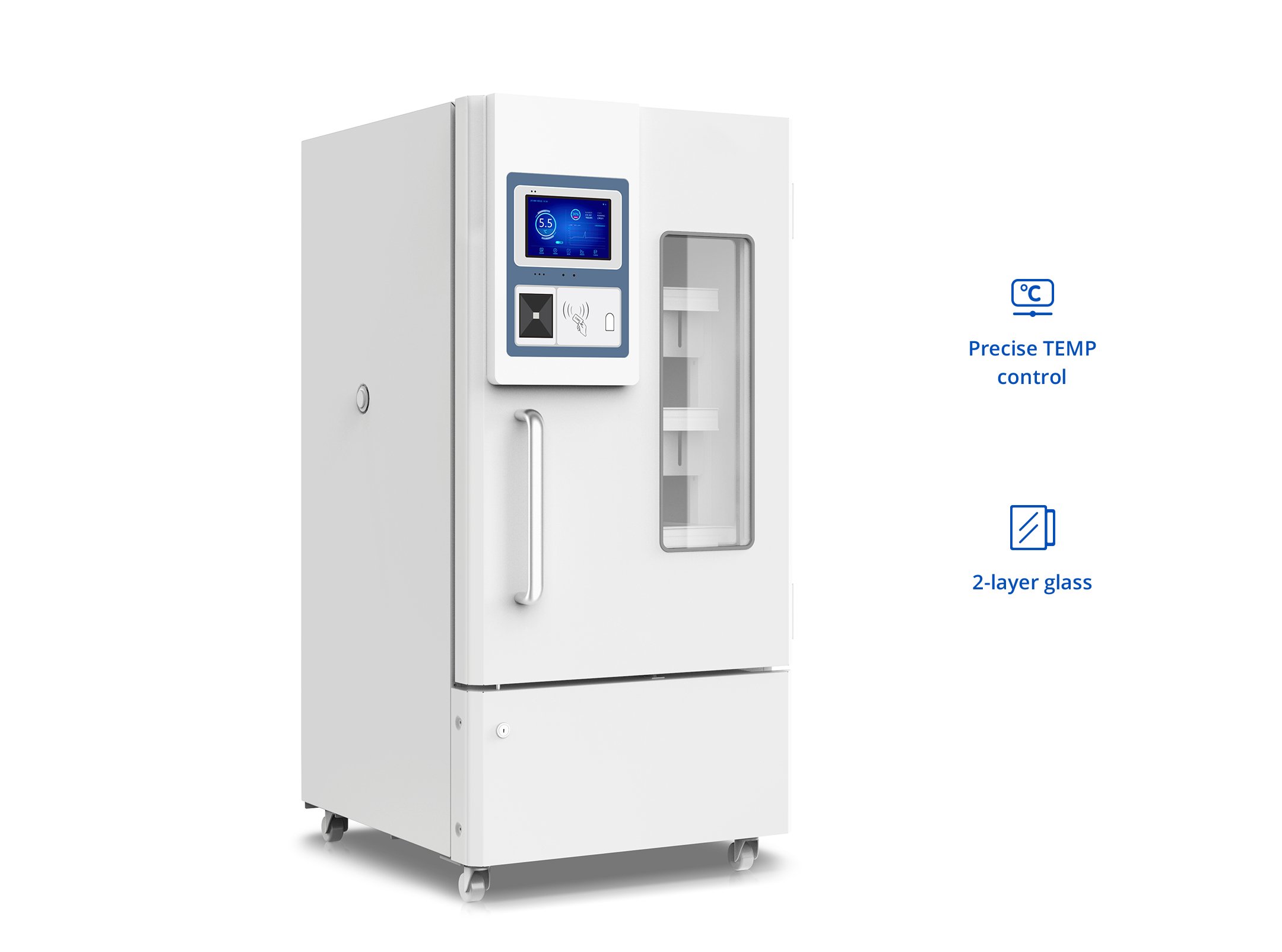

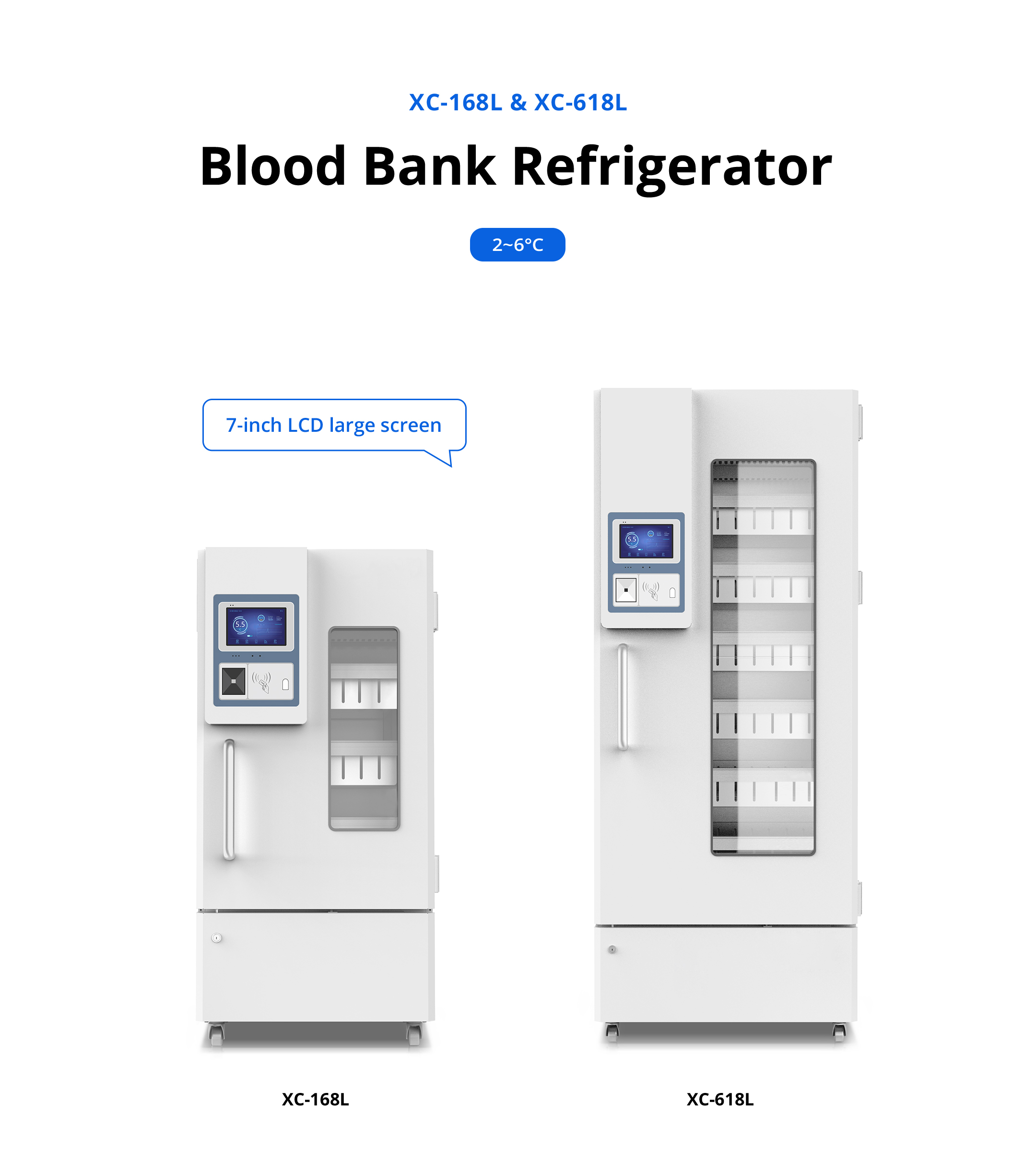

4℃ Blood bank refrigerator with 7-inch LCD large screen (capacity: 168L/618L)
Product ID: MY42739
P/N: MY427391

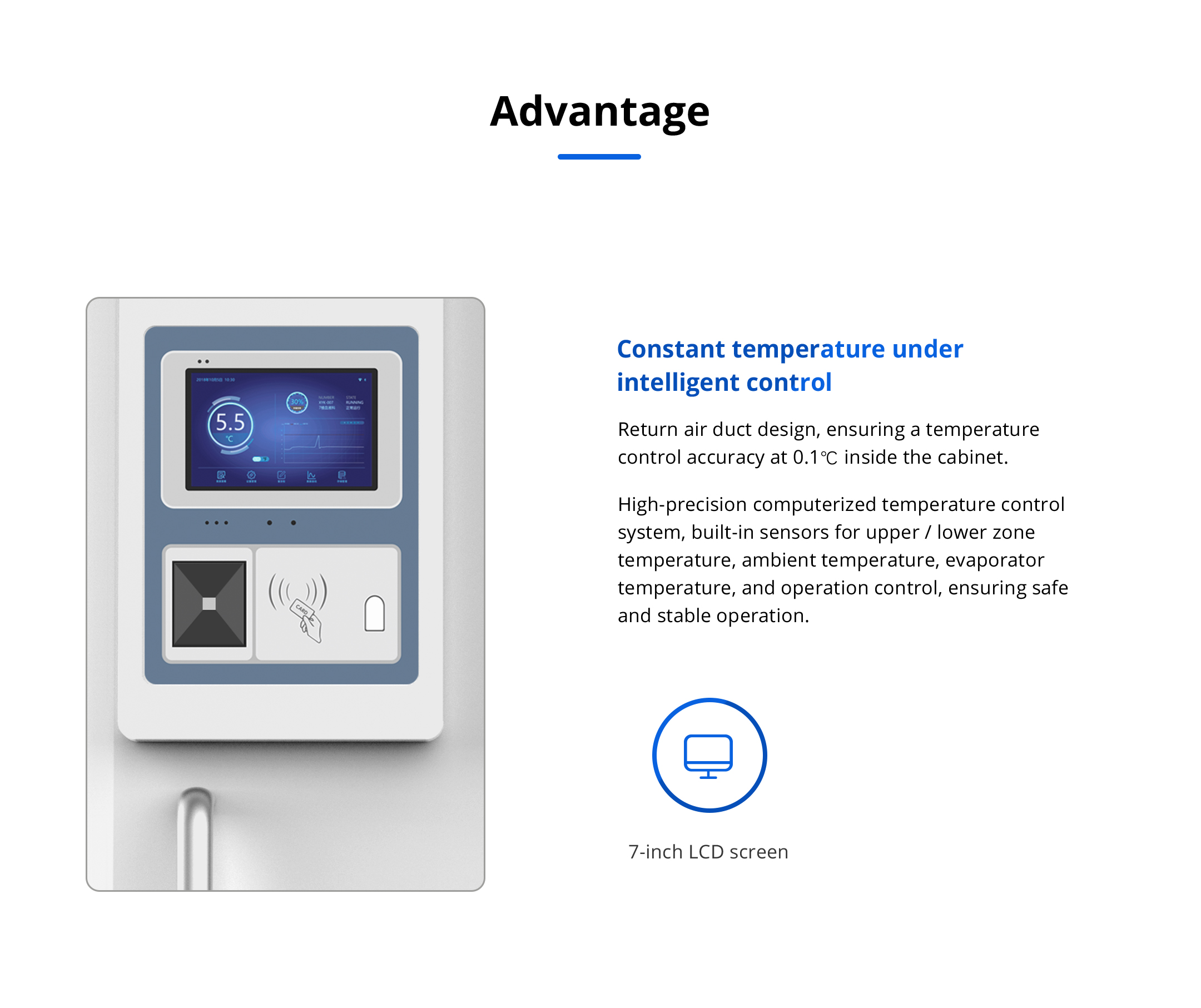

The 7-inch LCD intelligent large screen can display and query information such as temperature curve, working status, event and alarm records.
Model
XC-168L (capacity: 168L)
XC-618L (capacity: 618L)
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

XC-168L

XC-618L

Basic parameters

Cabinet type

Upright

Capacity (L)

168

618

Internal size (W*D*H) mm

525*550*744

685*690*1378

External size (W*D*H) mm

654*774*1330

812*912*1978

Package size (W*D*H) mm

700*837*1492

855*965*2105

NW / GW (Kgs)

116/144

179 / 215

Performance

Temperature range

2 ~ 6

Ambient temperature

16 ~ 32

Cooling performance

4

Climate class

N

Controller

Microprocessor

Display

Touch screen

Refrigeration

Compressor

1 pc

Cooling method

Air cooling

Defrost mode

Automatic

Refrigerant

R290

Insulation thickness (mm)

R / L: 55, B:50

Construction

External material

Powder coated material

Inner material

Stainless steel

Aluminum plate with spraying

(optional Stainless steel)

Baskets

9 blood baskets

24 blood baskets

Door lock with key

Yes

Access port

1pc, Ø 25 mm

External Lock

Yes

Casters

4 (2 casters with brakes)



Data logging / Interval / Memory capacity

USB / Record every 5 minutes / 10 years

USB / Record every 10 minute / 2 years

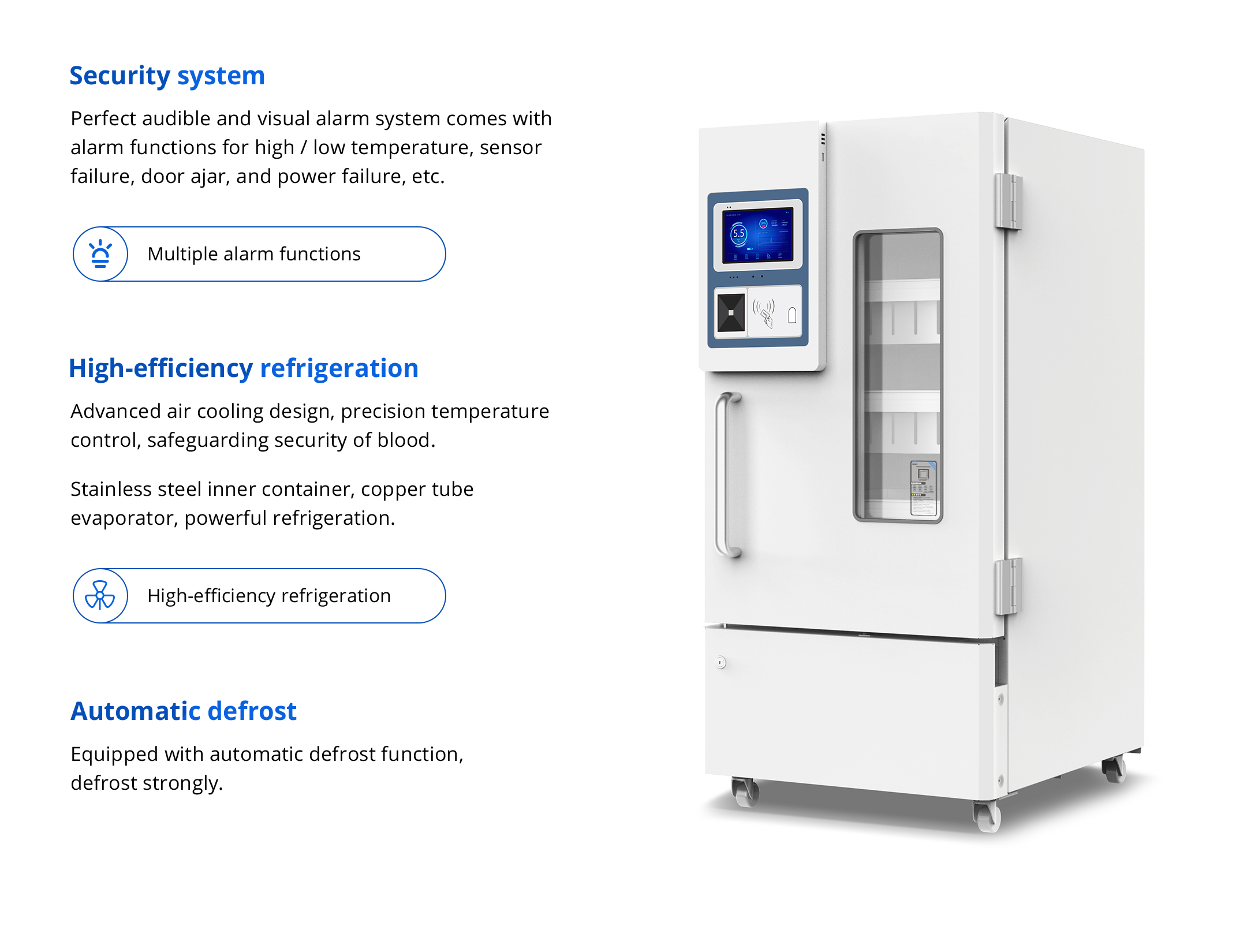

Alarm

Temperature

High / Low temperature, High ambient temperature

Electrical

Power failure, Low battery

System

Sensor failure, Door ajar, Condenser overheating, Built-in USB datalogger failure, Communication error

Sensor failure, Door ajar, Condenser overheating, Communication error

Electrical

Power Supply

(V / HZ)

220 ~ 240 / 50

Power (W)

Input Power (W): 230

Input Power (W): 465

Rated Current (A)

1.64

3.13

Accessories

Standard

RS485, Remote alarm contact, USB interface, Backup battery

Options

Chart recorder, Printer
