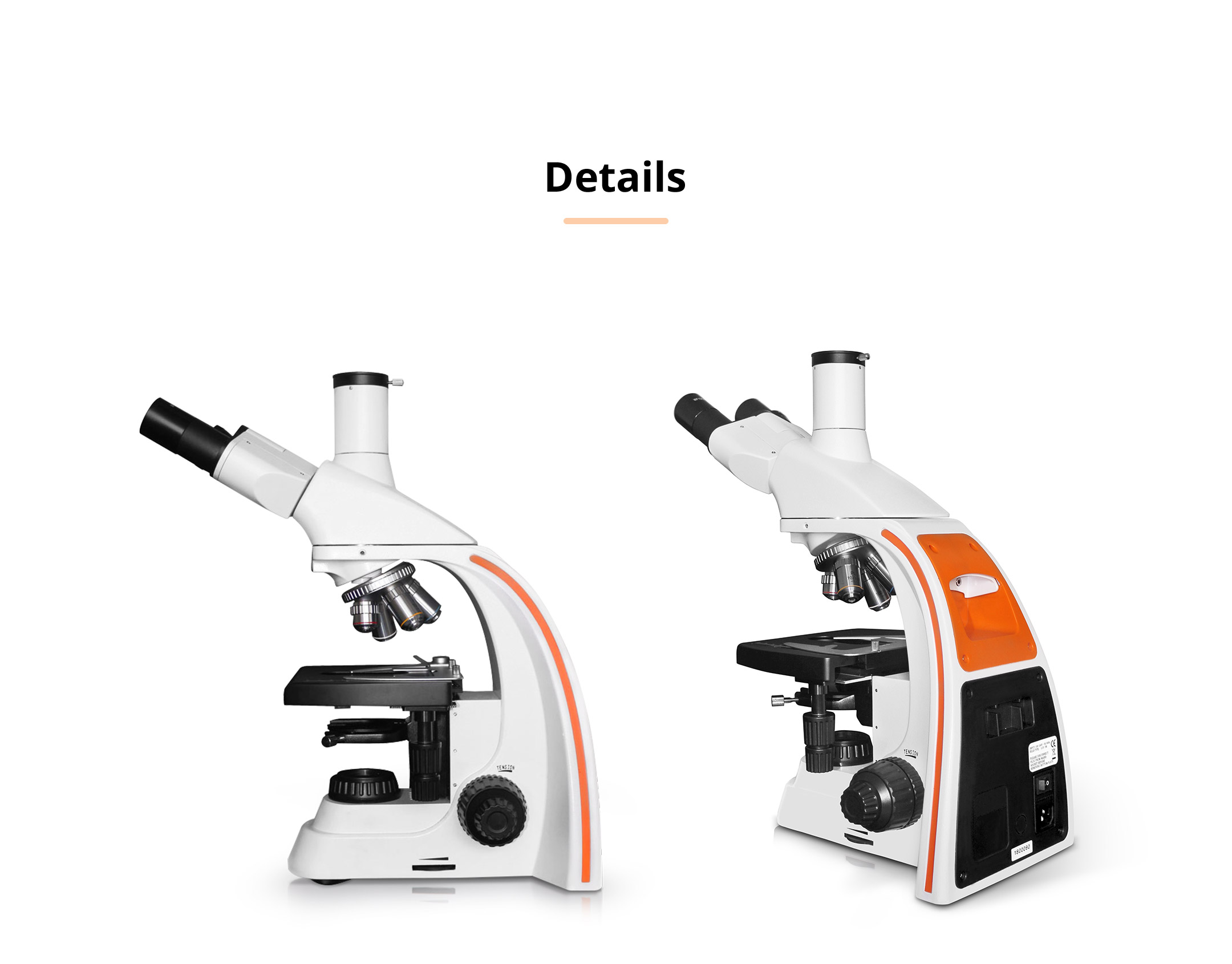

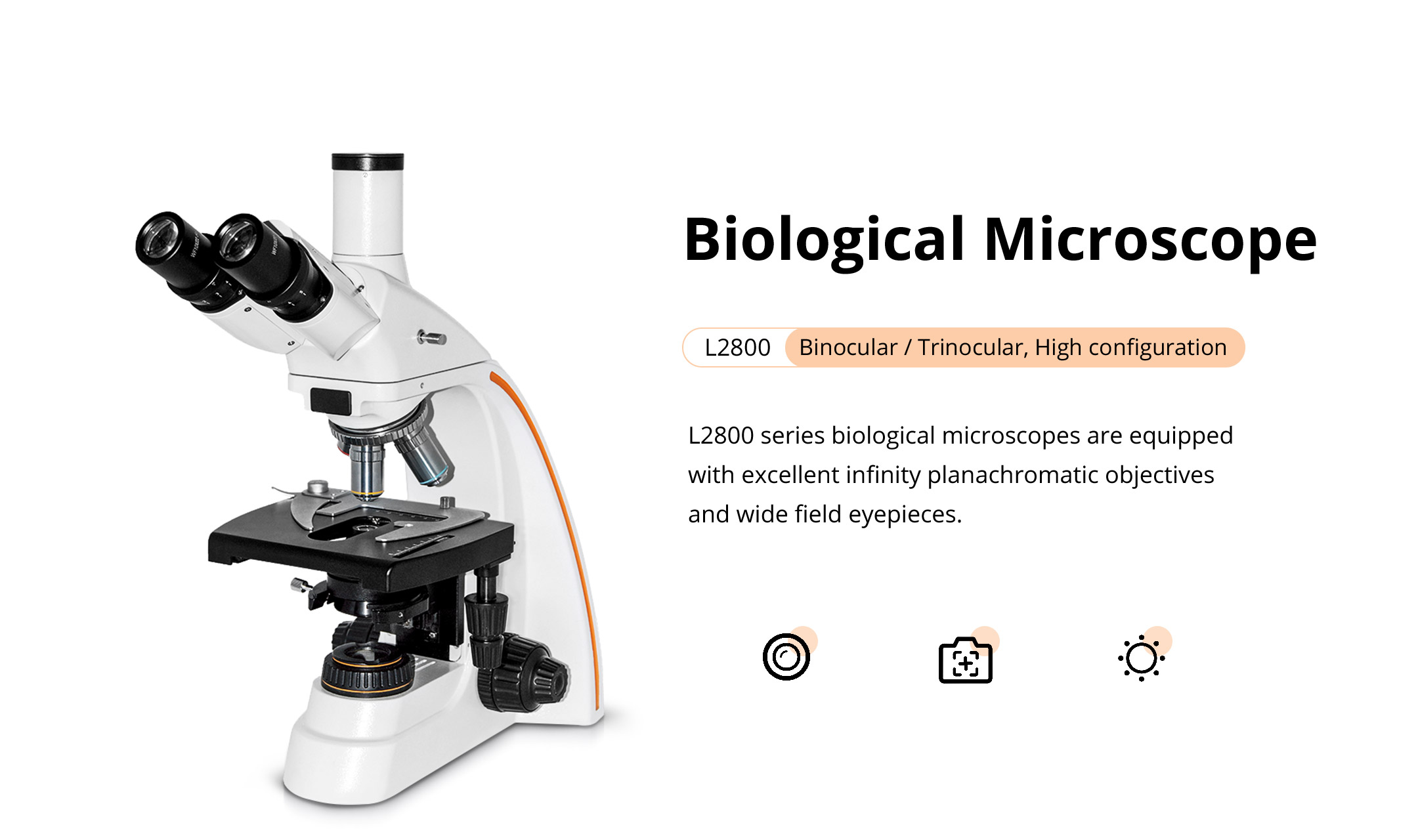

Biological microscope L2800 (Binocular / Trinocular, High configuration)
Product ID: MG40771
P/N: MG407712
The microscope are equipped with an infinite flat field achromatic objective lens and a large field eyepiece, so that the imaging is clearer and the scope of application is wider.
Monthly Promotion
Hot commodity
5% OFF
Discount ends in 00h : 00m : 00s
Model
L2800
Viewing head
Binocular
Trinocular
Optional accessoriesMultiple choices available
Selected ( 0 )
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

L2800

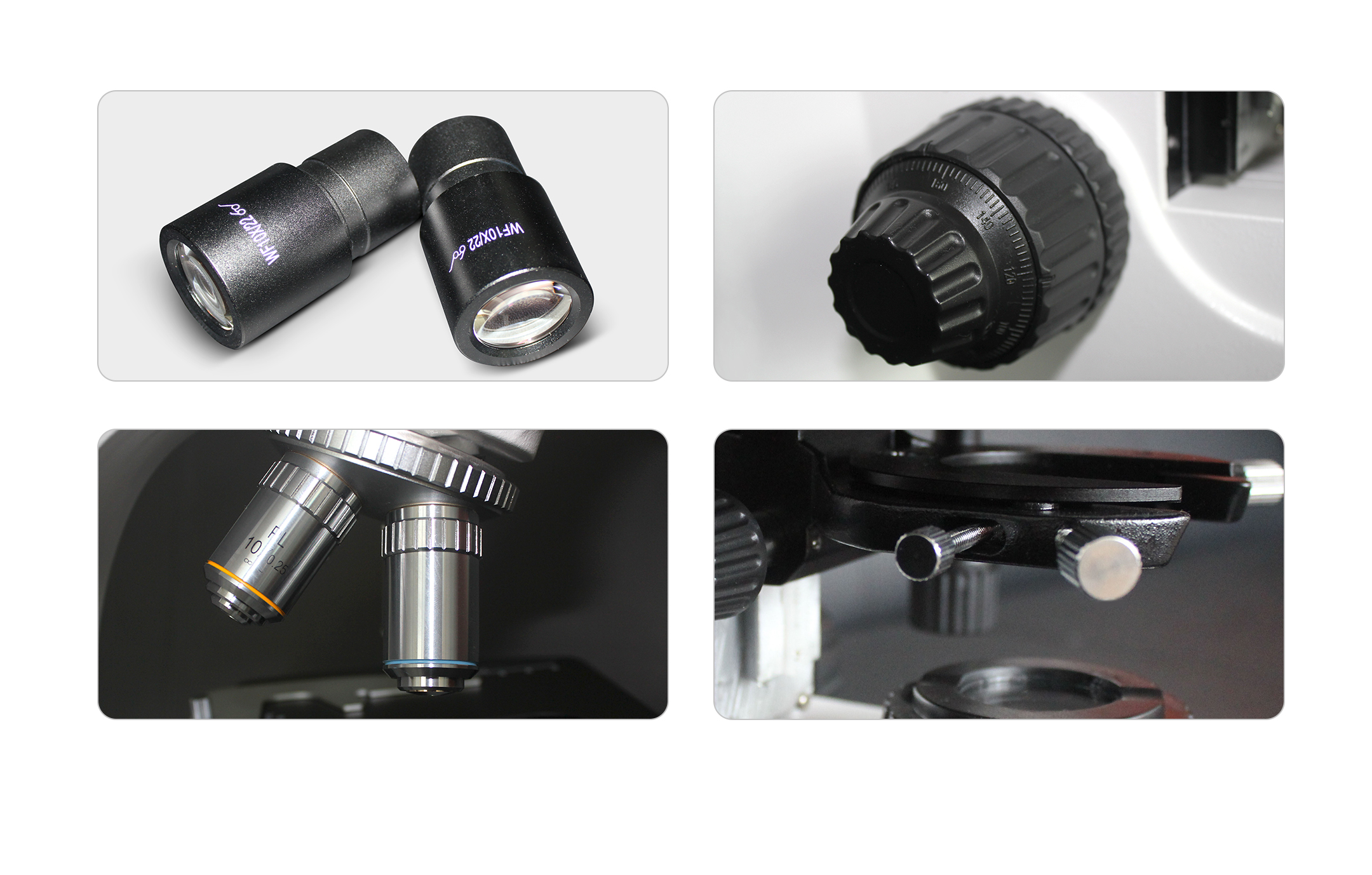

Objective

Achromatic objectives: 4 X, 10 X, 40 X (S), 100 X (S, Oil)

Eyepieces

Wide field WF 10 X (Φ 22 mm)

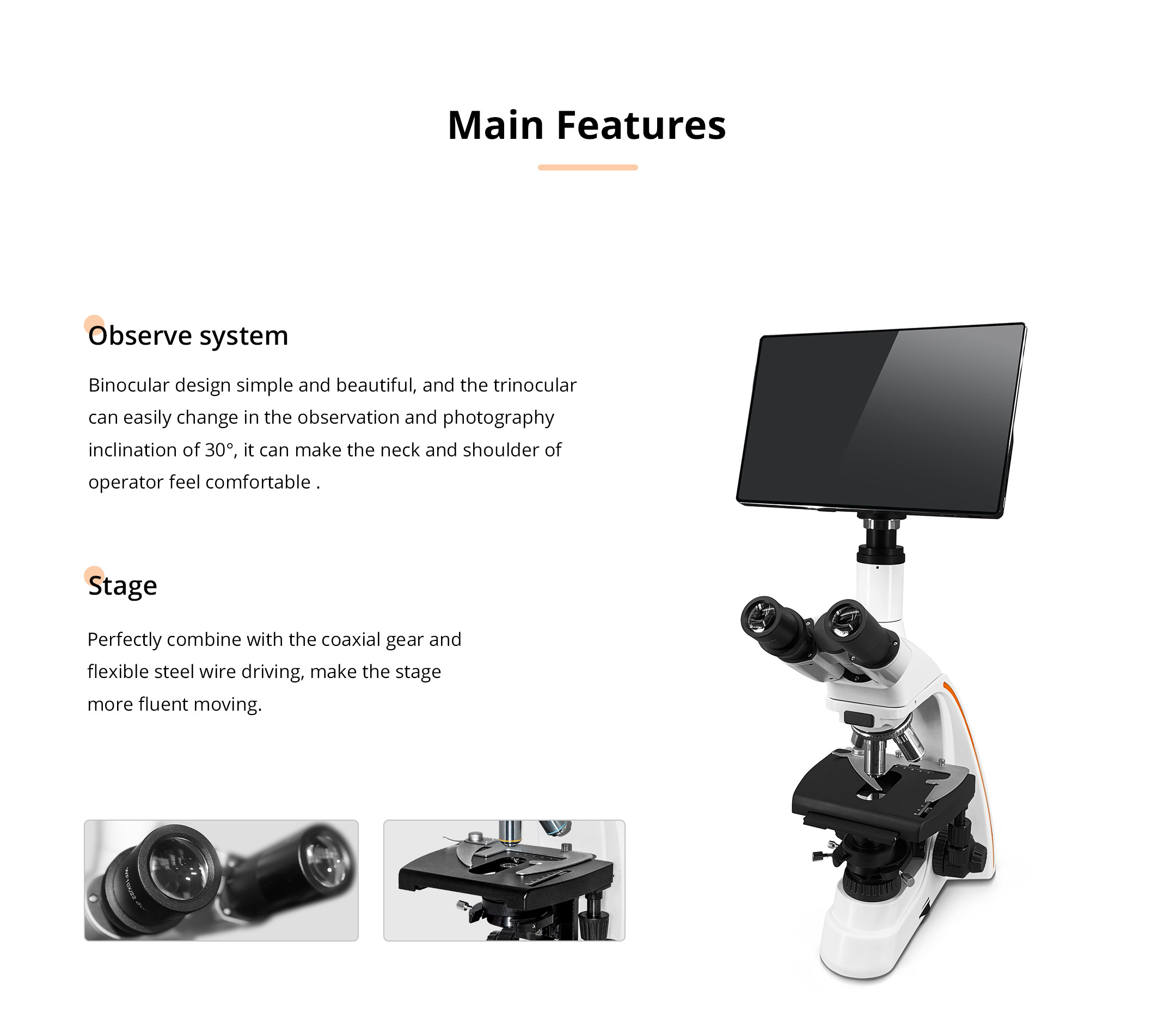

Viewing head

HBG Binocular (inclination of 30˚); HTG Trinocular (Inclination of 30˚); Eye point height adjustable

Nosepiece

Quadruple (backward ball bearing inner locating)

Stage

Double layer mechanical stage and overall size: 193 mm × 155 mm, moving range: 75 mm × 50 mm

Focusing

Coaxial coarse / fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2 μm

Condenser

Abbe condenser N.A. 1.25 rack & pinion adjustable

Illumination

Blue filter, frosted filter, 6 V 20 W halogen lamp

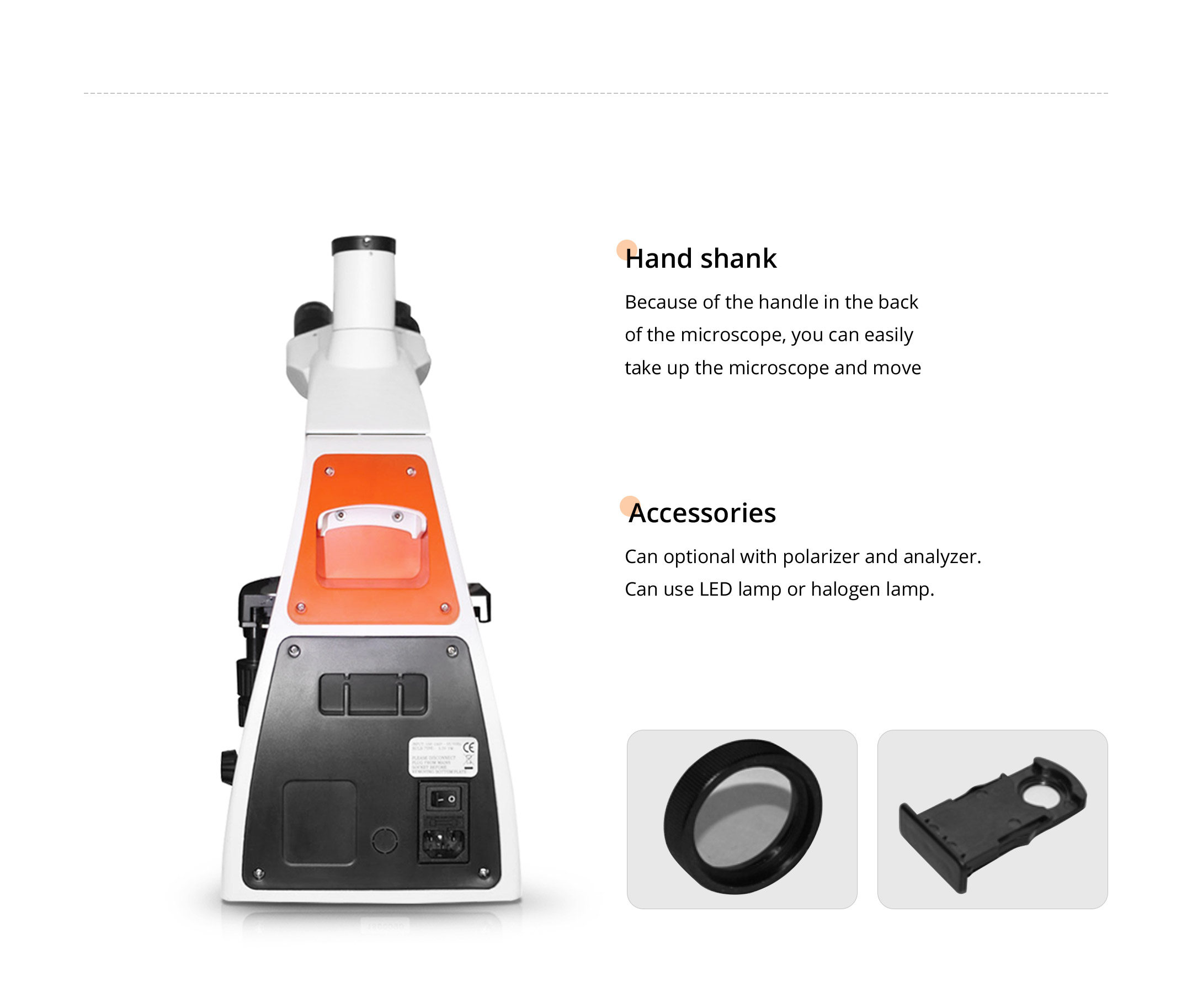

Optional accessory

Eyepiece

Dividing eyepiece 10 XΦ 22 mm

Objective

Infinity plan achromatic objective 20 X / 60 X

CCD adapter

0.5 X / 1 X / 0.5 X, with dividing

Camera

USB output: 1.3 M / 2.0 M / 3.0 M / 5.0 M pixel

VIDEO output: 380 / 520 TV Line

Screen

LISSPAD, A10

Phase contrast unit

Centering telescope

Infinity phase contrast plan achromatic 10 X / 20 X / 40 X / 100 X

Turnplate () phase contrast condenser

Dark field

Dry or oil type dark field condenser.
