System function

Automatic, Random access

STAT sample priority, available for all sample position

Barcode scanner for sample and reagent

Bi-direction LlS interface (HL7)

Throughput

360 tests / hour (single and dual reagent)

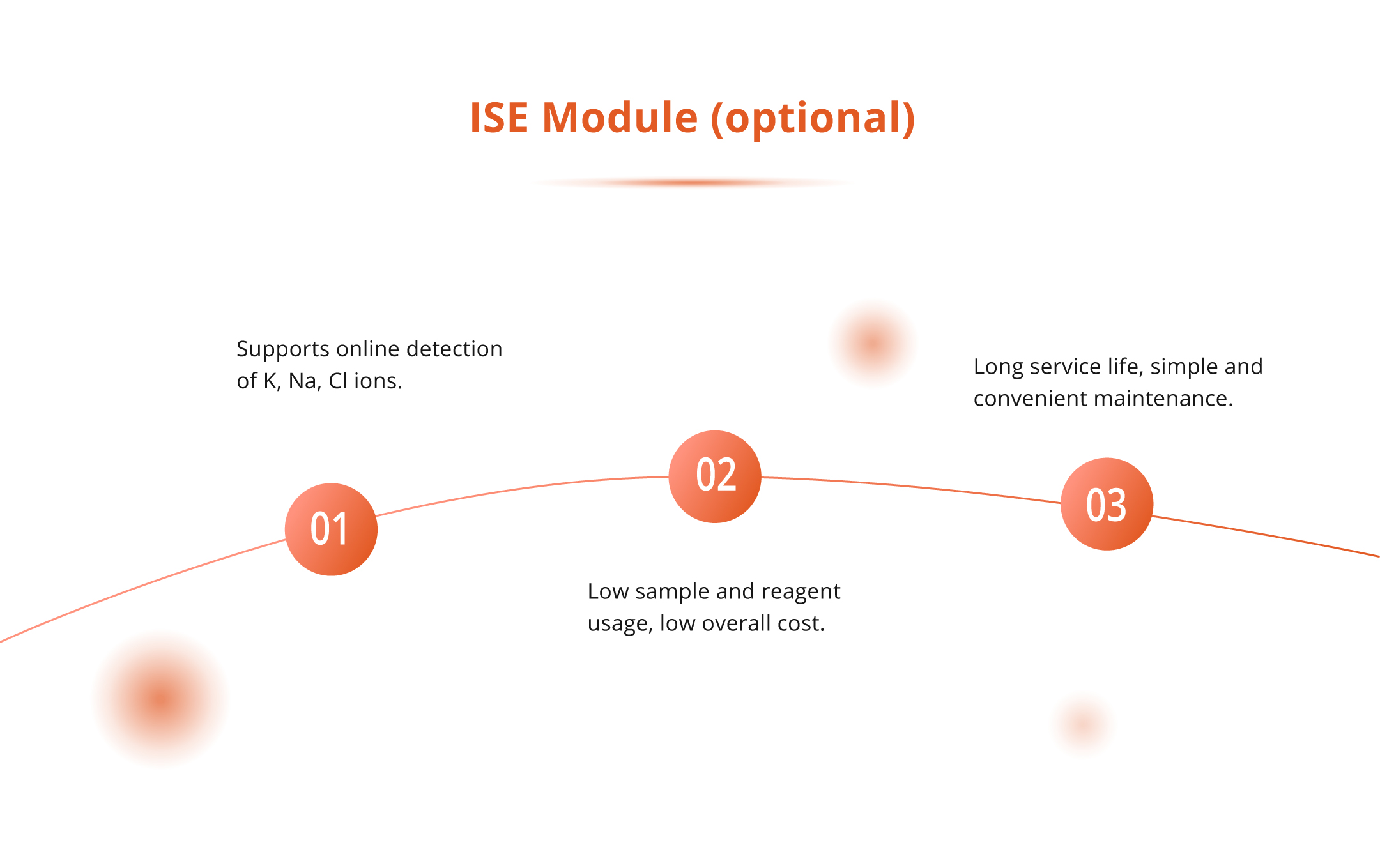

Up to 540 tests / hour with ISE (K, Na, Cl)

Principle

Colorimetric & Turbidimetric

Methodology

End-point, Two-point, Kinetic, Discrepant Value, Single / Dual / Triple / Quadruple reagent chemistries / Monochromatic / Bi-chromatic

Programming

Open system with user defined profiles and calculation

Sample / Reagent handling

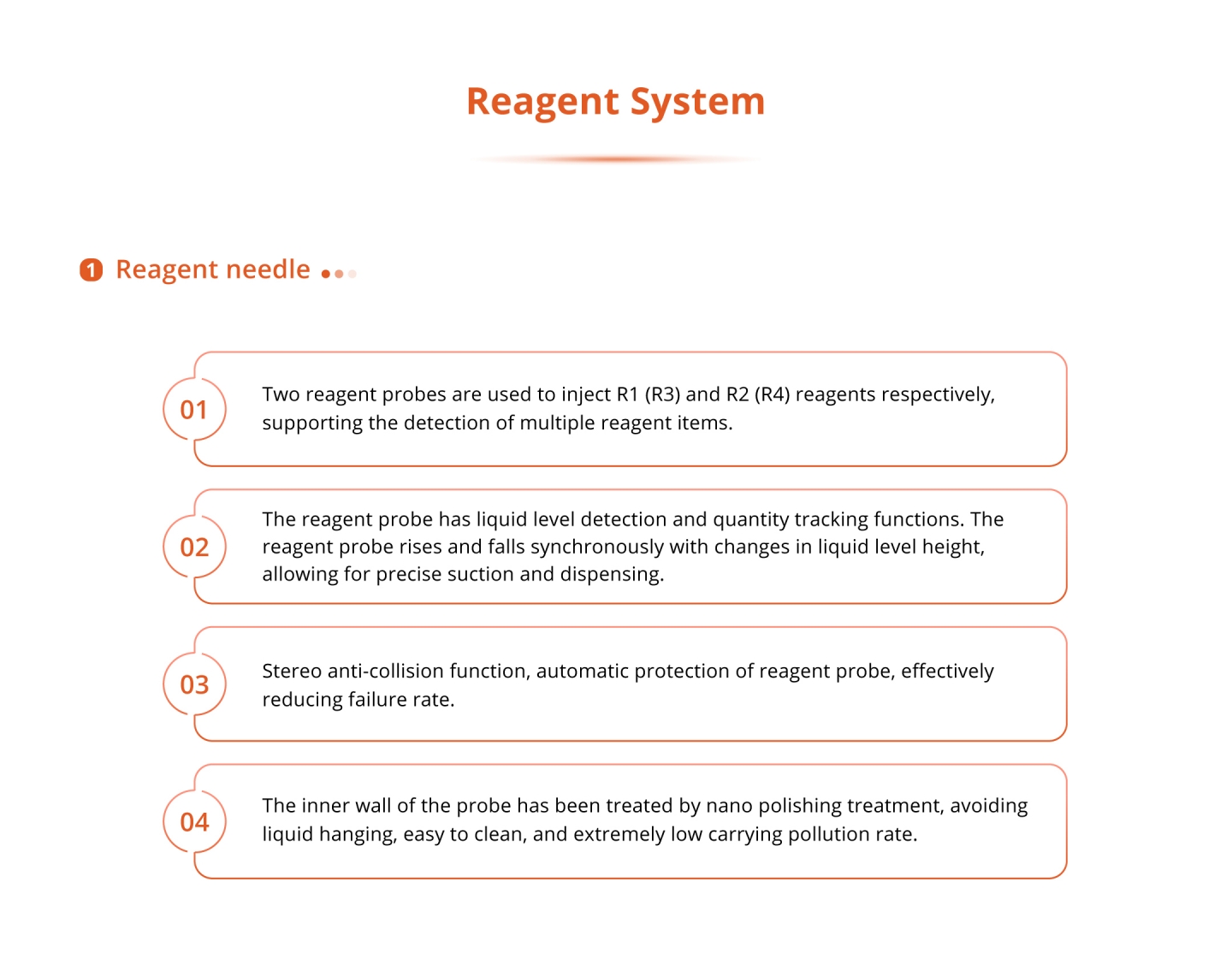

2 reagent probes, 1 sample probe.

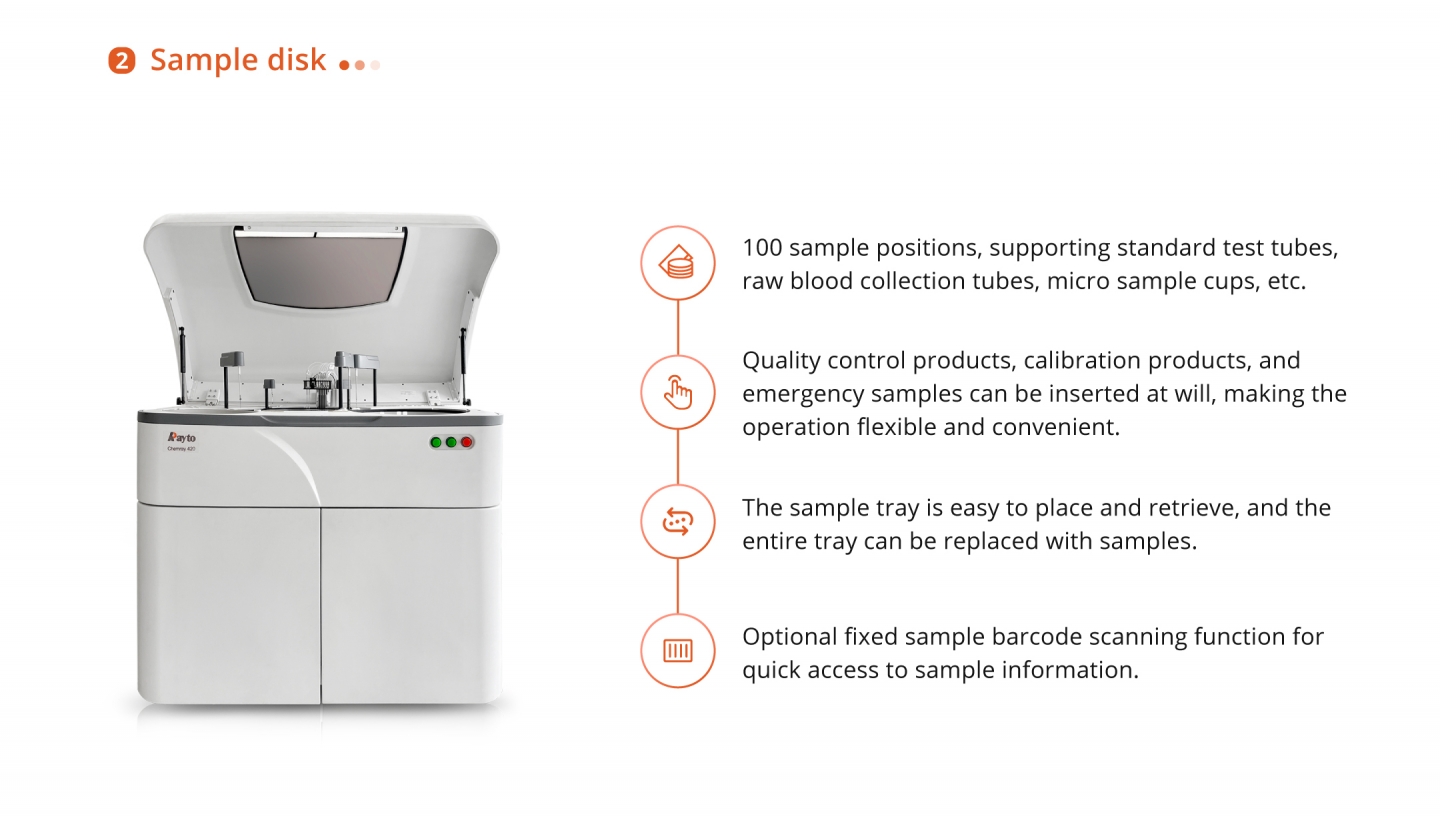

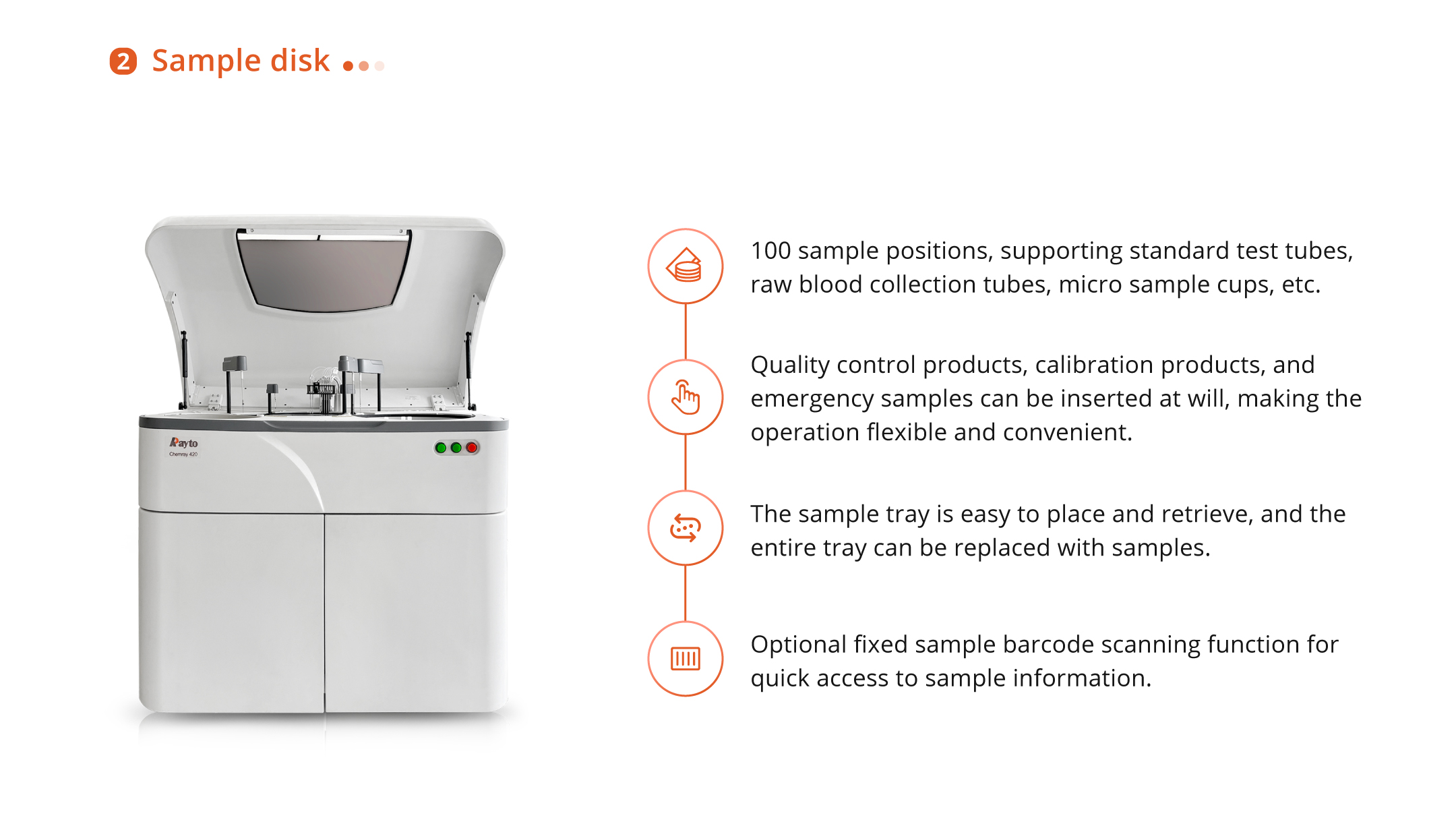

Sample tray

100 positions

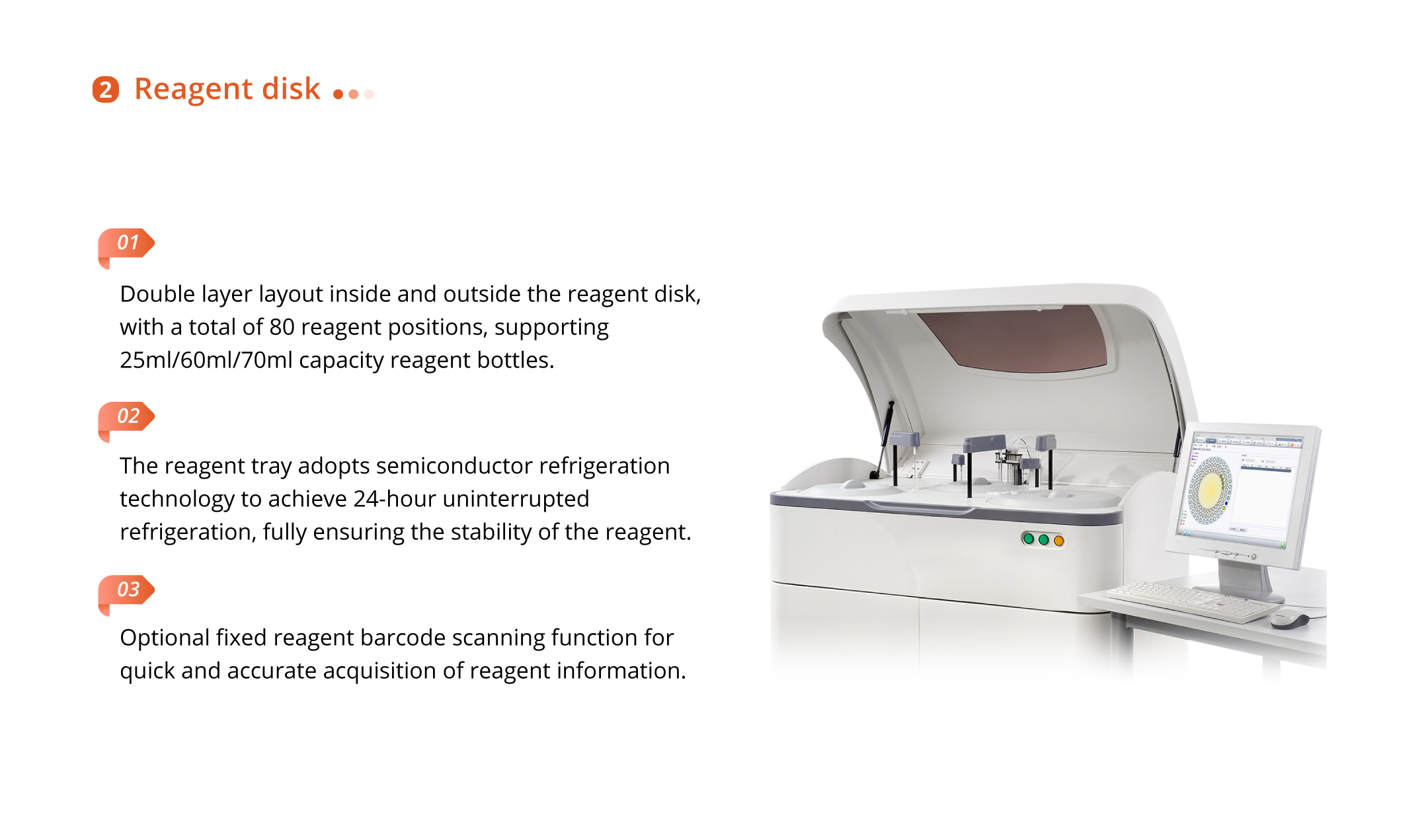

Reagent tray

80 refrigerated positions

Refrigerated temperature

2 ~ 10 ℃

Reagent volume

20 ~ 350 μL, 1 μL adjustable

R1

R2

150 ~ 350 μL, 1 μL adjustable

20 ~ 250 μL, 1 μL adjustable

Support R3 and R4

Sample volume

2 ~ 45 μL, 0.1 μL adjustable

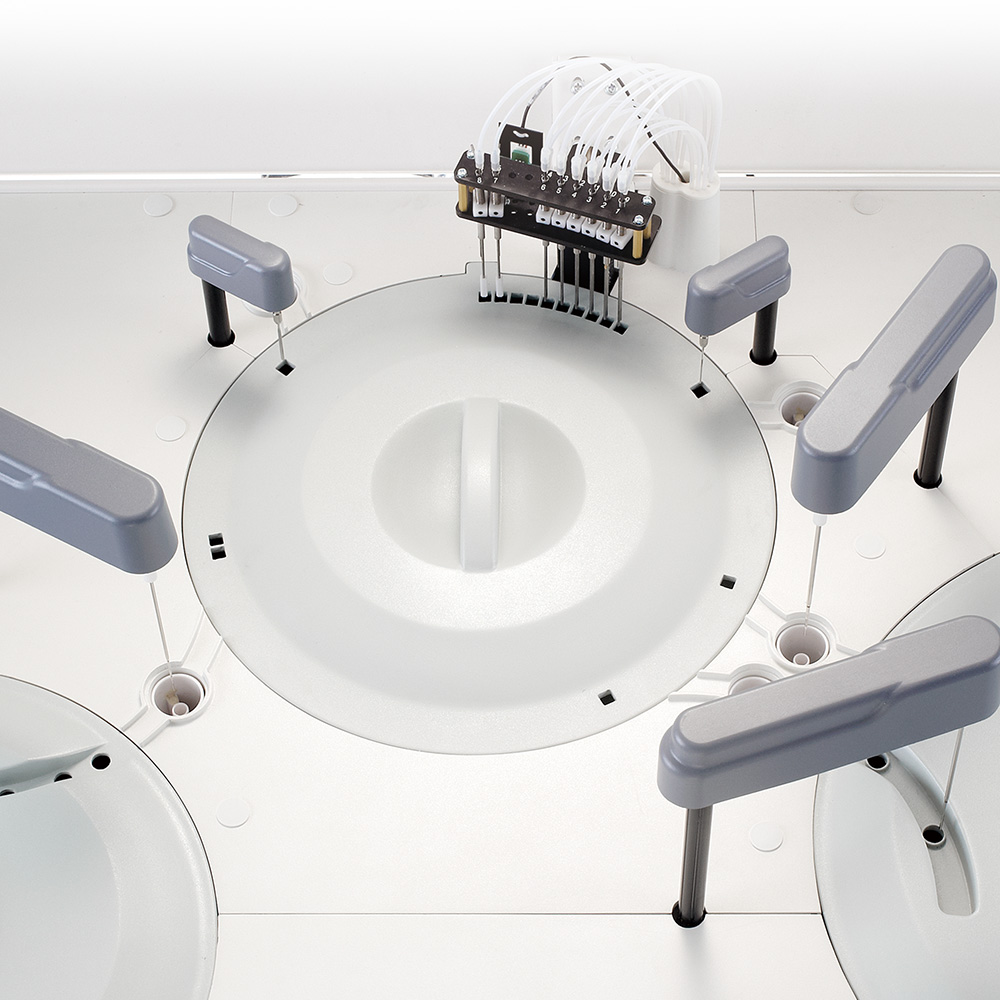

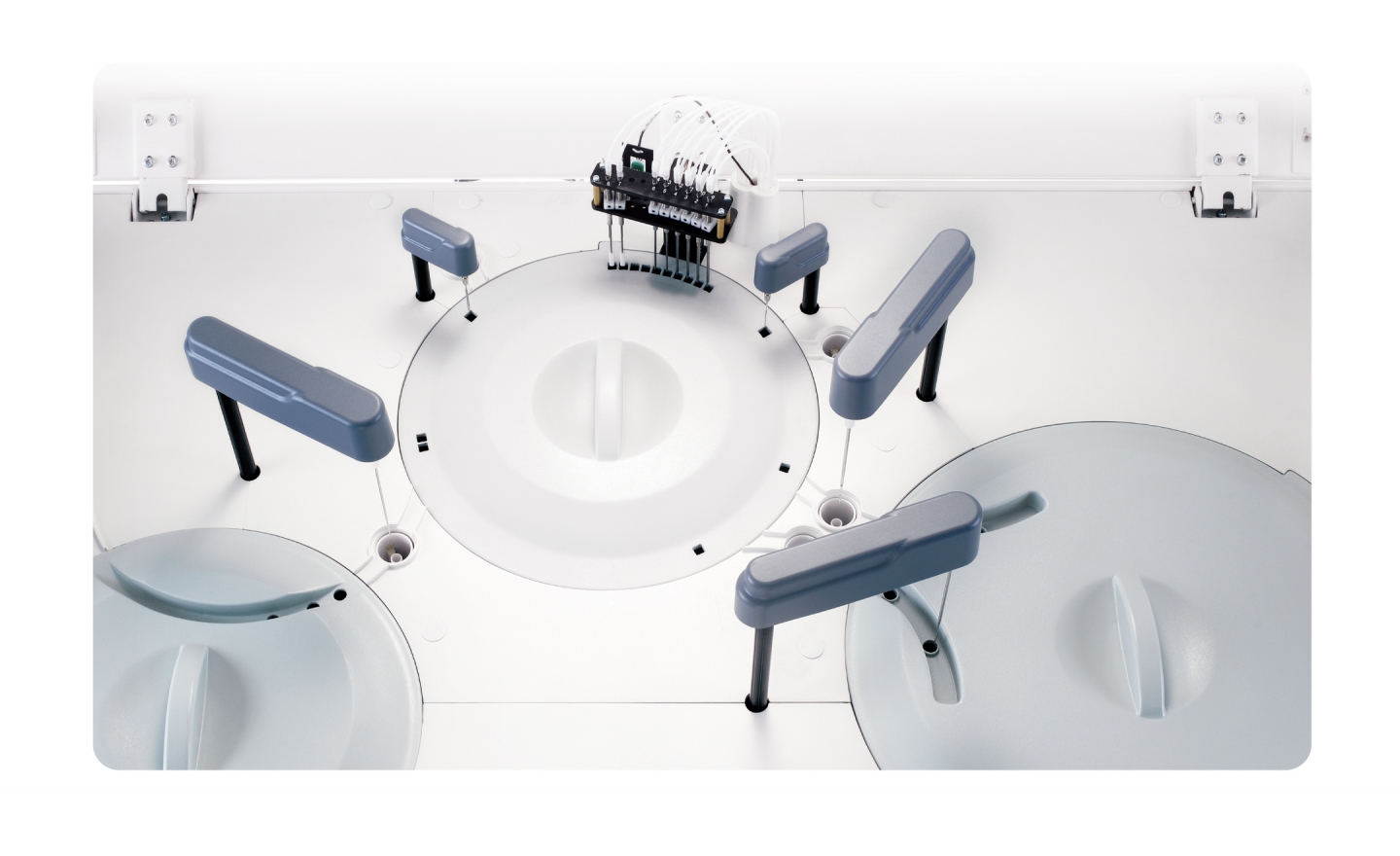

Sample and Reagent probe

Collision protection, Liquid level detection and Inventory checking.

Probe cleaning

Automatic washing both inside and outside, carry over < 0.1 %

Pre-heating for reagent

Auto dilution

3 ~ 150 times

Built-in reagent/sample bar code reader (optional)

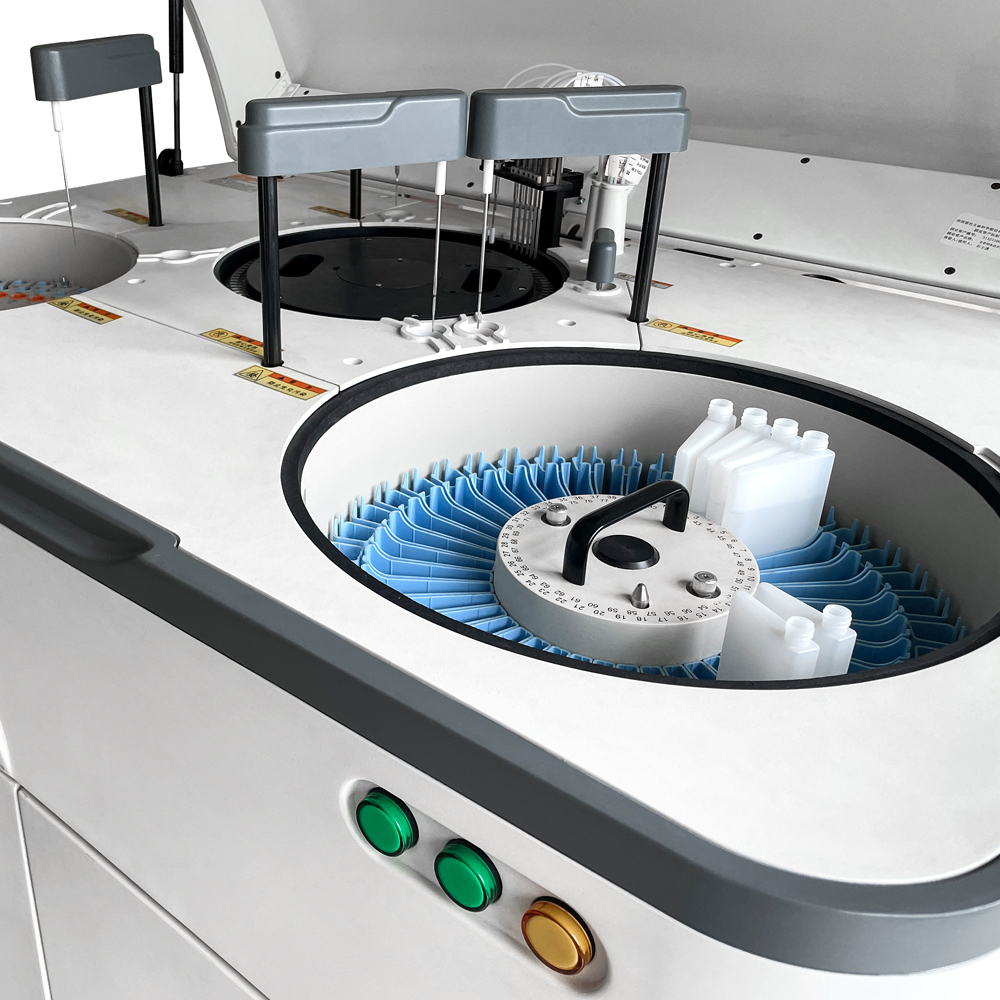

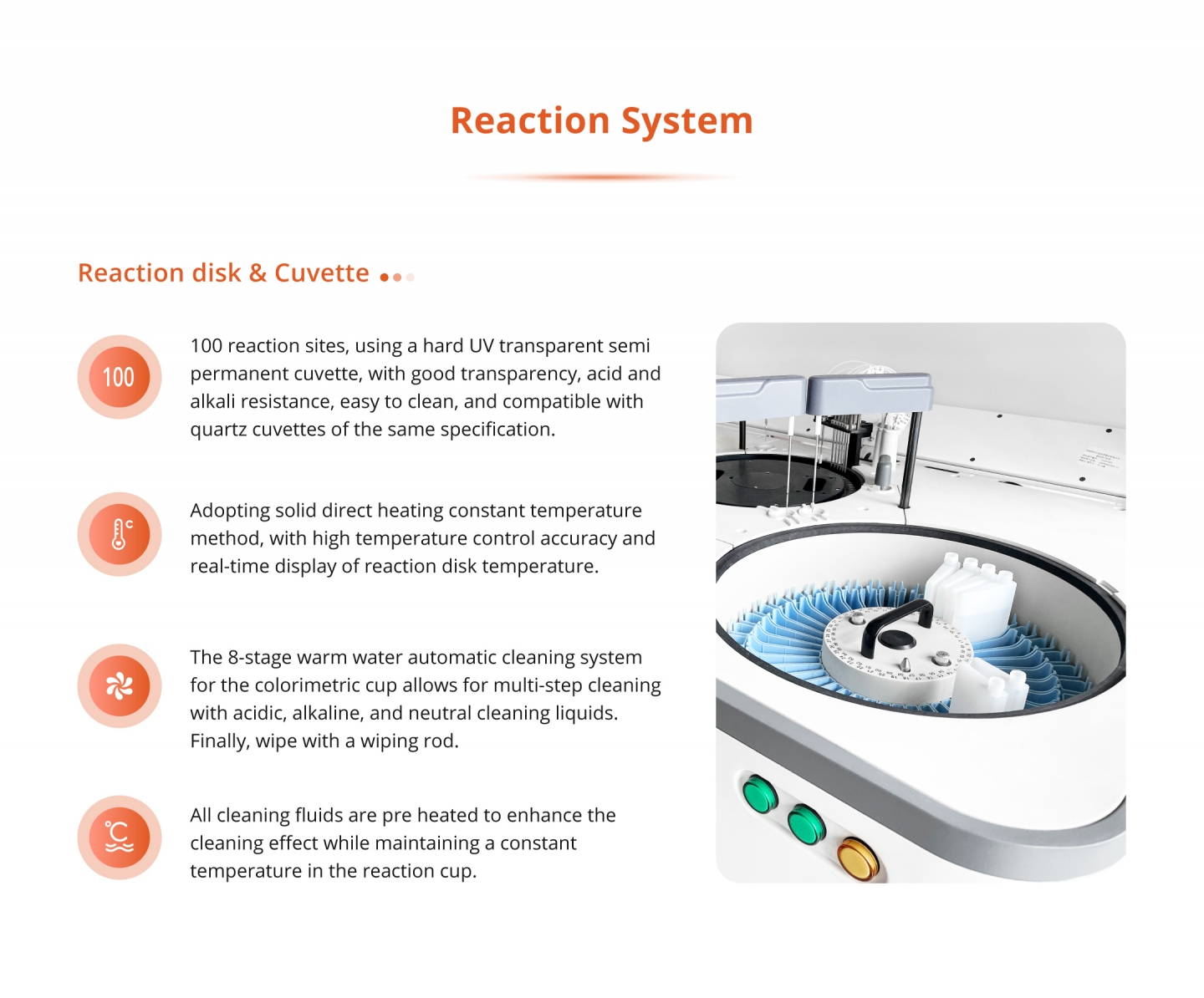

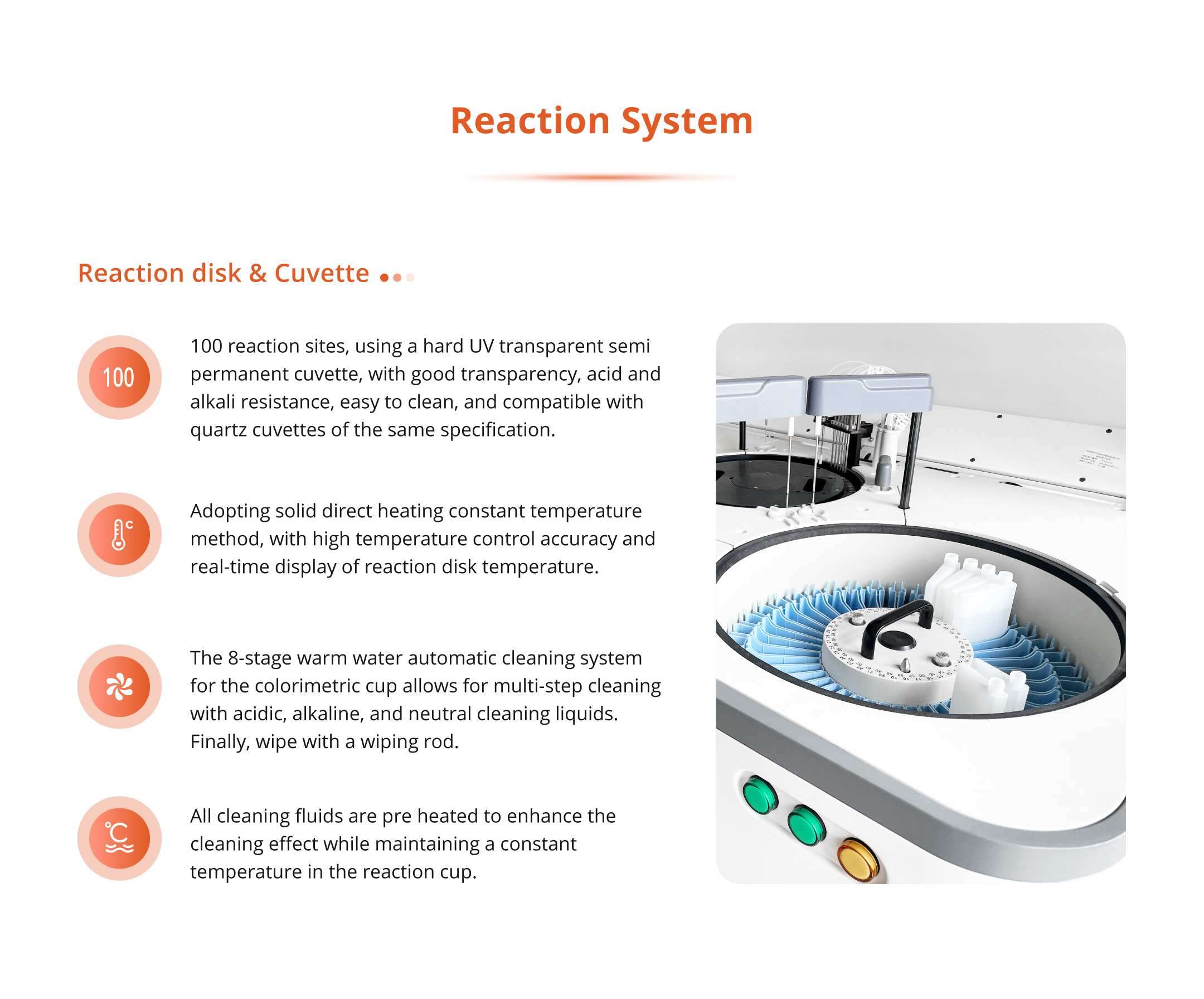

Reaction positions

100 cuvettes

Reaction volume

150 ~ 500 ul

Reaction temperature

37 ℃ ± 0.1 ℃

2 mixing probes

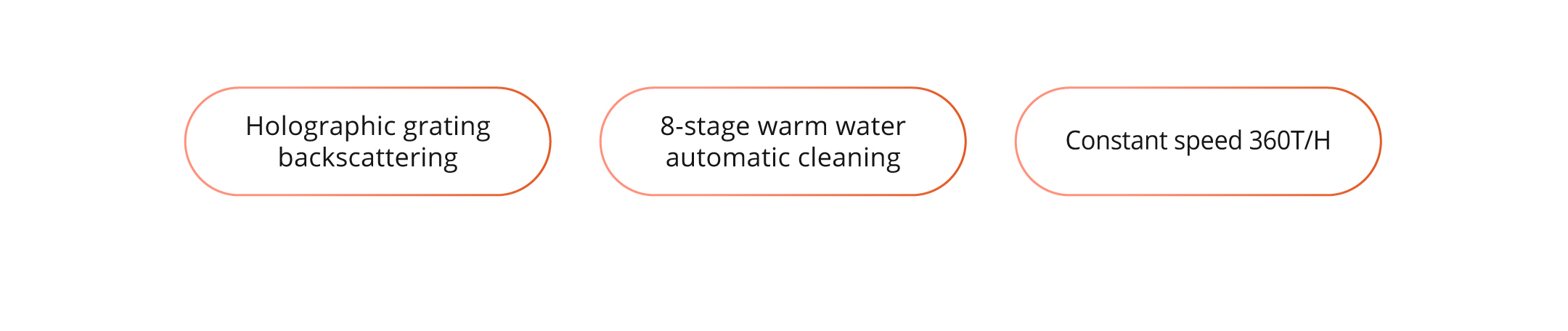

8 steps automatic washing system

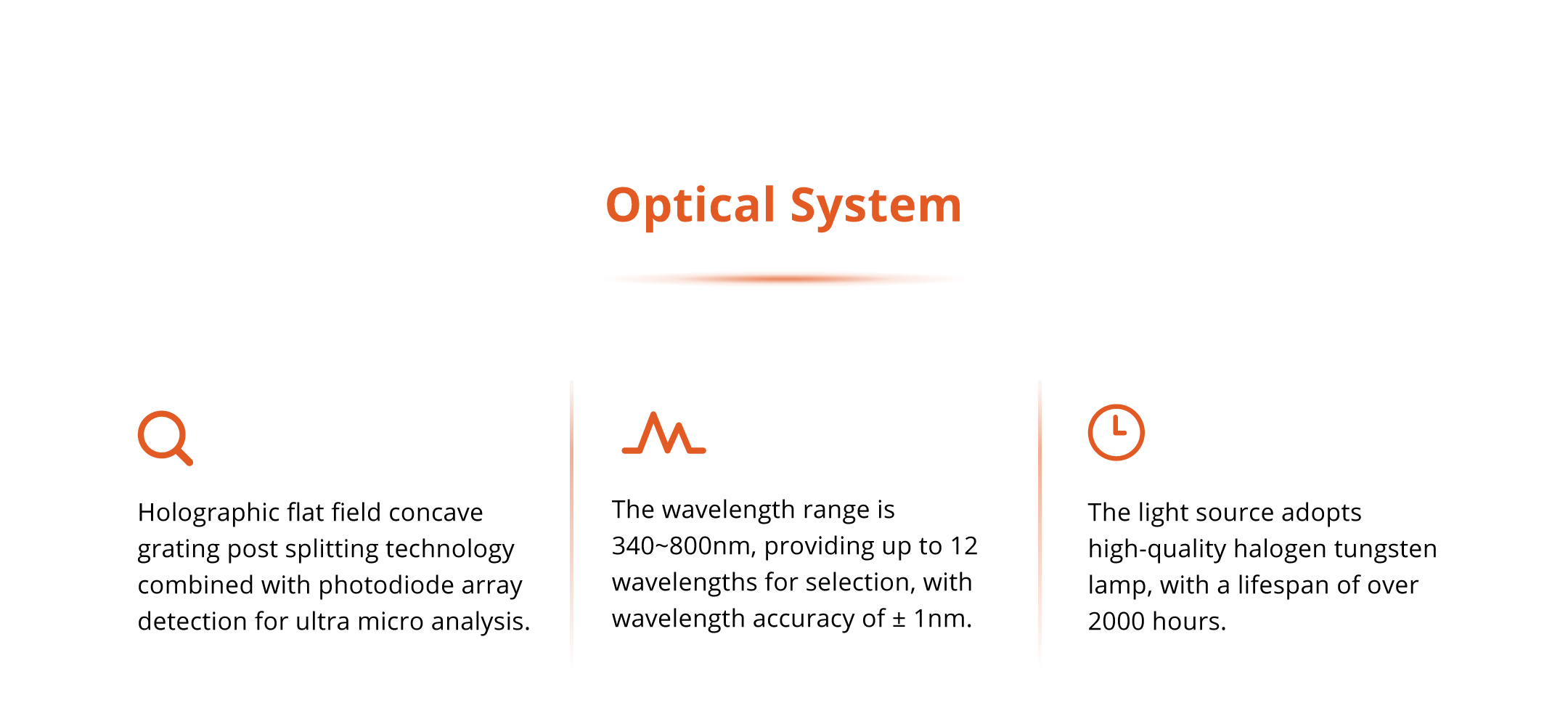

Measuring & Optic system

Light source

Halogen Tungsten lamp

Photometer

Grating photometry

Wavelengths

340 nm, 405 nm, 450 nm, 505 nm, 540 nm, 570 nm, 600 nm, 635 nm, 670 nm, 700 nm, 760 nm, 795 nm

Absorption range

0 ~ 2.500 Abs

Resolution

0.0001 ABS

Working condition

Power supply

100 ~ 240 V, AC 50 / 60 Hz, 1500 w

 Temperature

10 ~ 35 ℃

Humidity

40 ~ 80 %

Water consumption

≤ 20 L / hour

Dimension (L*W*H)

1150 mm* 726.5 mm*1150 mm
