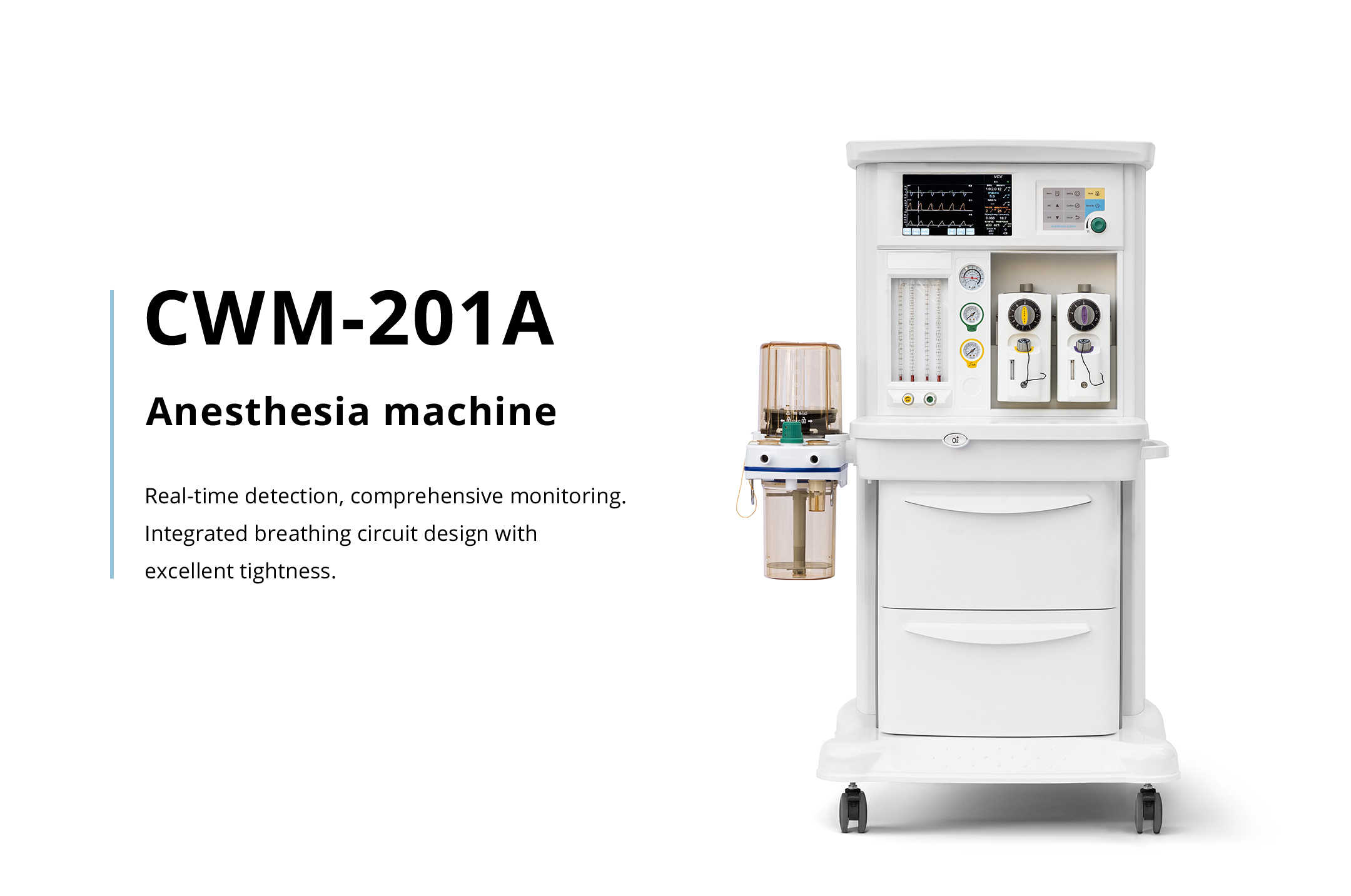

Model

CWM-201A

Dimension

1400 mm (H) × 850 mm (W) × 700 mm (D)

Weight

65 kg

Casters

Front wheels with lock

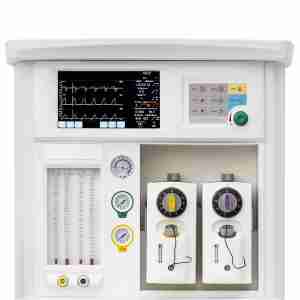

Screen

LCD

Display

10.1 inch

Display graphics

Waveforms of P-T, F-T, V-T

Power

AC 110 ~ 240 V, 50 / 60 Hz

Battery power

≥ 180 min

Gas configuration

O₂, N₂O, Air (optional)

Pipeline input range

280 ~ 600 kPa (40 ~ 85 psi)

Patient range

Adult / Pediatric

Modes of ventilation

VCV (Volume Control Ventilation)

SIMV (Synchronized Intermittent Mandatory Ventilation)

MANUAL (Manual)

STAND-BY

A/C (Assist / Control)

Ventilator parameter

Working type

Electronic control, pneumatic driven

Tidal volume range

20 ~ 1500 ml

Pressure range

50 ~ 60 cmH₂O

Respiration rate range

1 ~ 100 bpm (1 ~ 40 bpm under SIMV)

I:E range

4:1 ~ 1:8

Ptrigger range

- 20 ~ 0 cmH₂O

Minute volume range

> 18 L/min

SIGH range

0 ~ 5 / 100

System standard

Hypoxic guard system

N₂O cut-off valve, O₂ concentration > 25 %

Safety valve

< 12.5 kPa

O₂ flush

25 ~ 75 L/min

Flowmeter

4 tubes, cascade 0 ~ 15 L/min O₂, 0 ~ 15 L/min N₂O, 0 ~ 15 L/min Air (optional)

Volume of CO₂ absorber

2 L

Vaporizer

1 selectetac, maximum 2 mounts (Isoflurane / Enflurane / Sevoflurane / Halothane)

Monitoring

VT, MV, Pmax, Pmean, Lung compliance, Freq, FiO₂ (optional), ETCO₂ (optional)

Alarm limits

Audio / Visual

No tidal volume, MV, Paw, FiO₂ (optional), Air failure, AC power failure, Battery low

Pre-setting functions

Language

Chinese, English, etc.

Self-test

Automatic

Optional features

ACGO

Auxiliary common gas outlet

Yoke system (Pin-index)

Support 11 L cylinder O₂, N₂O
