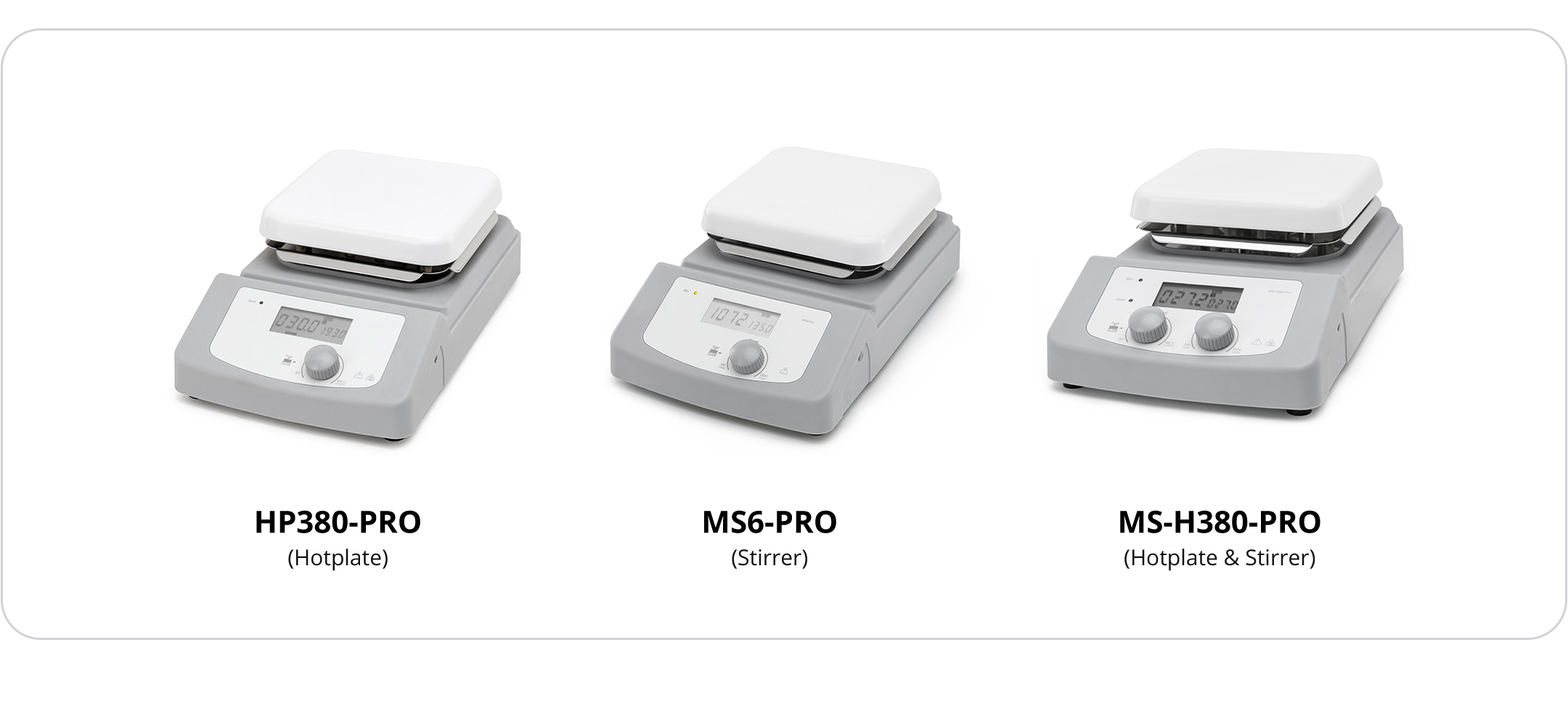

Specifications

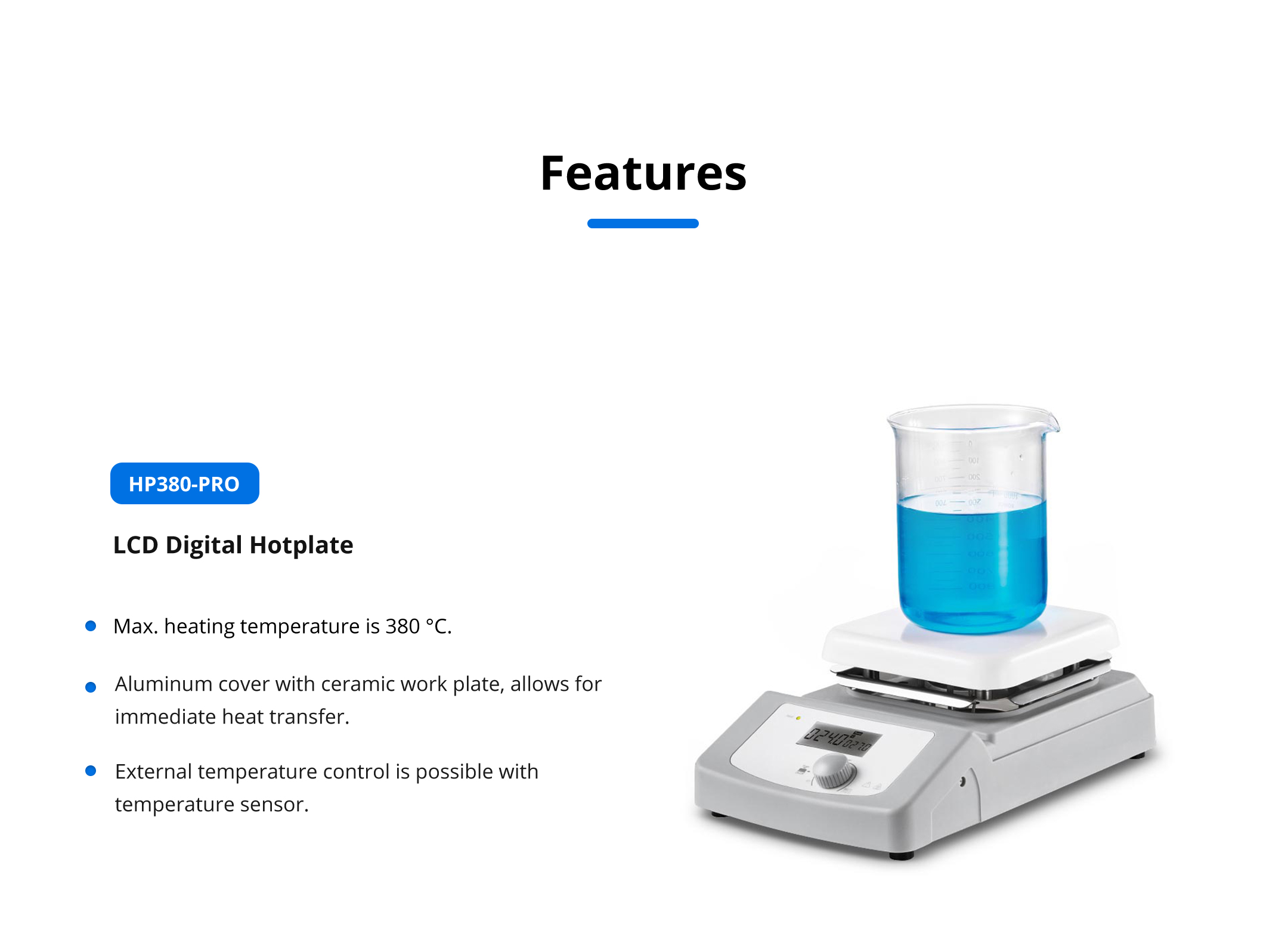

HP380-Pro

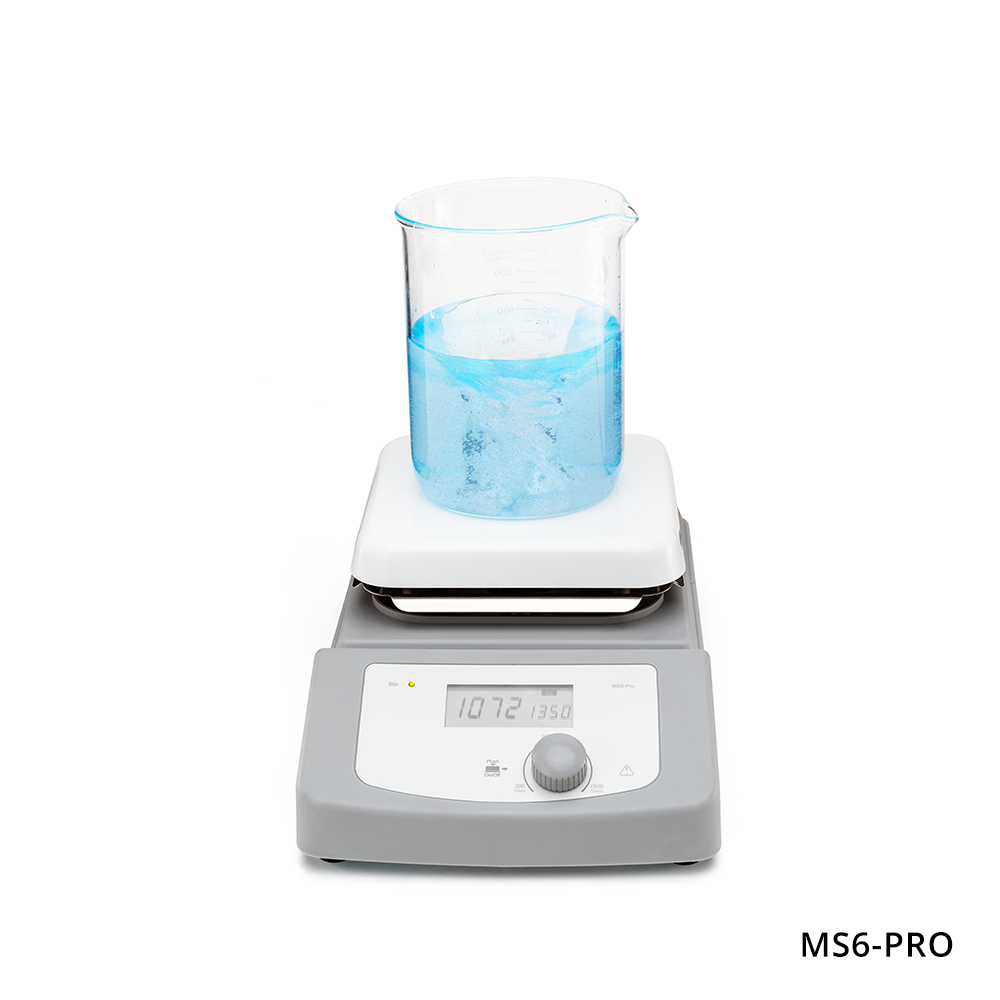

MS6-Pro

MS-H380 Pro

Work plate dimension

140 x 140 mm

140 x 140 mm

140 x 140 mm

Work plate material

Aluminum cover with ceramic coating

Aluminum cover with ceramic coating

Aluminum cover with ceramic coating

Motor type

-

Brushless DC motor

Brushless DC motor

Motor rating input

-

2.4 W

2.4 W

Motor rating output

-

1.8 W

1.8 W

Power

510 W

10 W

510 W

Heating output

500 W

-

500 W

Voltage

100 - 120 / 200 - 240 V  50 / 60 Hz

100 - 120 / 200 - 240 V  50 / 60 Hz

100 - 120 / 200 - 240 V  50 / 60 Hz

Stirring positions

-

1

1

Max. stirring quantity (H₂O)

-

5 L

5 L

Max. magnetic bar[length]

-

40 mm

50 mm

Speed range

-

200 - 1500 rpm

200 - 1500 rpm

Speed display

-

LCD

LCD

Temperature display

LCD

-

LCD

Heating temperature range

Room temp. + 5 °C ~ 380 °C

-

Room temp. + 5 °C ~ 380 °C

Overheat protection

420 °C

-

420 °C

Temperature display accuracy

± 1 °C

-

± 0.1 °C

External temperature sensor

PT1000  (accuracy ± 0.5 °C)

-

PT1000  (accuracy ± 0.5 °C)

Control the accuracy of the sensor

-

± 20 rpm

± 20 rpm

Protection class

IP 21

IP 21

IP 21

Dimension (W x D x H)

320 x 180 × 108 mm

320 x 180 × 108 mm

320 x 180 × 108 mm

Weight

2.2 kg

2.2 kg

2.2 kg

Ambient temperature and humidity

5 ~ 40 °C, 80 % RH

5 ~ 40 °C, 80 % RH

5 ~ 40 °C, 80 % RH
