Model

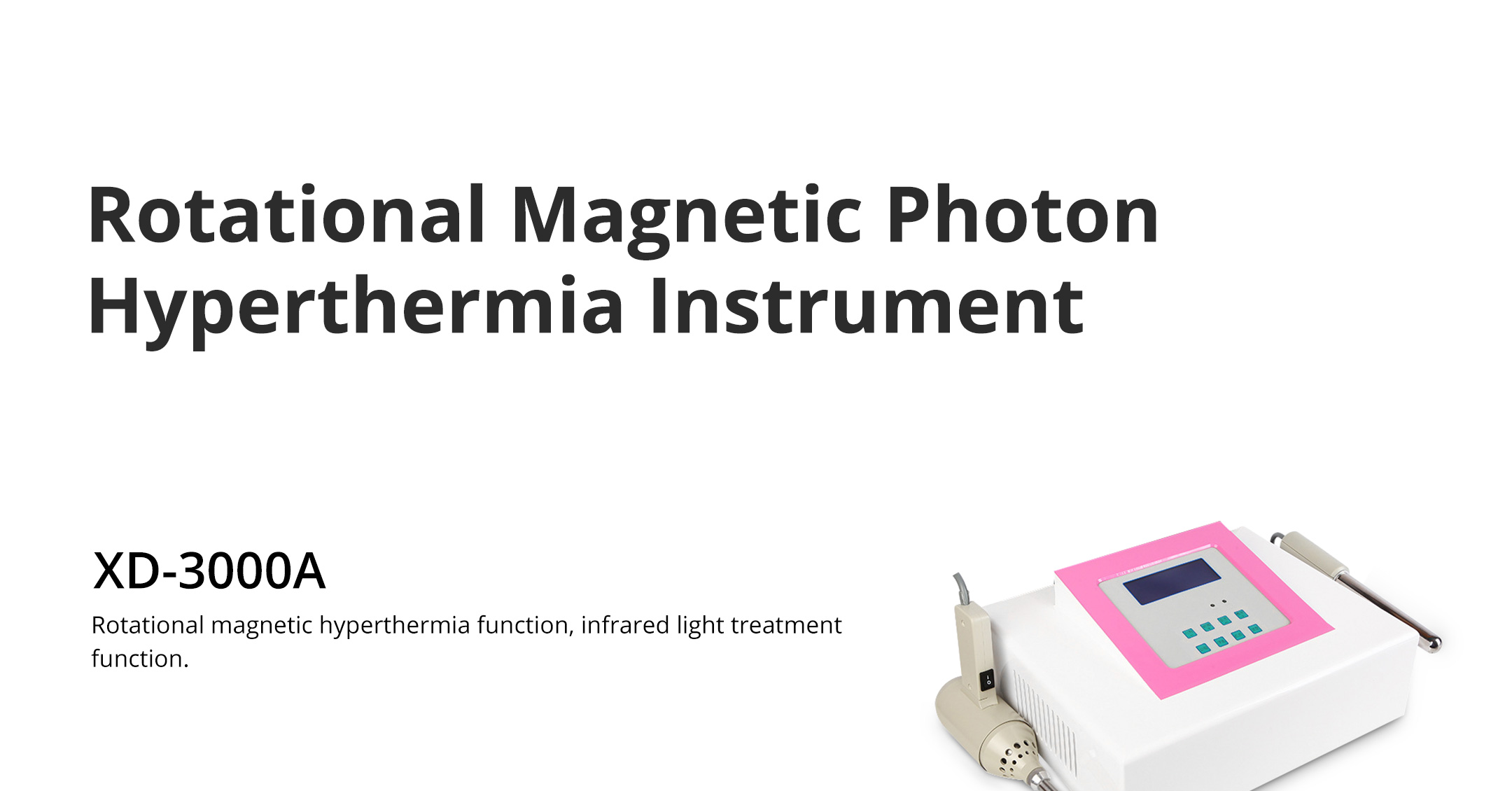

XD-3000A portable

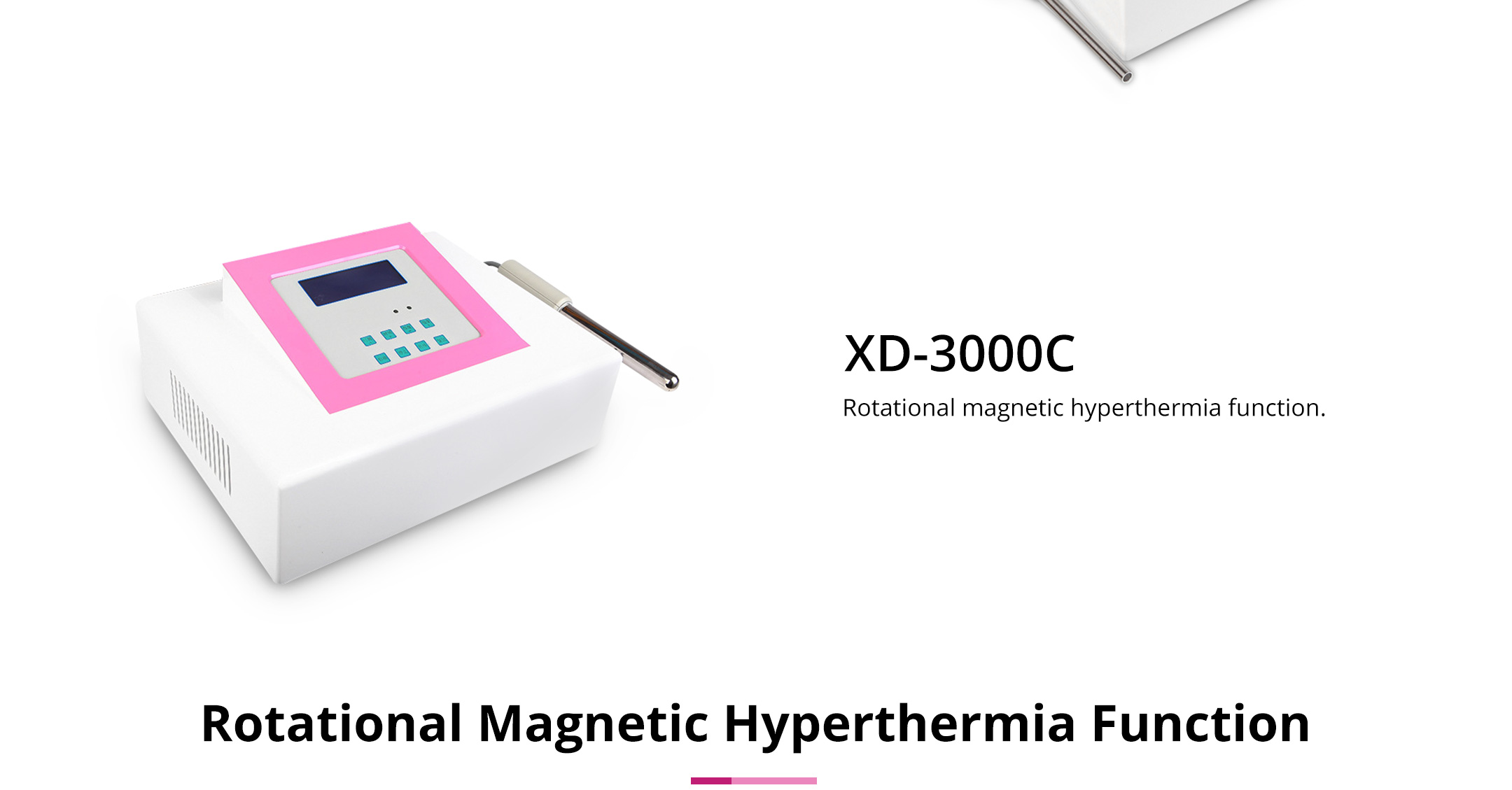

XD-3000C portable

Infrared wavelength

0.8μm ~ 3μm

N/A

The maximum rated output power of infrared light

16W ± 2W

N/A

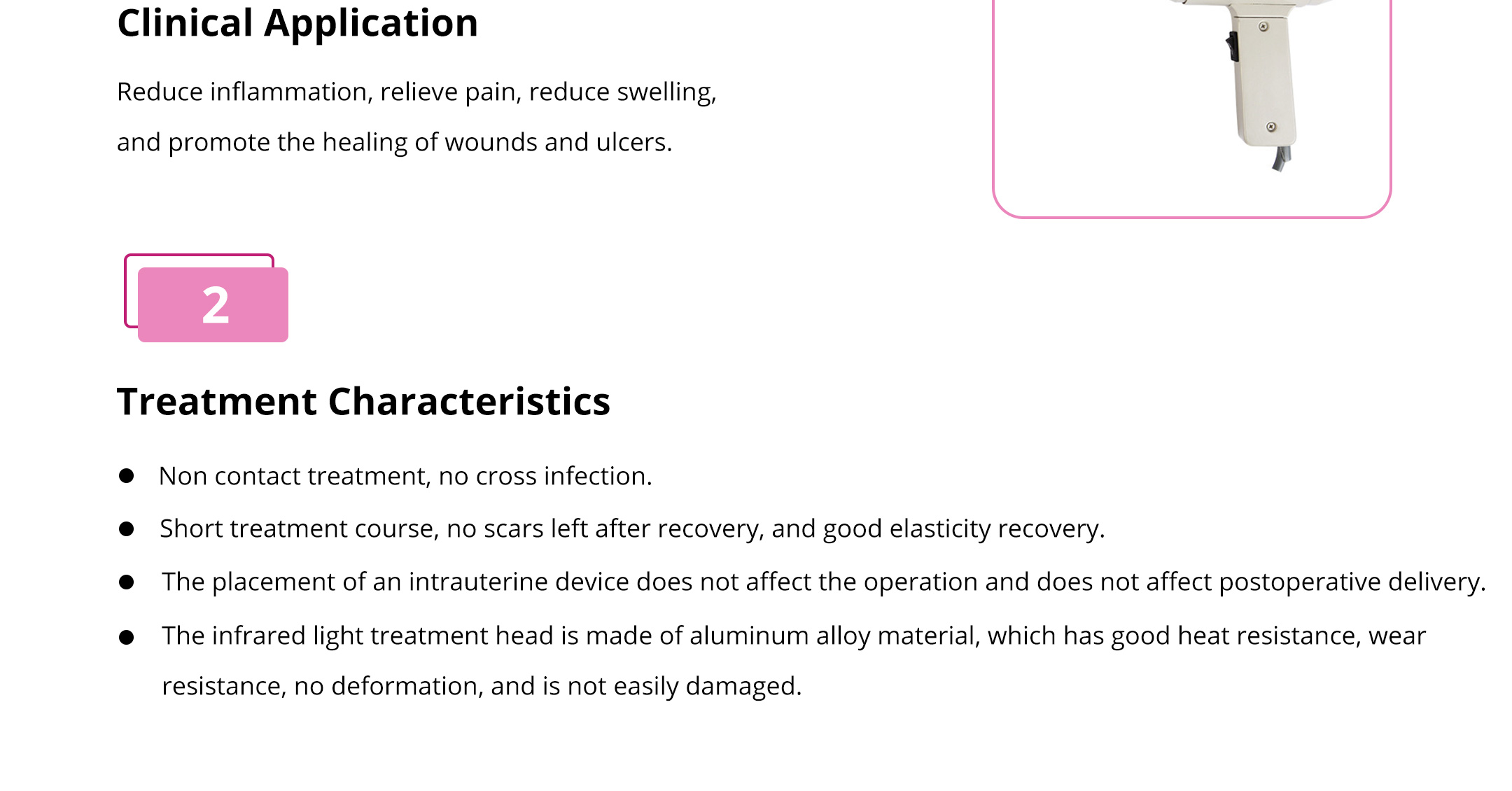

Infrared light treatment head material

Aluminium alloy

N/A

Residual magnetic induction intensity on the surface of the intracavity electrode

≥ 80mT

Intracavity electrode electrothermal temperature

37℃ ~ 46℃

Intracavity electrode vibration (maximum rotational magnetic speed)

6500rpm ~ 8000rpm

Maximum output voltage between electrodes

≤ 38V

Maximum output current between electrodes

≤ 25mA

Electrode current density

≤ 2mA (r.m.s)/cm²

Open circuit output voltage peak value

≤ 500Vp-p

Basic pulse waveform between electrodes

Rectangular wave

Energy of a single pulse

≤ 300mJ

Timing range

0 ~ 60min

Step length

1min

Error

± 1min

According to the type of protection against electric shock

It belongs to Class I equipment

According to the degree of protection against electric shock

It belongs to the application part of type B and type BF

Operation mode

Continuous operation

Working condition

Environment temperature

10℃ ~ 40℃

Relative humidity

30% ~ 75%

Atmospheric pressure

700hPa ~ 1060hPa

Power supply

AC220V ± 22V, 50Hz ± 1Hz

Rated input power

280VA

Continuous working time

≥ 4h
