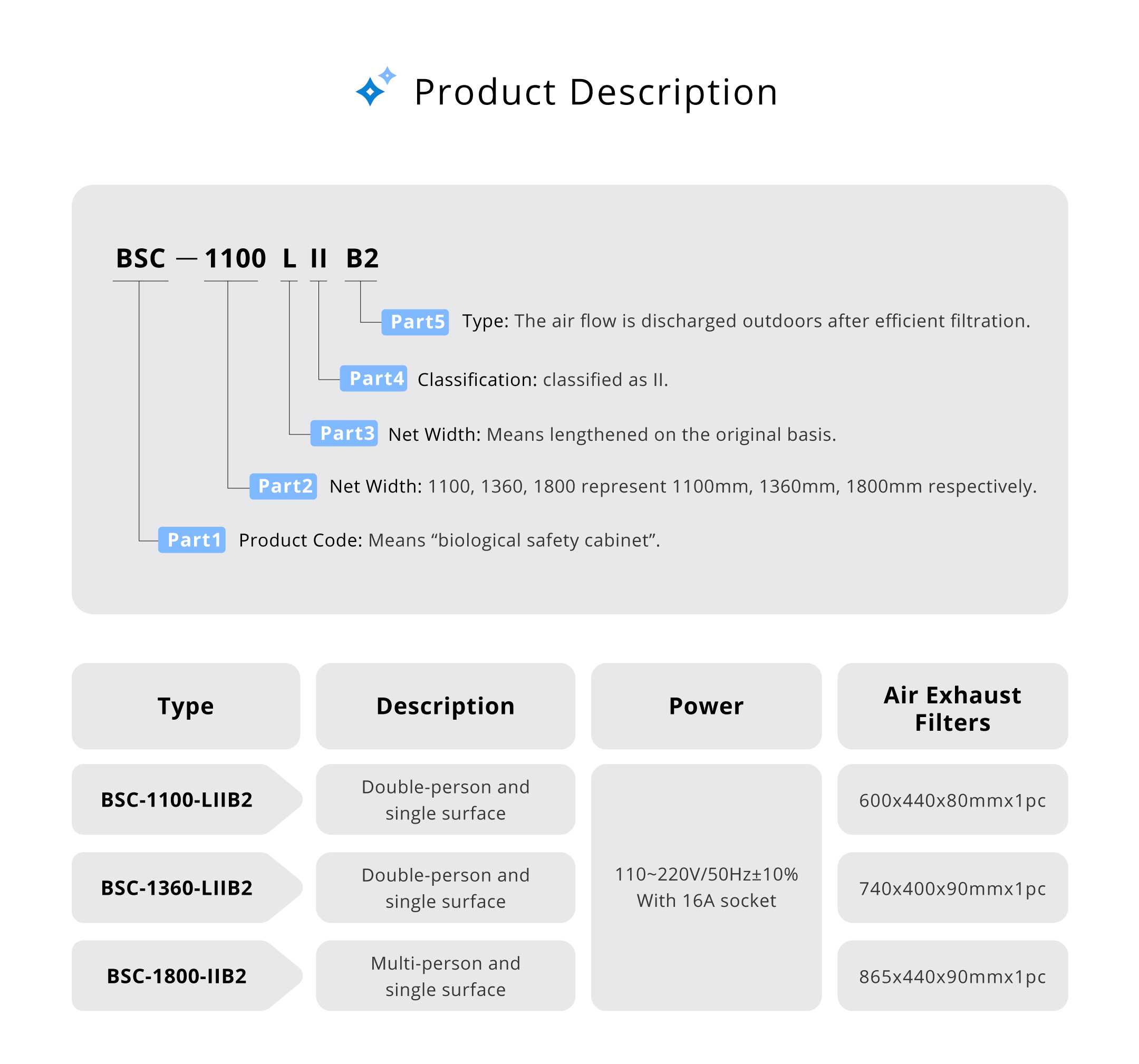

Model / Parameters

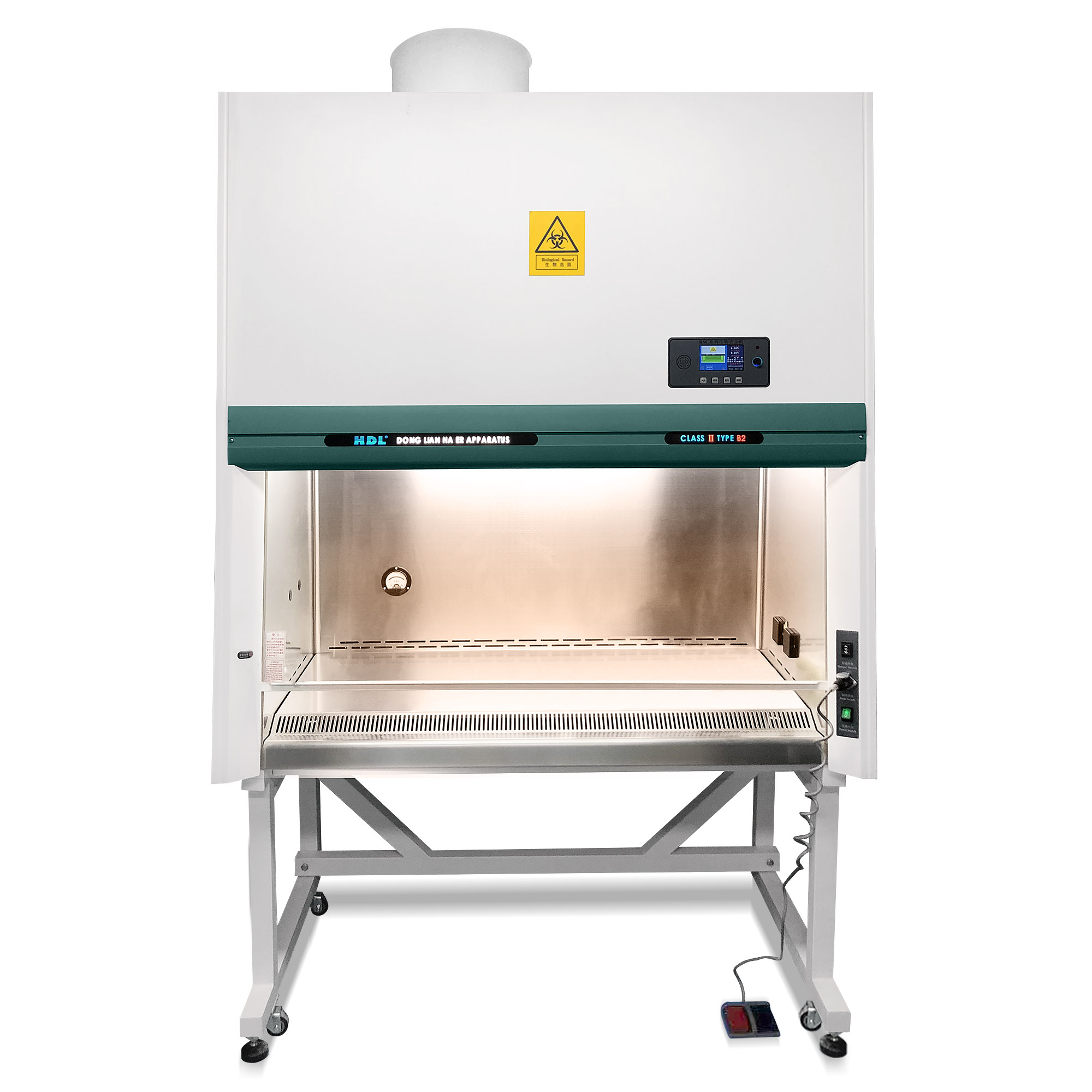

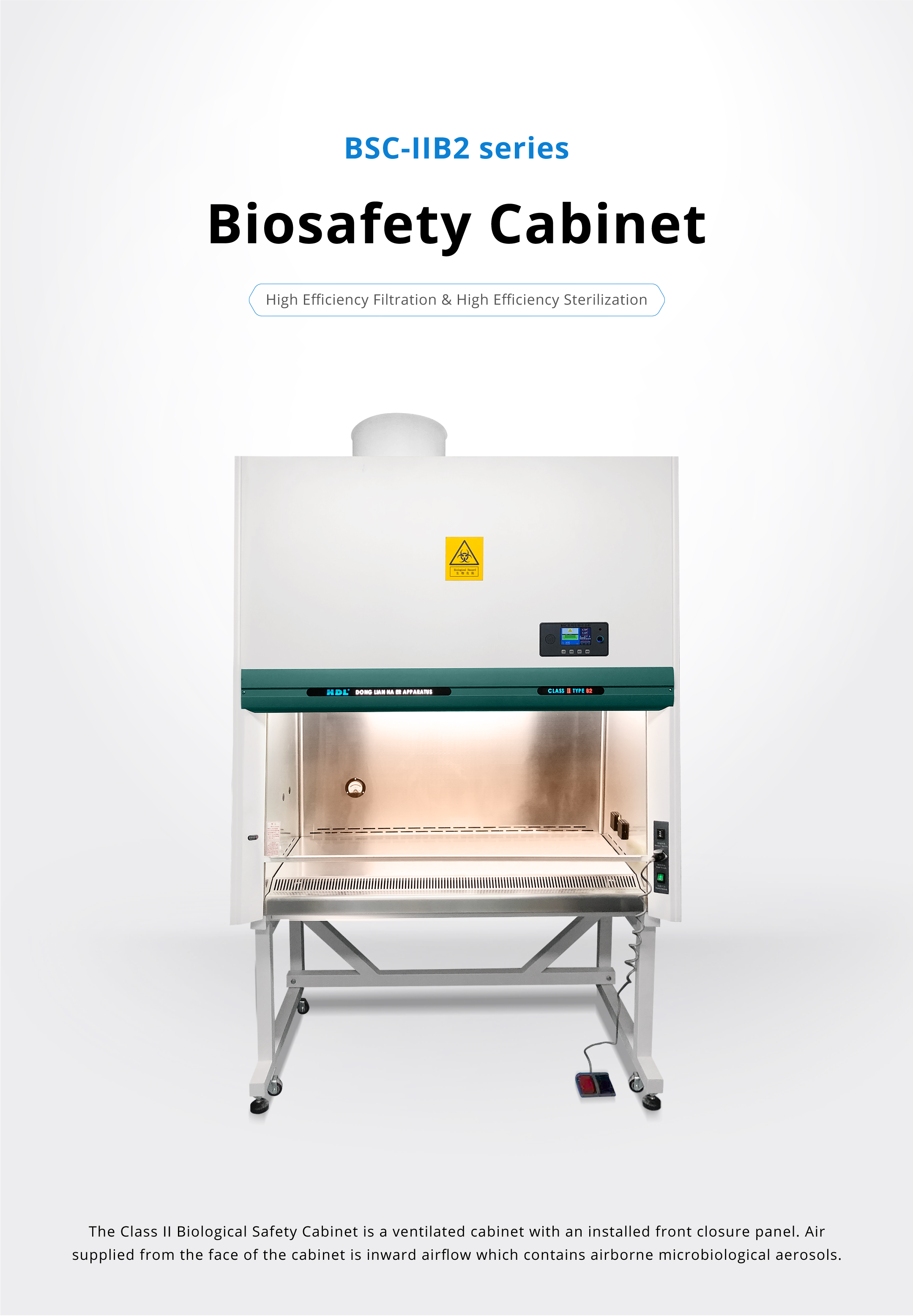

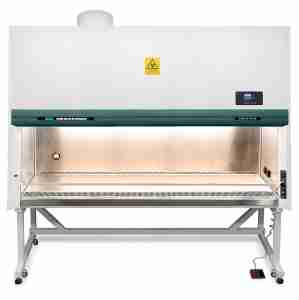

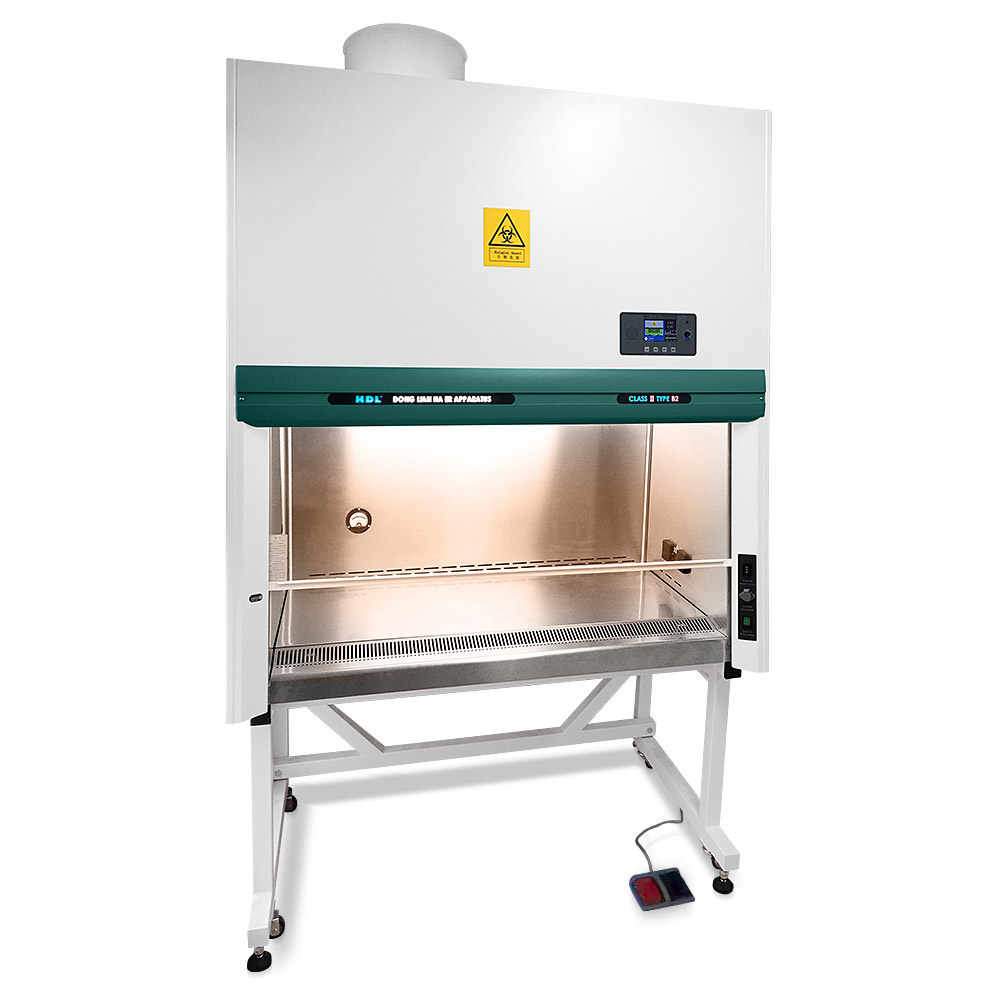

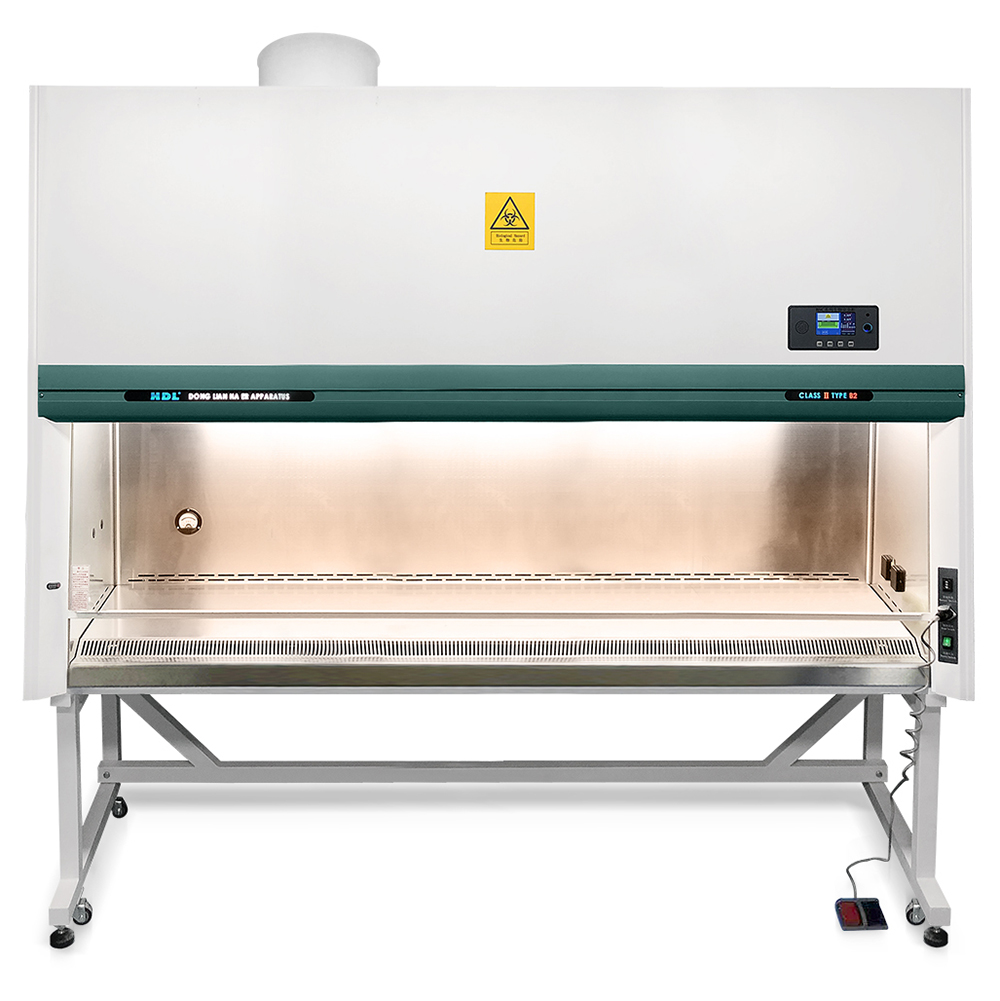

Class II B2 bio-safety cabinet

BSC-1100L-IIB2

BSC-1360L-IIB2

BSC-1800-IIB2

Venting mode

100 % outward venting

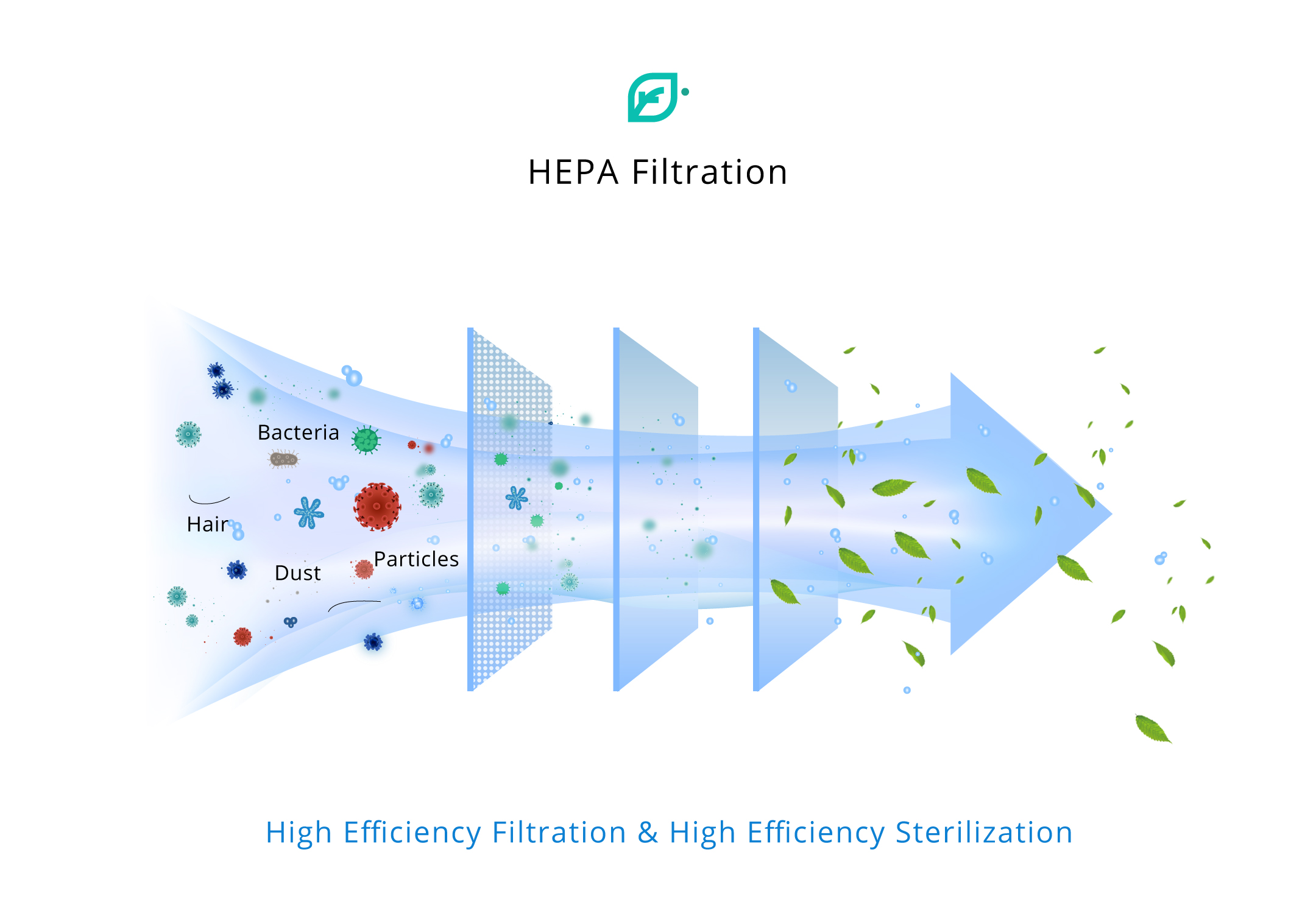

Missing rate of high efficiency filter

≤ 0.005 %

Wind speed

Inflow average wind velocity ＞ 0.5 m / s

Descending average wind velocity: 0.25 ~ 0.55 m / s

Cleanliness class

ISO4

Noise

≤ 62 dB (A)

Half peak value of vibration

≤ 3μm (rms)

Illuminance (Lux)

≥ 1000 LX

Display screens

LCD + Remote control

Power

AC 220 V / 50 Hz

Normal power waste

1.95 kw

Max. power waste

2.95 kw (Contains two spare sockets 1000 W)

Weight

310 Kg

320 Kg

340 Kg

Inner chamber size (W * L * H) (mm)

1220 x 600 x 680 mm

1360 x 600 x 680 mm

1800 x 600 x 680 mm

Exterior size (W * L * H) (mm)

(Including holder)

1382 x 790 x 2210 mm

1525 x 790 x 2210 mm

1940 x 790 x 2210 mm

Specification and quantity of air supply filters

1215 x 500 x 50 mm x 1 pc

1355 x 500 x 50 mm x 1 pc

1795 x 500 x 50 mm x 1 pc

Specification and quantity of air exhaust filters

600 x 440 x 80 mm x 1 pc

740 x 400 x 90 mm x 1 pc

865 x 440 x 90 mm x 1 pc

Specification and quantity of fluorescent lamps / UV lamps

30 w × 2 pcs / 30 w × 1 pc

40 w × 2 pcs / 40 w × 1 pc

40 w × 2 pcs / 40 w × 1 pc

Applicable number of persons

Double-person and single surface

Double-person and single surface

Multi-person and single surface
