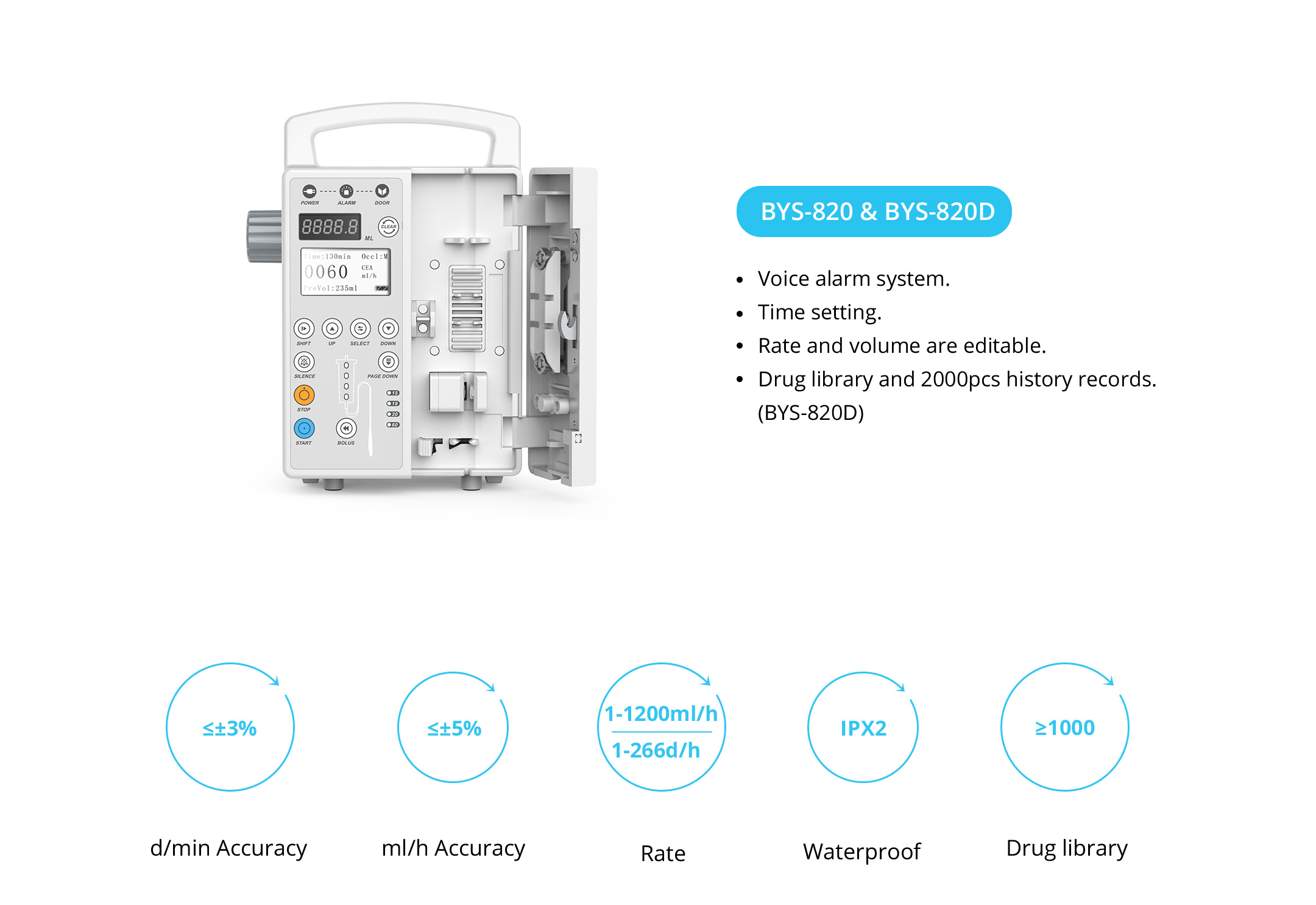

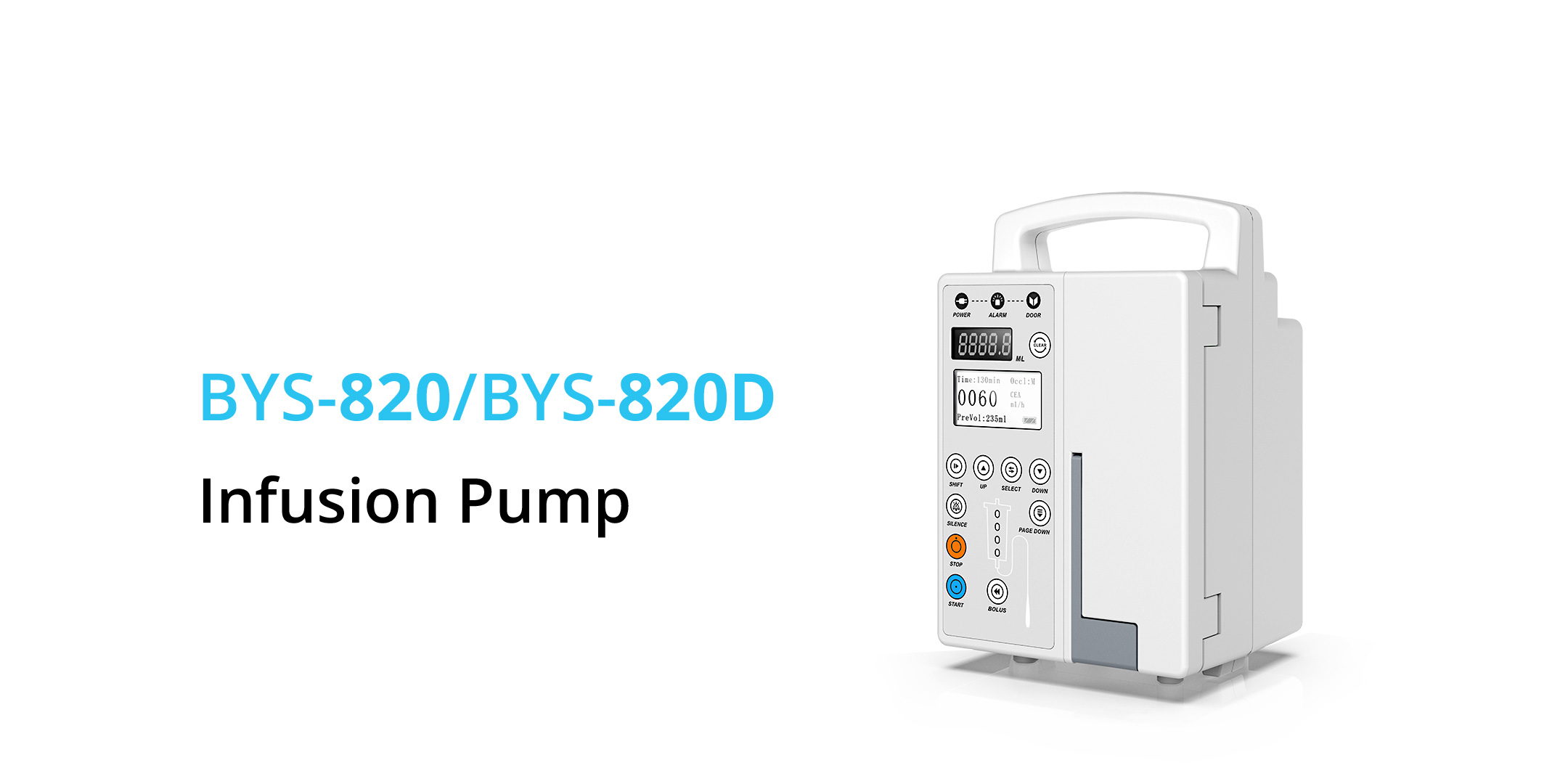

Model

BYS-820

BYS-820D

Function

Voice alarm system,

Time setting,

Rate and volume are editable.

Voice alarm system,

Time setting,

Rate and volume are editable,

 Drug library and have 2000 pcs history records.

Drug Library

No

Up to 1000 drugs are provided.

Infusion rate

ml/h mode: 1~1200 ml/h

d/min mode: 1~266 d/min

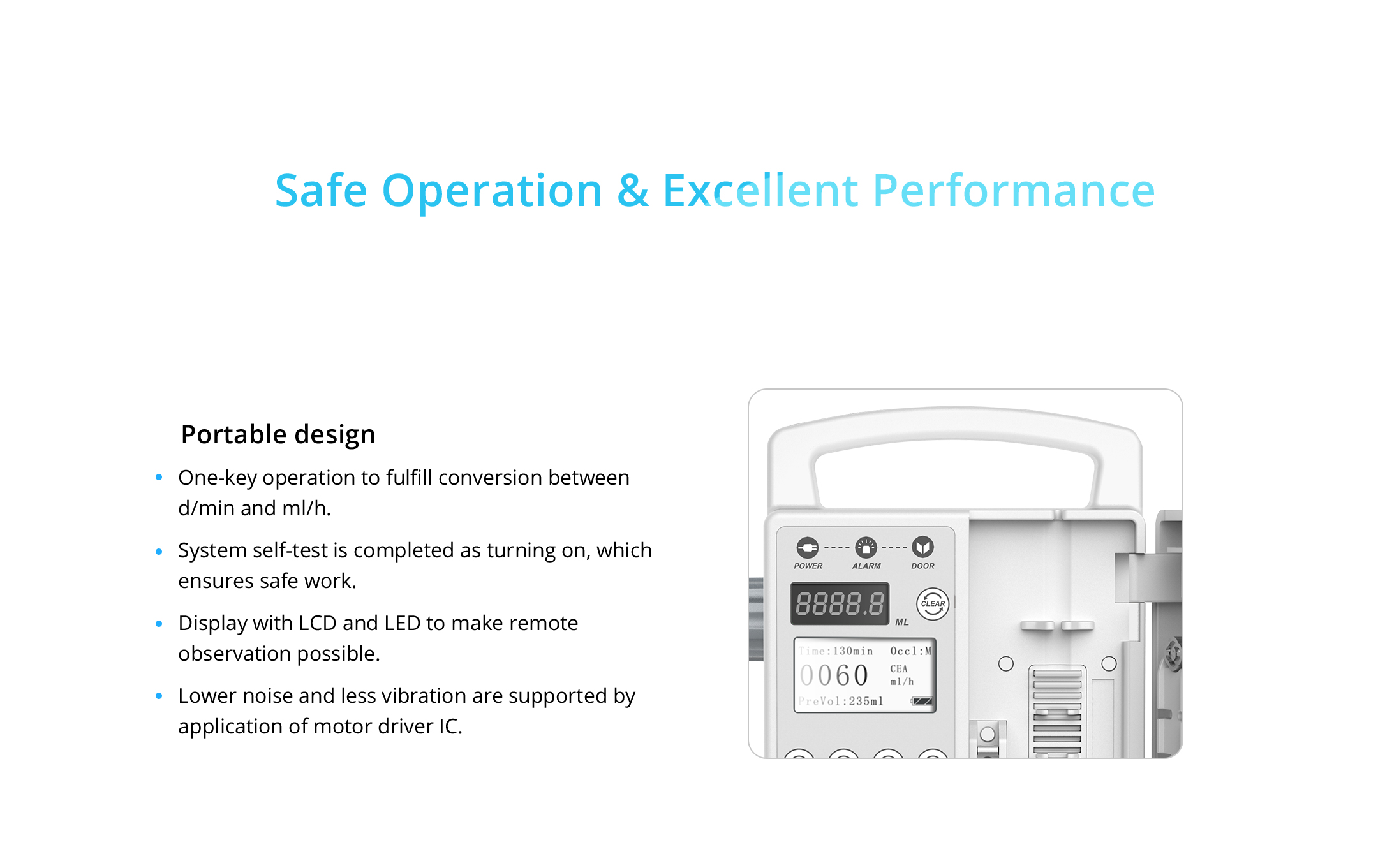

Unit conversion

d/min and ml/h unit can be converted.

FF rate

100~1200 ml/h (100 ml/step)

KVO rate

1~5.0 ml/h

VTBI (volume to be Injected)

1~9999 ml

Cumulative infusion volume

0~9999.9 ml

Infusion accuracy

d/min mode: s ± 3% (after calibration)

ml/h mode: s ± 5% (after calibration)

Air bubble size

< 25 μl

Alarms information

Near infusion finished, infusion finished, door open, air bubble, forgotten operation, battery low, battery empty, abnormal running state, equipment failure, power fault, replace infusion set, drop sensor is pulled out, etc.

Power source

Three options for power supply

First: 100 - 240 VAC, 50 / 60 Hz;

Second: Inserted Li battery 11.1V, capacity 21800 mAh; 4 hours backup time at the rate of 25 ml/h for a fully charged battery.

Third: External DC 12V power supply.

Dimensions

140mm (L) x 128mm (W) x 228mm (H)
