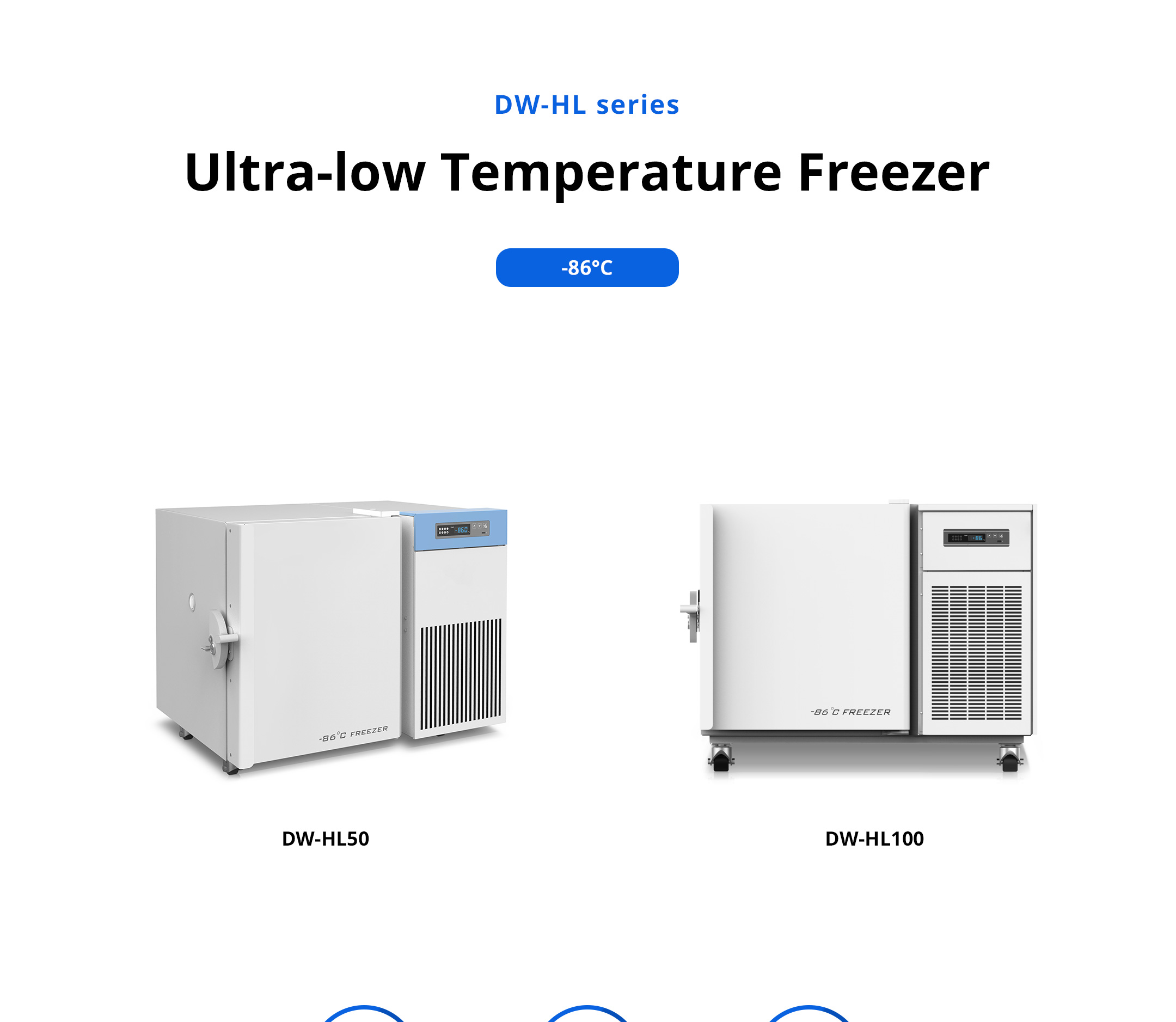

Model

DW-HL50

DW-HL100

Basic parameters

Cabinet type

Upright

Capacity (L)

50

100

Internal size (W*D*H) mm

305*425*430

450*439*514

External size (W*D*H) mm

953*688*757

1066*742*820

Package size (W*D*H) mm

1095*820*931

1200*863*991

NW / GW (Kgs)

104 / 156

145 / 227

Performance

Temperature range

-86 ~ -40 ℃

Ambient temperature

16 ~ 32 ℃

Cooling performance

-86 ℃

Climate class

N

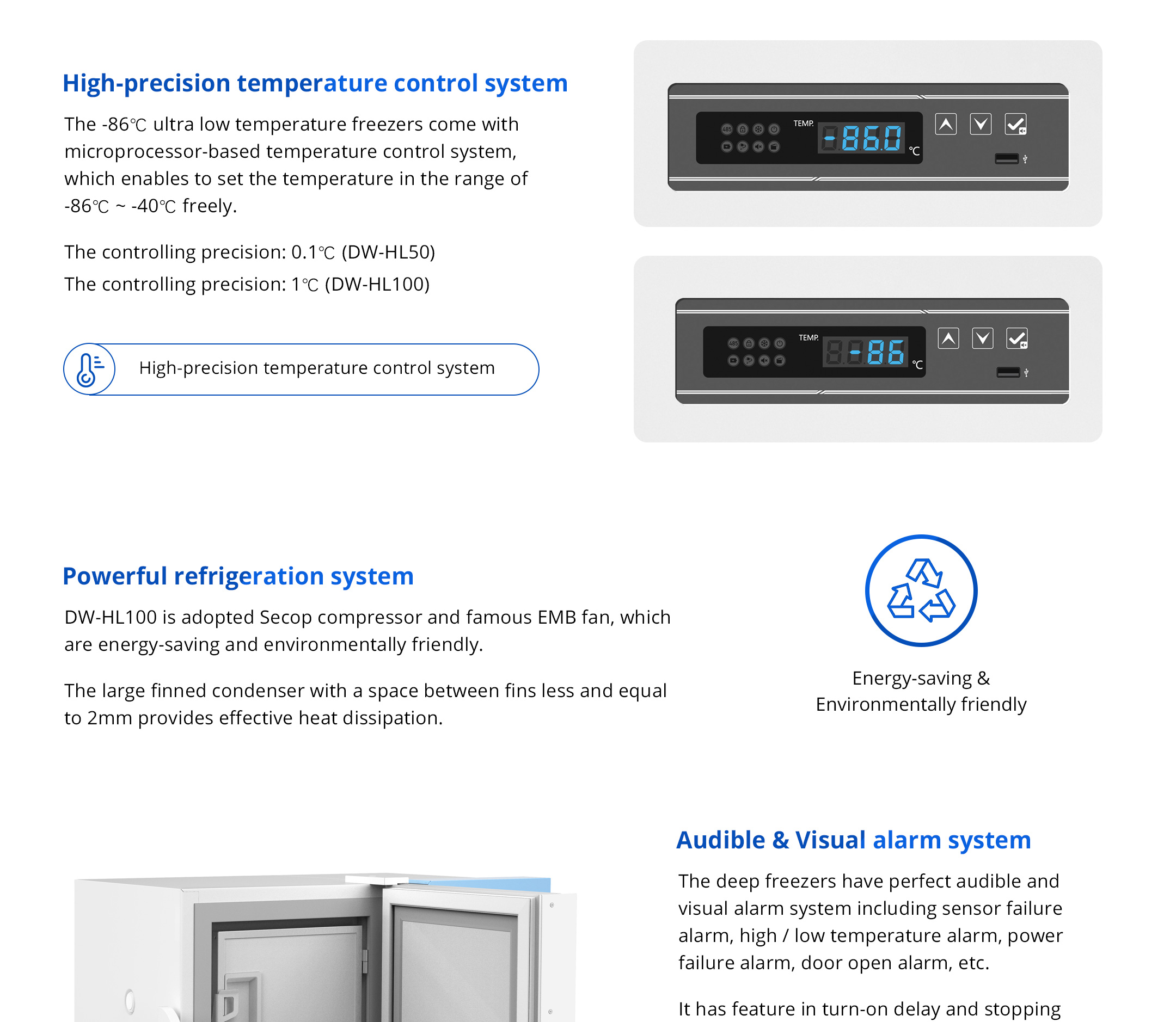

Controller

Microprocessor

Display

Digital display

Refrigeration

Compressor

1 pc

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

Mixture gas

Insulation thickness (mm)

110

L: 90, R: 115, B: 91.5

Construction

External material

Steel plates with spraying

Inner material

Galvanized steel sheet

Shelves

1 (Stainless steel)

3 (Stainless steel)

Door lock with key

Yes

External Lock

Yes

Door

1 pc

Access port

1 pc, Ø 25 mm

Casters

4

Data logging / Interval / Memory capacity

USB / Record every 10 minute / 2 years

Alarm

Temperature

High / Low temperature, High ambient temperature

System

Power failure, Low battery

Construction

Sensor failure, Door ajar, Condenser overheating alarm, built-in datalogger, USB

failure, Main board communication error

Electrical

Power Supply (V / HZ)

220 ~ 240 / 50

Power (W)

750

900

Power Consumption (kWh / 24h)

8.75

8

Rated Current (A)

4.89

4.75

Accessories

Standard

Backup battery

Backup battery, RS485, Remote alarm contact

Options

Chart recorder, CO2 backup system, Printer, RS485, RS232, Remote alarm contact

Chart recorder, CO2 backup system, Printer, RS232
