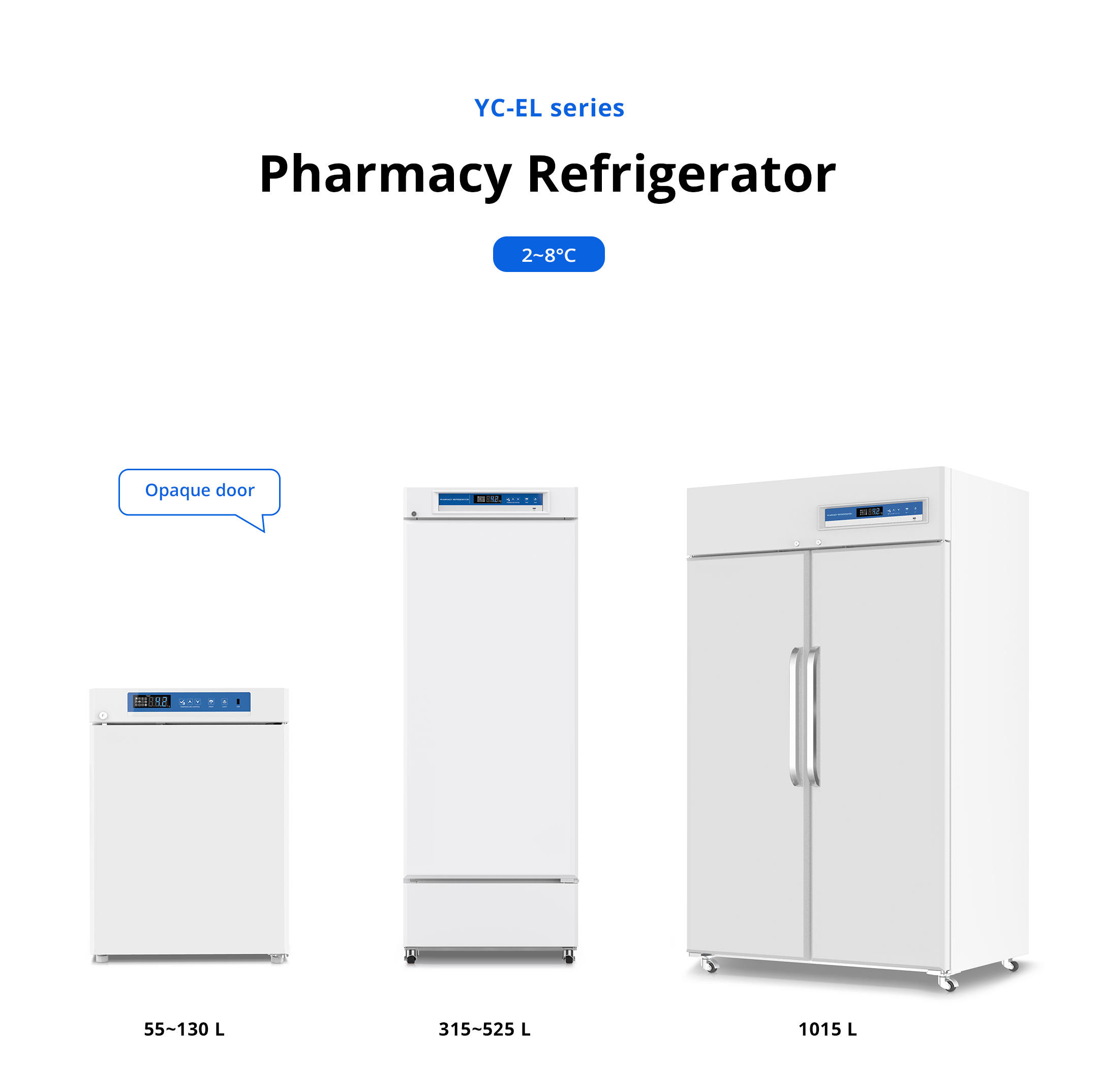

Model

YC-56EL

YC-76EL

YC-130EL

YC-315EL

YC-395EL

YC-525EL

YC-1015EL

Basic parameters

Cabinet type

Upright

Capacity (L)

56

76

130

315

395

525

1015

Internal size (W*D*H) mm

444*440*404

444*440*536

554*510*588

580*533*1122

580*533*1352

610*685*1264

1070*670*1515

External size (W*D*H) mm

542*565*632

542*566*764

650*625*810

650*673*1762

650*673*1992

720*810*1961

1180*852/900*1990

Package size (W*D*H) mm

575*617*682

575*617*815

723*703*880

717*732*1815

717*732*2010

780*868*2075

1313*988*2168

NW / GW (Kgs)

35 / 59

41 / 59

51 / 56

87 / 99

95 / 145

148 / 174

230 / 300

Performance

Temperature range

2 ~ 8 ℃

Ambient temperature

16 ~ 32 ℃

Cooling performance

5 ℃

Climate class

N

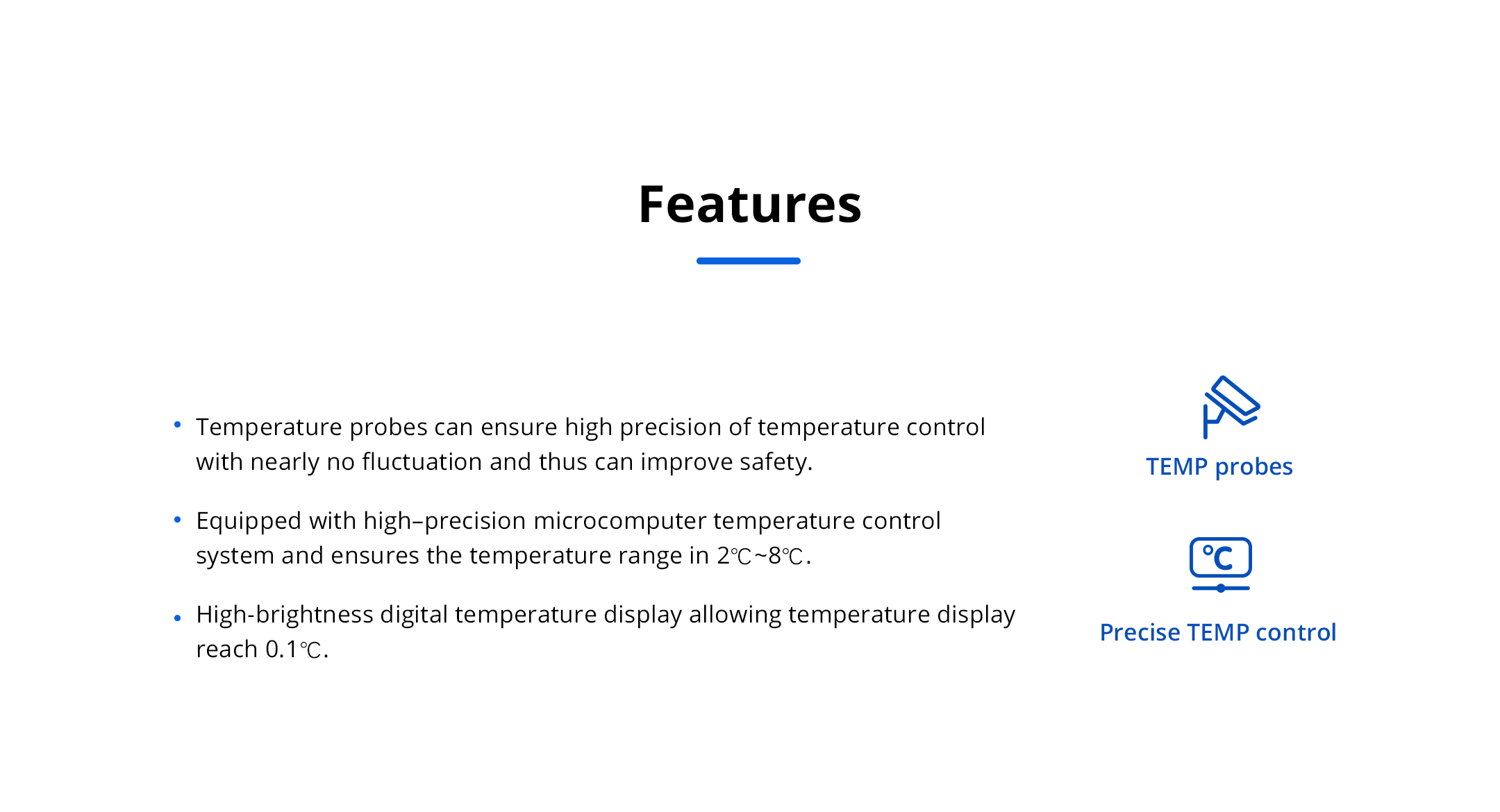

Controller

Microprocessor

Display

Digital display

Refrigeration

Compressor

1 pc

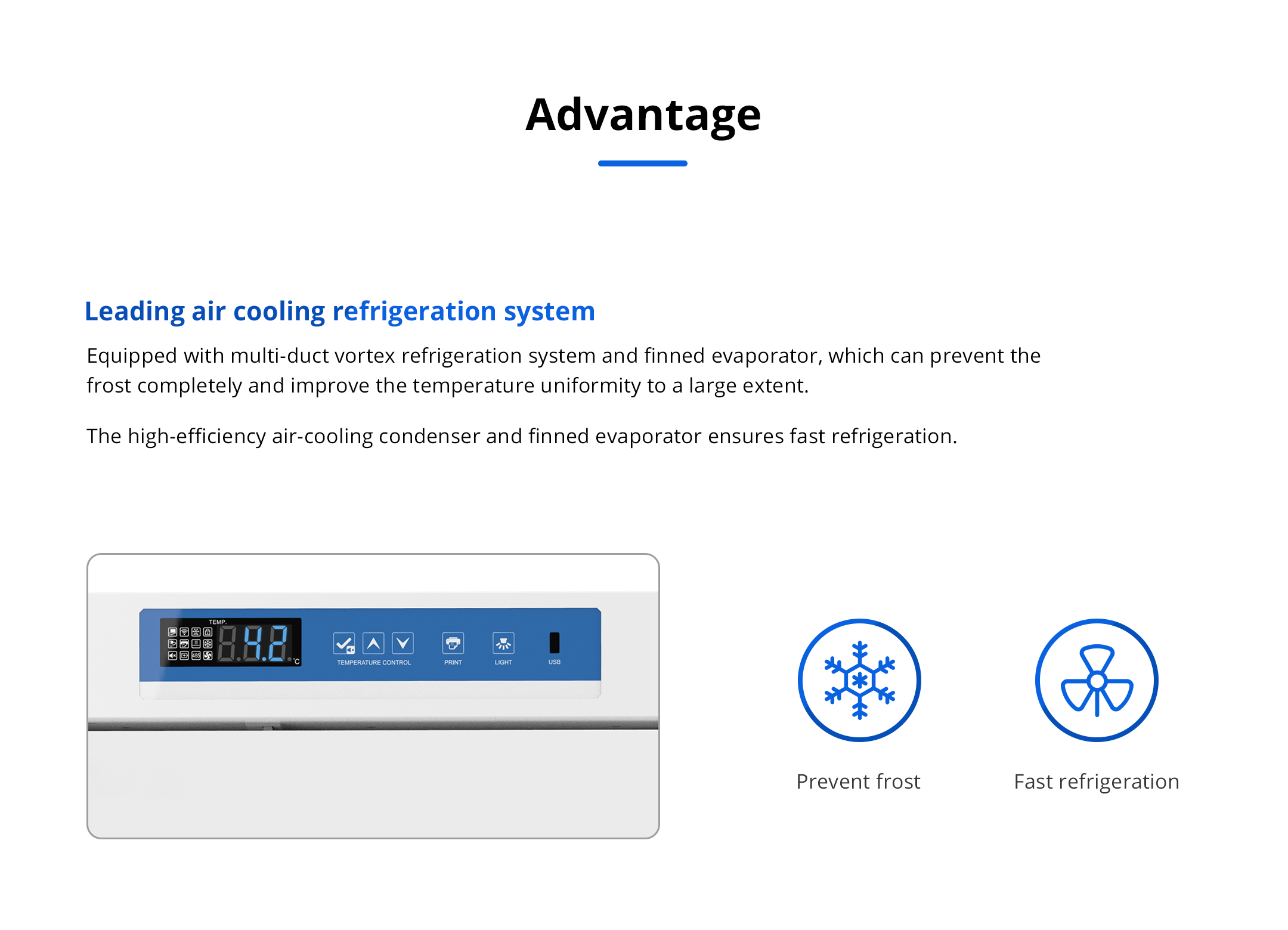

Cooling method

Air cooling

Defrost mode

Automatic

Refrigerant

R600a

Insulation thickness (mm)

L / R: 48, B: 50

L / R: 35, B: 52

L / R / B: 55

Construction

External material

Powder coated material

Inner material

Aluminum plate with spraying / Stainless steel (optional）

High impact polystyrene (HIPS)

Aluminum plate with spraying / Stainless steel

(optional）

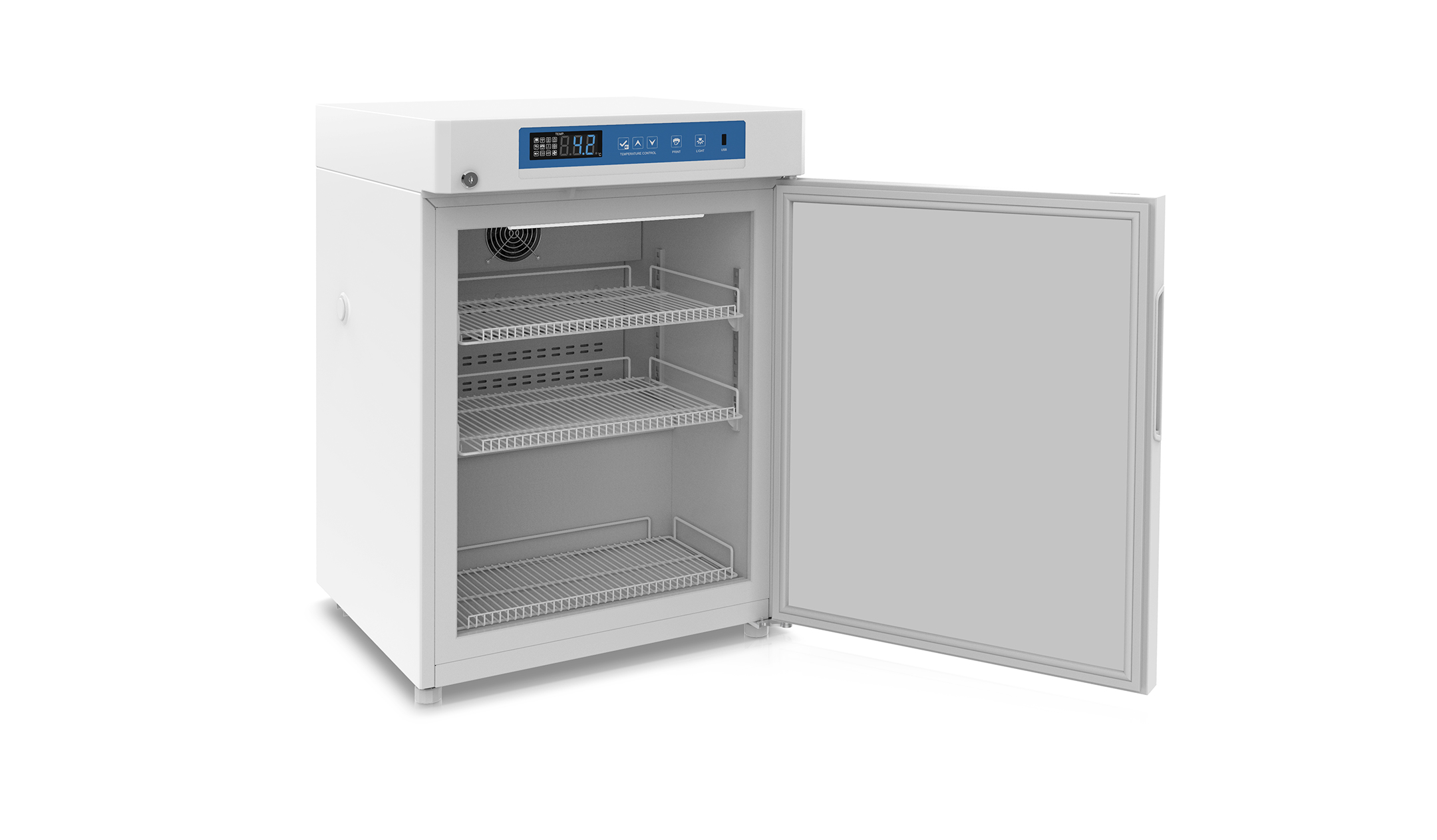

Shelves

2

(coated steel wired shelf)

3

 (coated steel wired shelf)

4+1

(coated steel wired shelf)

6+1

(coated steel wired shelf)

12

(coated steel wired shelf)

Door lock with key

Yes

Padlock

Yes

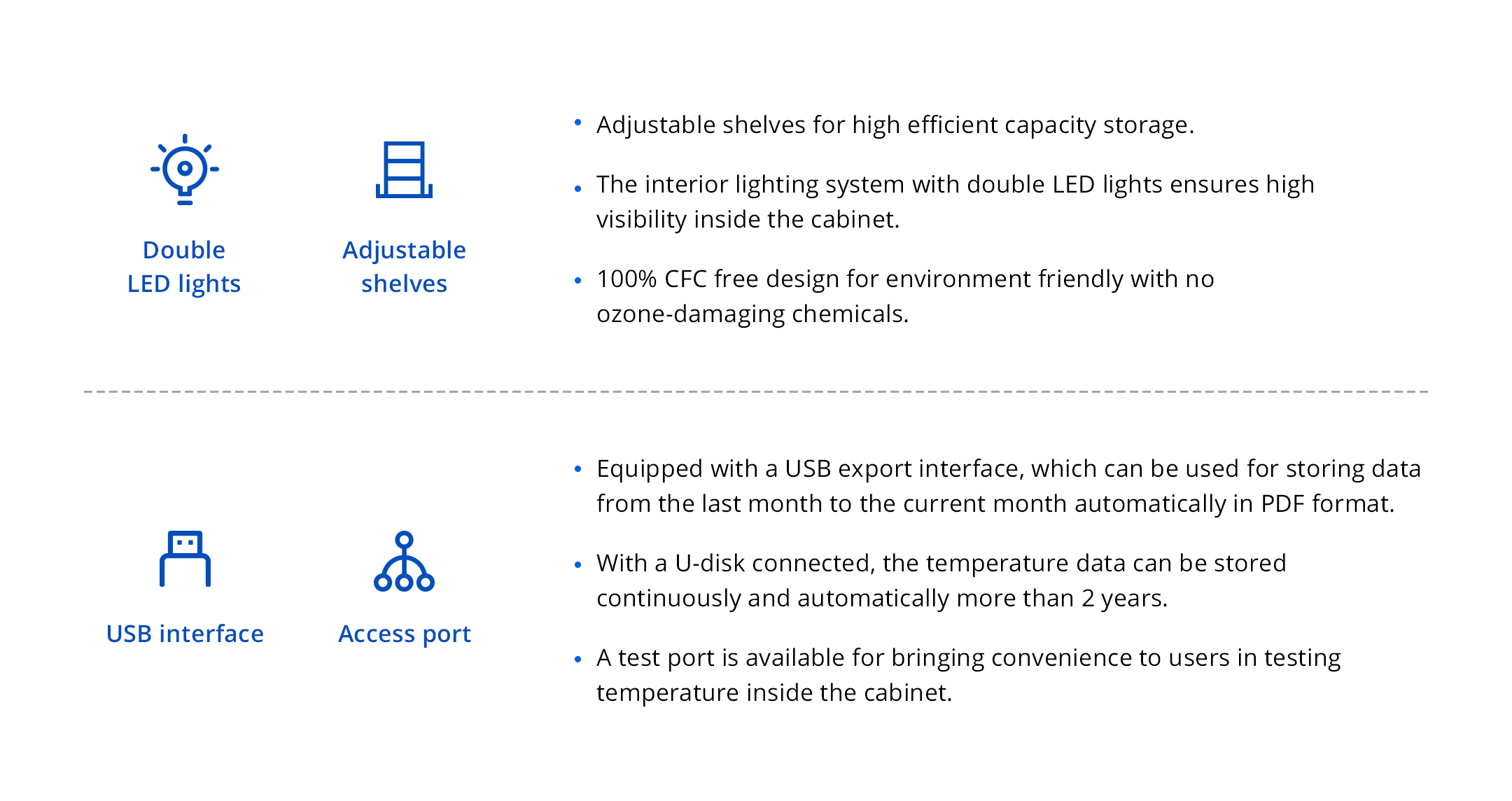

Lighting

LED

Access port

1 pc (Ø 25 mm)

Casters

2 + (2 leveling feet）

4 + (2 leveling feet)

4 + (2 leveling feet)

4 + (2 caster with brake)

Data logging/Interval/

Memory capacity

USB / Record every 10 minutes / 100,000data

Door with heater

Yes

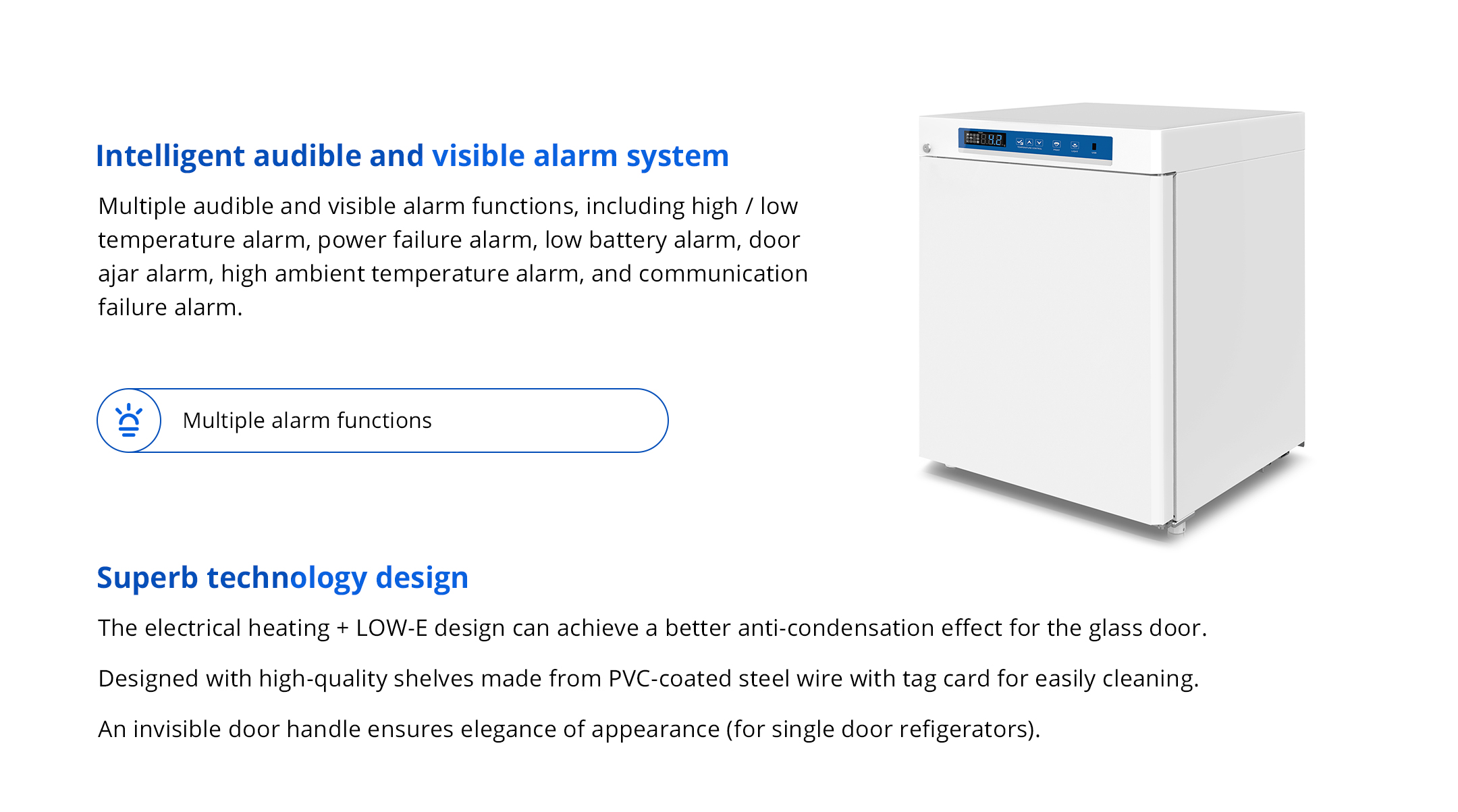

Alarm

Temperature

High / Low temperature, High ambient temperature

High / Low temperature,

High ambient temperature,

Condenser overheating

Electrical

Power failure, Low battery

System

Sensor failure, Door ajar, Built-in datalogger USB failure, communication failure

Sensor failure, Door ajar, Built-in datalogger USB failure, Condenser overheating

Sensor failure, Door ajar, Built-in datalogger USB failure, Communication failure, Remote alarm

Sensor failure, Door ajar, Built-in datalogger USB failure, Communication failure

Electrical

Power Supply (V / HZ)

220 ~ 230 / 50

Power (W)

122

115

150

220

280

310

700

Power Consumption
(kWh / 24h)

1.55

1.34

2.55

2.05

2.5

3.63

9.33

Rated Current (A)

0.9

0.92

0.98

1.35

1.8

2.49

3.21

Accessories

Standard

RS485, Remote alarm contact

RS485, Remote alarm contact, Backup battery
