Model

DGLS-35B

DGLS-50B

DGLS-75B

DGLS-100B

DGLS-120B

DGLS-150B

Volume

35 L

50 L

75 L

100 L

120 L

150 L

Power

3.5 KW

3.5 KW

4.5 KW

4.5 KW

4.5 KW

6.0 KW

Voltage

AC 220 V, 50 HZ

Rated working pressure

0.22 Mpa

Rated working temperature

134 ℃

Sterilization temperature

50 ℃ ~ 134 ℃

Sterilization time setting range

4 ~ 120 min

Drying time setting range

0 ~ 240 min

Chamber volume (mm)

Ø 300 × 500

Ø 350 × 525

Ø 400 × 625

Ø 450 × 650

Ø 450 × 760

Ø 500 × 780

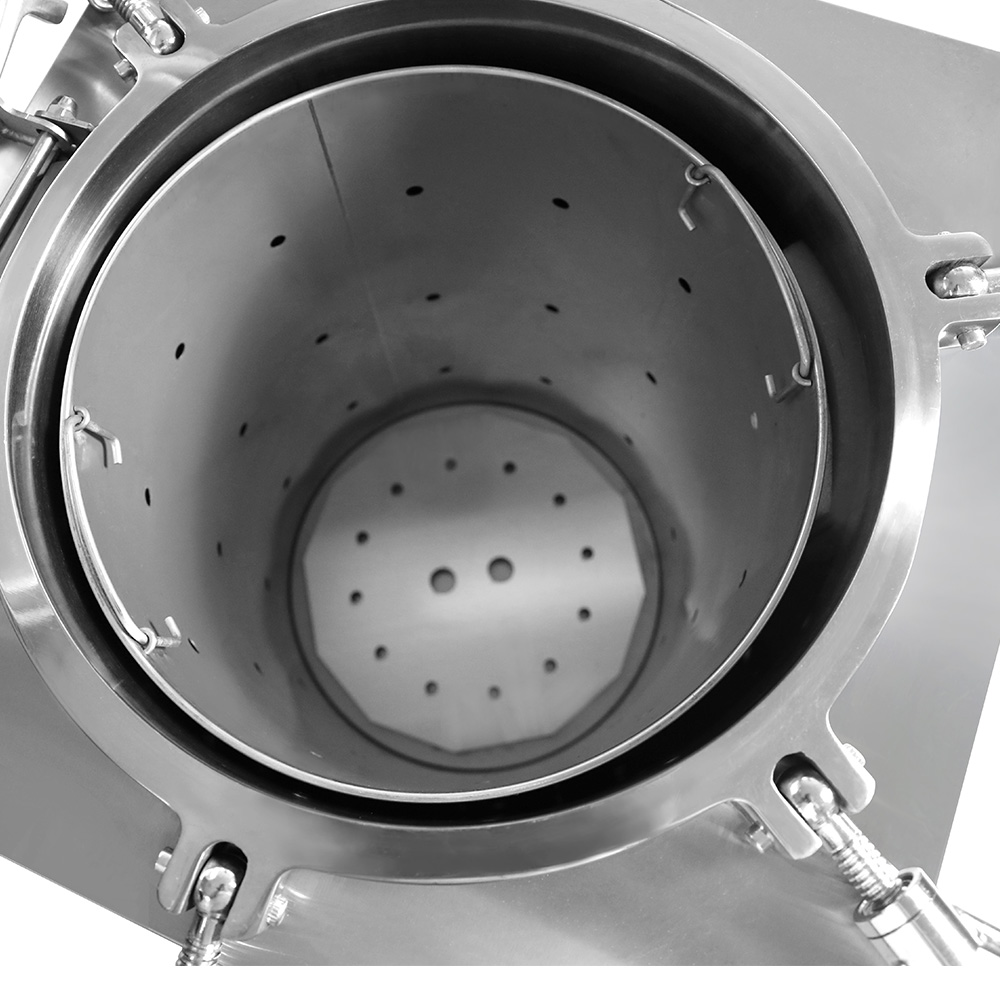

Bucket dimension (mm)

Ø 280 × 400

Ø 330 × 480

Ø 380 × 560

Ø 420 × 540

Ø 420 × 660

Ø 470 × 720

Basket dimension (optional)

Not optional

Ø 320 × 240 × 2

Ø 360 × 280 × 2

Ø 410 × 300 × 2

Ø 410 × 350 × 2

Ø 460 × 350 × 2

Outer dimension (mm)

400 × 400 × 860

480 × 480 × 960

525 × 567 × 1020

555 × 555 × 1080

555 × 599 × 1200

605 × 649 × 1210

Packing size (L × W × H) (mm)

550 × 500 × 1030

580 × 630 × 1100

630 × 680 × 1190

690 × 650 × 1230

690 × 650 × 1330

750 × 700 × 1370

Gross / Net weight

58 / 41 kg

75 / 53 kg

82 / 61 kg

103 / 78 kg

108 / 82 kg

116 / 90 kg
