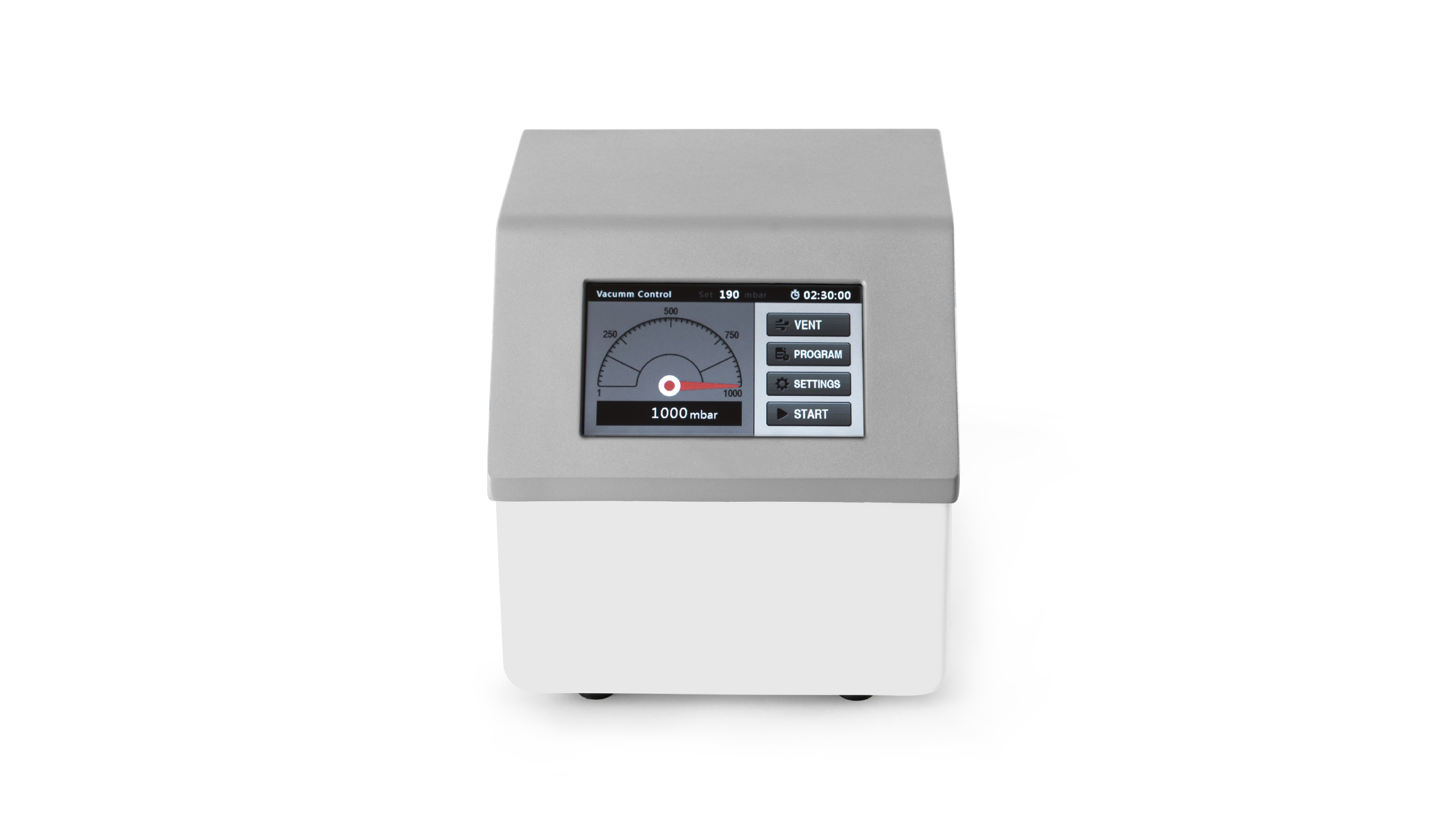

Vacuum controller for RE100 series rotary evaporator
Product ID: MZ57456
P/N: MZ574561

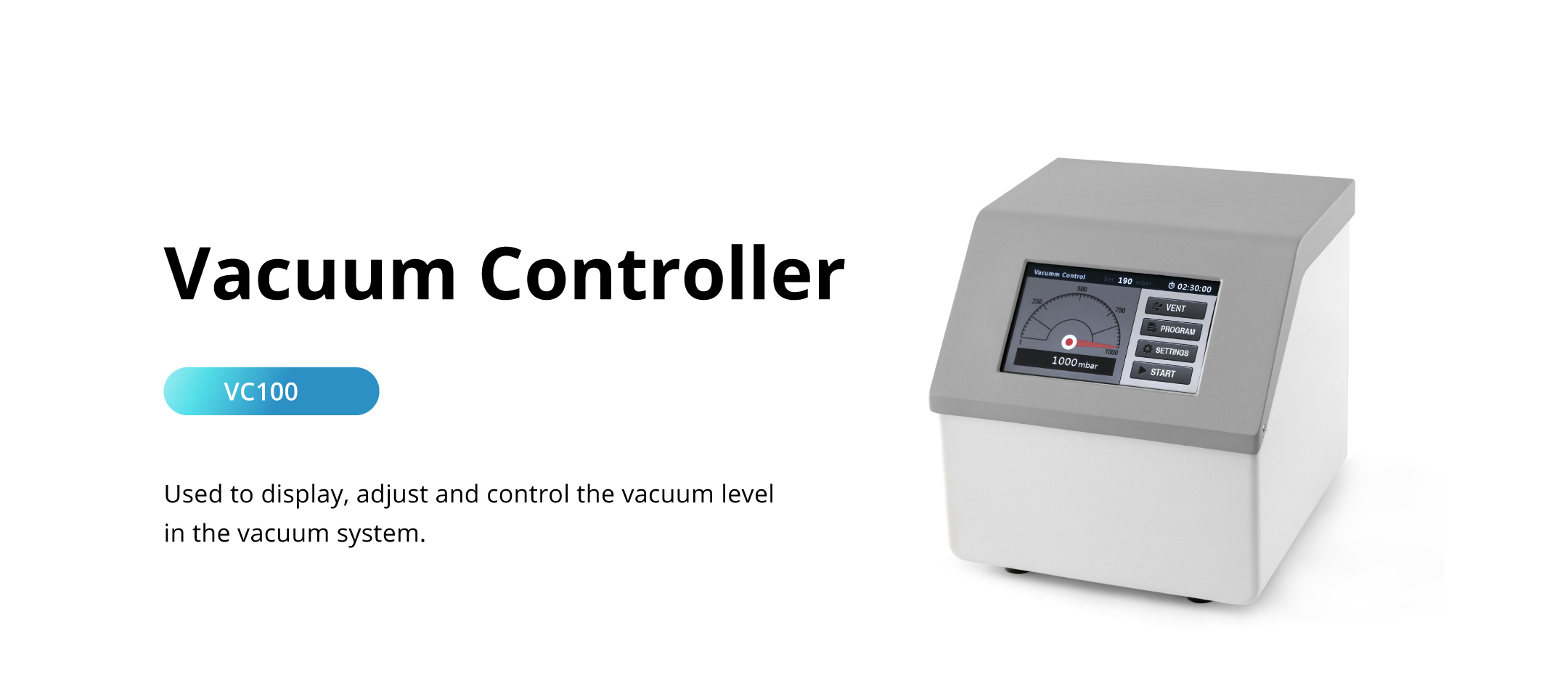

Serves as a device for labs to display, adjust and control the degree of vacuum in vacuum systems.
Model
VC100
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

VC100

Vacuum setting range

1-1000mbar

Vacuum measurement range

1-1000mbar

Control mode

Single-point control mode

Programmed control mode

Control program

Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)

Setting method

Touch screen setting

Display

5'' TFT

Sensor overload pressure

1,500mbar

Compatible conditions with vacuum pump

Power of 50Hz vacuum pump  400W

Power of 60Hz vacuum pump  500W

Connector diameter

8mm

Materials in contact with vapor

PTFE, PP, silicone and ceramics

Power

600W

Voltage / Frequency

110V ~ 240V, 50 / 60Hz

Overall dimensions (D×W×H)

189mm x 207mm x 193mm

Weight

4kg

Permissible ambient temperature

10 ~ 40℃

Permissible ambient humidity

 80% RH
