Application |
|
|
Modular Design |
Compatible Surgical Procedures |
|
The ESU system supports laparoscopic surgery along with specific endoscopic procedures, making it versatile for a wide range of surgical applications. |
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology (under water TUR), oncology, neurosurgery, etc. |
|
Working modes |
||||
|

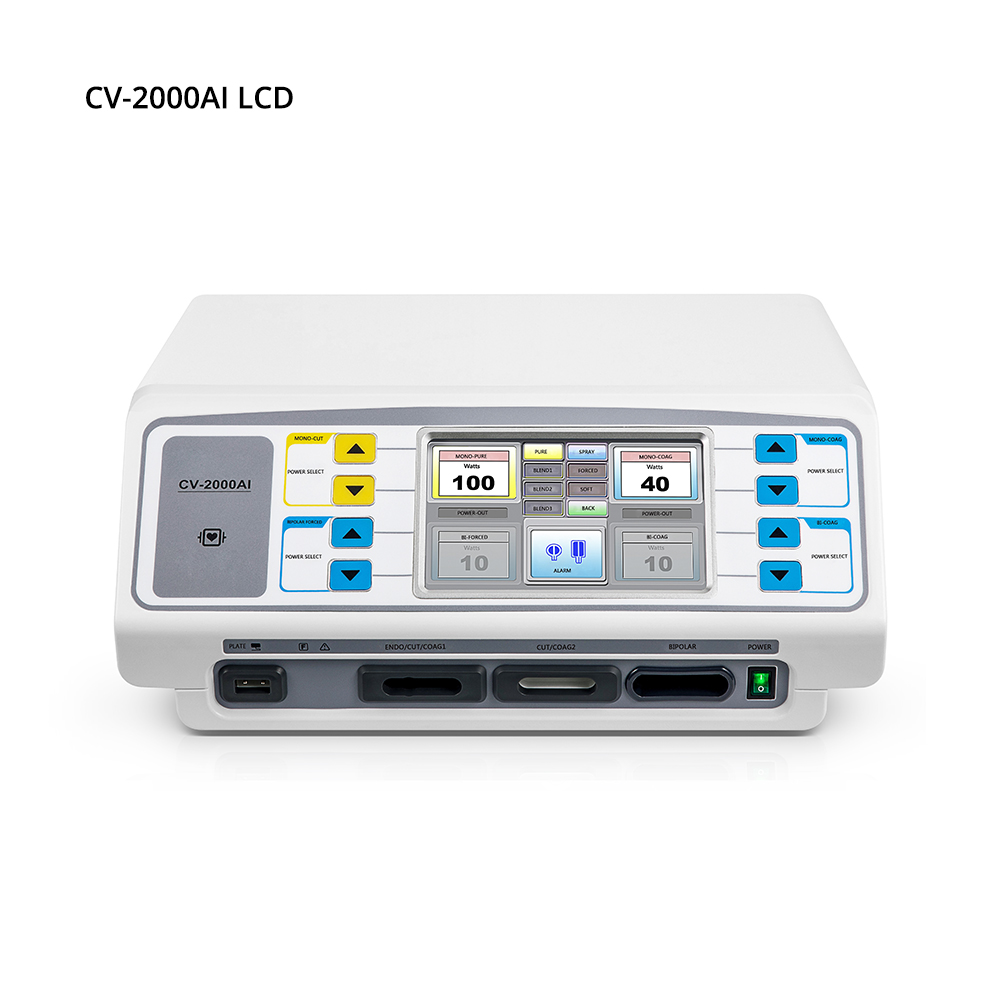

CV-2000AI LCD |
||||
|
Function |
Modes |
Output power (load) |
V-PP |
CF |
|
Monopolar cut |
Pure cut |
1 - 400 W (load: 800 Ω) |
2.6 KV |
1.5 |
|
Blend 1 |
1 - 300 W (load: 800 Ω) |
4 KV |
1.8 |
|
|
Blend 2 |
1 - 200 W (load: 800 Ω) |
4.2 KV |
2.1 |
|
|
Blend 3 |
1 - 150 W (load: 800 Ω) |
4 KV |
2.7 |
|
|
Monopolar |
Spray |
1 - 80 W (load: 800 Ω) |
5.3 KV |
7.4 |
|
Forced |
1 - 120 W (load: 800 Ω) |
5 KV |
3.8 |
|
|
Soft |
1 - 120 W (load: 800 Ω) |
720 V |
1.6 |
|
|
Bipolar |
Standard coag |
1 - 120 W (load: 200 Ω) |
550 V |
1.6 |
|
Bipolar cut (Macro-bipolar) |
1 - 120 W (load: 200 Ω) |
350 V |
1.6 |
|
|

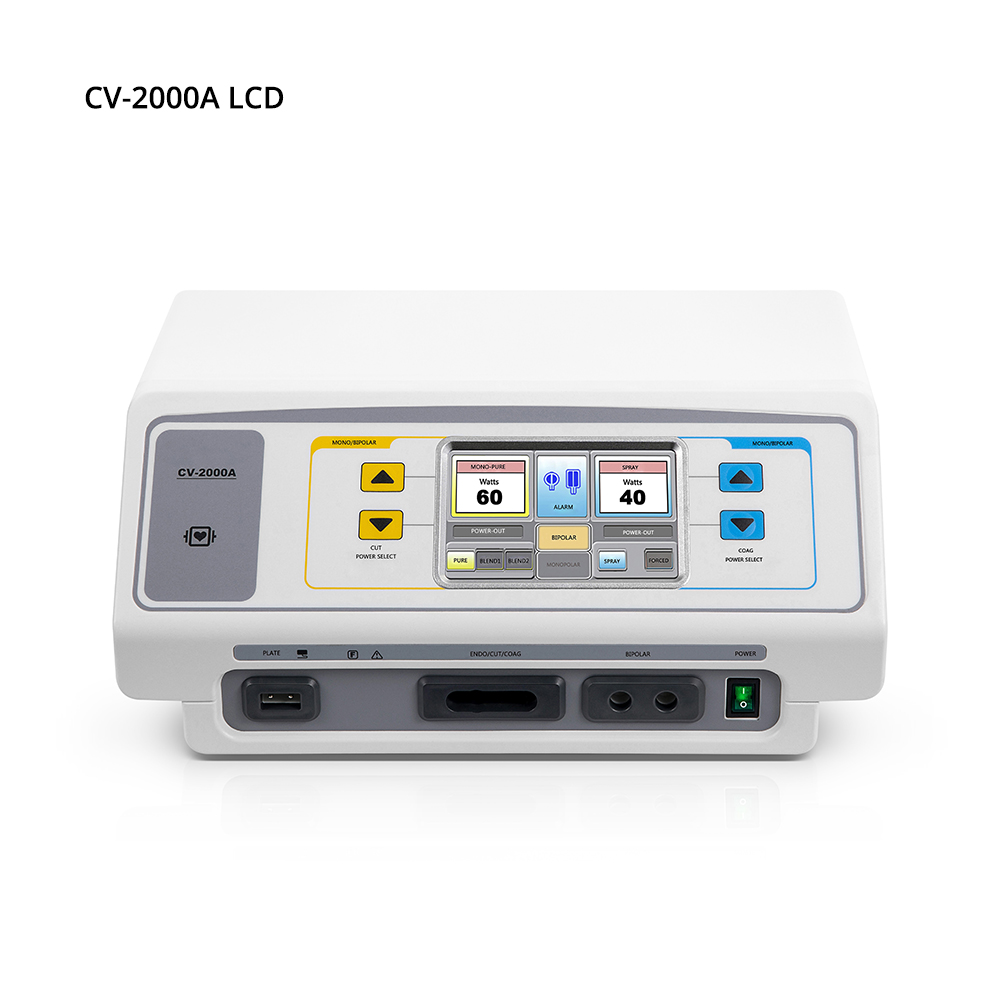

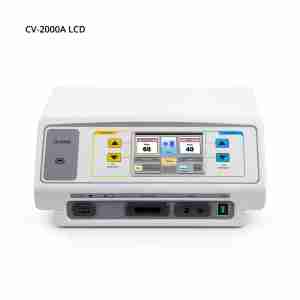

CV-2000A LCD |
||||
|
Function |
Modes |
Output power (load) |
V-PP |
CF |
|
Monopolar cut |
Pure cut |
1 - 300 W (load: 800 Ω) |
2.6 KV |
1.5 |
|
Blend 1 |
1 - 250 W (load: 800 Ω) |
4 KV |
1.8 |
|
|
Blend 2 |
1 - 200 W (load: 800 Ω) |
4.2 KV |
2.1 |
|
|
Monopolar coagulation |
Spray |
1 - 80 W (load: 800 Ω) |
5.3 KV |
7.4 |
|
Forced |
1 - 120 W (load: 800 Ω) |
5 KV |
3.8 |
|
|
Bipolar |
Standard coag |
1 - 120 W (load: 200 Ω) |
550 V |
1.6 |
|
Bipolar cut |
1 - 120 W (load: 200 Ω) |
350 V |
1.6 |
|
|
Basic parameters |
||
|
Model |
CV-2000AI |
CV-2000A |
|
Display |
7-inch LCD touch screen display |
5-inch LCD touch screen display |
|
Dimensions |
49 cm × 42 cm × 18 cm |
45 cm × 37 cm × 17 cm |
|
Weight |
9 kg |
8 kg |
|
Working frequency |
MONO: 512 KHz; BIP: 1024 KHz |
416 KHz |
|
Input voltage |
100 - 240 V - ± 10 % |
|
|
Mains line frequency range |
50 - 60 Hz |
|
|
Power rating |
1100 VA |
|
|
Power consumption |
≤ 1100 VA |
|
|
Fuses (two) |
5 A / 10 A |
|
|
Monopolar RF leakage current |
< 150 mA |
|
|
Bipolar RF leakage current |
< 50 mA |
|
|
Ambient temperature range |
5 ℃ - 40 ℃ |
|
|
Relative humidity |
≤ 80 % |
|
|
Atmospheric pressure |
86 kPa - 106 kPa |
|
|
Standard accessories |
|||
|
CV-2000AI LCD / CV-2000A LCD |
|||
|
Main unit |
1 set |
Bipolar footswitch |
1 set |
|
Electrosurgical pencil |
5 pcs |
Bipolar forceps with cable |
1 set |
|
Electrosurgical pad |
10 pcs |
Tip clean sponge |
1 pc |
|
Electrosurgical pad cable |
1 pc |
Power cable |
1 pc |
|
Monopolar footswitch |
1 set |
Fuse |
3 pcs |
