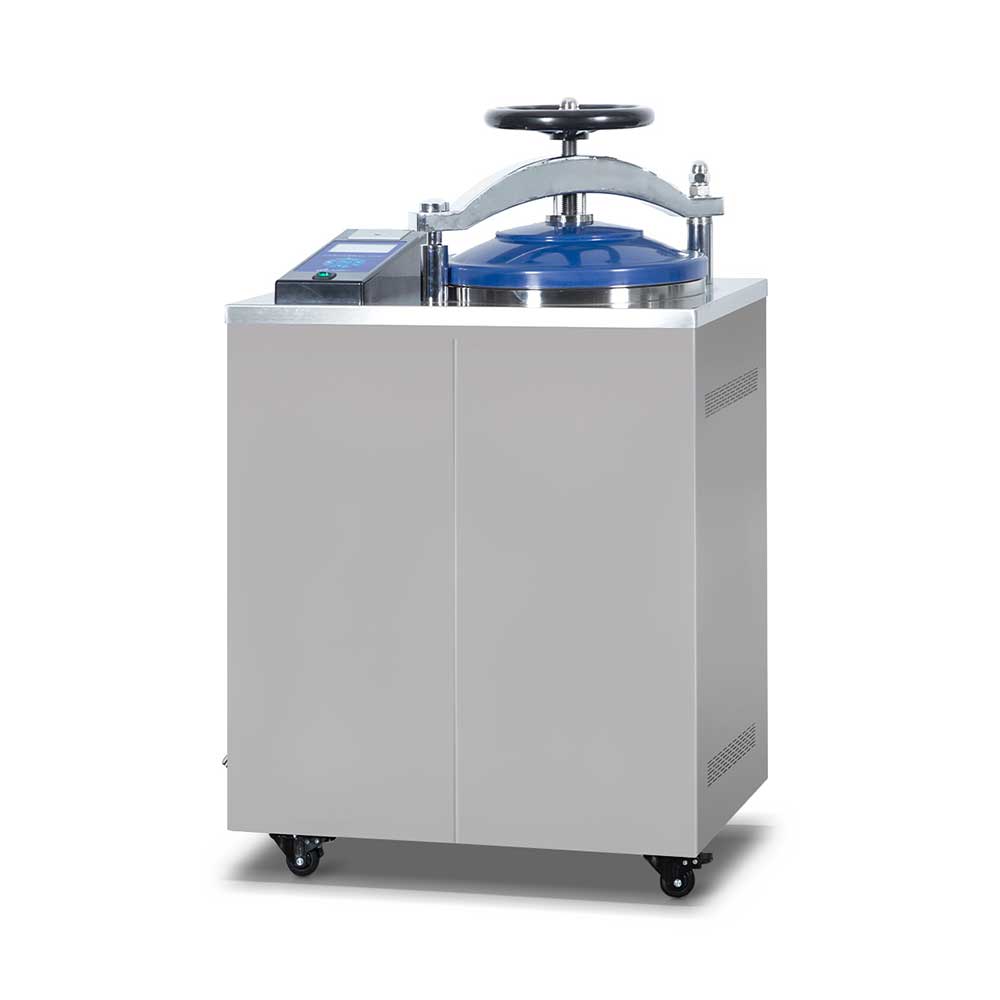

Pulsating vacuum vertical steam sterilizer (DGL-M series)

Product ID: MH15385

P/N: MH153852

Internal steam circulation, automatic water inlet, water circulation.

Model

DGL-35M (capacity: 35L)

DGL-50M (capacity: 50L)

DGL-75M (capacity: 75L)

DGL-100M (capacity: 100L)

Quantity

Please note:

unit ( MOQ: 1 unit )

1 unit/pack, 1 pack(s)/carton

Product Details

Parameters

Pulsating vacuum vertical steam sterilizer (DGL-M series)

Please select the sample parameters

Model

DGL-35M (capacity: 35L)

DGL-50M (capacity: 50L)

DGL-75M (capacity: 75L)

DGL-100M (capacity: 100L)

WE WILL BE PLEASED TO
SERVE YOU.

Are you still looking for the best supplier of IVD, medical and Lab products?
Contact us for the one-stop service.

Suzhou Medmay Biotechnology Co., Ltd

No.258, Huajin Road, Tongan Town, High New Technology Development Zone, Suzhou 215153, CHINA

Online Chat Service time 7x24h

+86-512-66905010 Service time GMT 00:00 - 10:00 (Monday to Friday)

Browse mobile version

Mode	DGL-35M	DGL-50M	DGL-75M	DGL-100M
Volume	35 L	50 L	75 L	100 L
Power	3.5 KW	3.5 KW	4.5 KW	4.5 KW
Voltage	AC 220 V, 50 HZ
Rated working pressure	0.22 Mpa
Rated working temperature	134 ℃
Sterilization temperature	50 ℃ ~ 134 ℃
Sterilization time setting range	4 ~ 120 min
Drying time setting range	0 ~ 240 min
Chamber volume (mm)	Ø 350 × 400	Ø 400 × 505	Ø 400 × 655	Ø 450 × 650
Bucket dimension (mm)	Ø 330 × 320	Ø 380 × 430	Ø 380 × 560	Ø 420 × 540
Basket dimension (optional)	Ø 320 × 350	Ø 360 × 280 × 1	Ø 360 × 280 × 2	Ø 410 × 300 × 2
Outer dimension (mm)	698 × 498 × 940	630 × 530 × 1180	630 × 530 × 1180	760 × 560 × 1260
Packing size (L × W × H) (mm)	790 × 610 × 1130	800 × 600 × 1230	840 × 610 × 1310	870 × 650 × 1380
Gross / Net weight	130 / 115 kg	138 / 118 kg	150 / 124 kg	159 / 132 kg
