Imaging processor

Model

TDE-F410A

Resolution & frame rate

3840 × 2160 @ 60 Hz

Screen

10.3-inch LCD touch screen

Video output

DVI-I × 1, 12G-SDI × 2, 3G-SDI × 2, HDMI2.0 × 1, DisplayPort 1.2 × 1

Video input

3G-SDI × 1

Image capture / Video recording

Resolution: 3840 × 2160

Frame rate: 60 Hz

File format: JPEG, MPEG-4

Wipe disinfection

Yes

Degree of safety

CF-Defib

Dimensions (W × H × D)

383 mm × 351 mm × 142 mm

Weight

8.25 kg

Light source

Model

TLS-M821A

Light

White light and NIR fusion light

Screen

7-inch LCD screen

Service life

White light lamp: 60000 h

NIR light lamp: 10000 h

Light intensity

100 steps adjustable

Camera head

Type

Manual focus camera handle

Zoom ratio

Supports 1.25X, 1.5X, 1.75X, 2X digital zoom

Working mode

White light + Fluorescent two modes of use

Sensor

Native dual 4K CMOS sensor

Waterproof rating

IPX 8

Weight

300 g

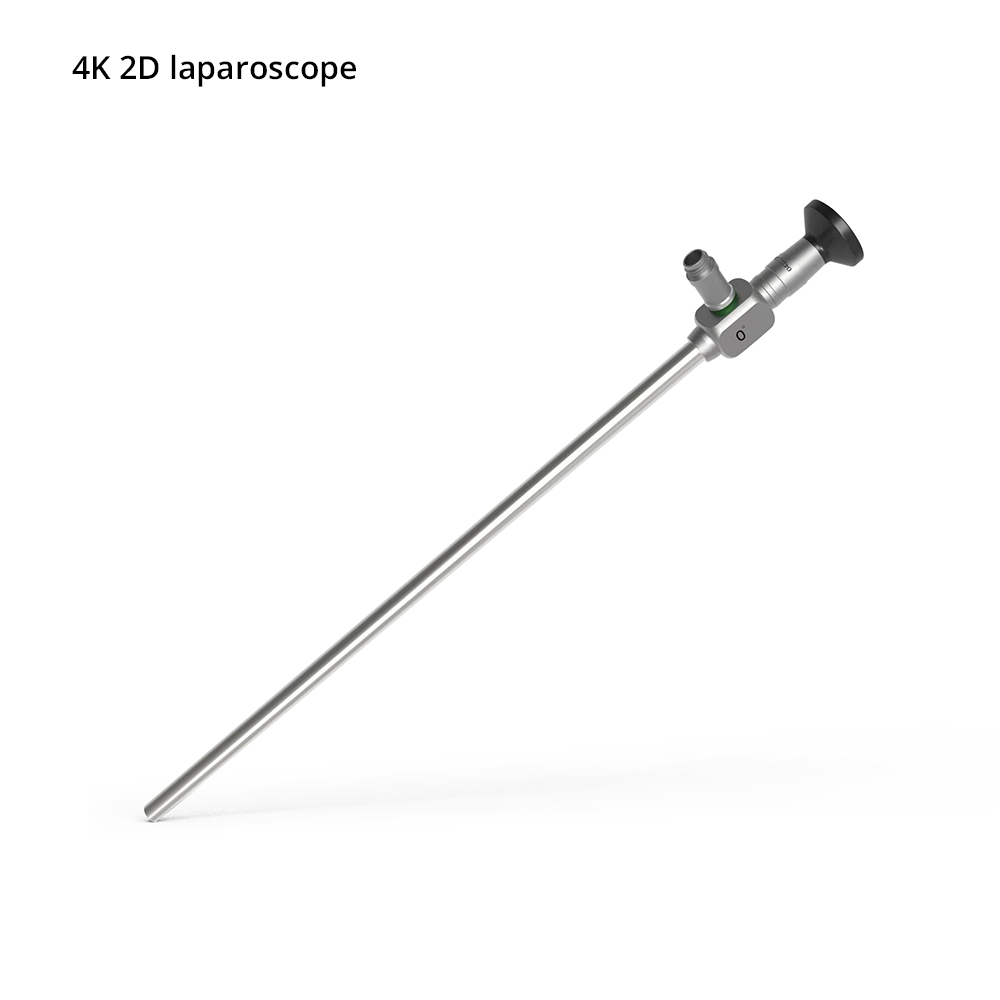

4K 2D laparoscope

(Fluorescence & White light)

Model

4K-1030

4K-1000

4K-0530

4K-0500

Direction of viewing

30°

0°

30°

0°

Laparoscope diameter

10 mm

10 mm

5 mm

5 mm

4K 3D dual-channel optical laparoscope

(Integrated design of camera and endoscope, Fluorescence & White light)

Resolution & frame rate

3840 × 2160 @ 60 Hz

Direction of view

30°

Zoom ratio

2.5X digital zoom

Outer diameter

10 mm, tolerance ±3%

Cable length

300 cm

Sterilization

Hydrogen peroxide gas plasma

Degree of safety

CF-Defib

Electrical protection class

IP68

Weight

340 g

Insufflator

Flow adjustment range

0 ~ 52 L/min

Air pressure range

0 ~ 30 mmHg

Dimensions (W × H × D)

391 mm × 170 mm × 464 mm

Weight

10.75 kg

3D Medical monitor

Size

32″ or customized

Resolution

3840 × 2160

Aspect ratio

16:9

Panel type

Color (IPS)

Brightness

850 cd/m²

Contrast

1000000:1

Display

Support 2D / 3D display

Video output

HDMI, DVI-D, 12G-SDI input, 12G-SDI / 3G-SDI, DVI
