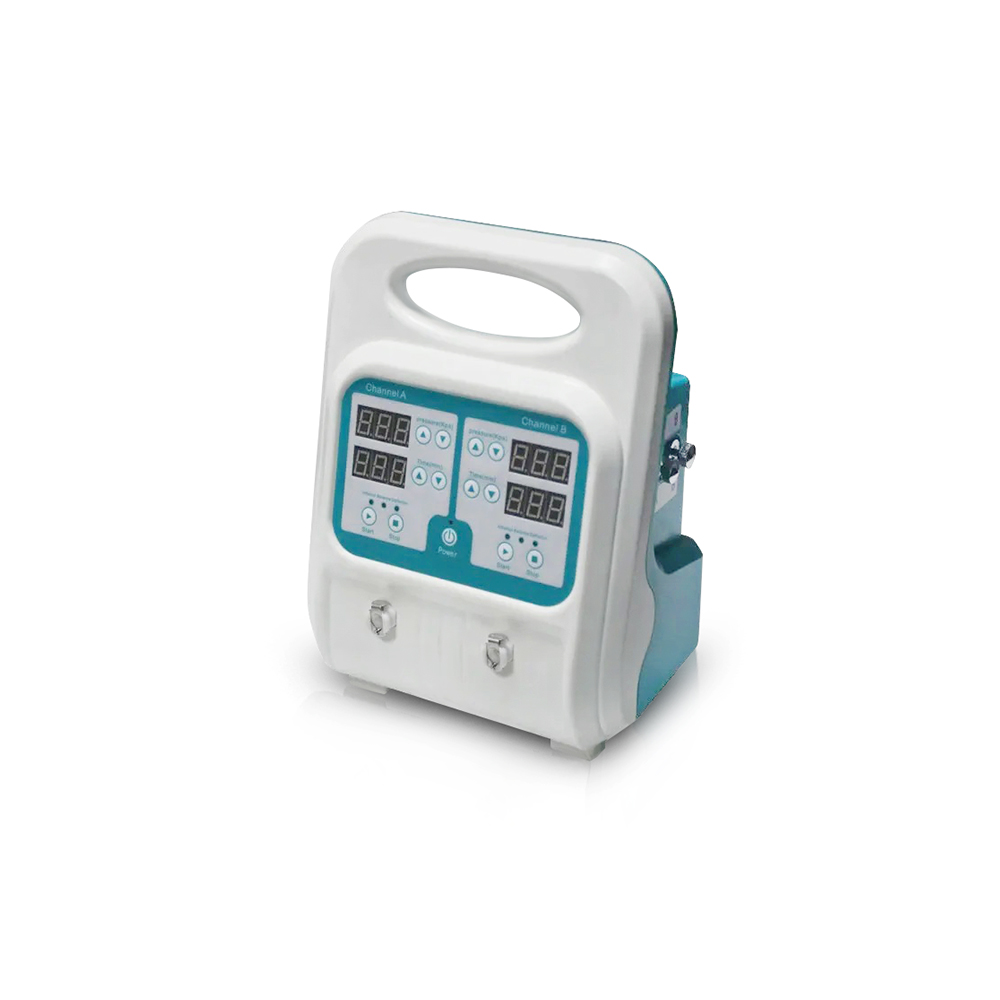

Dual-channel automatic tourniquet system / Pneumatic hemostasis instrument
Product ID: MT29719
P/N: MT297191
IVRA automatic conversion of inflation and deflation function, suitable for complex surgical operations.
Model
YTQ-F (portable)
YTQ-FA (vertical)
Panel color
Blue-green
Red-blue
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

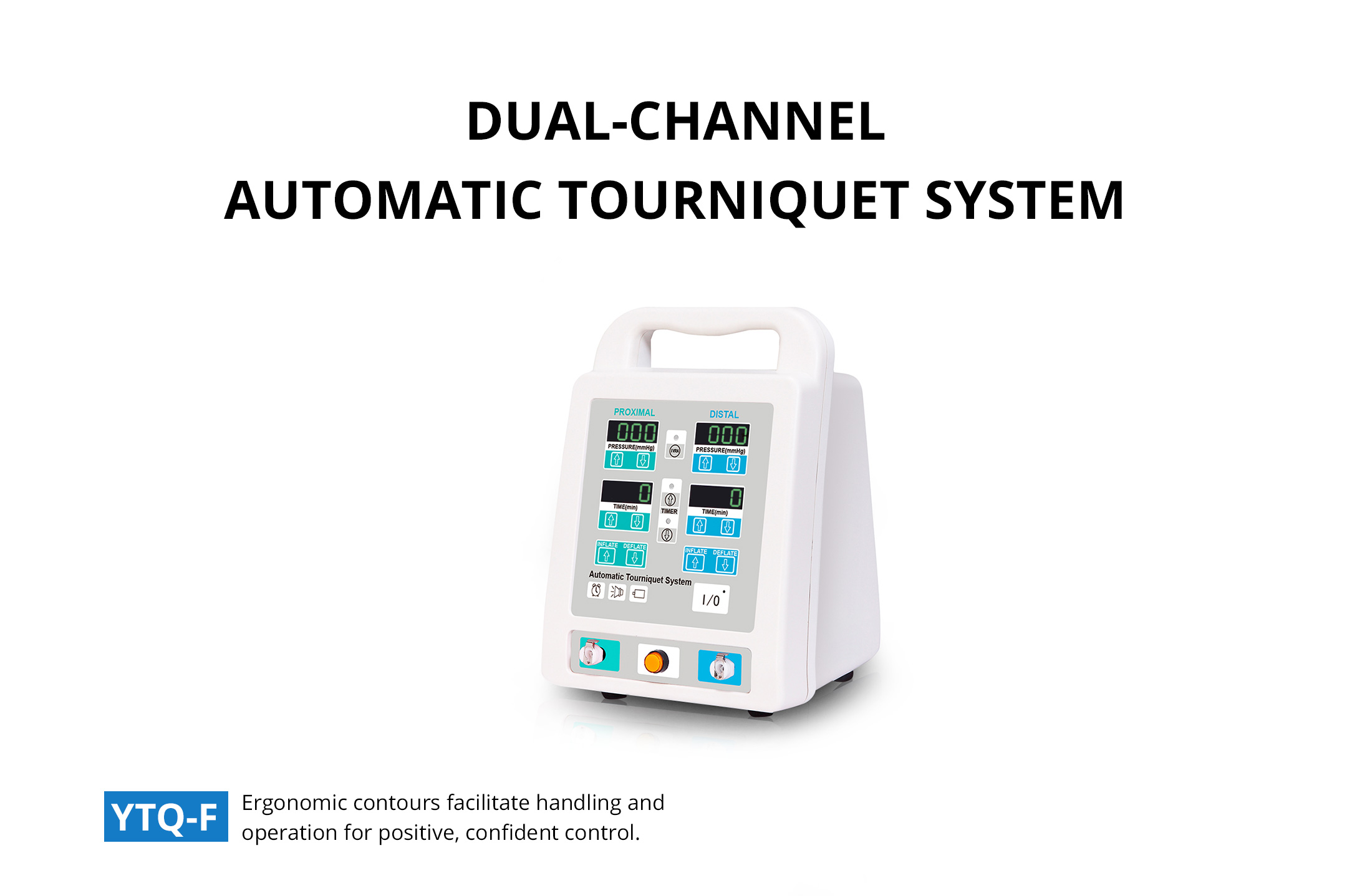

YTQ-F

Output mode

Dual channel

Material

One-piece film-forming ABS material

Working condition

Power supply

AC110-220V, 50-60HZ

Environment temperature

5℃ ~ 40℃

Relative humidity

≤ 85%

Atmospheric pressure

860hPa ~ 1060hPa

Input power

≤ 60W

Working pressure

Pressure set

25mmHg ~ 650mmHg

Tolerance

≤ 5mmHg

Operation mode

CPU control

Insurance function

Step deflation

Pressure maintenance in power failure

Emergency valve device

Manual emergency deflation

Working noise

≤ 55dB (A)

Voice prompt function

Alarms remind operators at 10mins, 5mins and 1min before the surgery completed.

6 times alarms remind operators the completion at the end of the surgery.

Can adjustable by self also.

Extended airway size

≥ 1m

Maximum working time

240min

Maximum alarm time

4 times

Hemostatic cuff size

Large cuff

863mm×101mm, 2pieces

Medium cuff

457mm×101mm, 2pieces

Small cuff

305mm×89mm, 2pieces

Package size

Main machine

320mm×300mm×395mm

Gross weight

5.6kg

Base

650mm×650mm×180mm

Gross weight

4.6kg

Basket

280mm×280mm×350mm

Gross weight

1.3kg

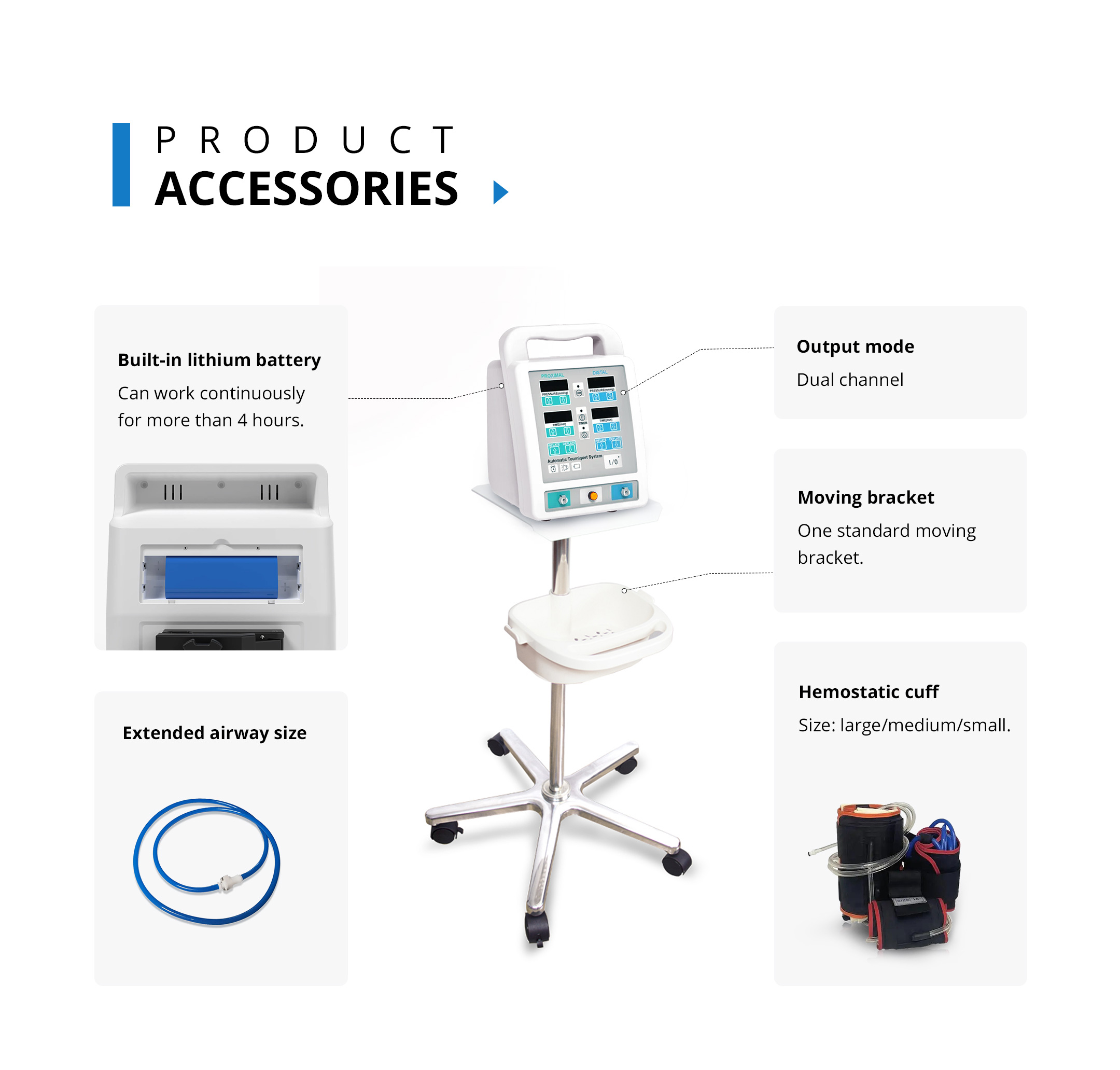

Moving bracket

Optional

Built-in lithium battery

Can work continuously for more than 4 hours

Inflation time

≤ 60s
