Model
|

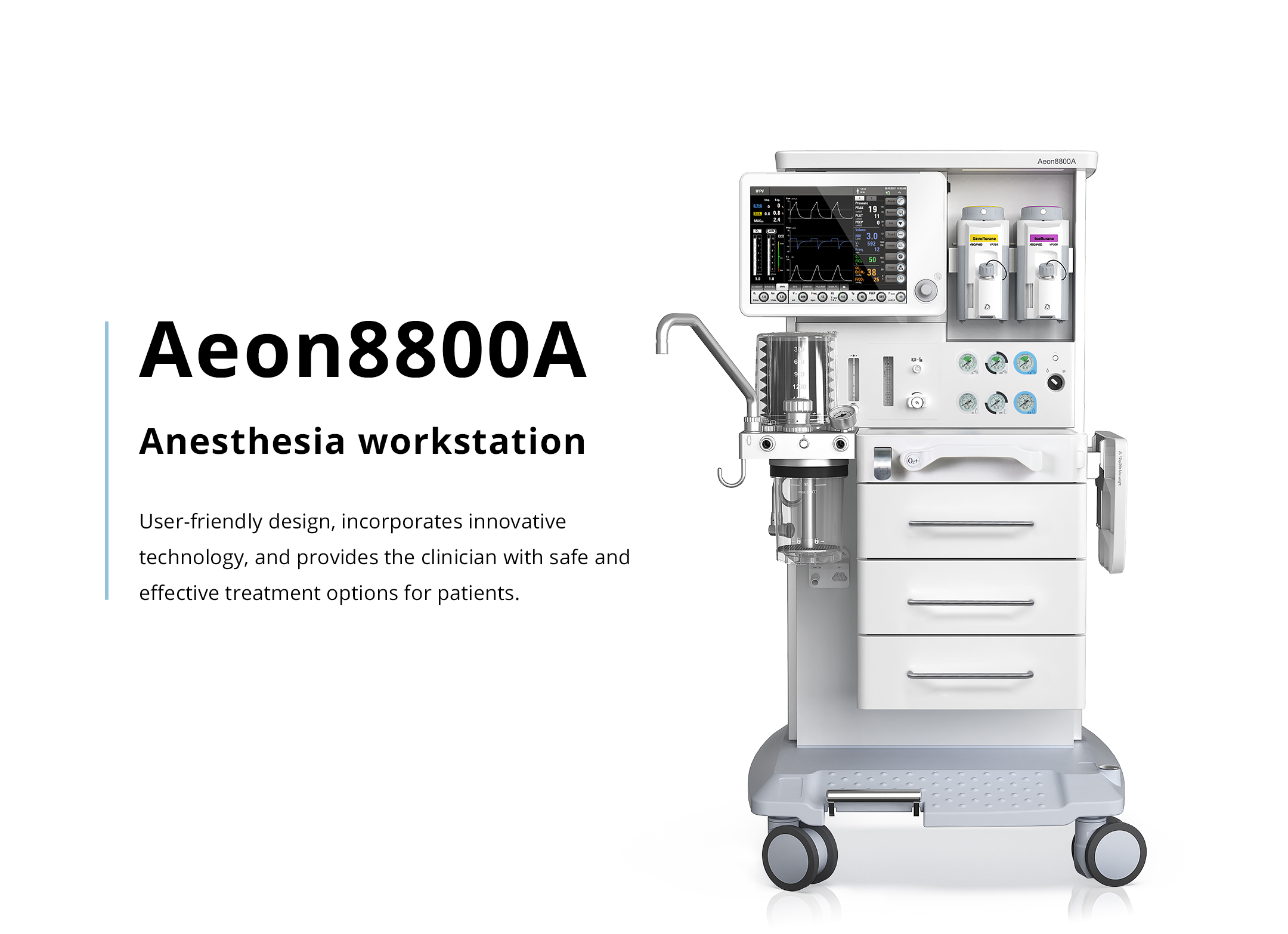

Aeon8800A
|
Dimension
|
Trolley version (with breathing circuit): 1420 mm (H) × 770 mm (W) × 760 mm (D)
|
Weight and load
|
Trolley (without vaporizer and backup cylinder): 135 kg
|
Top shelf load: 25 kg
|
Caster locking
|
Braking types: central brake system
|
Storage temperature
|
- 20 ~ 60 ℃
|
Operation temperature
|
10 ~ 40 ℃
|
Storage humidity
|
≤ 95 % (non-condensing)
|
Operation humidity
|
≤ 95 % (non-condensing)
|
Power and battery backup
|
Power input: AC 100 ~ 240 V, 50 / 60 Hz
|
Batteries and operation time with fully charged: DC 24 V 4.0 Ah, minimum 120 minutes
|
Power outlets: 4 sockets on back, 1.5 A individual
|
Anesthesia gas supply
|
Gas supply: O2, N2O, AIR, 280 ~ 600 kPa
|
Cylinder yokes: optional O2, N2O, AIR
|

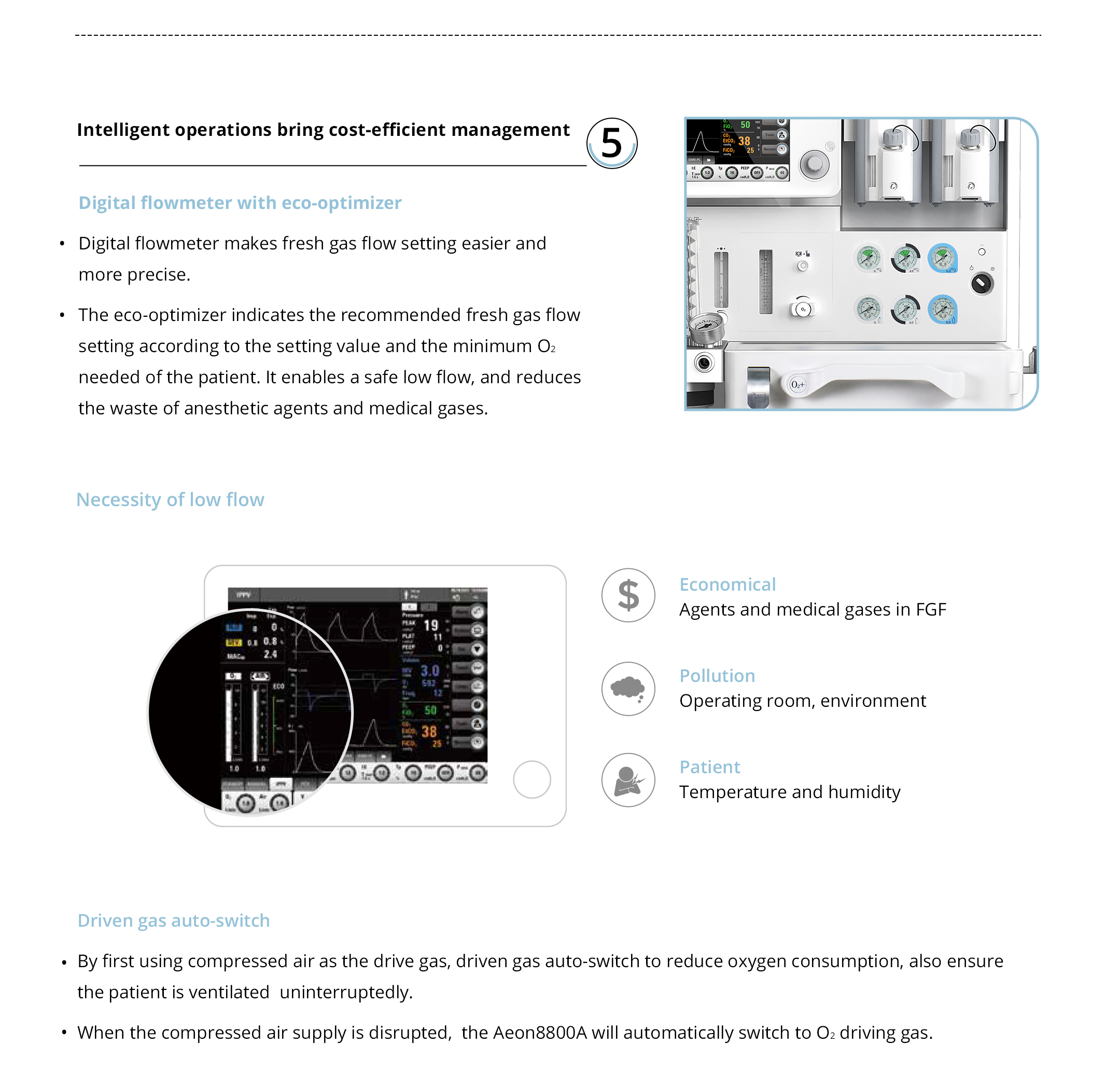

Fresh gas flow indicator: electronically controlled mixer
|
Range of fresh gas flow indicators: 0 ~ 18 L/min or set each gas independently
O2, N2O: 0 ~ 10 L/min, AIR: 0 ~ 12 L/min
|
O2 flush: 25 ~ 75 L/min
|
Auxiliary common gas outlet (ACGO): optional
|
Anesthetic gas scavenging system (AGSS): optional
|
Vaporizer
|
Agent: Sevoflurane, Halothane, Enflurane, Isoflurane
|
Installation mode: Selectatec® with interlock, optional standby vaporizer parking holder
|
Filling type: Pour-Fill, Key-Fill, Quik-Fil®
|

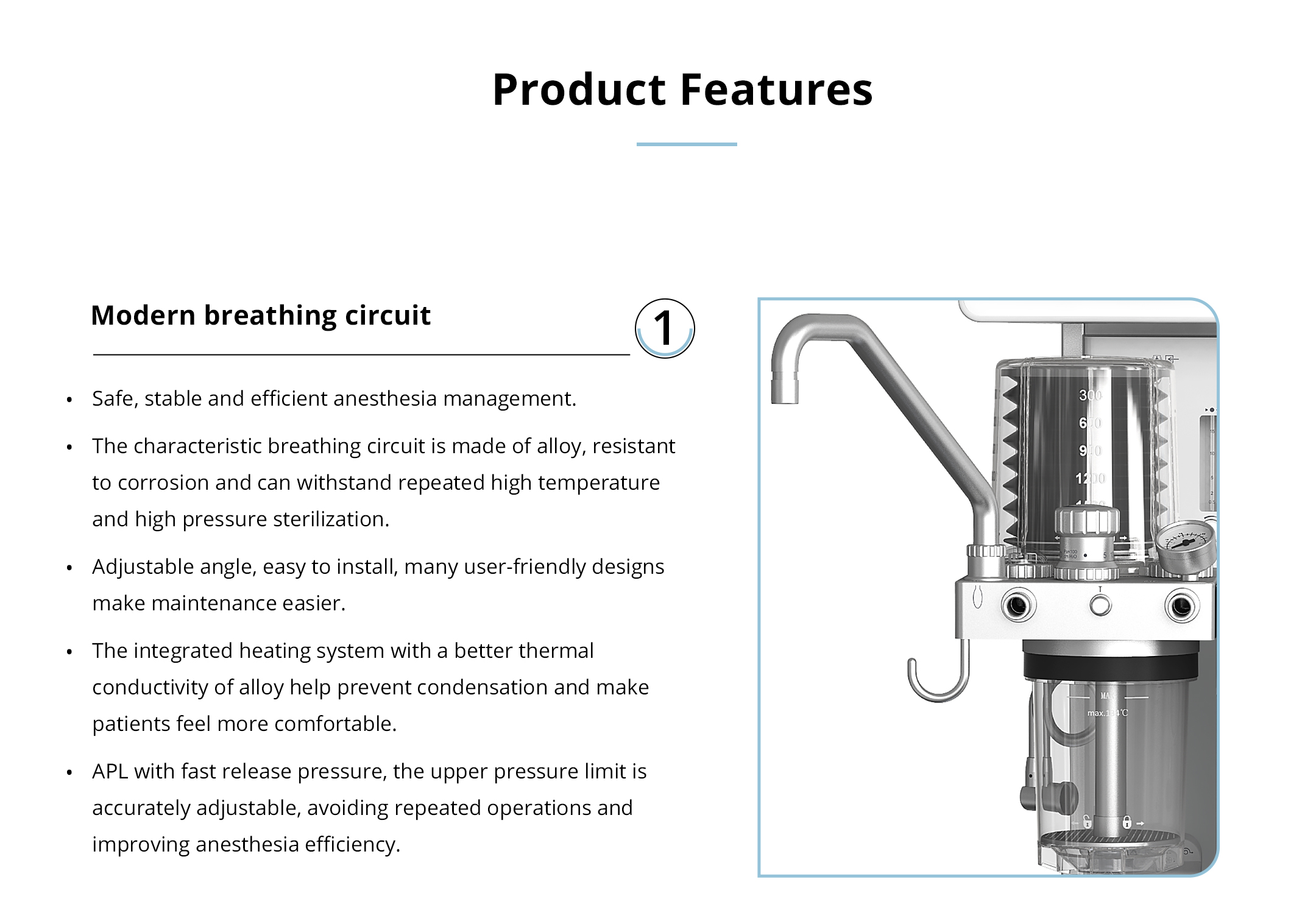

Breathing system
|
Volume of CO2 absorber: 1.5 L for single canister
|
APL range: spontaneous breathing (SP) - 70 cmH2O
|
Material: autoclavable (except O2 cell and airway pressure gauge)
|
Heating system: 32 ~ 40 ℃
|
CO2 bypass: optional
|
Ventilator operating
|
Ventilator: pneumatically driven, electronically controlled
|

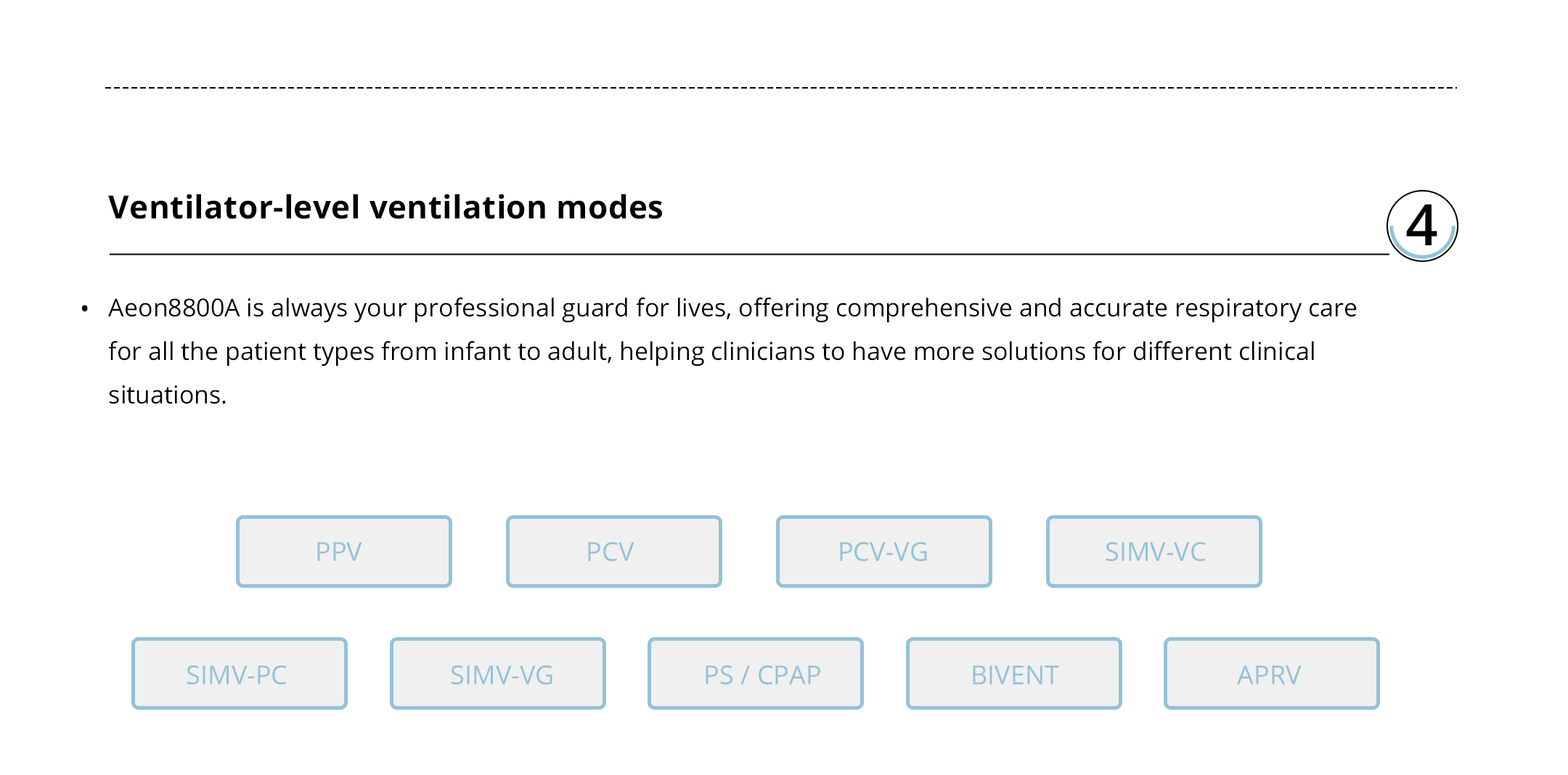

Ventilation modes - standard: Manual / Spontaneous, Volume control (IPPV), Pressure control (PCV)
|

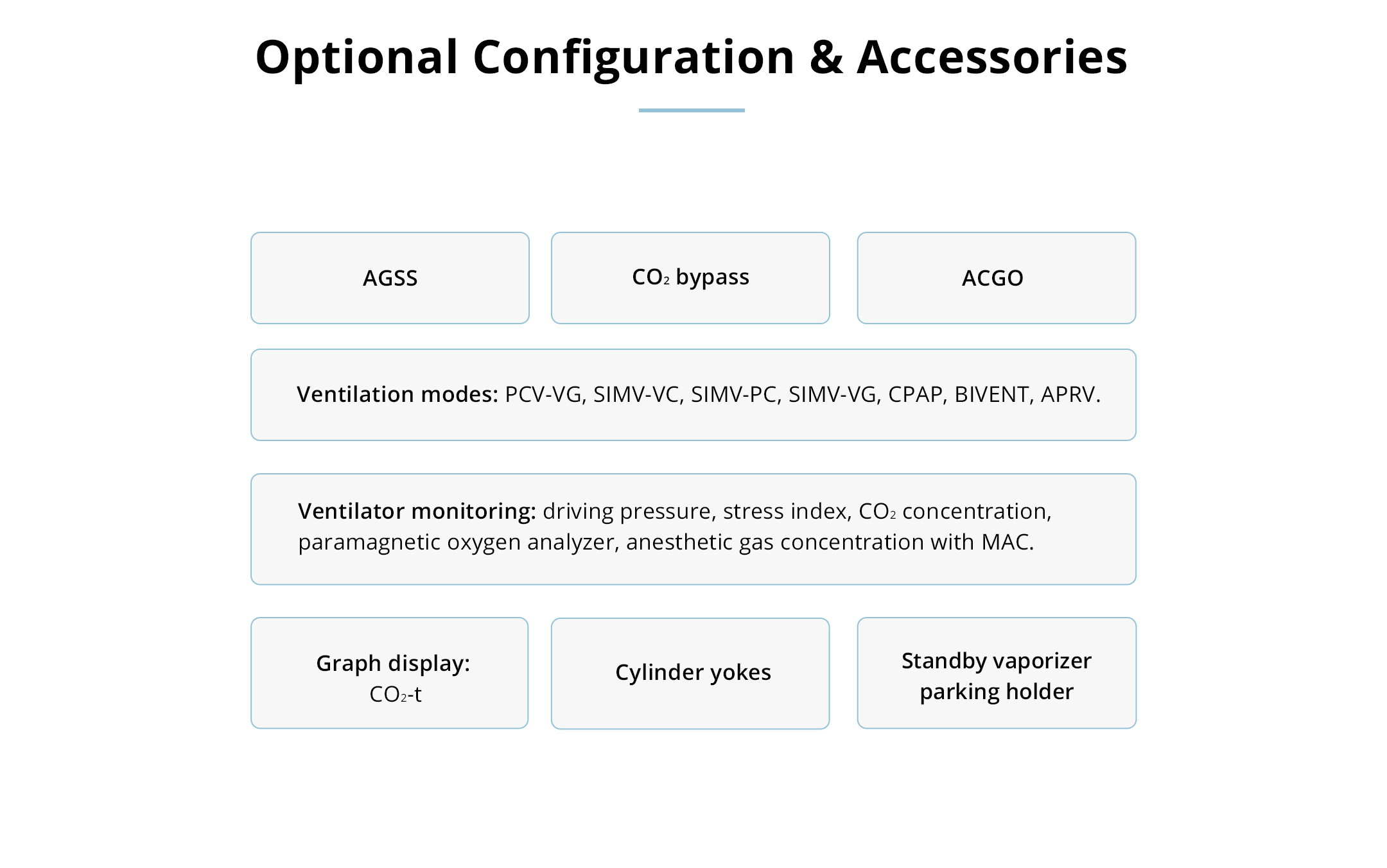

Ventilation modes - options:
Pressure Controlled Ventilation Volume Guaranteed (PCV-VG)
Synchronized Intermittent Mandatory Ventilation in Volume (SIMV-VC)
Synchronized Intermittent Mandatory Ventilation in Pressure (SIMV-PC)
Synchronized Intermittent Mandatory Ventilation in PCV-VG (SIMV-VG)
Pressure Support (PS) / Continuous Positive Airway Pressure (CPAP)
Bilevel Positive Airway Pressure Ventilation (BIVENT)
Airway Pressure Release Ventilation (APRV)
|
Control input ranges
|
Breathing frequency (Freq): 2 ~ 100 bpm
|
Positive and expiratory pressure (PEEP): OFF, 3 ~ 50 cmH2O
|
Inspiration / expiration ratio (I : E): 4 : 1 ~ 1 : 8
|
Tidal volume (Vt): 10 ~ 1500 ml
|
Inspiration pause: OFF, 5 % ~ 60 %
|
Inspiratory time: 0.2 ~ 5.0 s
|
Inspiratory pressure (PTARGET): 5 ~ 70 cmH2O
|
Pressure support level (∆P): 3 ~ 60 cmH2O
|
Pressure limit (Pmax): 10 ~ 100 cmH2O
|
Trigger: 0.5 ~ 15 L/min / - 20 ~ - 1 cmH2O
|
Inspiratory slope time (TSLOPE): 0 ~ 2 s
|
Compensation: compliance and leakage compensation, fresh gas compensation, altitude compensation
|
Ventilator monitoring & alarms
|

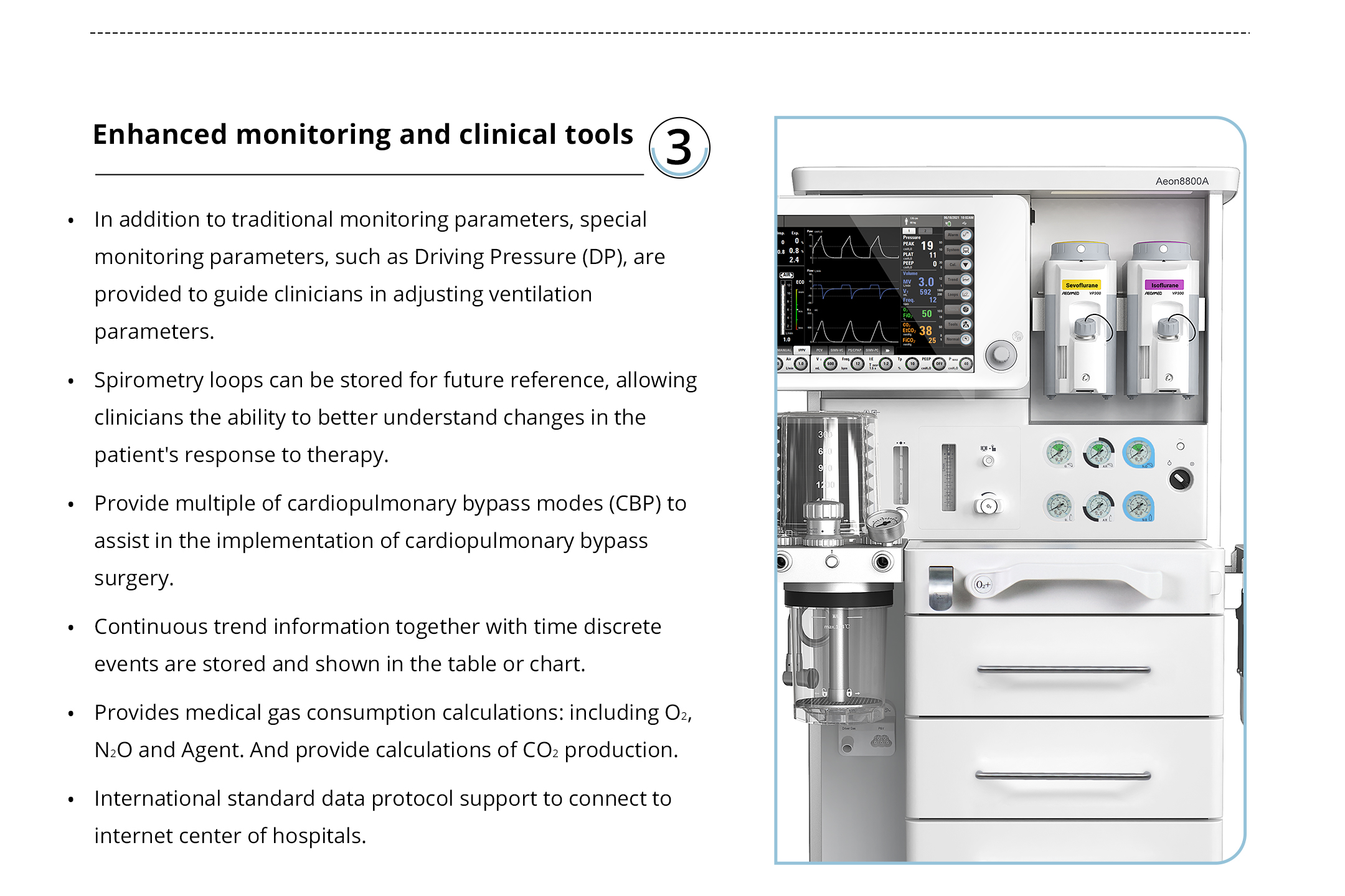

Monitoring:
Continuous monitoring of inspiratory O2 concentration, breathing frequency, tidal volume,
minute volume, peak airway pressure, PEEP, mean or plateau pressure, I : E ratio, resistance, compliance.
Option: driving pressure, stress index, CO2 concentration, paramagnetic oxygen analyzer,
anesthetic gas concentration with MAC
|
Trend storage: maximum 720 hours of trend data table, 72 hours of trend chart
|
Medical gas calculations: Consumption of O2, N2O and Agent. Calculations of CO2 production.
require relevant gas monitoring.
|

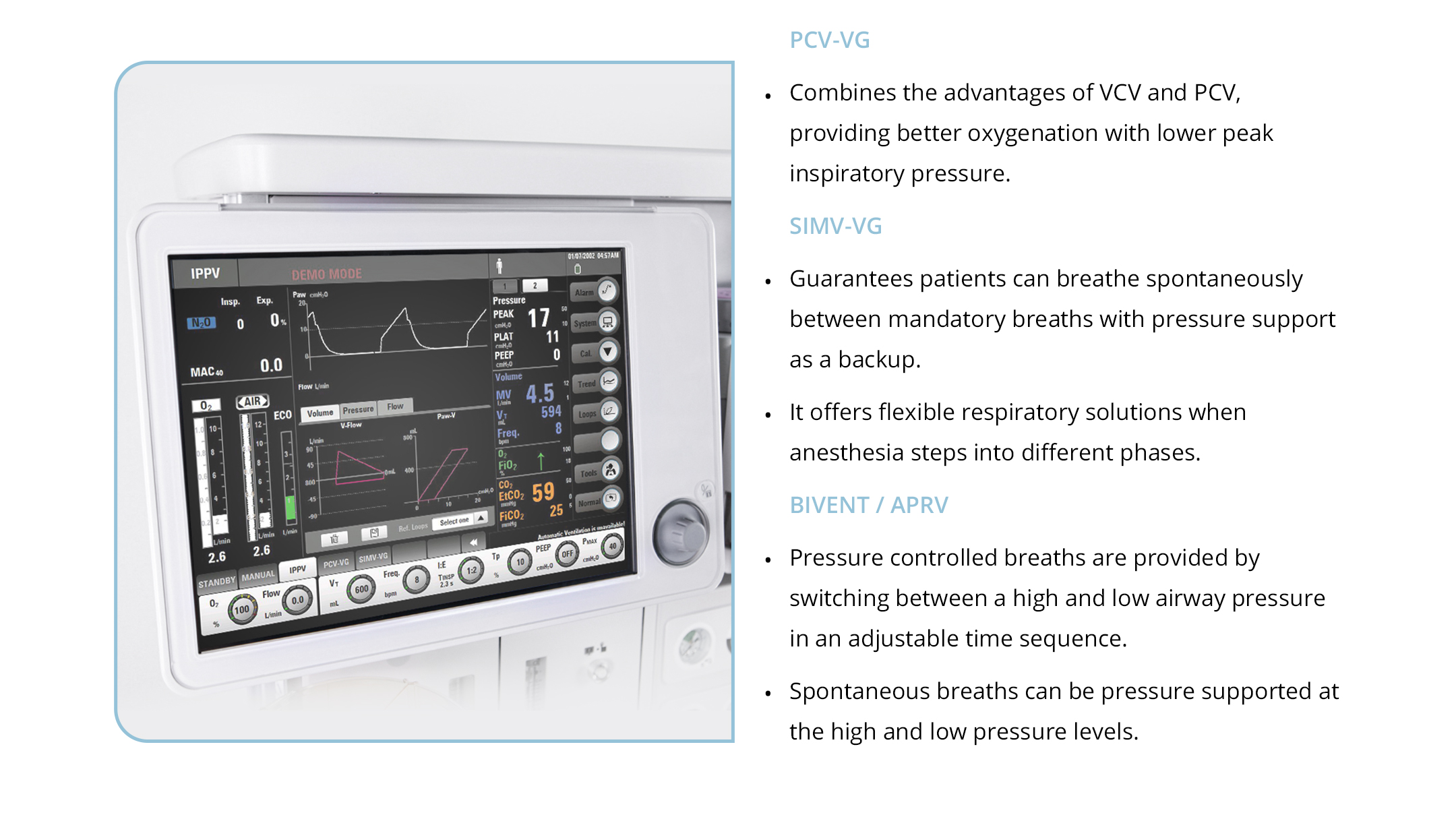

Control screen: 15” TFT color touch screen
|
Graph display: waveforms of P-t, F-t, V-t, CO2-t (option), P-V Loop, V-F Loop, P-F loop
|
Alarm:
MV high / low limit, FiO2 high / low limit, Paw high / low limit, Pow er failure, High Freq,
Negative pressure, Continuous airway pressure, Apnea alarm, etc.
|
Alarm silence: ≤ 120 seconds
|
Alarm logging: 500 items
|
