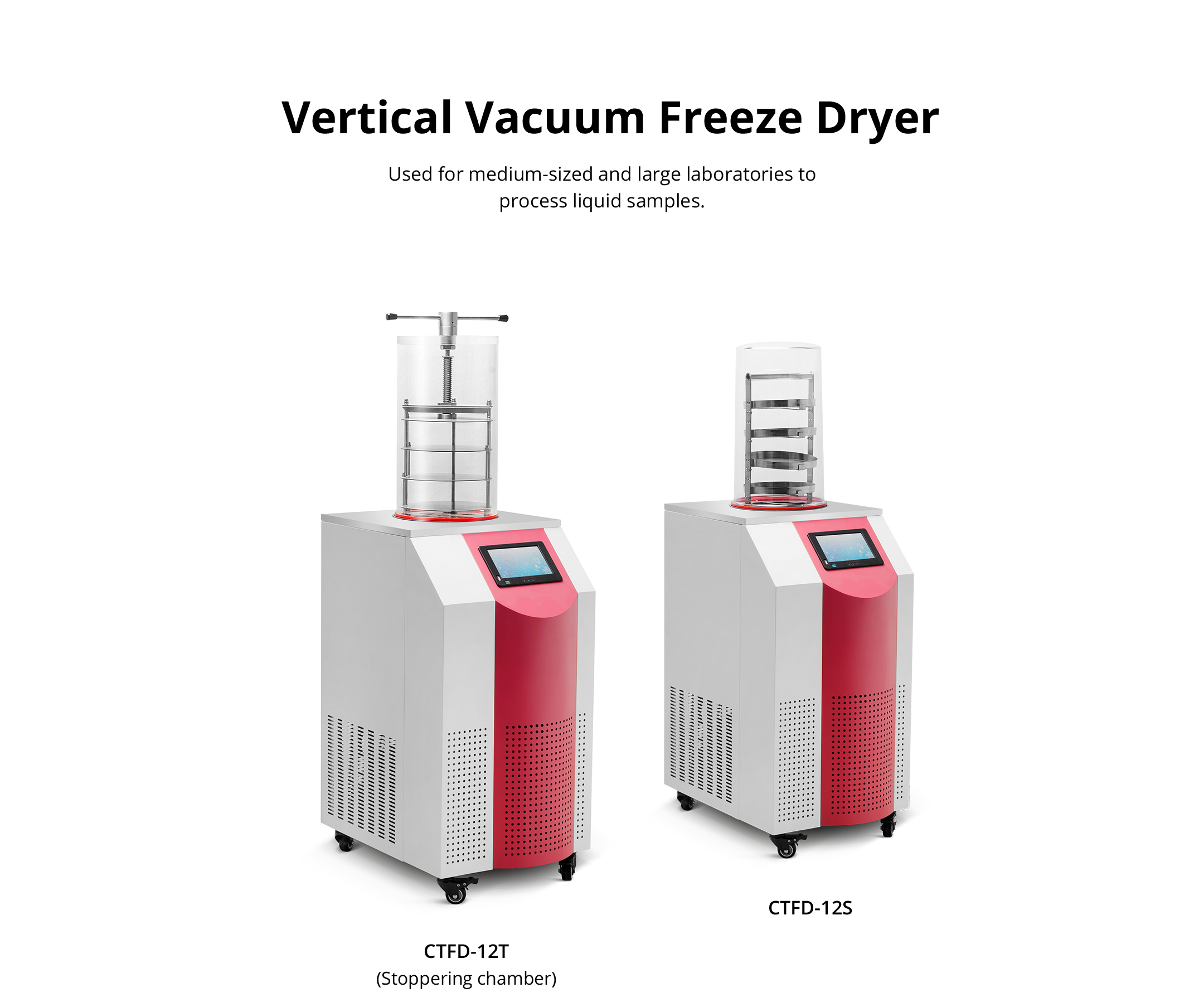

Model

CTFD-12S

CTFD-12T

Style

Standard chamber

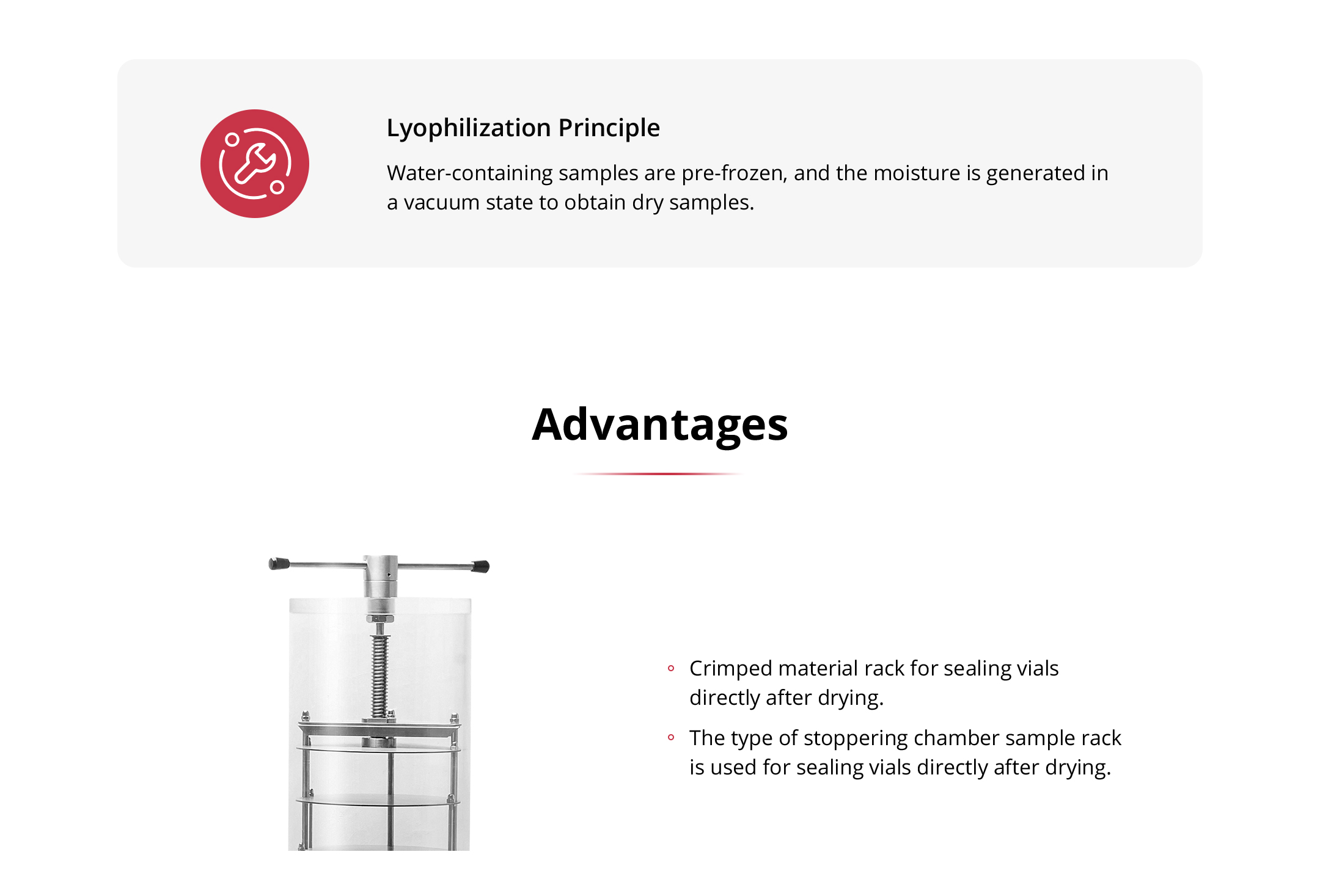

Stoppering chamber

Final condenser temp (℃)

-60℃

Vacuum degree (Pa)

< 10 Pa

Condenser volume (L)

9.5 L

Freeze drying area (m²)

0.12

0.09

Water condenser capacity (Kg / 24h)

4

Qty of shelf

4

3

Material loading capacity/shelf (ml)

300

Material loading capacity (ml)

1200

900

USB interface

Yes

Drying chamber (standard)

Transparent acrylic

Speed of vacuum pump

2 L / S

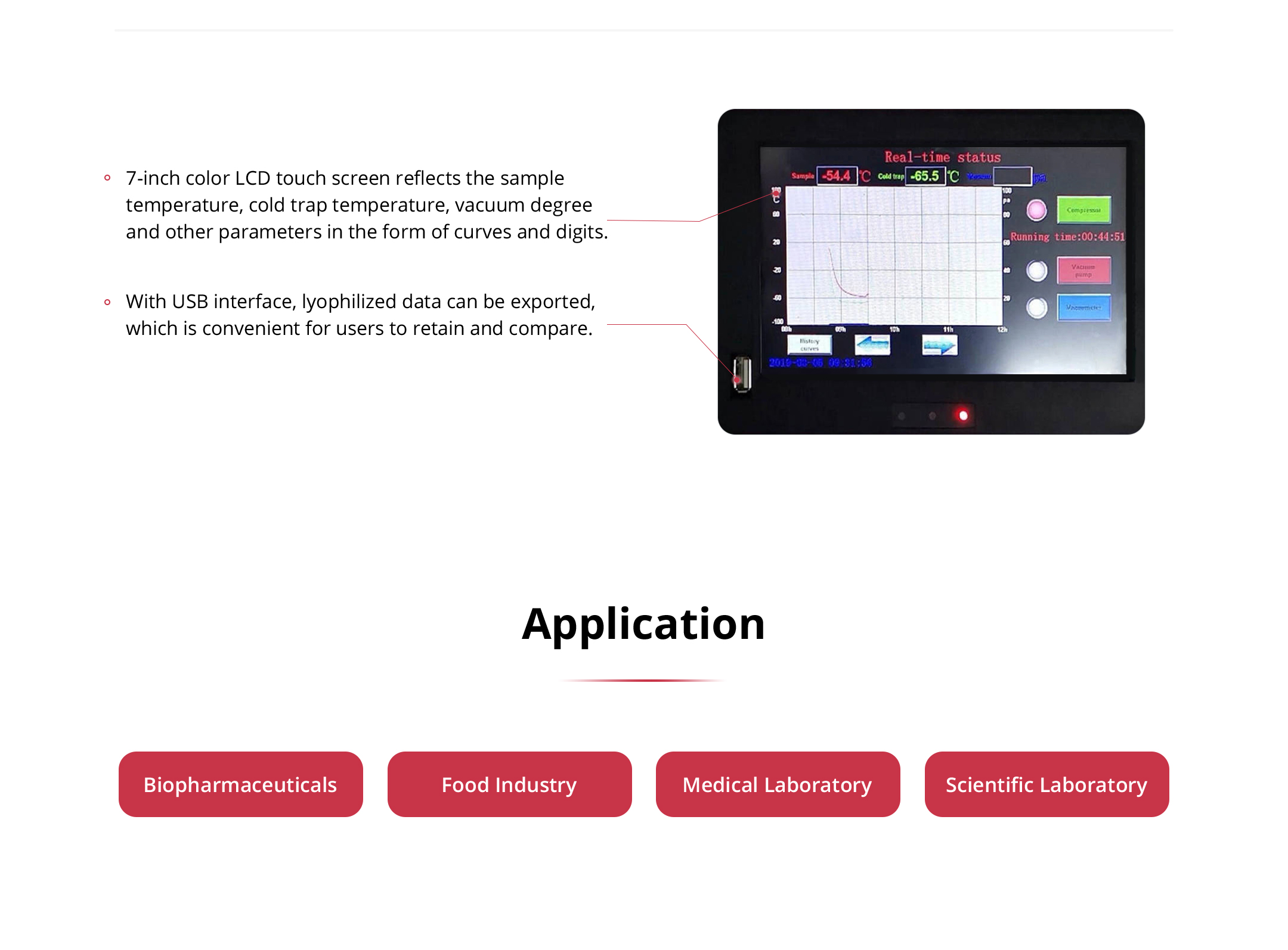

Control system

Microprocessor, touch screen

Ultimate vacuum (Pa)

1

Noise (Db)

< 66

Voltage & Frequency

110 ~ 220 V & 50 ~ 60 Hz

Power (Kw)

0.95

Condenser chamber dimension  (Φ × h mm)

217 × 250

Sample tray dimension  (Φ × h mm)

200 × 20

Sample shelf dimension (Φ × h mm)

210 × 365

234 × 518

Sample shelf distance average (mm)

76

70

Host size (W × D × H mm)

600 × 540 × 374

Vacuum hood dimension (upper / lower Φ × h mm)

260 / 240 × 450

Exterior dimension (W × D × H mm)

480 × 610 × 1355

480 × 610 × 1415

Host net weight (Kg)

70

Host package (W × D × H mm)

730 × 660 × 1180

Vacuum hood package (W × D × H mm)

410 × 410 × 640

Weight (Kg)

135
