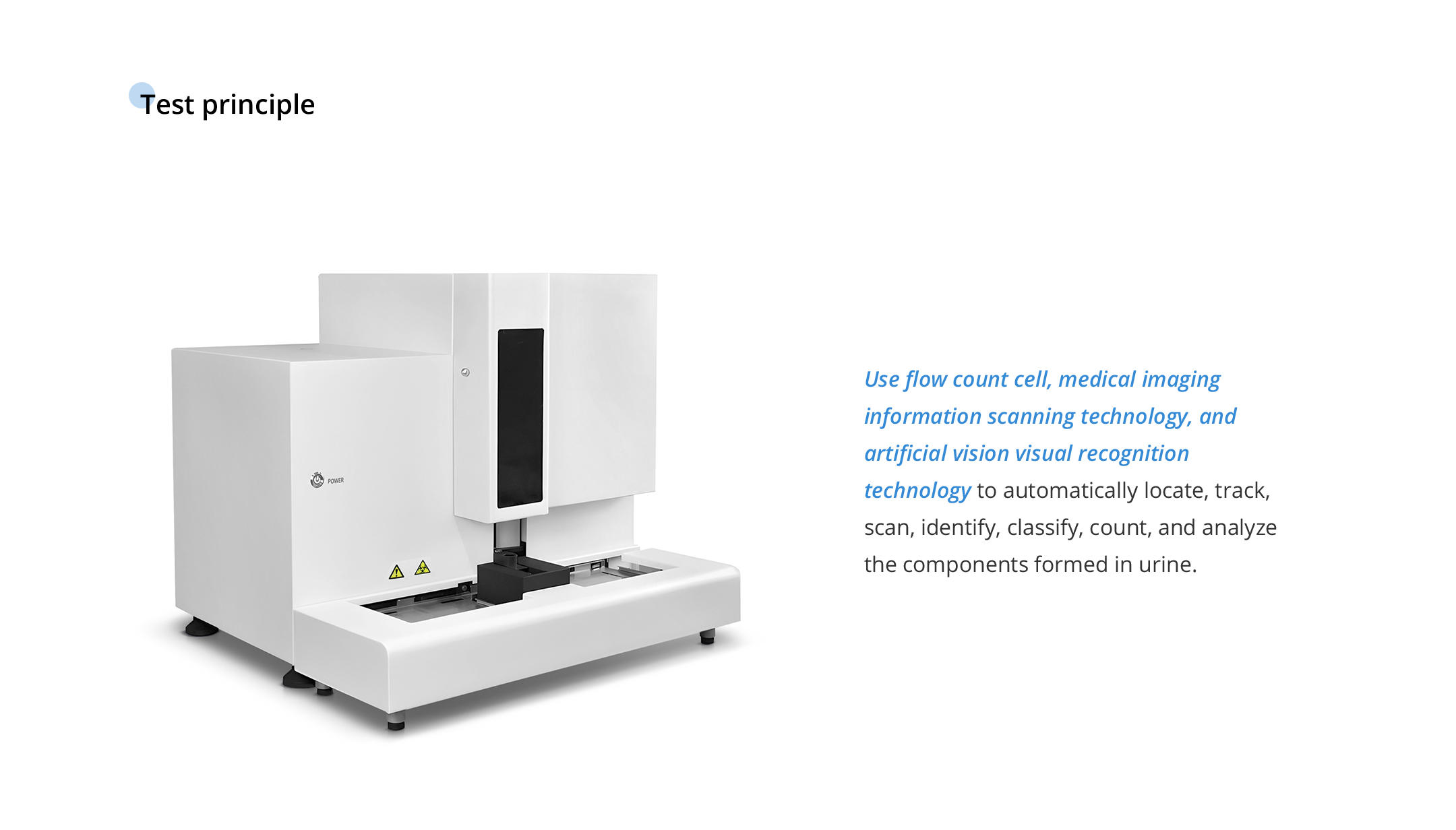

Test principle

Machine vision technology & Flow cytometry:

automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods.

Test items

Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast, WBC Cast, Squamous Epithelial Cell, Normal Epithelial Cell, Sperm, Calcium Crystal, Oxalate Crystal, Bacteria, Yeast, Amorphous Urates, Mucus, etc.

Channel

4 fixed channels in flow counting cell

Sample volume

Minimum urine volume: 3 ml; Aspiration volume: 1 ml.

Sample treatment

The sample can be directly tested without centrifugation.

Test speed

120 samples / hour

Test sensitivity

5 cells / ul

Accuracy

≥ 95％

Repeatability

CV < 10%

Cross contamination rate

< 0.05％

Data storage

200,000 results

Report model

International universal quantitative unit, HPF & LPF, etc. Comprehensive graphic report, including dry chemical analysis and quantitative analysis of urine formed elements.

Environment

Temperature 15°C ~ 35°C, Optimum temperature 20°C ~ 25°C, Relative humidity ≤ 75 %

Power supply

AC 110 / 230 V，50 - 60 Hz

Dimensions (L×W×H)

660×440×570 mm

Weight

48 kg
