Model

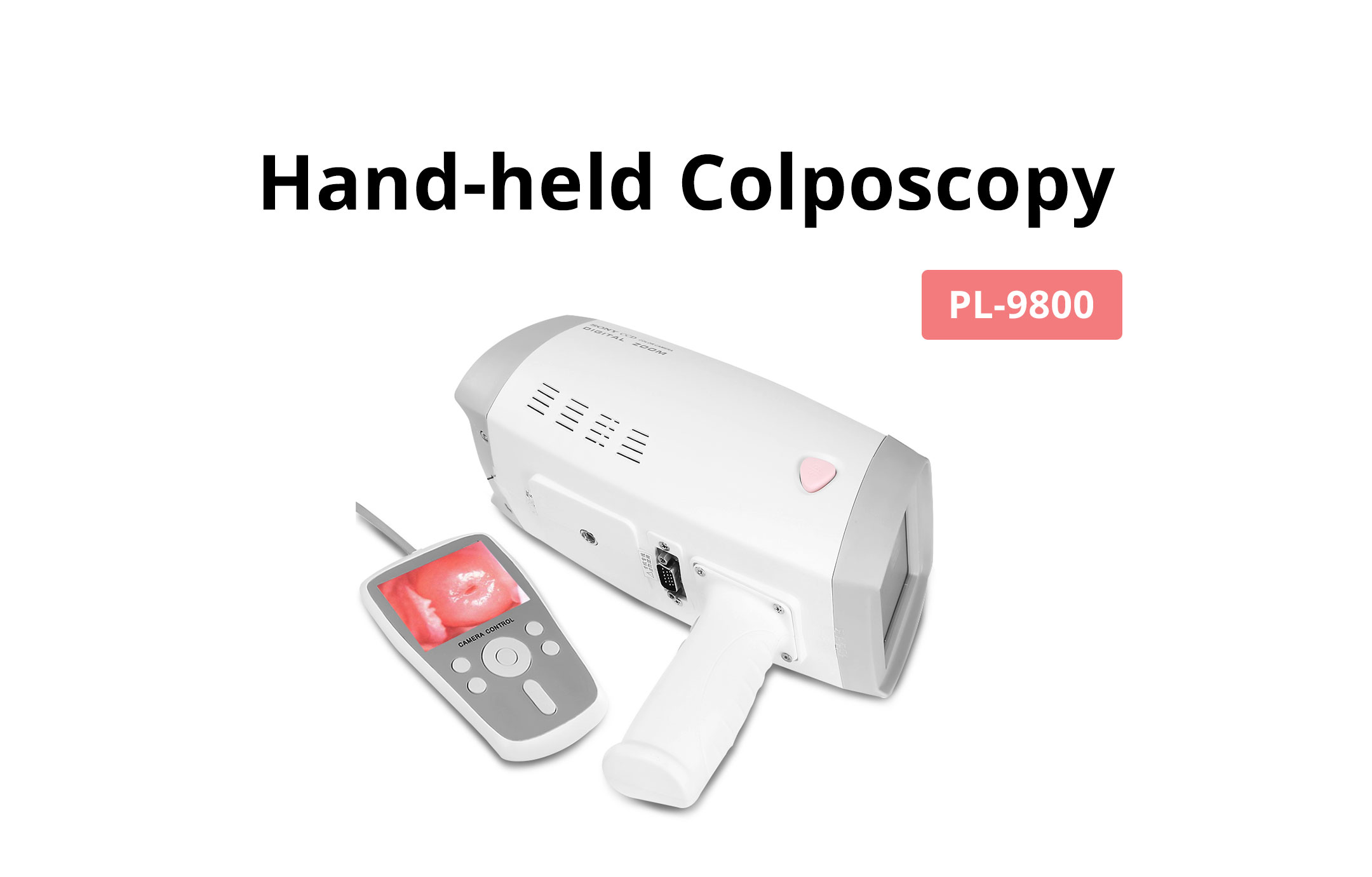

PL-9800

CCD

1/4" super HAD color CCD

Effective pixels

800000 pixels

Lens axial resolution

470 lines

Lens SNR

50dB

Lens focus distance

Standard: 100mm ~ 400mm

Support: 10mm ~ 1000mm

Field of view

2.5mm ~ 20mm ~ 320mm

Depth of field

15mm ~ 40mm

15mm ~ 480mm

Lens zoom

1 ~ 128

Focusing

AF/MF

Lens white balance

Auto white balance

Light source

Green filter, LED light source

Minimum illumination of the lens

0.15Lux

Life time

≥ 100000 hours

Lens image output interface

Video, S-video, PAL

Lens video-output

PAL, VBS, 1.0Vp-p

Brightness adjustments

Automatic electronic shutter

AE control

Automatic, manual, brightness, EV compensation, backlight compensation

Image printing method

Supports true color printing on regular copy paper, inkjet printing paper, and photo paper

Image storage capacity

≥ 1 million images

Number of consecutive images collected each time

1 ~ 100 images

Working condition

Power supply

AC220V ± 10%

Power rating

500W

Ambient temperature

-40℃ ~ 50℃

Storage temperature

-20℃ ~ 60℃

Relative humidity

30 ~ 80%RH
