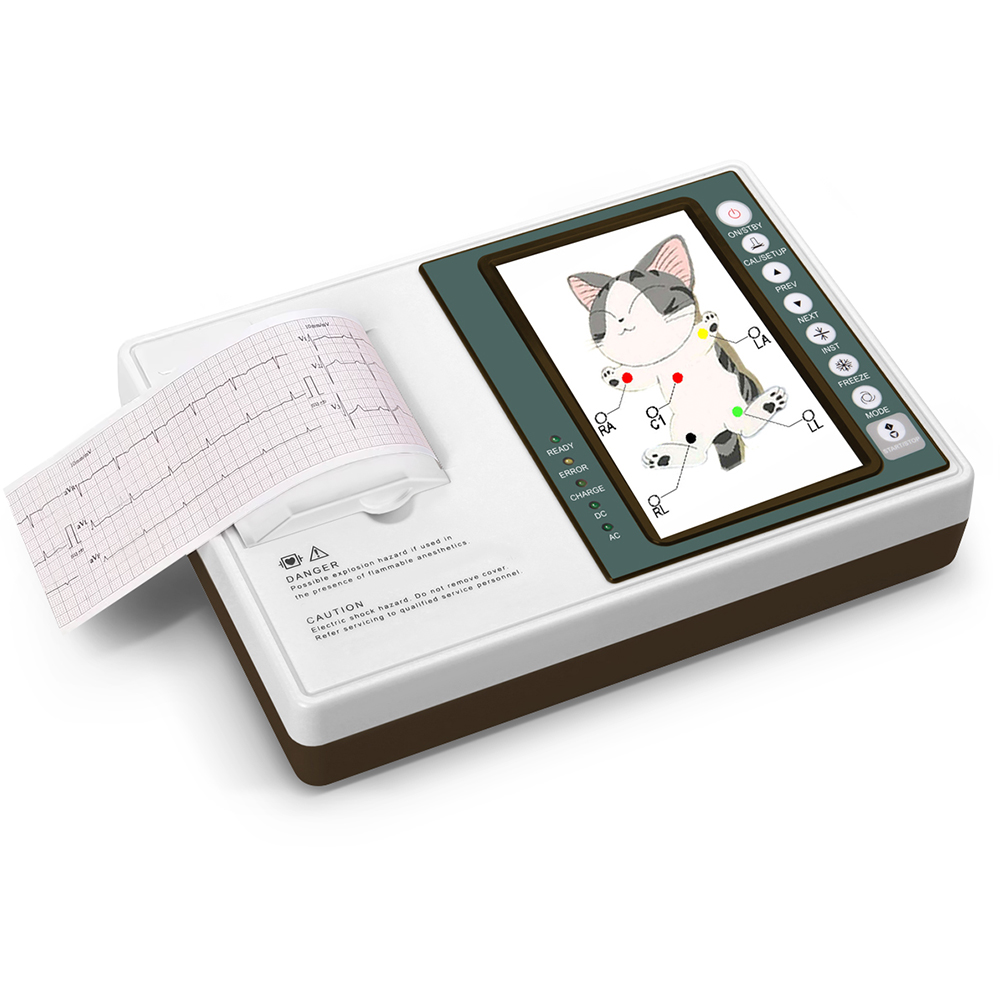

Model

VECG-32B

Lead

12 leads, standard or cabrera, 12 leads simultaneously acquisition

Input circuit

Floating, defibrillation protection

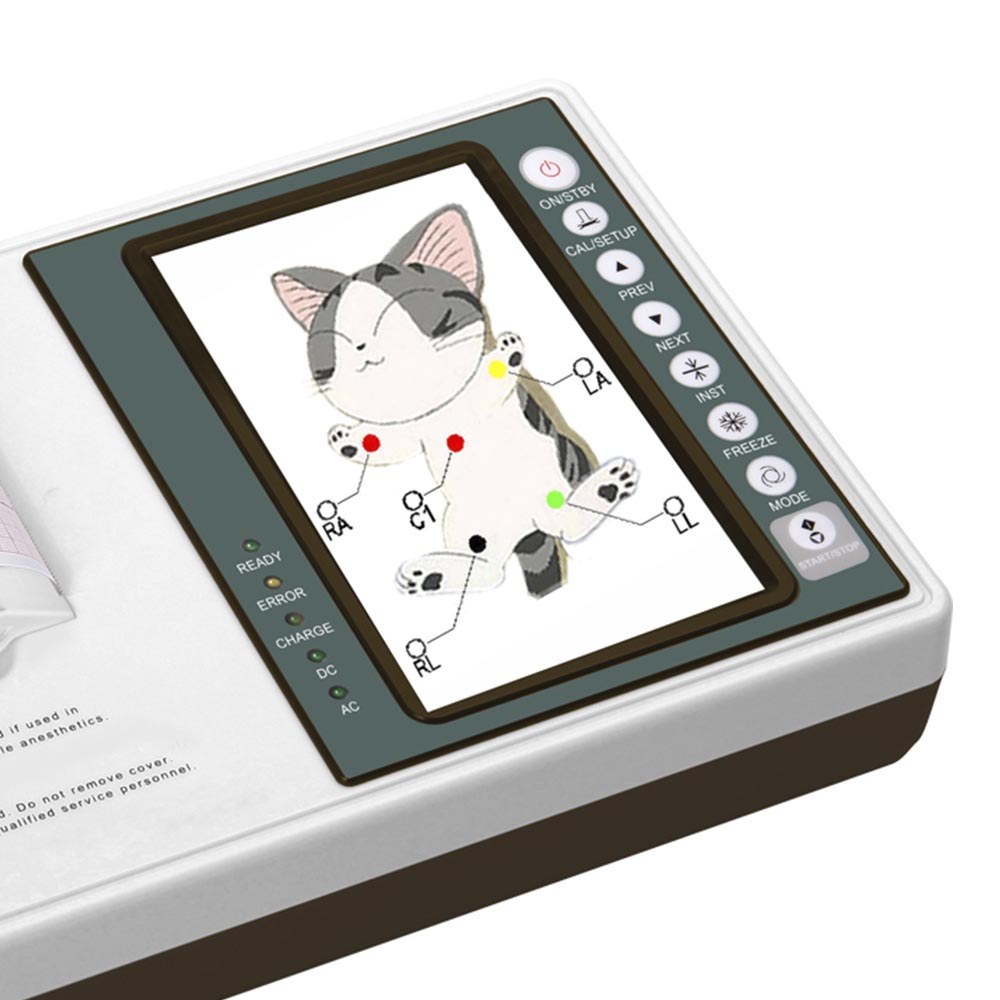

LCD display

7 inch touchscreen LCD display ECG waveform, operation conditions, time, heart-rate, etc.,
support patient name, age, sex and hospital name input (optional)

Safety

IEC class I, type CF

Sampling rate

8000 samples/sec

Input dynamics

± 500 mV

Operation mode

Automatic, manual, single channel 60s compressed record, rhythm analysis (R-R histogram and trend chart)

Fliter

AC (50 Hz or 60 Hz, - 20 dB)

EMG (25 Hz / 35 Hz / 45 Hz / 75 Hz / 100 Hz, - 3 dB)

Drift (0.5 Hz, - 3 dB)

CMRR

> 100 dB (with AC filter)

Input circuit current

≤ 0.1 μA

Input impedance

≥ 50 Mohm

Time constant

≥ 3.2 sec

Frequency response

0.05 ~ 150 Hz, - 3 dB

Noise level

≤ 15 μVp-p

Sensitivity

1.25, 2.5, 5, 10, 20, 40 mm/mV ± 2 %

Calibration voltage

1 mV ± 2 %

Patient current leakage

< 10 uA

Protection

Protect from defibrillation and pace-making

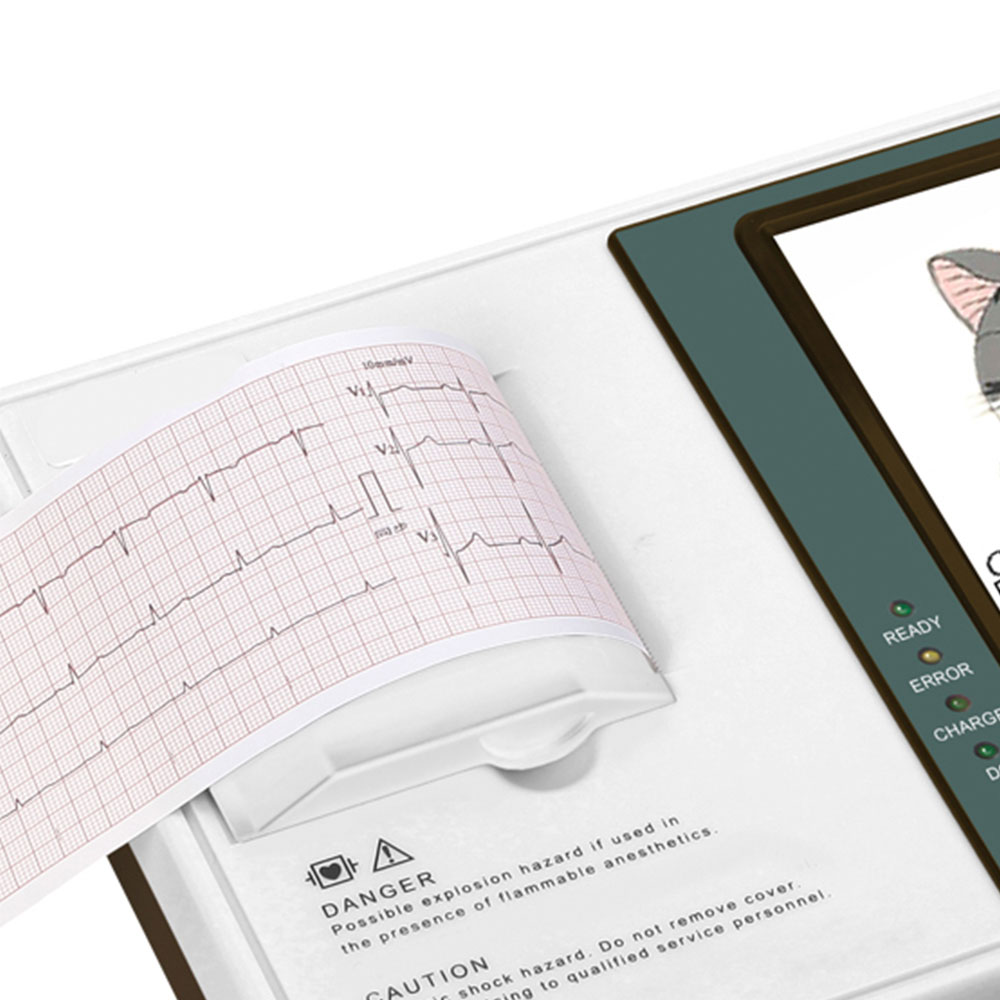

Printing system

Thermal printer, ≥ 8 dot/mm (vertical), ≥ 40 dot/mm (horizontal), printing speed at 25 mm/s

Printing speed

5, 6.25, 10, 12.5, 25, 50 mm/s ± 3 %

Printing output

3 / 2 channel, 3 / 2 + 1 channel, 3 / 3 channel, 3 / 3 + 1 channel

Paper size

80 mm × 20 m roll type or Z-fold thermal paper

Patient cable

Standard 10 core

Report storage

200 reports in built-in memory, support external SD card

Report presentation, review and re-printing

Indicator

Lead-off detection

Power supply

11.1 V, 1800 mAh Li-poly rechargeable battery pack (DC)

220 V ± 10 %, 50 Hz ± 2 %, 75 VA (AC)

Fuse specification

2 Φ 5 × 20 mm, 3.15 A, 250 V

Machine dimension

285 mm × 200 mm × 55 mm

Machine weight

2.1 kg (machine only)
