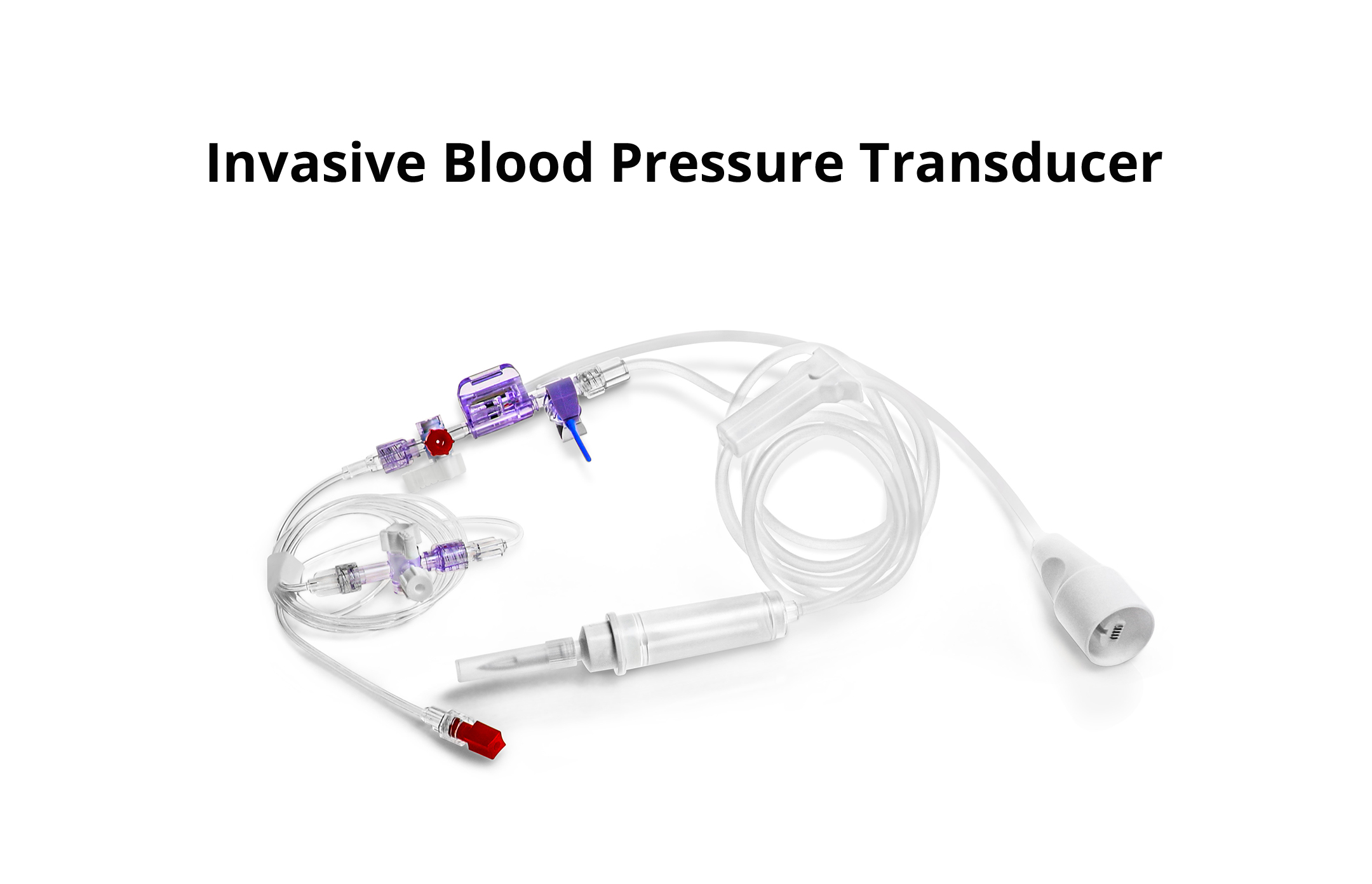

Invasive blood pressure transducer / Medical IBP transducer
Product ID: MX48659
P/N: MX486591

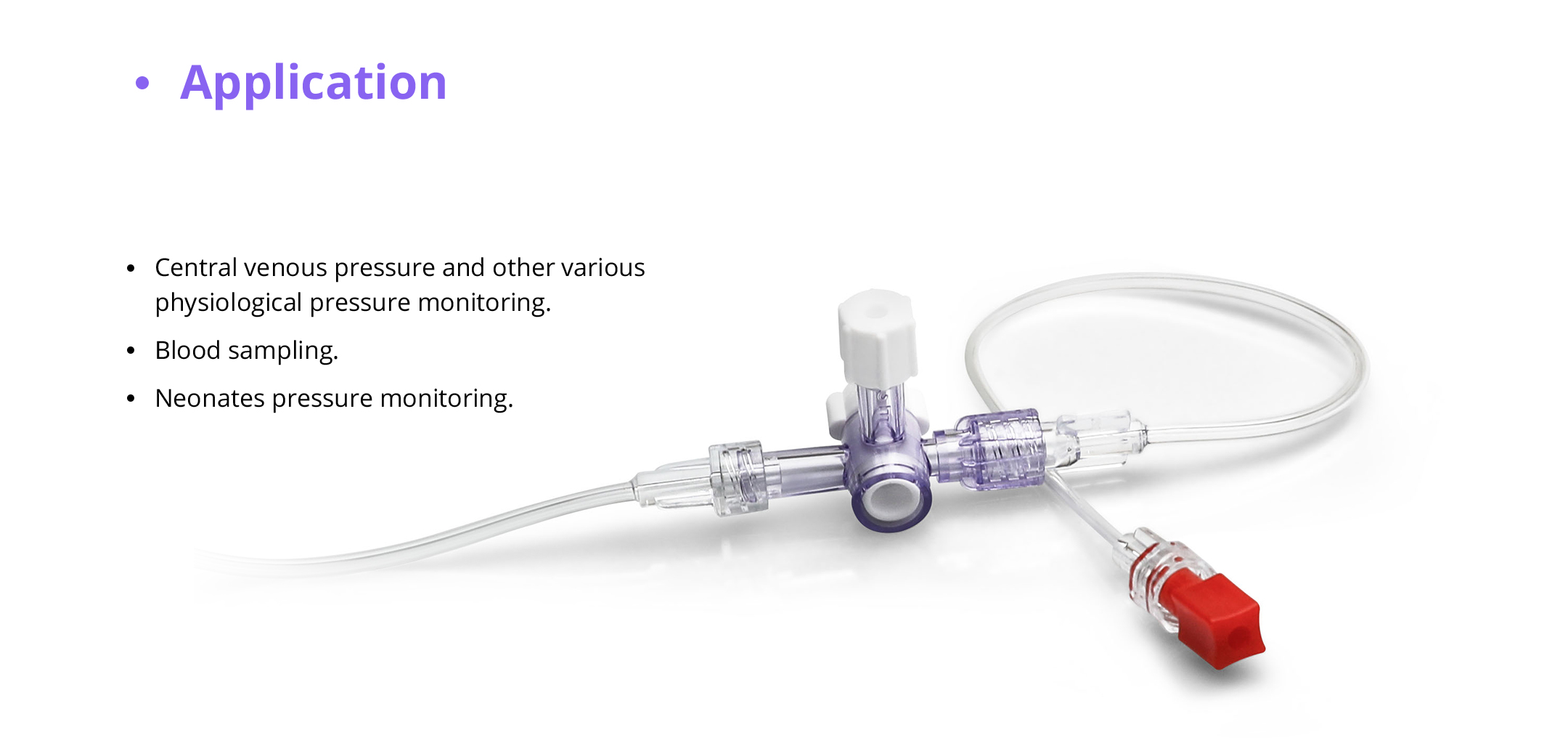

Apply to clinical for traumatic arteriovenous pressure monitoring.

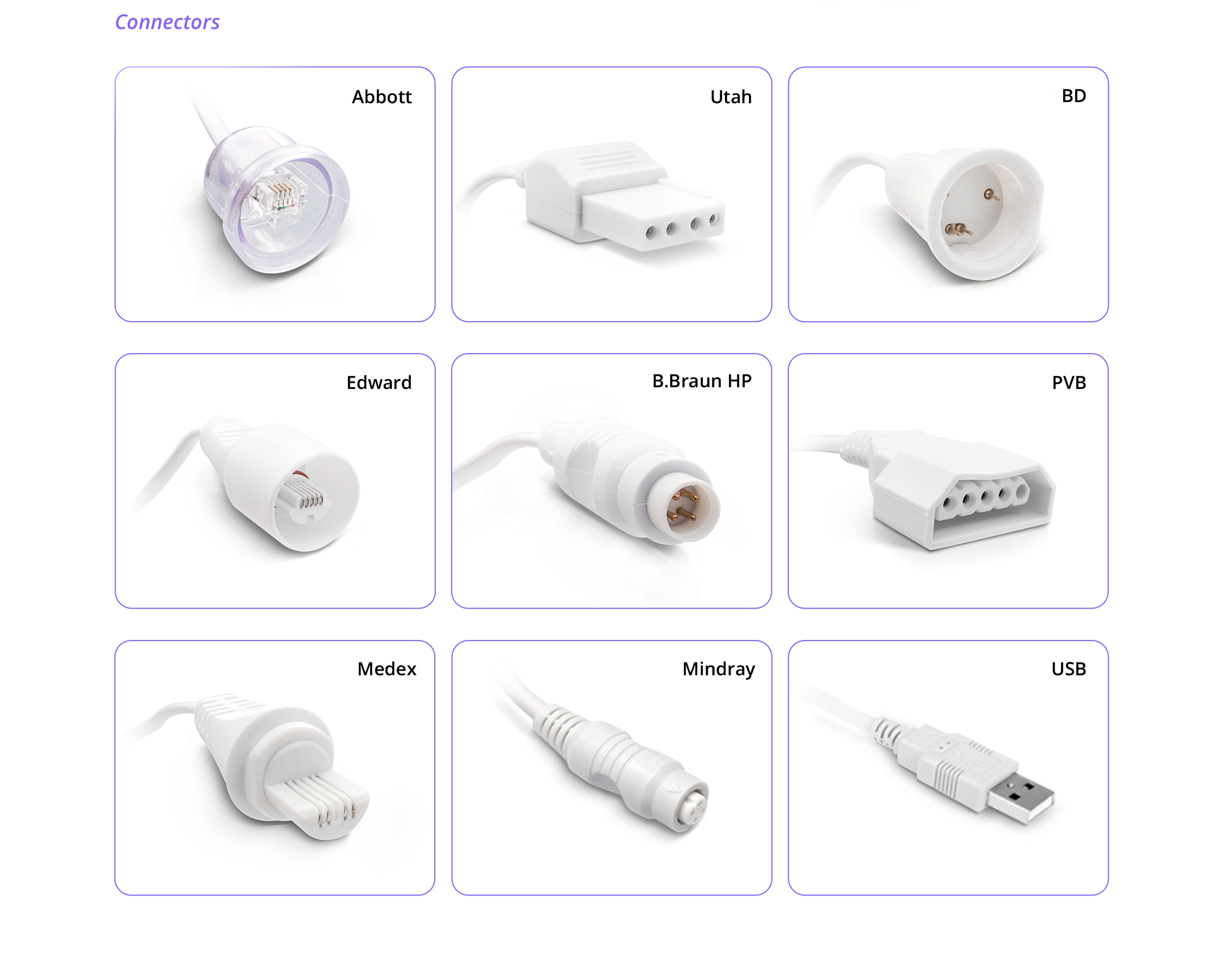

IBP transducer type
Abbott type
Utah type
BD type
Edwards type
Medex type
B.Brauns type
PVB type
USB type
Mindray type
Optional connectorsMultiple choices available
Selected ( 0 )
Quantity
Please note:
kit ( MOQ:  40 kits )
1 kit/pack, 40 pack(s)/carton
Recommend related products
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In

Barometric pressure

70 ~ 106 Kpa

Relative humidity

10 ~ 90% (non-condensing)

Operating pressure range

- 50 ~ + 300 mmHg

Sensitivity

5.0 μV / V / mmHg ± 3%

Nonlinearity and hysteresis

Full-scale reading ±1.5%

Input impedance

1200 Ω ~ 3200 Ω

Zero pressure offset

- 20 mmHg ~ + 20 mmHg

Thermal offset shift

 ± 0.3 mmHg / °C

Offset drift

After warm-up for 20 seconds, drift within 2 mmHg within 8 hours

Thermal span shift

 ± 0.1% / °C

Frequency response

Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz

Defibrillator withstand

Defibrillation depends on the final connection of the equipment.

Leakage current

Leakage current is dependent on the final connection of the equipment

Overpressure load

- 400 ~ + 4000 mmHg

Shock resistance

Withstand falling from one meter for three times

 Light sensitivity

When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage.

Storage and transport environment requirements

- 20 °C ~ + 60 °C, < 90% (non-condensing),
no corrosive gas and indoor ventilation, and to avoid high temperature and cold.

Contact with the human body

 168 h

Flow

2 - 5 ml/h

*Intra-system velocity refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions.

Product shelf-life

3 years
