Overall length

1180 mm

Overall width

520 mm

Overall height

990 mm

Seat width

420 mm

Fold (remove seat) height

530 mm

Effective seat depth

390 mm

Height of seat above ground

565 mm

Backrest height

380 mm

Height of footrest above ground

130 mm

Distance between armpad and seat

230 mm

Width armrest

50 mm

Max. speed

6 Km/h

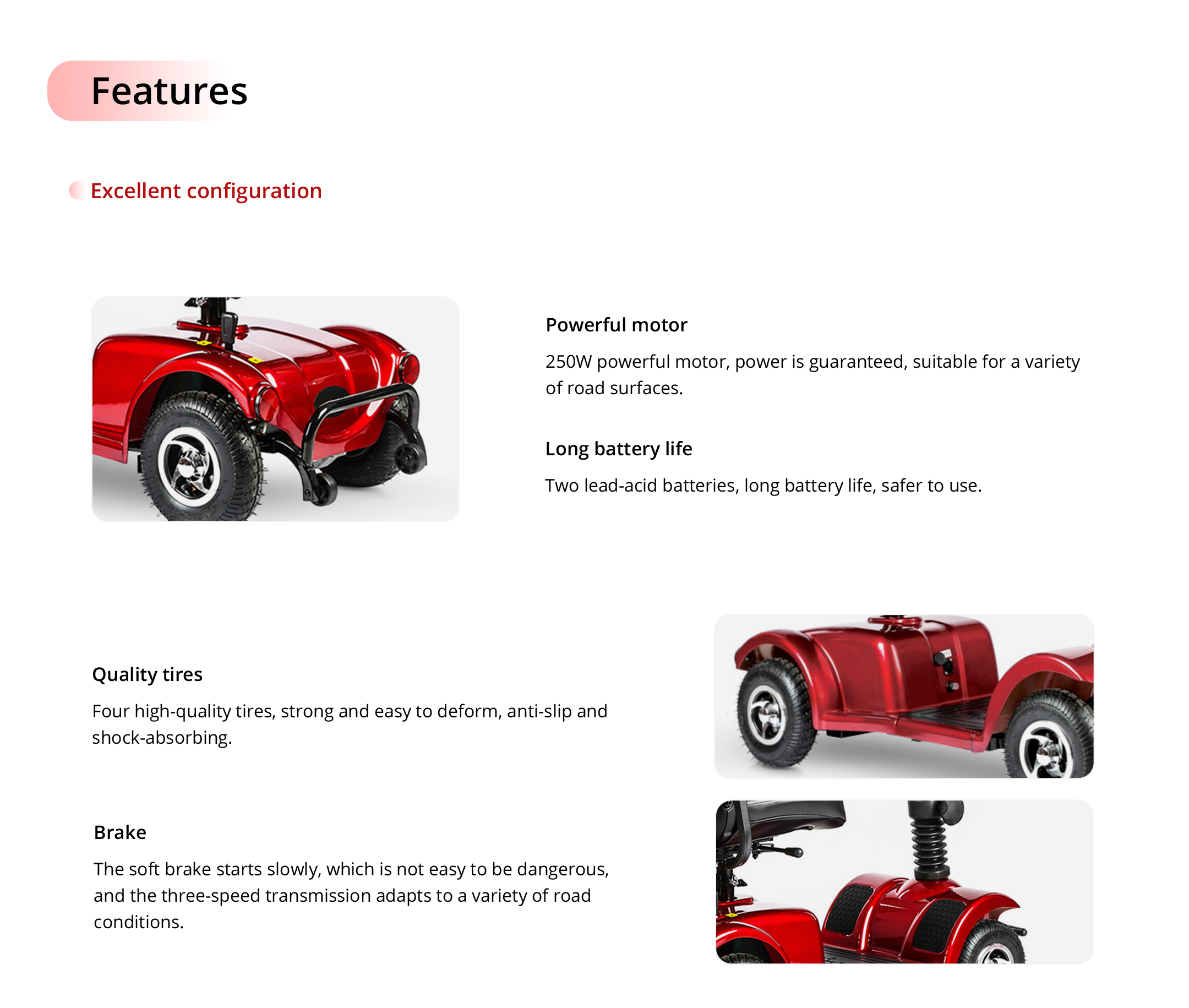

Driving motors

250 W

Maximum safe slope

8°

Climbing angle

12°

Battery charger

Input AC 220 V ± 10%, 50 - 60 HZ

Fuse

50 A

Control unit

50 A

Minimum turning radius

≤ 1.2 m

Wheels size

9 inch

Noise level

< 70 db

Battery type

Lead-acid batteries

Battery capacity

12 Ah

20 Ah

Continuous driving distance range

15 - 20 km

20 - 25 km

Total mass

50 kg

55 kg

Storage and use temperature

5 °C - 41 °C
