Application

Modular Design

Compatible Surgical Procedures

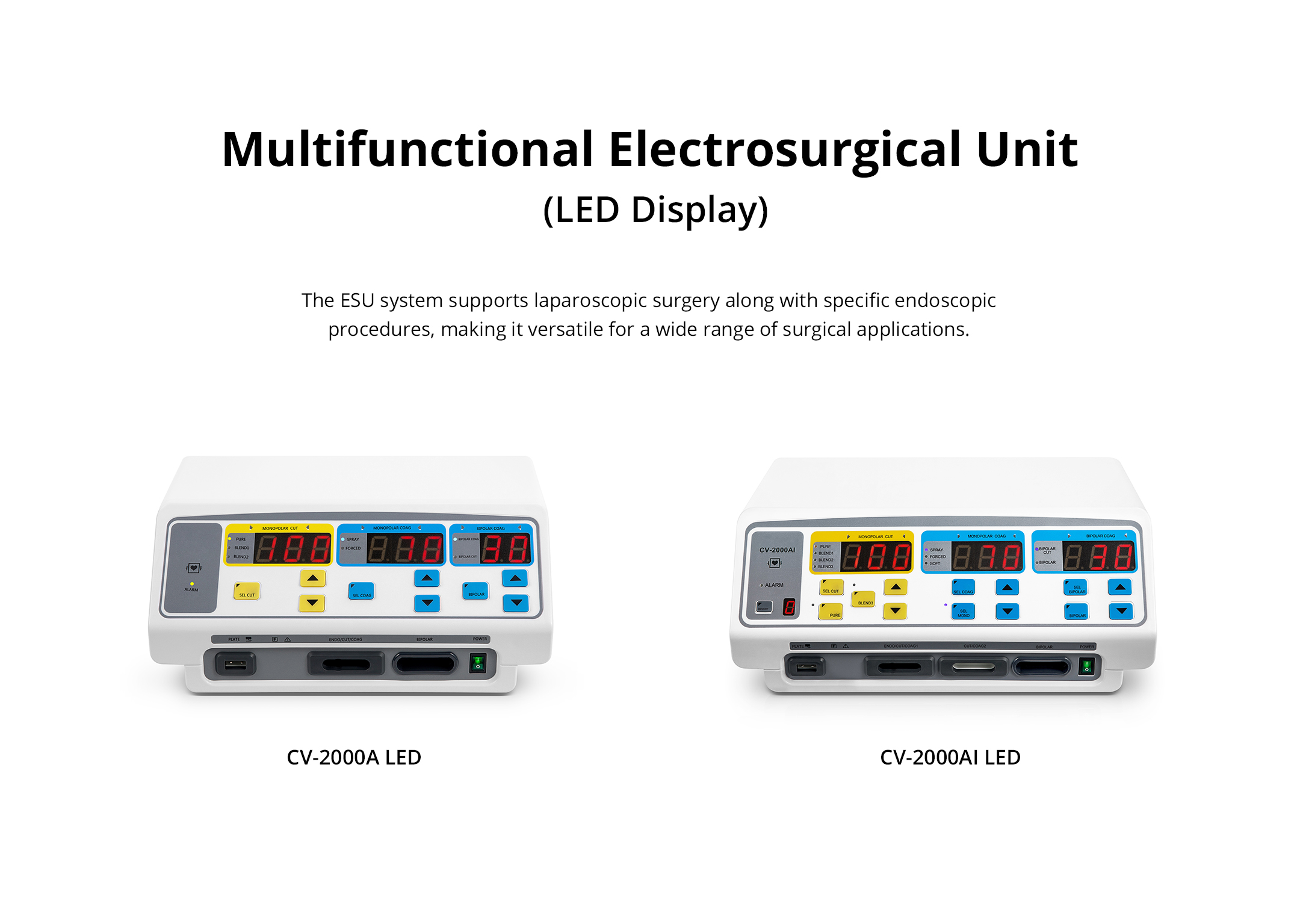

The ESU system supports laparoscopic surgery along with specific endoscopic procedures, making it versatile for a wide range of surgical applications.

Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology (under water TUR), oncology, neurosurgery, etc.

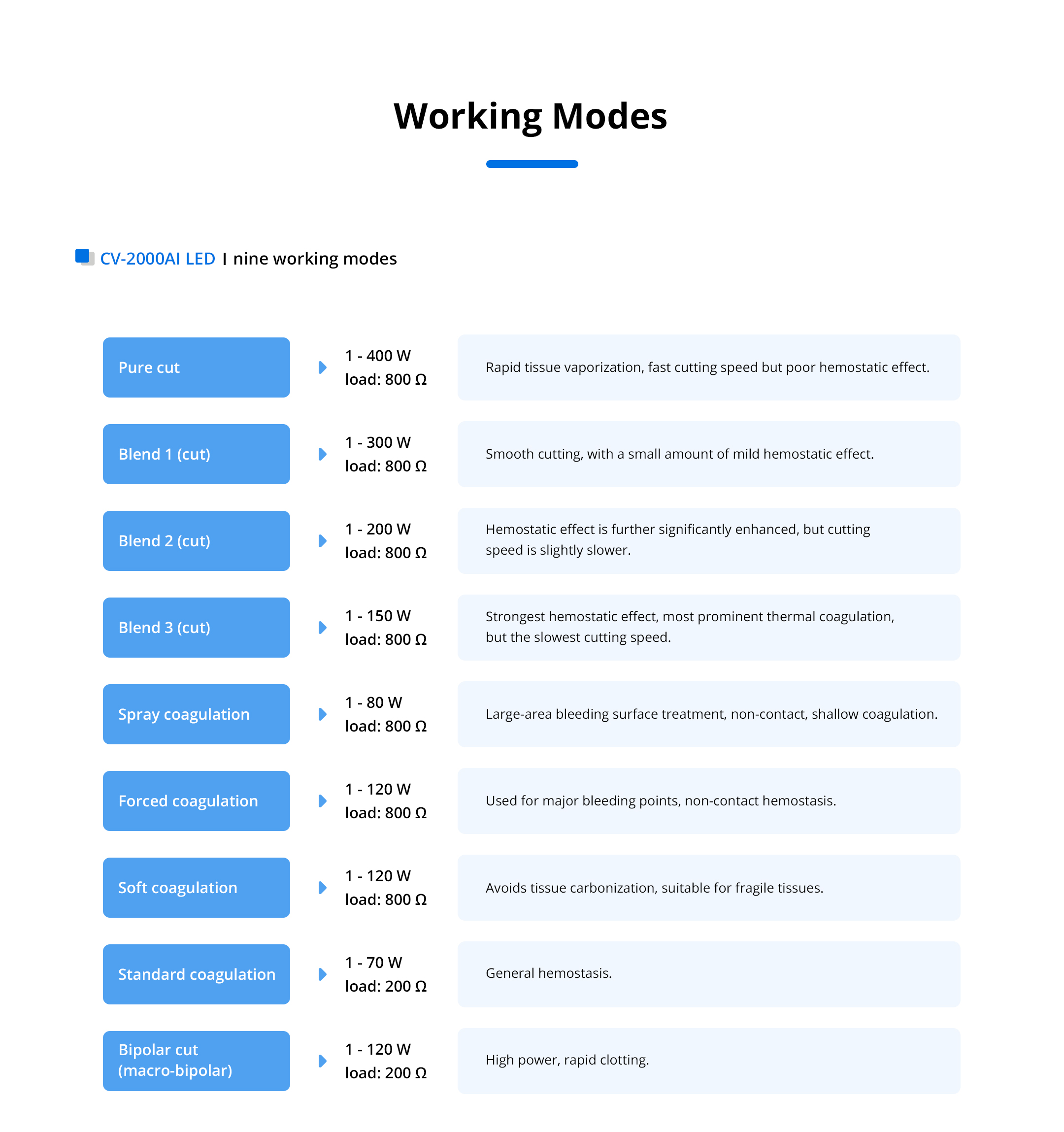

Working modes

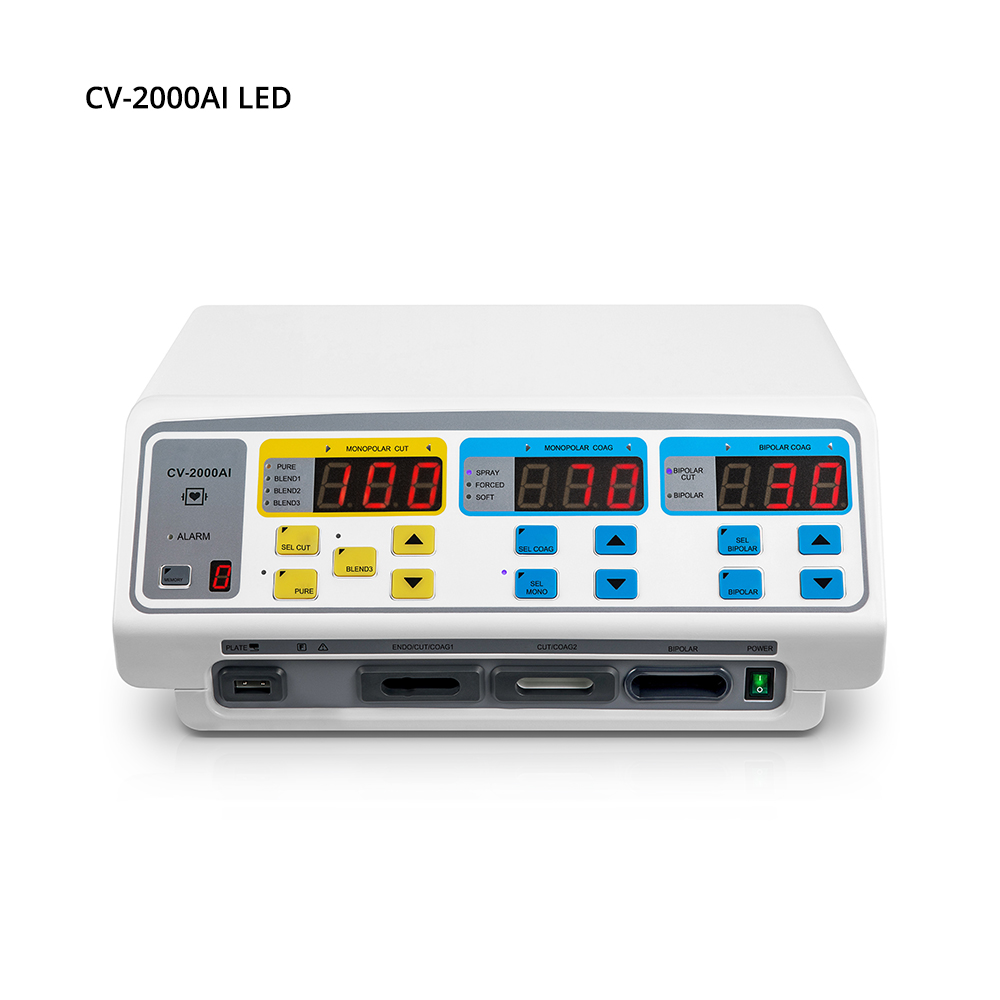

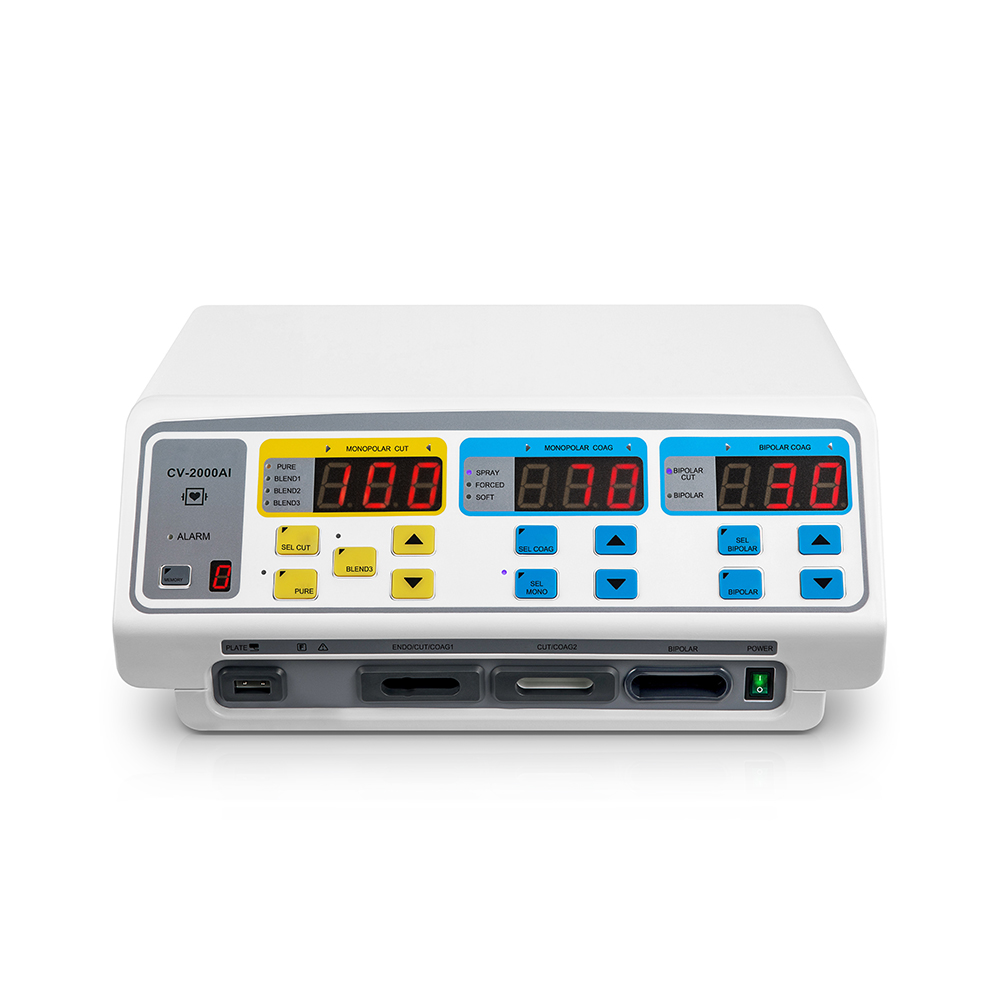

CV-2000AI LED

Function

Modes

Output power (load)

V-PP

CF

Monopolar cut

Pure cut

1 - 400 W (load: 800 Ω‌)

2.6 KV

1.5

Blend 1

1 - 300 W (load: 800 Ω‌)

4 KV

1.8

Blend 2

1 - 200 W (load: 800 Ω‌)

4.2 KV

2.1

Blend 3

1 - 150 W (load: 800 Ω‌)

4 KV

2.7

Monopolar coagulation

Spray

1 - 80 W (load: 800 Ω‌)

5.3 KV

7.4

Forced

1 - 120 W (load: 800 Ω‌)

5 KV

3.8

Soft

1 - 120 W (load: 800 Ω‌)

720 V

1.6

Bipolar

Standard coag

1 - 70 W (load: 200 Ω‌)

550 V

1.6

Bipolar cut (Macro-bipolar)

1 - 120 W (load: 200 Ω‌)

350 V

1.6

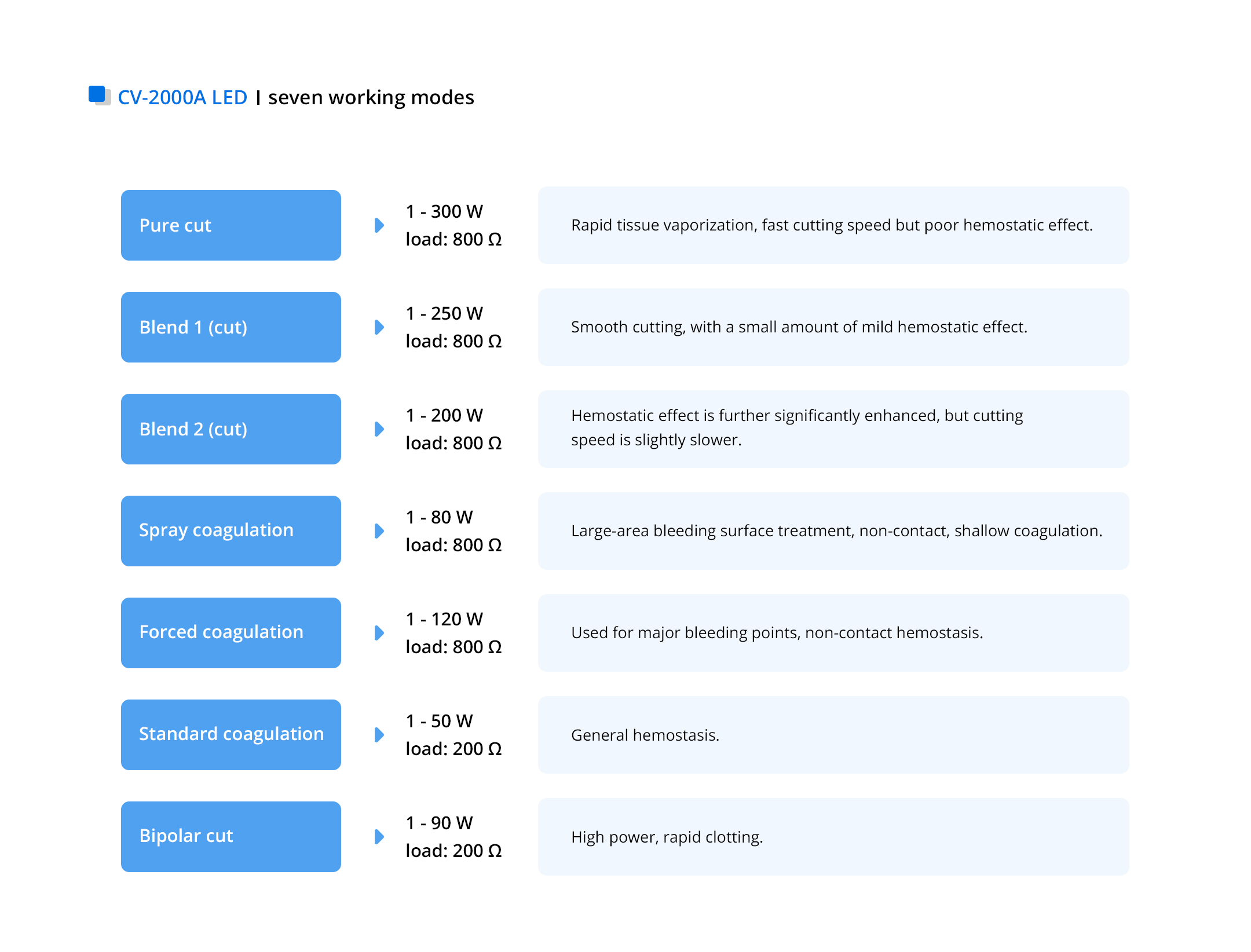

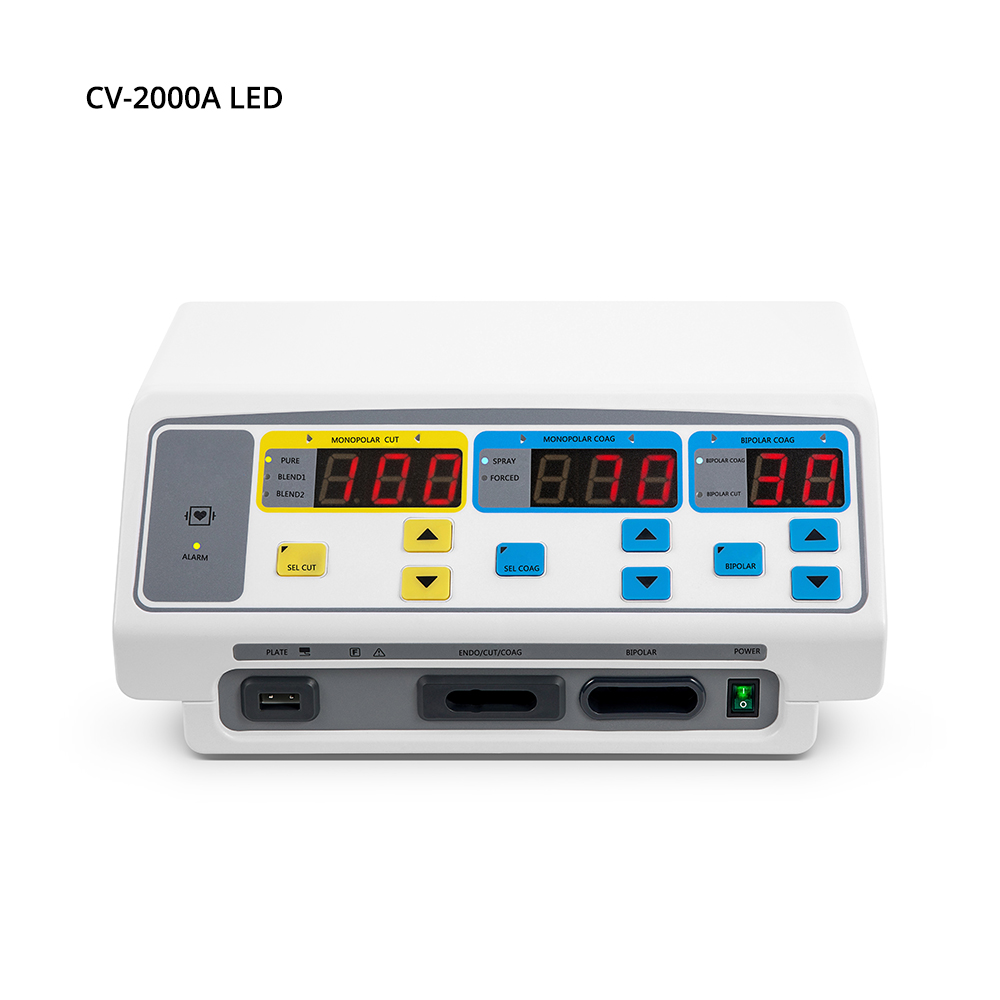

CV-2000A LED

Function

Modes

Output power (load)

V-PP

CF

Monopolar cut

Pure cut

1 - 300 W (load: 800 Ω‌)

1.1 KV

1.5

Blend 1

1 - 250 W (load: 800 Ω‌)

1.6 KV

1.8

Blend 2

1 - 200 W (load: 800 Ω‌)

1.9 KV

2.2

Monopolar

coagulation

Spray

1 - 80 W (load: 800 Ω‌)

2.5 KV

5.5

Forced

1 - 120 W (load: 800 Ω‌)

960 V

1.8

Bipolar

Standard coag

1 - 50 W (load: 200 Ω‌)

480 V

1.8

Bipolar cut

1 - 90 W (load: 200 Ω‌)

600 V

1.8
