Model

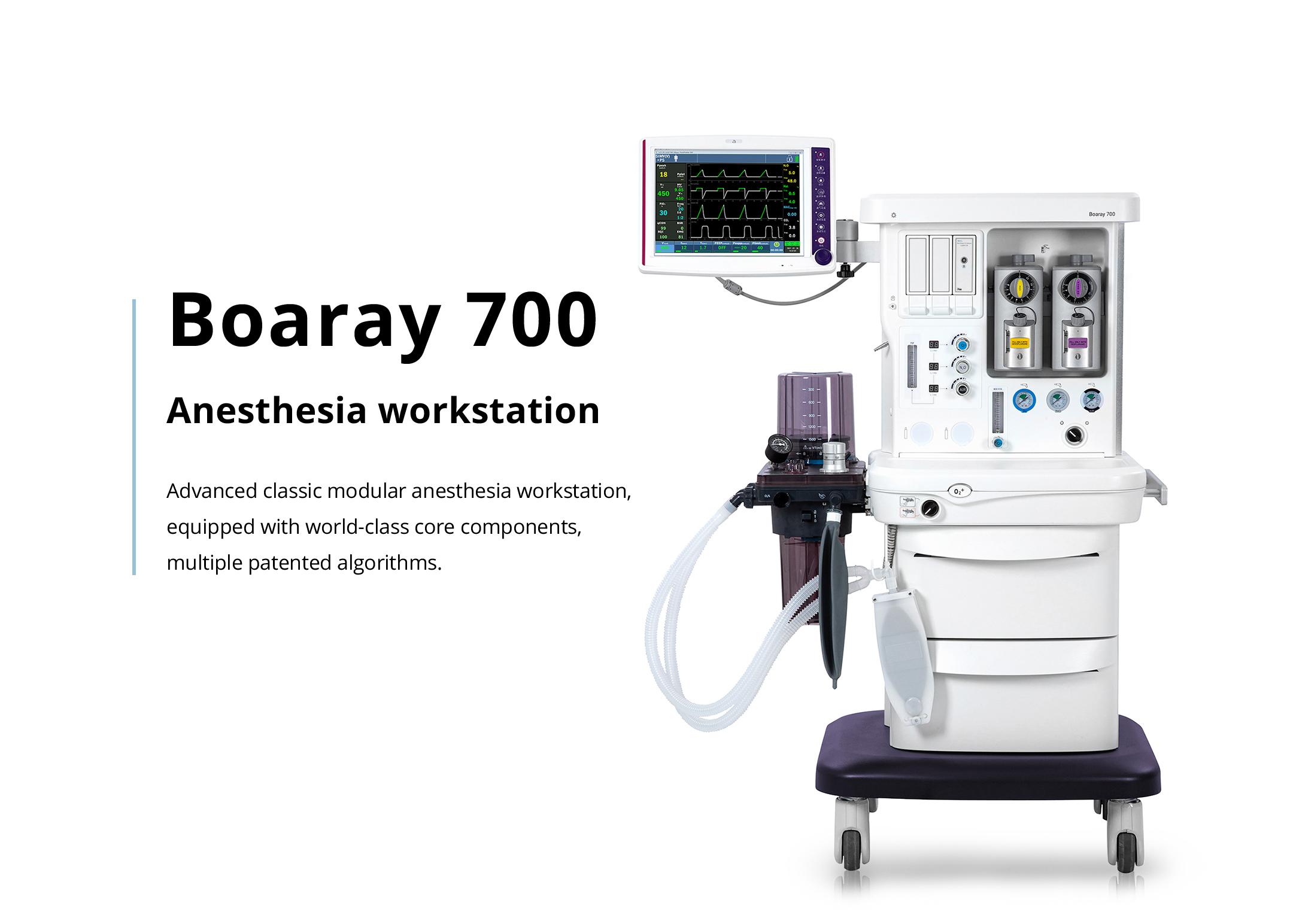

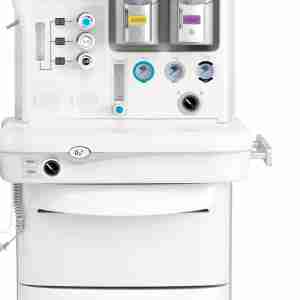

Boaray 700

Dimensions and weight

Main unit: 1450 mm (H) × 1000 mm (W) × 1330 mm (D), 108 kg (without vaporizer and cylinder)

Top shelf: 578 mm (W) × 360 mm (D), limit 34 kg

Work surface: 827 mm (H) × 557 mm (W) × 311 mm (D)

Drawer: 150 mm (H) × 298 mm (W) × 348 mm (D) (internal size), quantity: standard 2

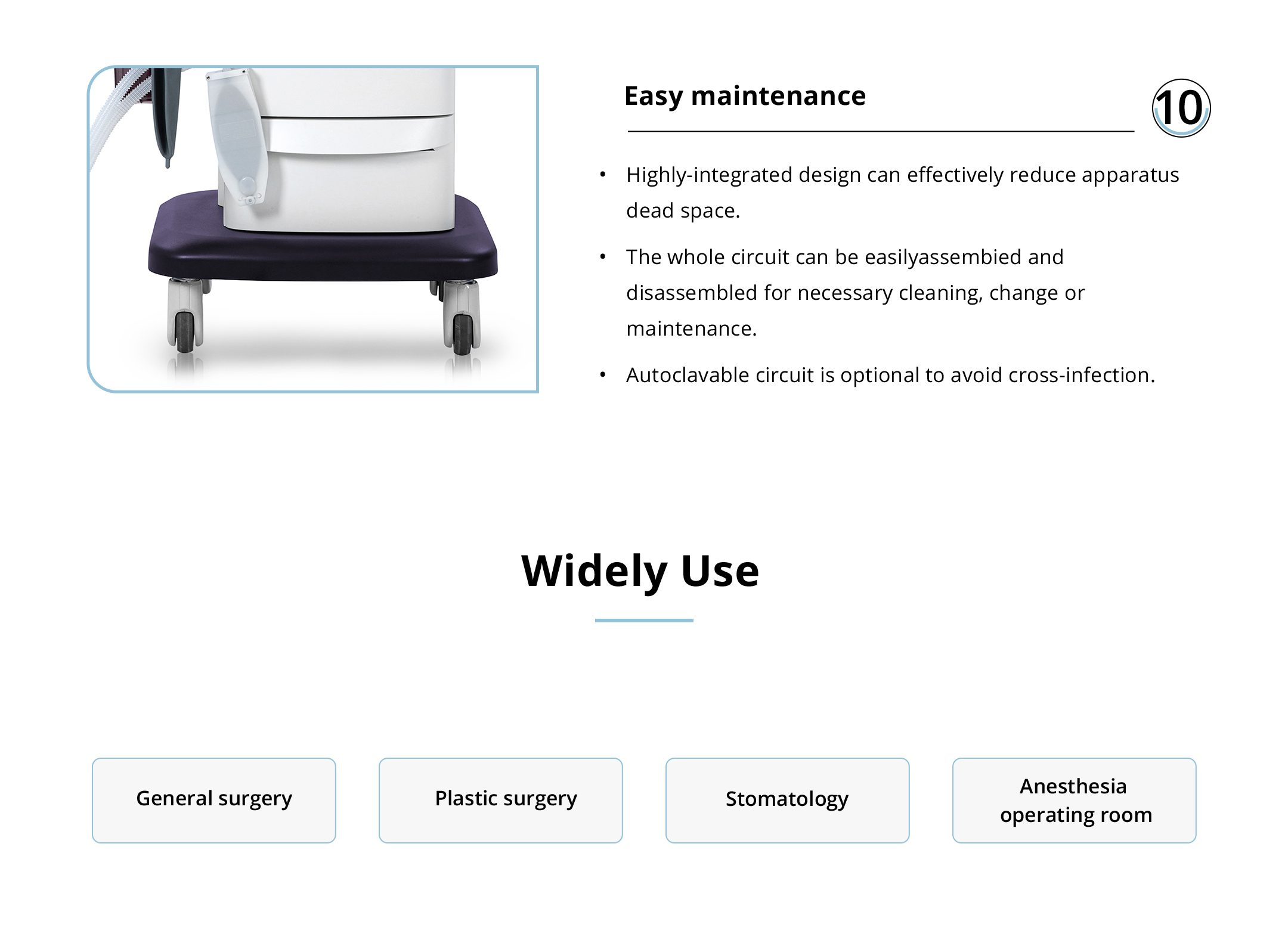

Caster: 125 mm, all four casters with brakes

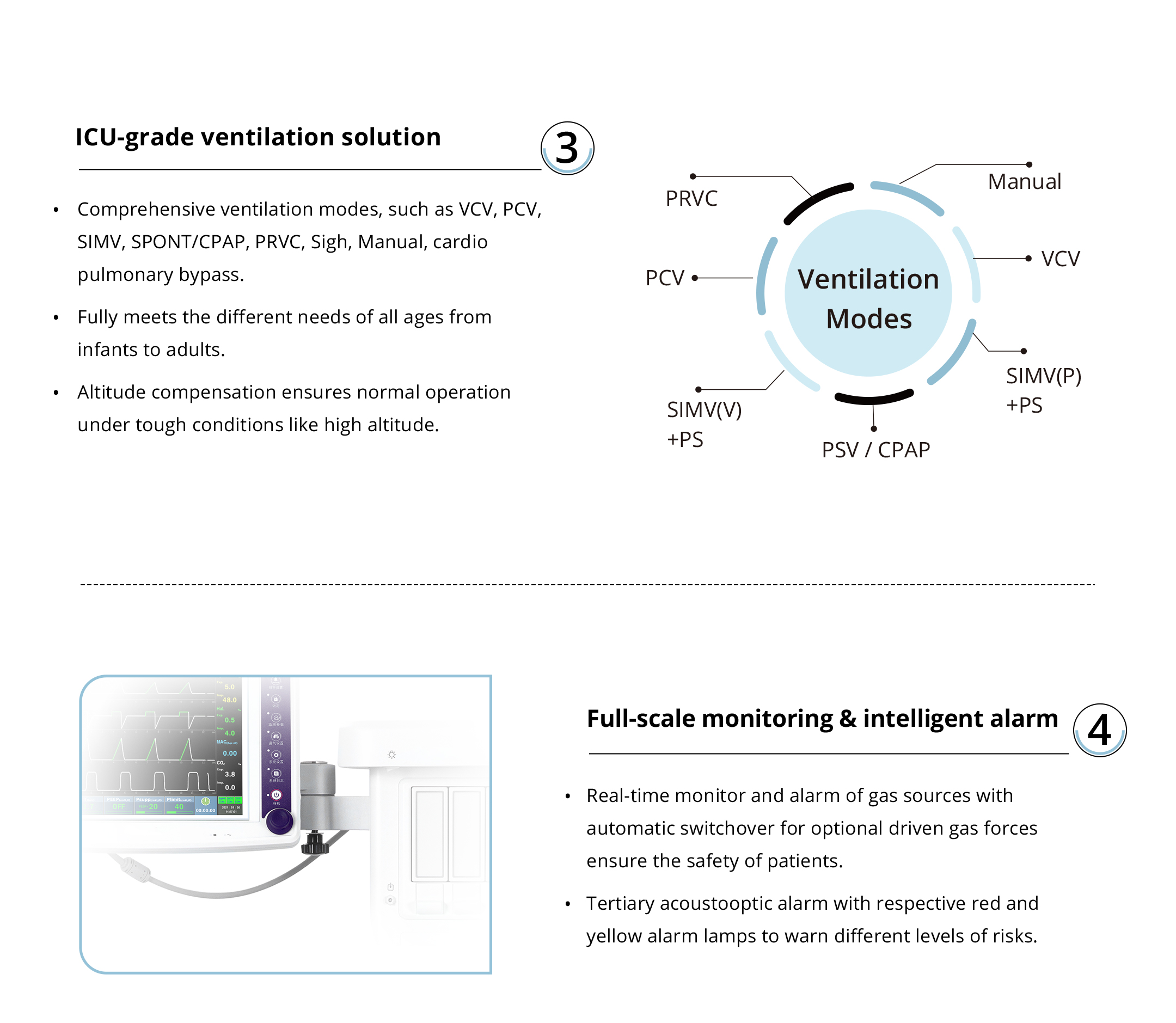

Ventilation mode

VCV, PCV, PRVC, SIMV(V)+PS, SIMV(P)+PS, CPAP / PSV, Manual, Standby

Compensation

Circuit gas leakage compensation and automatic compliance compensation

Ventilation parameters

Patient type: adult, pediatric, infant

Tidal volume: (pediatric / infant) 10 ~ 300 ml, (adult) 100 ~ 1500 ml

(increments of 5 ml)

Pinsp: 5 ~ 70 cmH₂O (increments of 1 cmH₂O)

Plimit: 5 ~ 100 cmH₂O (increments of 1 cmH₂O)

Freq in SIMV mode: 1 ~ 40 bpm, others mode: 4 ~ 100 bpm

(increments of 1 bpm)

I : E: 4 : 1 ~ 1 : 10 (increments of 0.5)

Tpause: OFF, 5 % ~ 50 % (increments of 5 %)

Ti: 0.1 ~ 10.0 s (increments of 0.1 s)

Flow trigger: 1 ~ 15 L/min (increments of 1 L/min)

Psupp: 5 ~ 60 cmH₂O (increments of 1 cmH₂O)

Positive end expiratory pressure

(PEEP)

Type: integrated, electronic controlled

PEEP: OFF, 4 ~ 30 cmH₂O (increments of 1 cmH₂O)

Ventilator performance

Driving pressure: 280 kPa to 600 kPa

Peak gas flow: 120 L/min + fresh gas flow

Monitoring parameters

Minute volume: 0 ~ 60 L/min

Tidal volume: 0 ~ 2500 ml

Inspired O₂ (FiO₂): 21 % ~ 100 %

Ppeak: 0 ~ 100 cmH₂O

Pmean: 0 ~ 100 cmH₂O

Pplate: 0 ~ 100 cmH₂O

I : E: 4 : 1 ~ 1 : 10

Rate: 0 ~ 100 bpm

Freqspont: 0 ~ 99 bpm

PEEP: 0 ~ 70 cmH₂O

Resistance (R): 0 ~ 200 cmH₂O / (L/s)

Compliance (C): 0 ~ 200 ml/cmH₂O

Control accuracy

Volume delivery:

< 100 ml: ± 20 ml

≥ 100 ml: ± 20 ml or ± 15 % of the set value, whichever is greater

Pressure delivery: ± 2.0 cmH₂O or ± 10 % of the set value, whichever is greater

PEEP delivery: ± 2.0 cmH₂O or ± 10 % of the set value, whichever is greater

Flow trigger: ± 1.0 L/min or ± 15 % of the set value, whichever is greater

Monitoring accuracy

Volume monitoring:

< 100 ml: ± 20 ml

≥ 100 ml: ± 20 ml or ± 15 % of the reading, whichever is greater

Pressure monitoring: ± 2.0 cmH₂O or ± 10 % of the reading, whichever is greater

PEEP monitoring: ± 2.0 cmH₂O or ± 10 % of the reading, whichever is greater

MV monitoring: 1 L/min or ± 15 % of the reading, whichever is greater

Trend graph

Continuous trend information for the latest 24 hours

Log

500 events storage, first in first out

Alarm settings

Tidal volume

High: 20 ~ 1500 ml, OFF

Low: OFF, 10 ~ 1500 ml

Minute volume

High: 1 ~ 40 L/min, OFF

Low: OFF, 0 ~ 40 L/min

Airway pressure

High: 1 ~ 100 cmH₂O

Low: 0 ~ 99 cmH₂O

Frequency

High: 1 ~ 100 bpm

Low: 0 ~ 99 bpm

FiO₂

High: 21 ~ 100 %, OFF

Low: OFF, 18 ~ 99 %

Apnea alarm: 10 ~ 40 s

Sustained airway pressure alarm: 15 s

Negative pressure alarm: Paw < - 10 cmH₂O

Alarm silence countdown timer: 120 to 0 seconds

System language

Chinese, English, Spanish, Italian

Flow sensor

Type: variable orifice flow sensor

Position: inspiratory and expiratory port

Oxygen sensor

Type: chemical

FiO₂ displayed: 21 % to 100 %

Accuracy: ± (volume fraction of 2.5 % + 2.5 % gas level)

Response time: ≤ 15 seconds

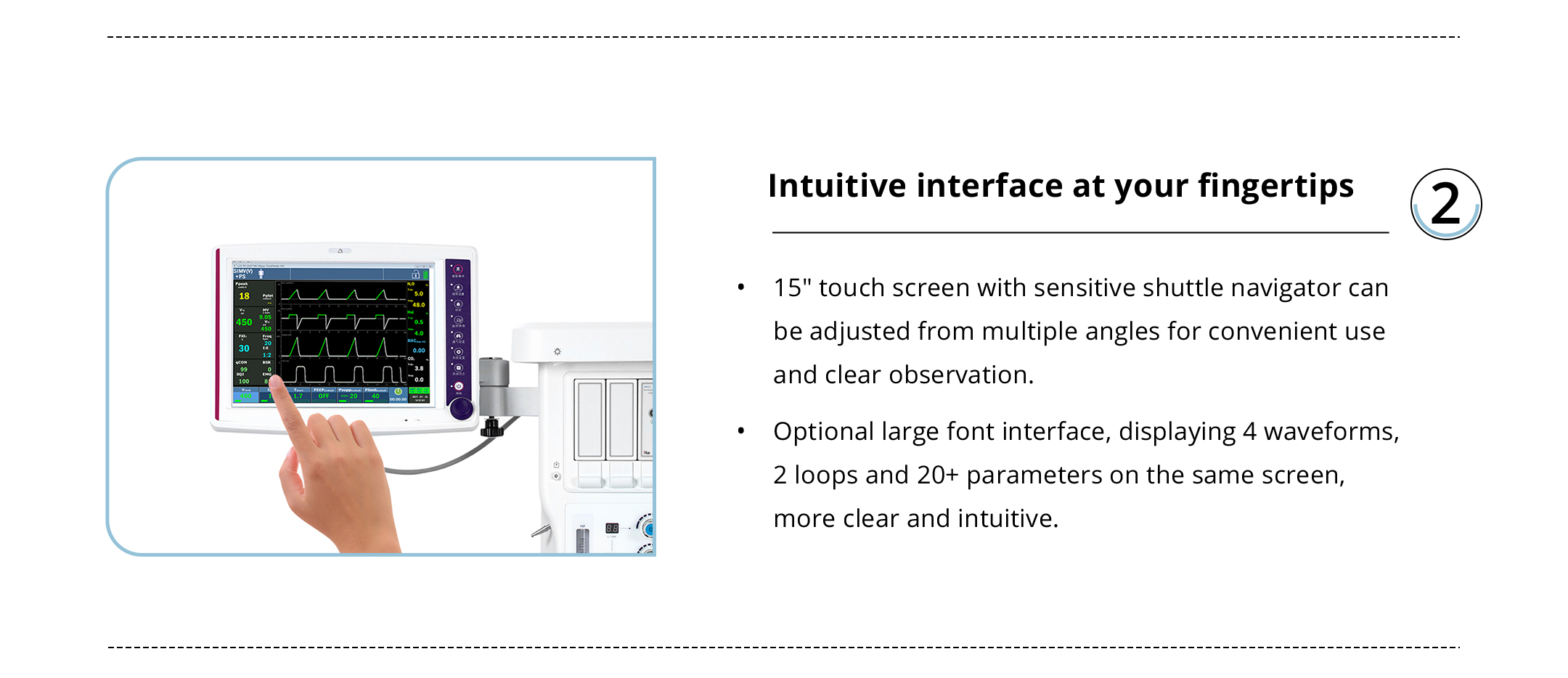

Ventilator screen

Display type: color TFT touch screen, rotatable

Display size: 15 inch

Resolution: 1024 × 768

Display parameter: all setting and alarm parameters

(including Breath rate, I/E ratio, Tidal volume, Minute volume, PEEP, MEAN, PEAK, PLAT,

and O₂ concentration, EtCO₂, N₂O, Anesthesia gas concentration)

Display waveform: P-T, F-T, V-T, CO₂-T

Loop:P-V, F-V and F-P

Timer: on screen timer

Communication port

RS-232C connector × 2, VGA × 1

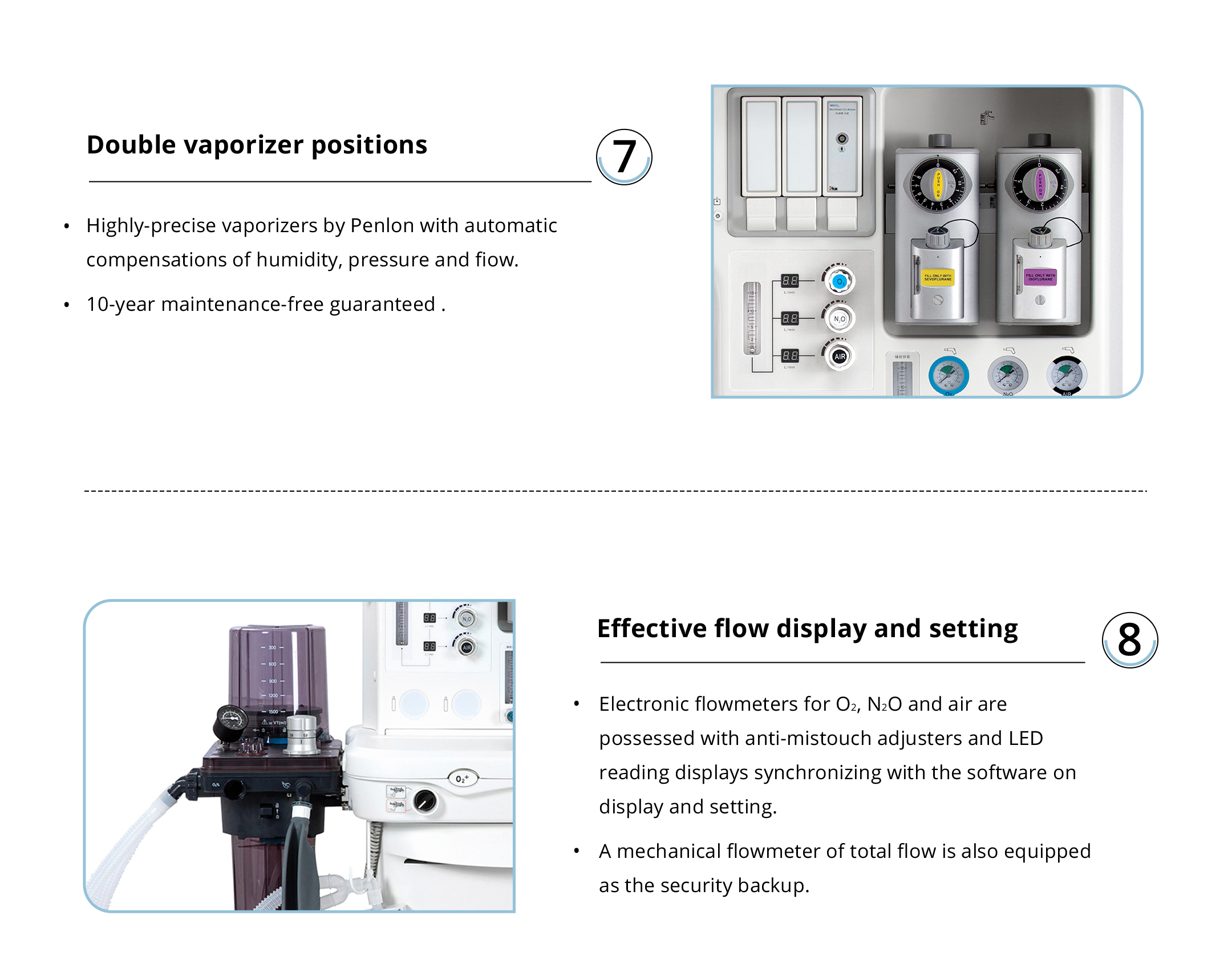

Vaporizer

Vaporizer brand: YAFMED anesthetic vaporizer or Penlon Sigma Delta anesthetic vaporizer

Support agent: Halothane, Enflurane, Isoflurane, Sevoflurane

Position: standard 2

Mounting mode: Selectatec^®, with interlocking function

Fill method: Key fill, Pour fill, Quick fill

Mainstream CO₂ module

(Masimo IRMA)

Measurement mode: main-stream

Displayed numeric: EtCO₂, FiCO₂

Measurement range: 0 ~ 99 mmHg

Accuracy: ± (0.3 vol % + 4 % of reading)

Response time: < 1 second

Waveform / loop: CO₂-time

EtCO₂ high alarm limits: 1 ~ 100 cmH₂O

EtCO₂ low alarm limits: 0 ~ 99 cmH₂O

Sidestream CO₂ module

(Masimo ISA)

Measurement mode: side-stream

Displayed numeric: EtCO₂, FiCO₂

Measurement range: 0 ~ 99 mmHg

Accuracy:

0 to 15 vol %: ± 2 (0.2 vol % + 2 % of reading)

15 to 25 vol %: unspecified

Response time: < 3 seconds (with 2 m sampling line)

Waveform / loop: CO₂-time

EtCO₂ high alarm limits: 1 ~ 100 cmH₂O

EtCO₂ low alarm limits: 0 ~ 99 cmH₂O

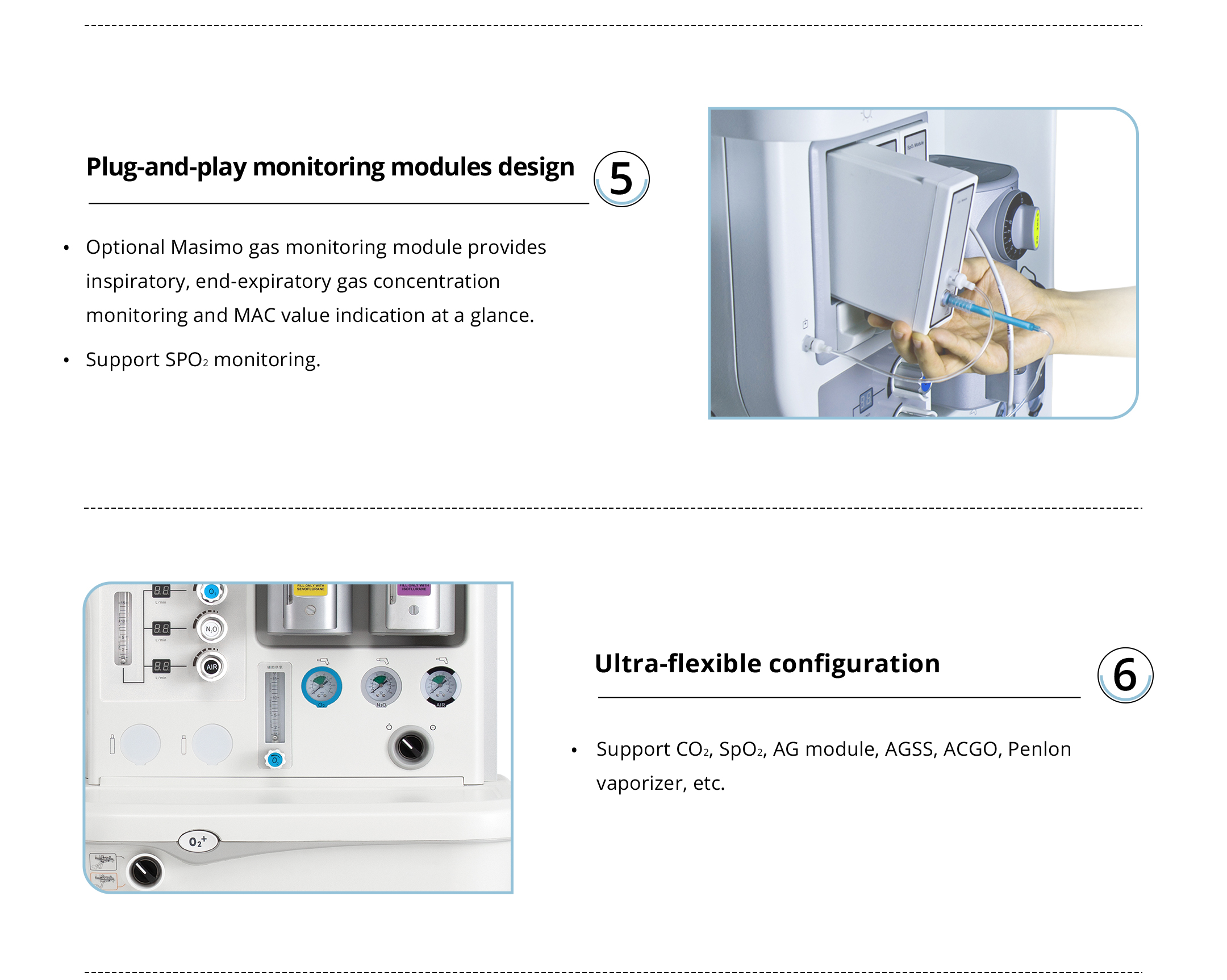

Multi-gas module

(Masimo IRMA)

Measurement mode: main-stream

Monitor gas: monitor gases CO₂, N₂O, Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane, MAC.

Warm-up time: < 20 sec

(concentrations are reported and the automatic agent identification is running within 20 seconds)

Accuracy:

CO₂: ± (0.3 vol % + 4 % of reading)

N₂O: ± (2 vol % + 5 % of reading)

HAL, ENF, ISO, SEV, DES: ± (0.2 vol % + 10 % of reading)

SpO₂ module

Range: 70 % ~ 100 %

Resolution: 1 %

Accuracy: absolute accuracy ± 2 %

PR range: 30 ~ 250 bpm

PR resolution: 1 bpm

PR accuracy: 2 bpm

Power and battery backup

Power input: 110 ~ 240 V AC, 50 / 60 Hz

Auxiliary electrical outlet: up to 3 outlets (2 A for each)

Battery backup: 60 min for 1 piece battery

(powered by new fully-charged batteries with 25 ℃ ambient temperature)

Battery type: build-in Li-on battery, 11.1 VDC, 7800 mAh

Safety feature: in case of electricity and battery failure, manual ventilation,

gas delivery and agent delivery are possible

ACGO

(Auxiliary Common Gas Outlet)

Connector size: ISO 22 mm OD and 15 mm ID

Pipeline supply

Gas type: O₂, N₂O, Air

Pipeline input range: 280 to 600 kPa

Pipeline connection: NIST

Pipeline supply pressure gauge

Display type: mechanical

Range: 0 to 1 MPa

Accuracy: ± (4 % of the full scale reading + 8 % of the actual reading)

Cylinder supply

Cylinder type: E-size cylinder (US standard or UK standard)

O₂ input range: 400 to 450 MPa

N₂O input range: 400 to 450 MPa

Cylinder connection: Pin-Index Safety System (PISS)

Yoke configuration: O₂, N₂O

Cylinder supply pressure gauge

Display type: mechanical

O₂ range: 0 to 25 MPa

N₂O range: 0 to 25 MPa

Accuracy: ± (4 % of the full scale reading + 8 % of the actual reading)

O₂ control

Method: N₂O shut off with loss of O₂ pressure

O₂ flush: 25 ~ 75 L/min

O₂-N₂O link system

Type: mechanical

Range: O₂ concentration not lower than 21 %

Auxiliary O₂ flowmeter

Range: 0 ~ 15 L/min

Indicator: flow tube

Electronic flow meter

O₂ flow range: 0 ~ 10 L/min

Air flow range: 0 ~ 10 L/min

N₂O flow range: 0 ~ 10 L/min

Accuracy: between - 10 % and + 10 % of the indicated value

(under 20 ℃ and 101.3 kPa, for flow between 10 % and 100 % of full scale)

± 200 ml/min (for flow below 10 % of full scale)

Operating environment

Temperature: 10 ~ 40 ℃

Relative humidity (non-condensing): ≤ 80 % R.H.

Atmospheric pressure: 70 ~ 106 kPa

Storage and transport environment

Temperature: - 20 ~ 55 ℃

Relative humidity (non-condensing): ≤ 93 % R.H.

Atmospheric pressure: 50 ~ 106 kPa

Electromagnetic compatibility

Immunity: complies with all requirements of IEC 60601-1-2

Emission: complies with all requirements of IEC 60601-1-2

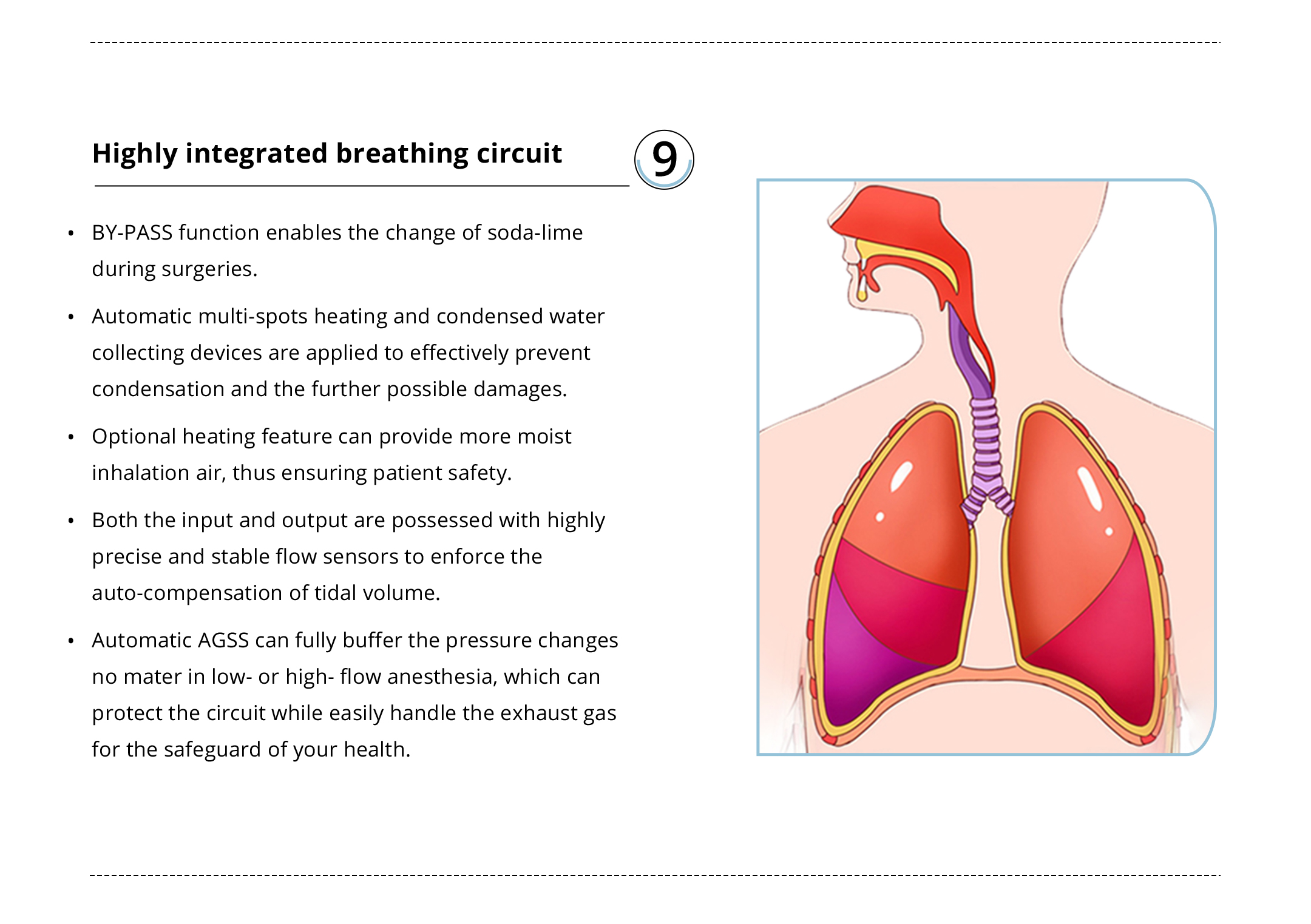

Breathing system

Material: PC or PPSU (optional)

CO₂ Absorber

Absorbent capacity: 1500 ml

Breathing circuit parameters

Compliance: 0.87 ml/100Pa (manual mode)

Automatically compensates for compression losses within the breathing circuit in mechanical mode.

Expiration resistance: < 0.6 kPa @ 30 L/min

Inspiration resistance: < 0.6 kPa @ 30 L/min

System pressure gauge

Range: - 20 ~ 100 cmH₂O

Accuracy: ± (2 % of the full scale reading + 5 % of the actual reading)

Ports and connector

Exhalation, Inhalation, Manual bag port: 22 mm OD / 15 mm ID conical

APL valve

Range: 2 ~ 70 cmH₂O or 2 ~ 90 cmH₂O (optional)

Tactile knob indication at above 30 cmH₂O.

Accuracy: ± 10 cmH₂O or ± 15 % of the setting value, which is greater

Anesthetic Gas Scavenging System

(AGSS)

Size: 480 mm (H) × 134 mm (W) × 95 mm (D)

Type of disposal system: low flow active AGSS

Applicable standard: ISO 80601-2-13

Pump rate: 40 ~ 50 L/min

Connector of the disposal system: ISO 9170-2
