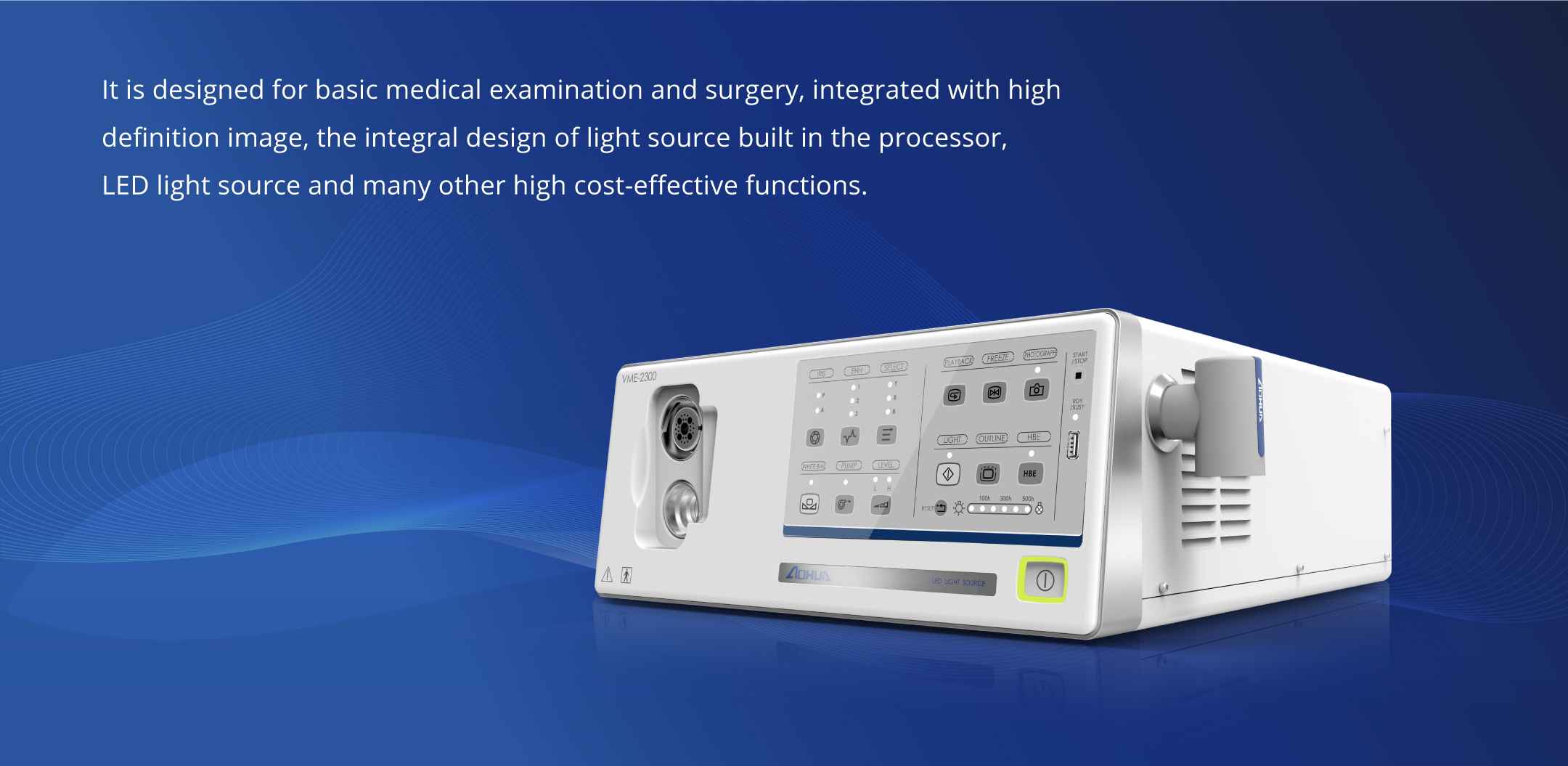

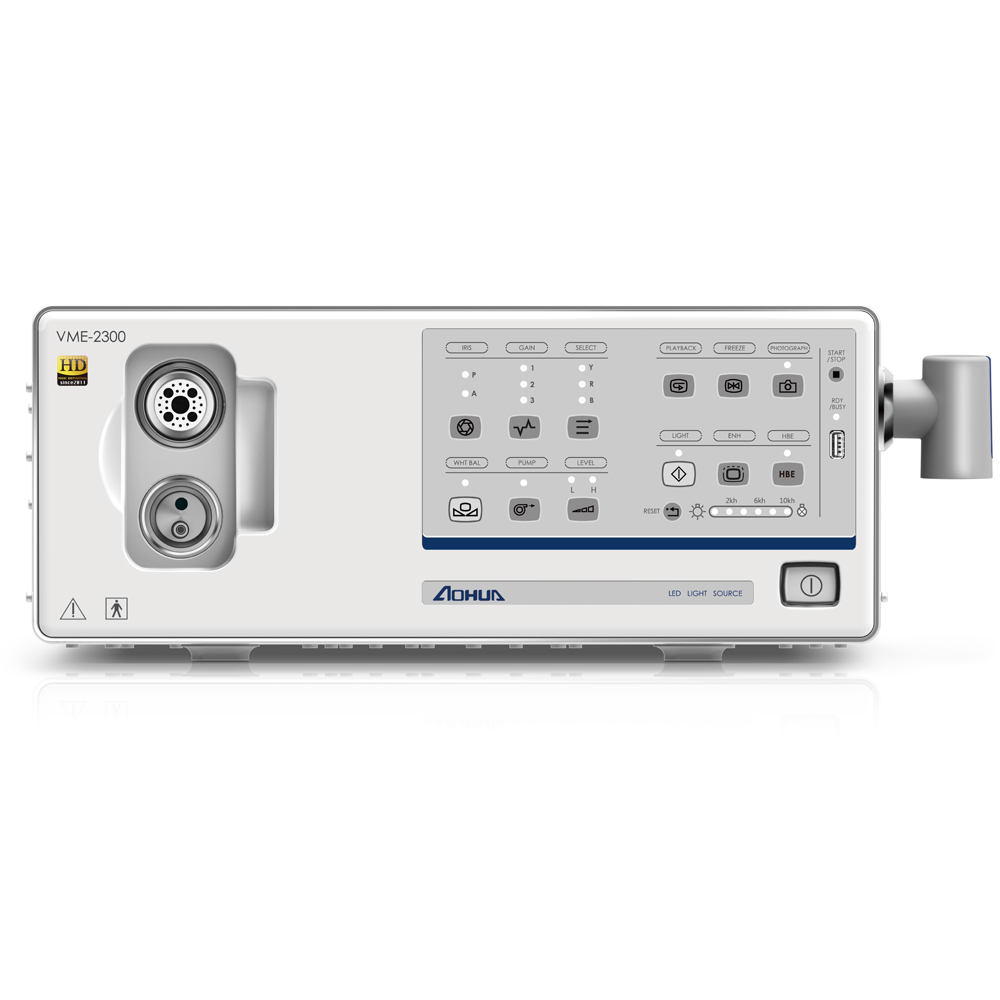

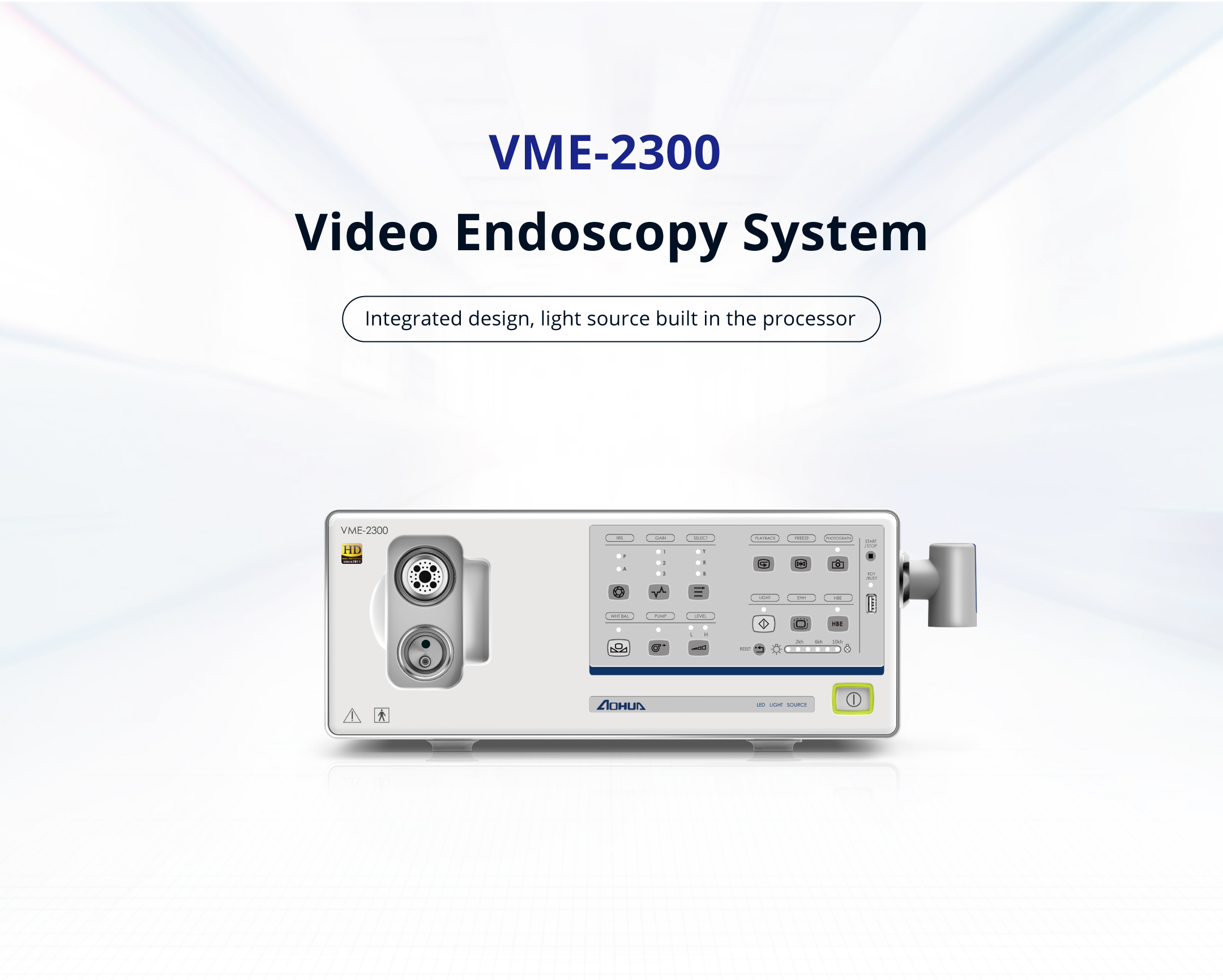

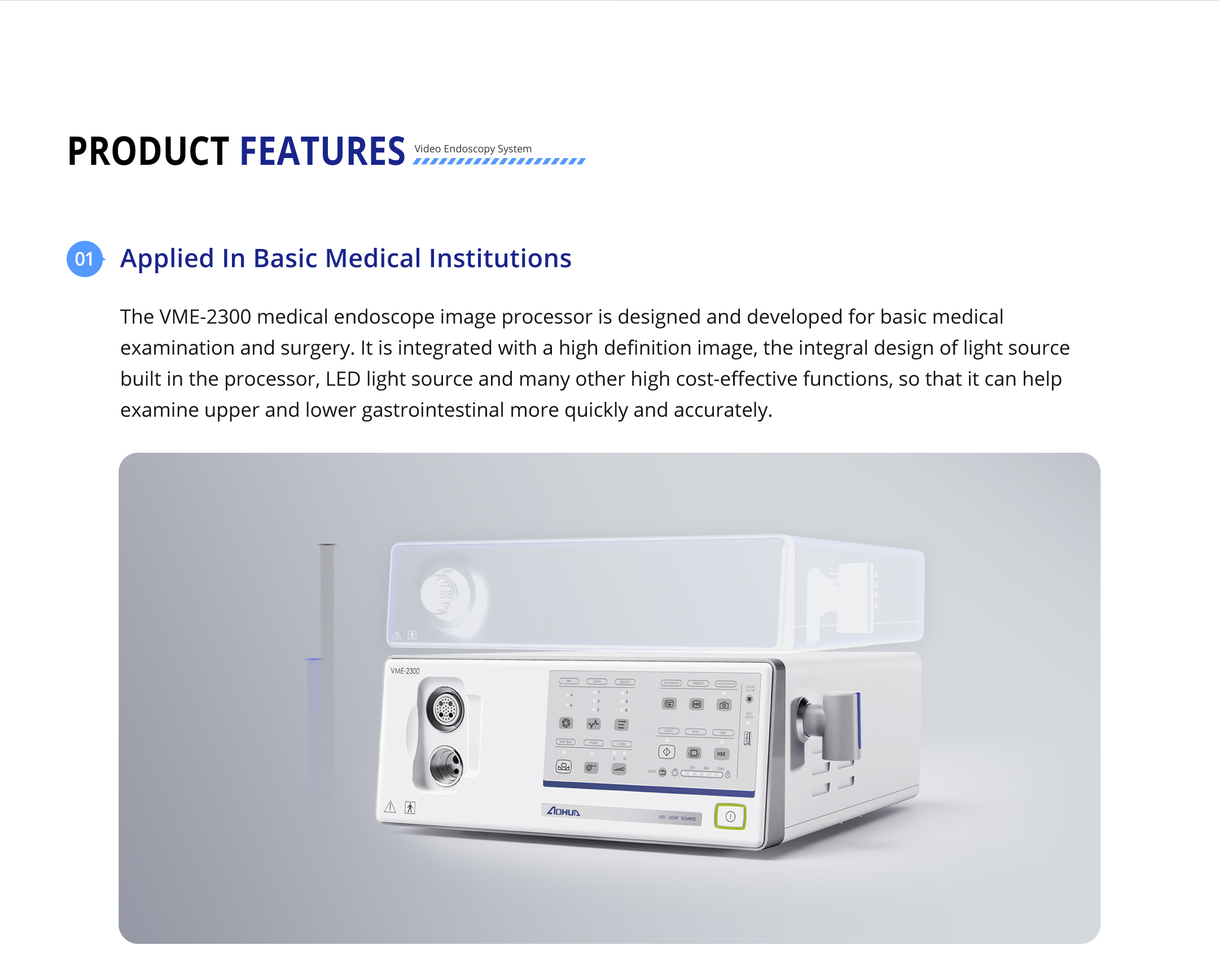

Endoscope Imaging Processor

Type of protection against electric shock

Class I

Operation model

Continuous operations

Voltage

100 ~ 240 V AC

Frequency

50 / 60 Hz

Input power

150 VA

Video in video port

Y/C, RGB, DVI, SYNC, AV

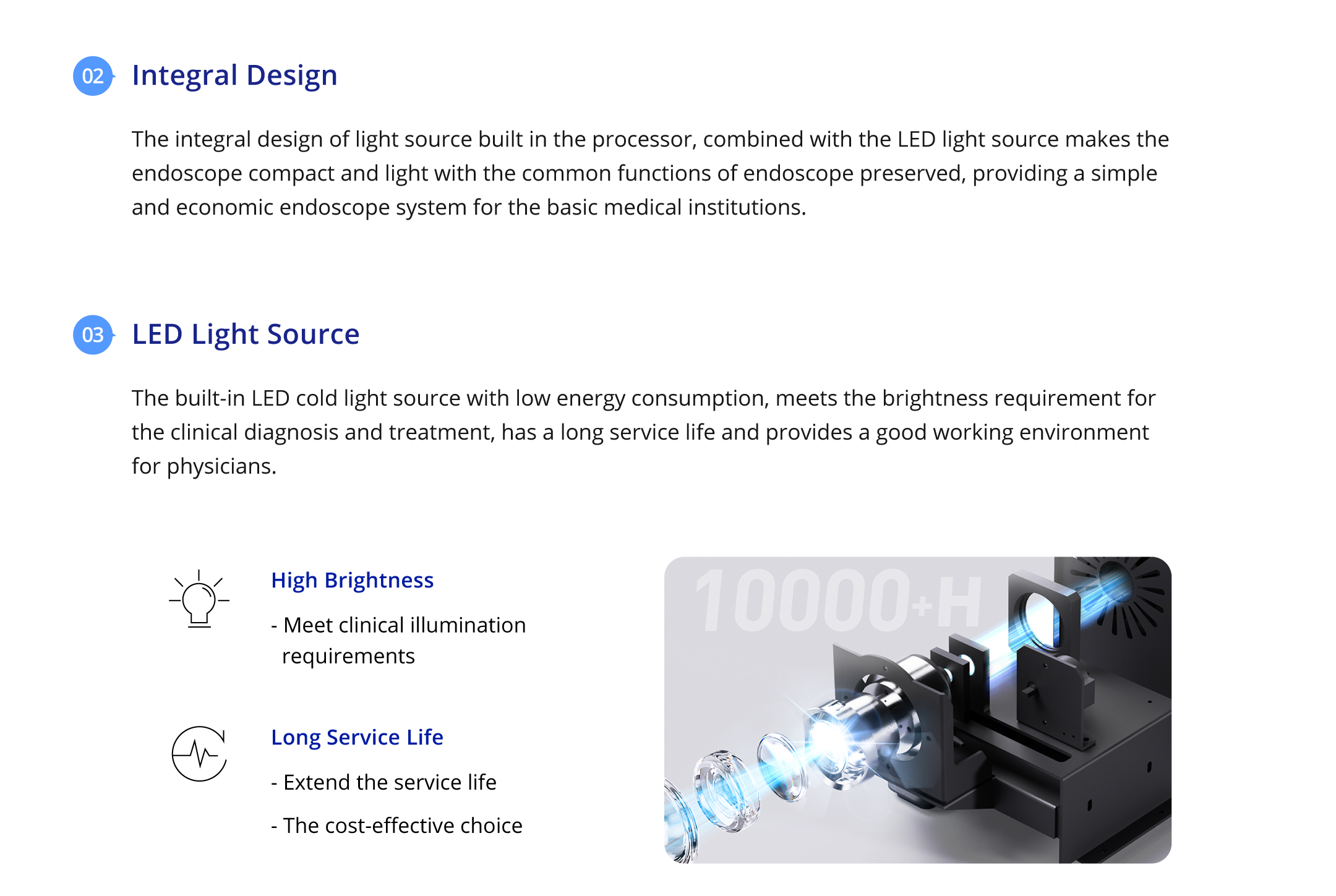

LED Light Source

Type of protection against electric shock

Class I

Luminous flux

200 lm

Color rendering index

≥ 90

Color temperature

3000 ~ 7000 k

Average life of bulb

About 10000 h

Air pump flow

OFF / L / H

Functions & Features

White balance

It makes the image color closer to reality.

Metering mode

Average, Peak

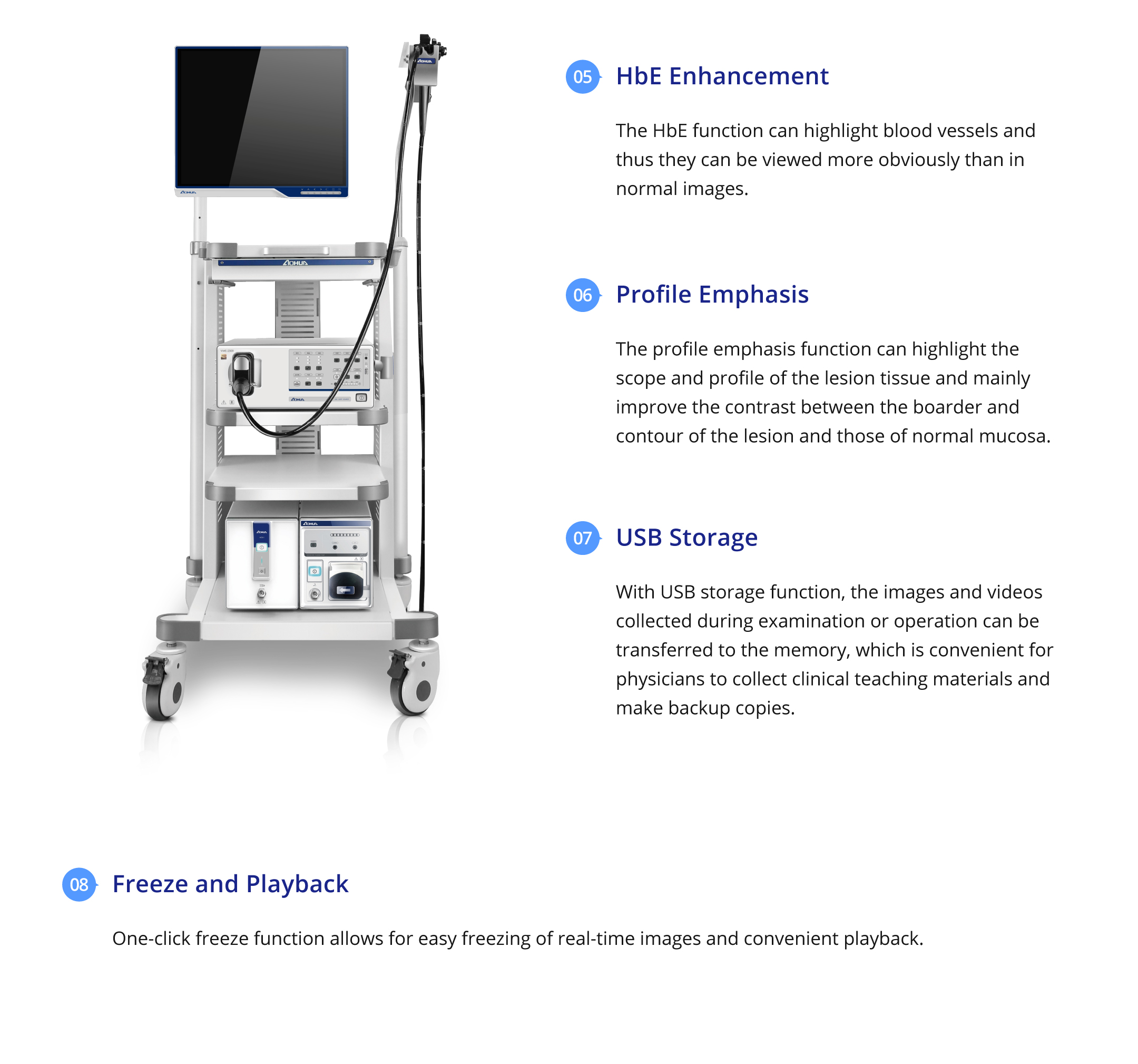

(HbE) Hemoglobin enhancement

Can highlight the mucosal capillary morphology.

USB storage

High definition images and videos can be stored at any time, convenient to carry.

Tone adjustment

R, B adjustment: ± 50

Brightness adjustment

Y adjustment: ± 50

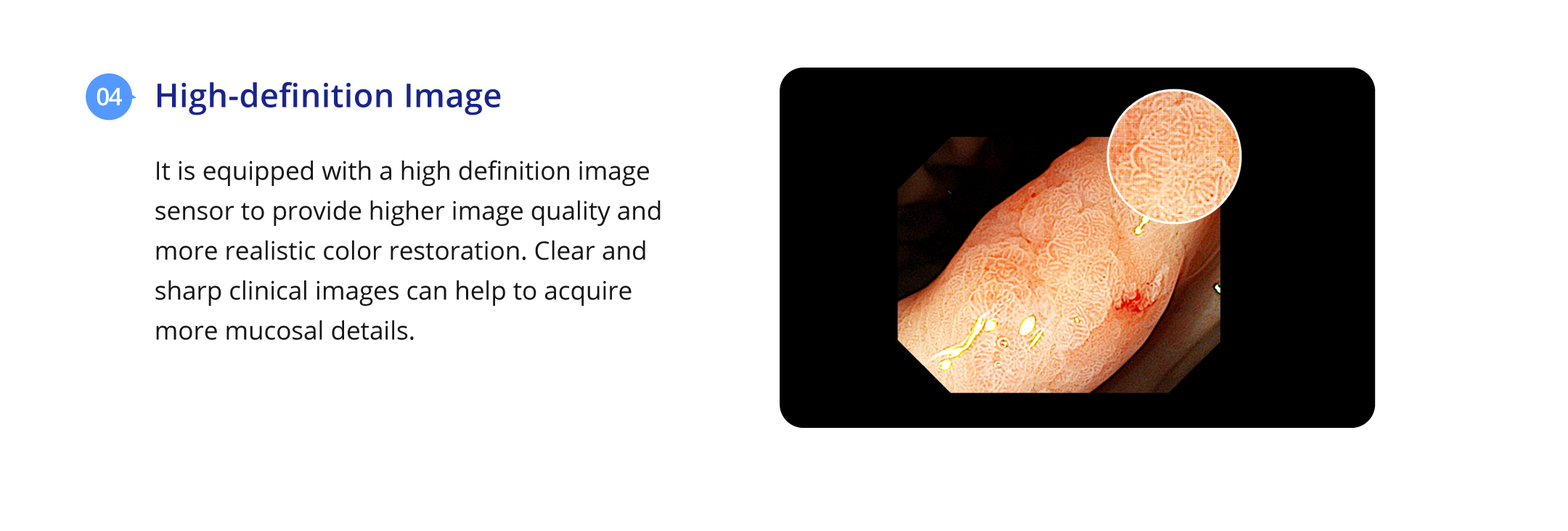

Image enhancement

When the distal end of the endoscope is too far away from the mucous membrane

and the brightness is not enough, adjust to increase the image brightness.

Freeze and playback

It can freeze a real-time image and play back the frozen image.
