Model

RE200-Pro

Evaporating flask volume

20L

Temperature range

Room temp. ~ 180℃ (water and oil bath)

Temperature control accuracy

Water: ± 1℃

Oil: ± 3℃

Rotation speed

10rpm ~ 150rpm

Evaporation capacity

Max.4.0L/h (water)

Ultimate vacuum

Less 2.6hpa

Direction of rotation

Clockwise and counterclockwise

Temperature control

Micro processer PID control

Display

LCD (temperature / speed / clockwise and Anti-clockwise / time)

Timer

Yes

Time setting range

0min ~ 999min

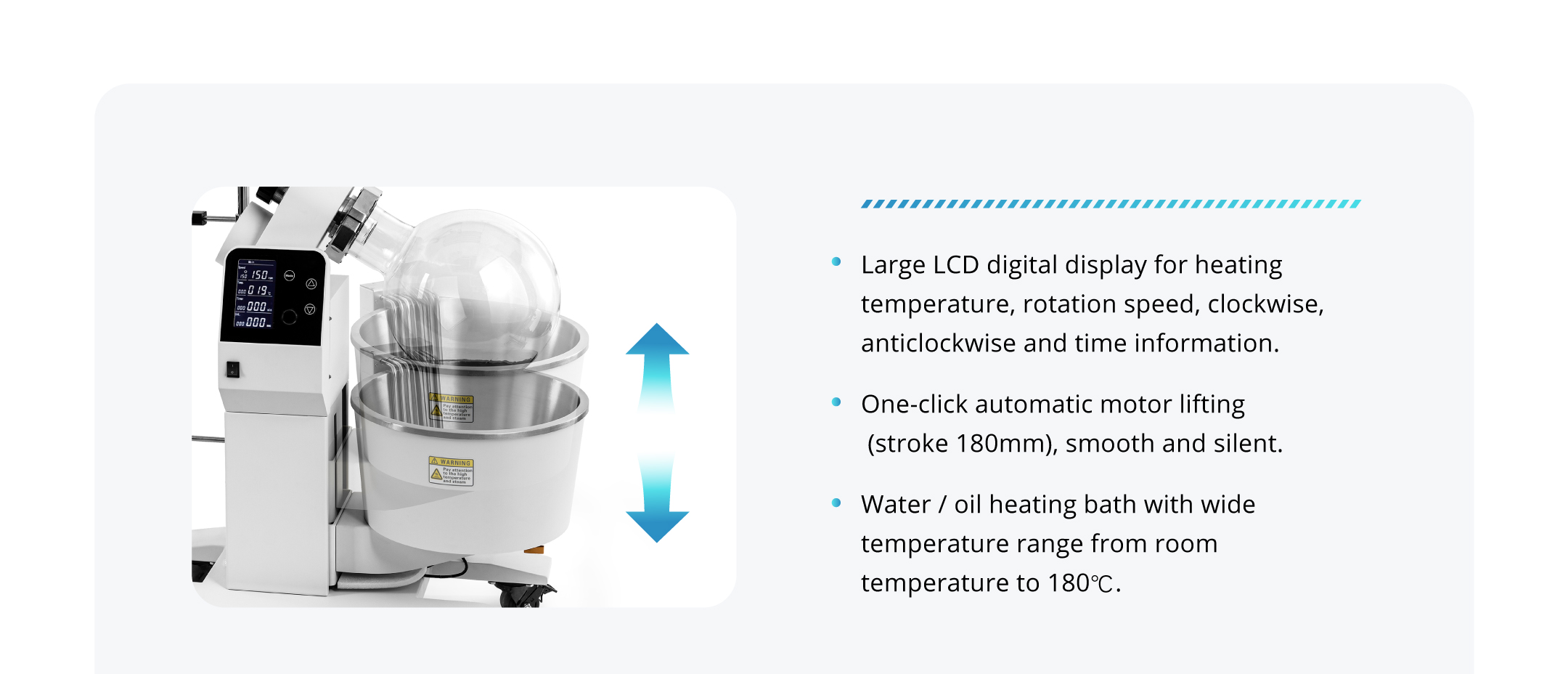

Lifting mode

Motorized

Lifting stroke

180mm

Heating bath size

Ø450 × 240mm

Motor type

Brushless DC motor

Receiving flask

Round flask 10L with drain valve

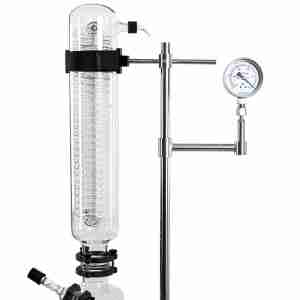

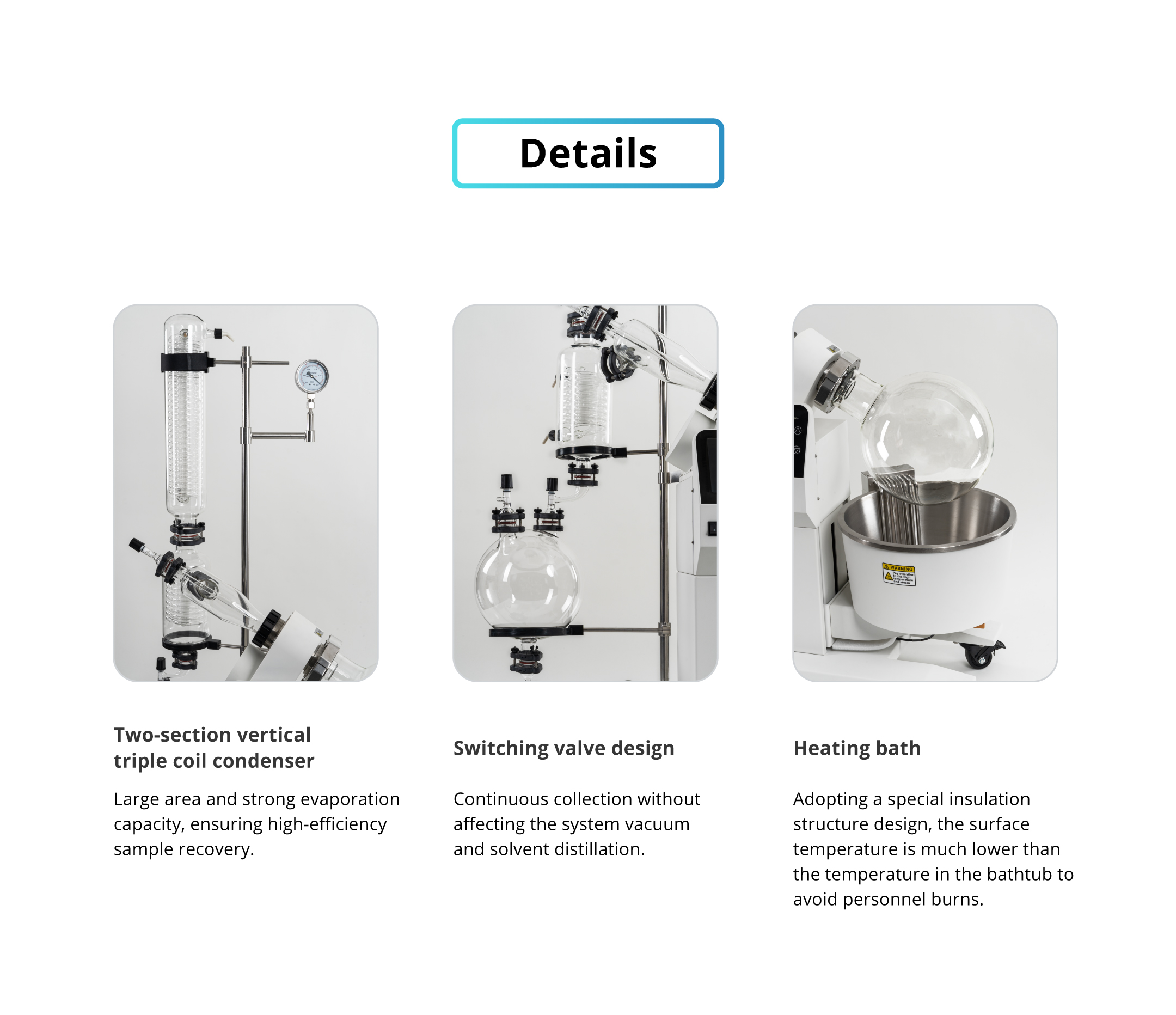

Condenser

Two-section vertical triple coil condenser, cooling surface 1.2m²

Heating power

4400W

Power

4600W

Voltage / Frequency

220V, 50 / 60Hz

Dimension (D×W×H)

1160mm × 600mm × 1860mm

Weight

106kg

Permissible ambient temperature

5℃ ~ 40℃

Permissible ambient humidity

≤ 80% RH

Protection class

IP20

Safety features

Motor over-current protection / Earth-leakage protection
Lifting overload protection / Boil-dry protection / Overheating protection
