Instrument model

DX-100

(CBC+DIFF)

DX-100R

(CBC+DIFF+RET)

DX-100P

(CBC+DIFF+RET+F-PLT)

DX-100W

(CBC+DIFF+RET+F-PLT+WPC)

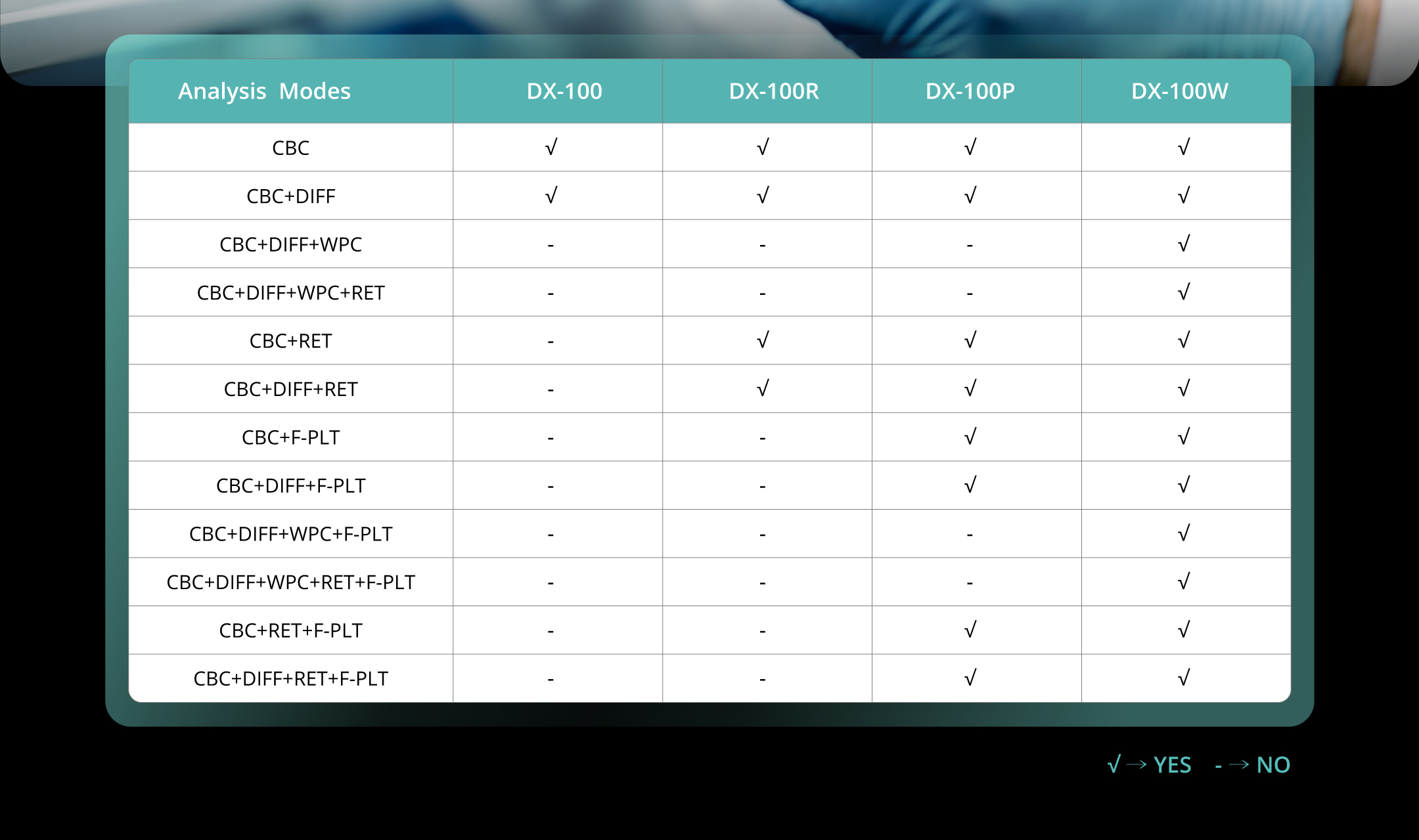

Throughput

Under different analysis modes

(*The data is based on
the sample type of whole blood)

CBC

100 T/H

100 T/H

100 T/H

100 T/H

CBC+DIFF

100 T/H

100 T/H

100 T/H

100 T/H

CBC+DIFF+WPC

--

--

--

88 T/H

CBC+DIFF+WPC+RET

--

--

--

71 T/H

CBC+RET

--

83 T/H

83 T/H

83 T/H

CBC+DIFF+RET

--

83 T/H

83 T/H

83 T/H

CBC+F-PLT

--

--

68 T/H

68 T/H

CBC+DIFF+F-PLT

--

--

68 T/H

68 T/H

CBC+DIFF+WPC+F-PLT

--

--

--

53 T/H

CBC+DIFF+WPC+RET+F-PLT

--

--

--

47 T/H

CBC+RET+F-PLT

--

--

47 T/H

47 T/H

CBC+DIFF+RET+F-PLT

--

--

47 T/H

47 T/H

Body fluid

17 T/H

17 T/H

17 T/H

17 T/H

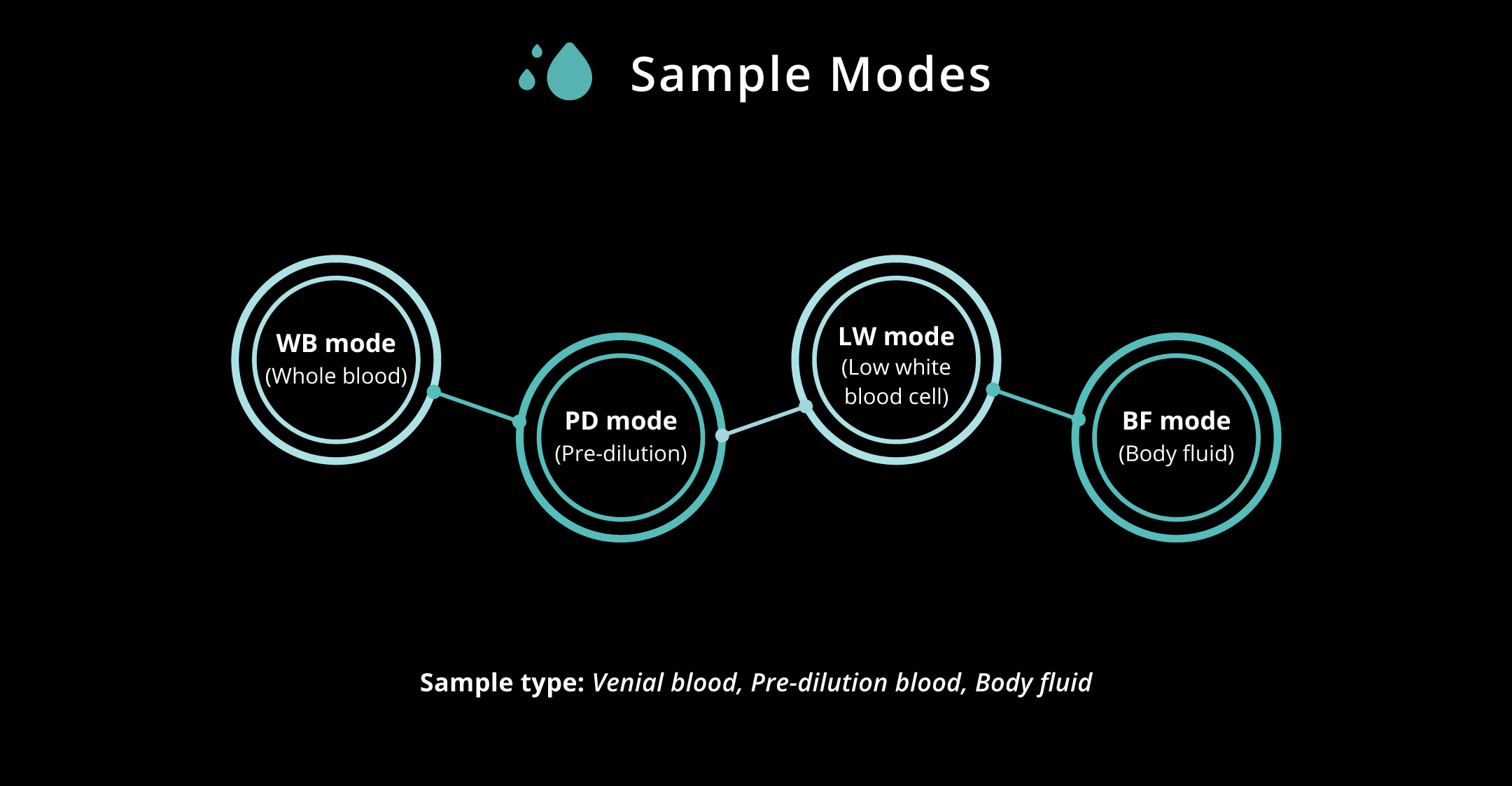

Sample mode

WB mode

(Whole blood)

√

√

√

√

PD mode

(Pre-dilution)

√

√

√

√

LW mode

(Low white blood cell)

√

√

√

√

BF mode

(Body fluid)

√

√

√

√

Parameters

Hematology analysis

37 reportable parameters:

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, PDW, MPV,
P-LCC, P-LCR, PCT, NRBC#, NRBC%, NEUT#, NEUT%, LYMPH#, LYMPH%,
MONO#, MONO%, EO#, EO%, BASO#, BASO%, RET#, RET%, IRF, LFR, MFR,
HFR, RET-He, IPF, IG#, IG%

34 research parameters:

PLT-I, PLT-O, PLT-F, WBC-W, WBC-D, WBC-P, TNC, TNC-W, TNC-D, TNC-P,
RBC-O, microR, macroR, NEUT#&, NEUT%&, LYMP#&, LYMP%&, HFLC#, HFLC%,
BA-W#, BA-W%, BA-D#, BA-D%, RBC-He, Delta-He, RPI, H-IPF, IPF#, HYPO-He,
HYPER-He, RET-UPP, RET-TNC, FRC#, FRC%

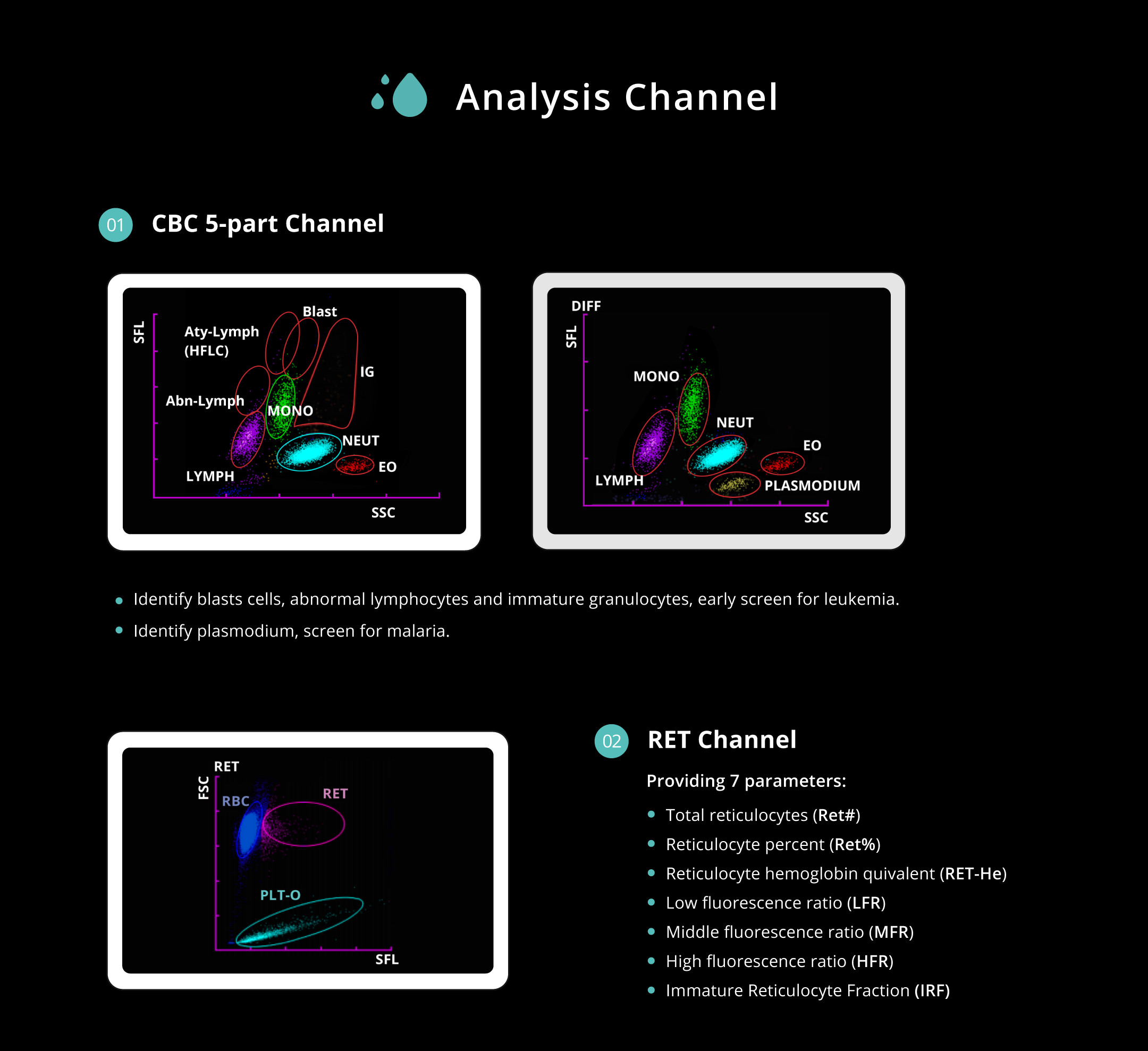

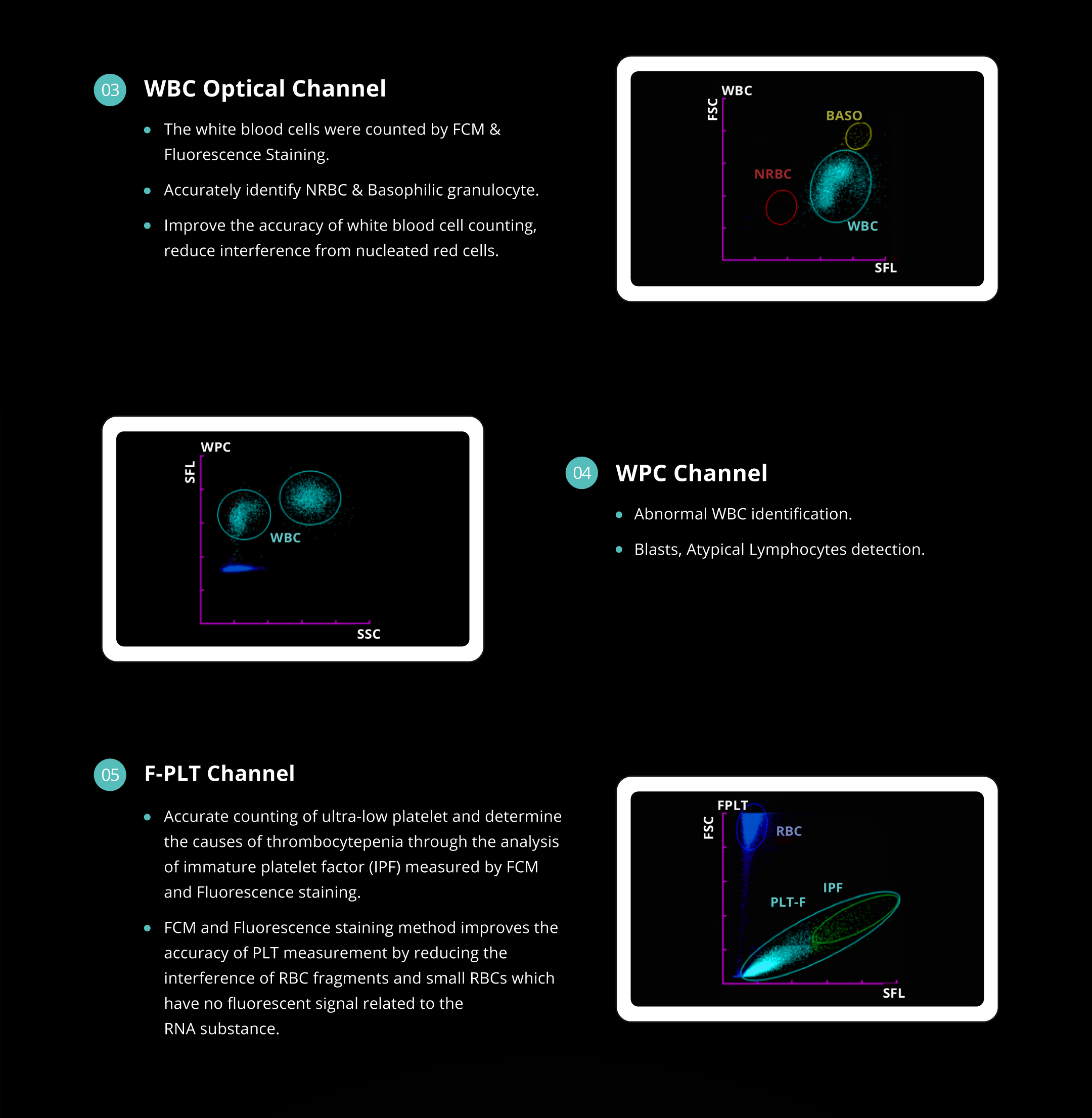

5 scattergrams (WBC/DIFF/RET/F-PLT/WPC)

2 histograms (RBC/PLT)

Body fluid analysis

7 reportable parameters:

WBC-BF, RBC-BF, MN#, PMN#, MN%, PMN%, TC-BF#

10 research parameters:

HF-BF#, HF-BF%, NE-BF#, NE-BF%, LY-BF#, LY-BF%, MO-BF#, MO-BF%,
EO-BF#, EO-BF%

1 scattergram (DIFF)

1 histogram (RBC)

Analysis principle

FCM & Fluorescence staining: WBC / DIFF / RET / F-PLT / WPC

Colorimetric method: HGB

Sheath impedance: RBC / PLT

Linear range

WBC: 0-500 ×10⁹/L

RBC: 0-8.6 ×10¹²/L

HGB: 0-260 g/L

PLT: 0-5000 ×10⁹/L

Sample type

Venial blood, Peripheral blood, Pre-dilution blood, Body fluid

Sample volume

Whole blood mode: ≤ 88 μL (CBC+DIFF)

Pre-dilution mode: ≤ 70 μL

Body fluid mode: ≤ 200 μL

Pre-dilution mode

Auto-dispensing of diluent

Sample loading

Auto-sampler for venous blood samples (normal tube with cap)

Auto-sampler for fingerstick blood samples (micro-tube)

Manual mode for priority access

Capacity of sample loader

5 racks, 10 samplers / rack

Language

Chinese / English

LIS transfer

Supports bidirectional LIS function

QC mode

Three quality control methods: L-J, X-Bar, X-BarM floating mean quality control

Retest function

Automatically retests the abnormal samples at local machine or other machines on the same workstation.

Retest function can be switched off by users.

Retesting criteria is editable.

Air-Compressor

External air-compressor

Operation

External computer

Operating environment

Temperature: 15℃ ~ 30℃, Humidity: 30% ~ 85%, Atmospheric pressure 70 KPa–106 KPa

Power requirement

100 V ~ 240 V, 50 Hz / 60 Hz

Dimension (W×D×H)

67 cm × 76 cm × 84 cm

Weight

≤85 KG
