Model

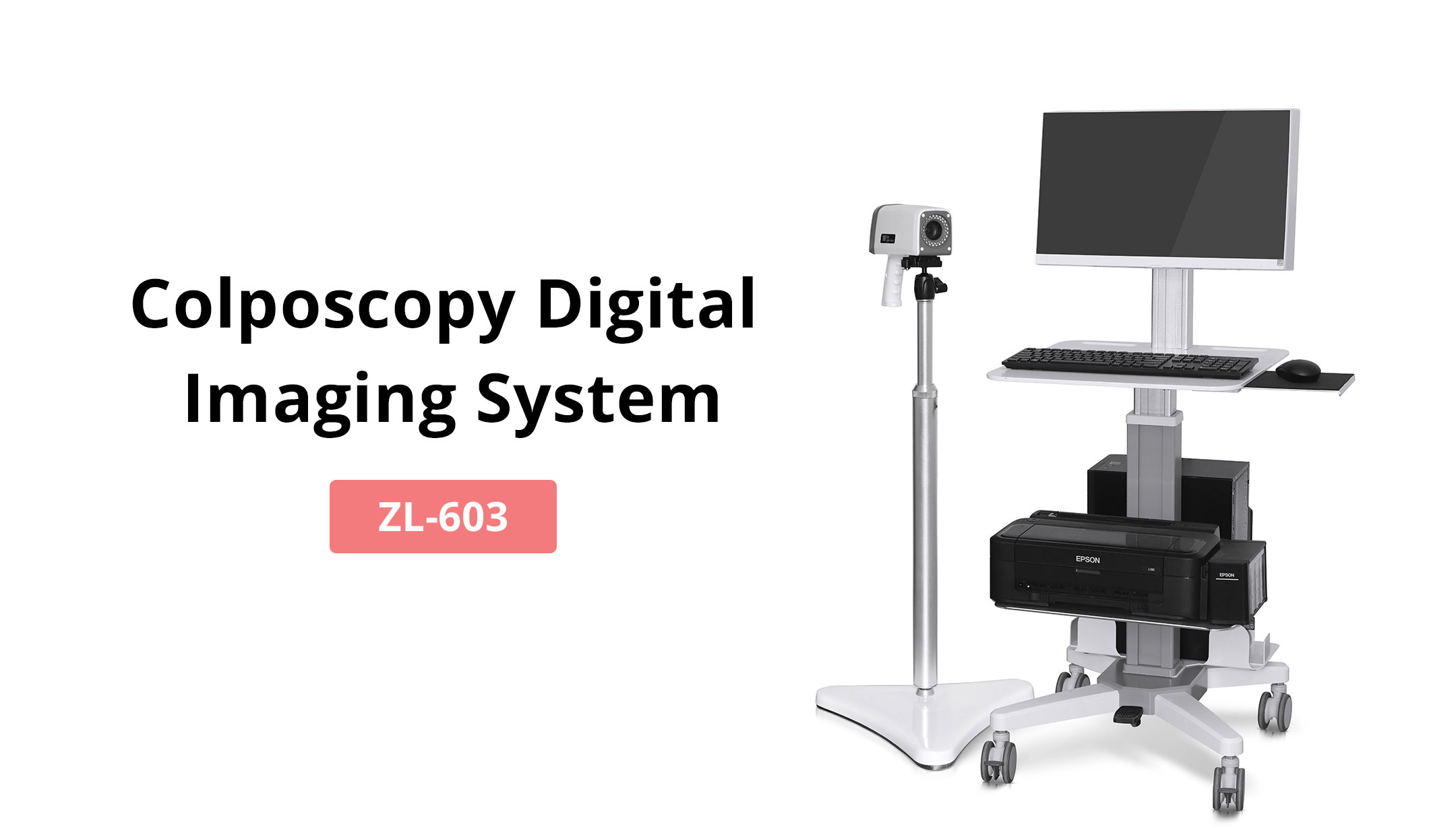

ZL-603

CCD

1/3 Inch Sony CMOS

Effective pixels

2 millions pixel

Lens axial resolution

1000 lines

Aperture

F1.4

Lens SNR

50dB

Lens focus distance

300mm ~ 1000mm

Field of view

2.5mm ~ 250mm

Depth of field

100mm ~ 350mm

Lens illumination

≥ 1400Lux

Lens magnification

Optics 50x

Focusing

AF/MF

Lens white balance

Auto white balance

Lens color balance

Automatic or manual adjustment

Ultra close photography

Satisfactory imaging can be achieved beyond 5mm

Image display method

21.5-inch LCD display

Image acquisition method

Foot switch, mouse, keyboard

Image printing method

Supports true color printing on regular copy paper, inkjet printing paper, and photo paper

Light source

LED cold light source

Color temperature

5600K

Life time

≥ 50000 hours

System data exchange interface

CD-ROM, external USB device

Image storage capacity

≥ 1.2 million images

Number of consecutive images collected each time

20 images, can also be freely set

Lift distance of lens bracket

60mm ~ 150mm

Working condition

Power supply

AC220V ± 22V

Power rating

300W

Ambient temperature

0℃ ~ 40℃

Dell original machine

CPU

Dual core

Internal storage

4G

Hard drive

1T
