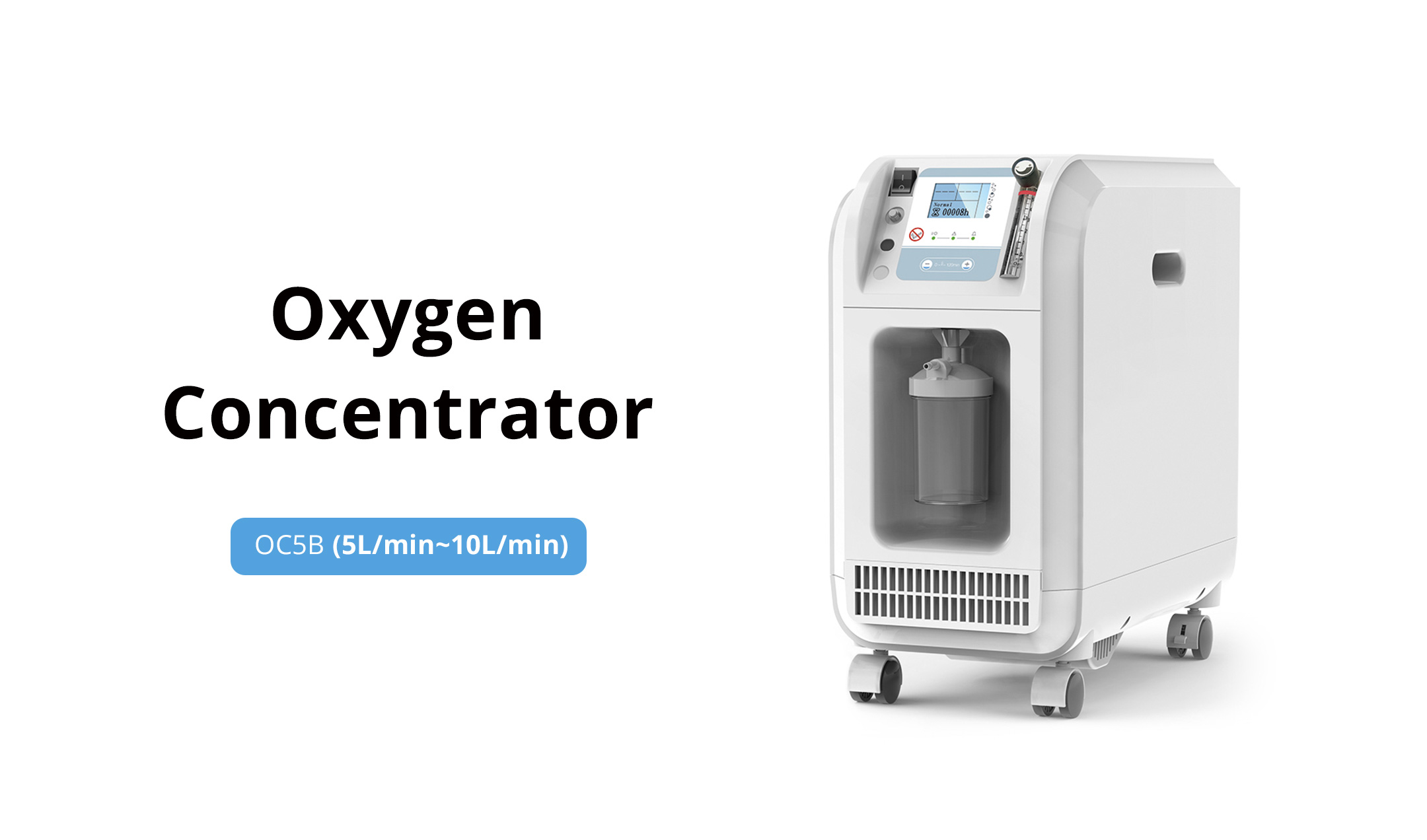

Molecular sieve oxygen concentrator / Oxygenerator
Product ID: MF40593
P/N: MF405931
Consisted of air compressor, adopts PSA (pressure swing absorbers) method to directly concentrate medical oxygen with high concentration from the air.
Specification
OC5B, 5L/min
OC5B, 8L/min
OC5B, 10L/min
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

OC5B (5 L)

OC5B (8 L)

OC5B (10 L)

Maximum flowrate recommended

5 L/min

8 L/min

10 L/min

Oxygen output concentration levels

93% ± 3%

93% ± 3%

93% ± 3%

Flowrate range

0.5 ~ 5 L/min

0.5 ~ 8 L/min

0.5 ~ 10 L/min

Flowrate change at maximum recommended flowrate with 7 kPa back pressure

< 0.5 L/min

< 0.8 L/min

< 1 L/min

Outlet pressure

20 kPa ~ 50 kPa

20 kPa ~ 50 kPa

20 kPa ~ 50 kPa

Input power consumption

400 VA

700 VA

700 VA

Electrical requirements

AC 220 V ± 10%, 50 Hz ± 1 Hz

Operating noise

W55 dB(A)

W60 dB(A)

W60 dB(A)

SpO2 measurement range

0% ~ 100%

Pulse rate measurement range

30 bpm ~ 250 bpm

30 bpm ~ 250 bpm

30 bpm ~ 250 bpm

Accessories

Humidifier bottle

User manual

Power cord

Nasal cannula

Humidifier bottle

User manual

Power cord

Nasal cannula

SpO2 probe

Dimension

508(L) x 260(W) x 530(H) mm

Weigh: 21 kg

508(L) x 260(W) x 530(H) mm

Weigh: 26 kg

508(L) x 260(W) x 530(H) mm

 Weigh: 28 kg
