Model

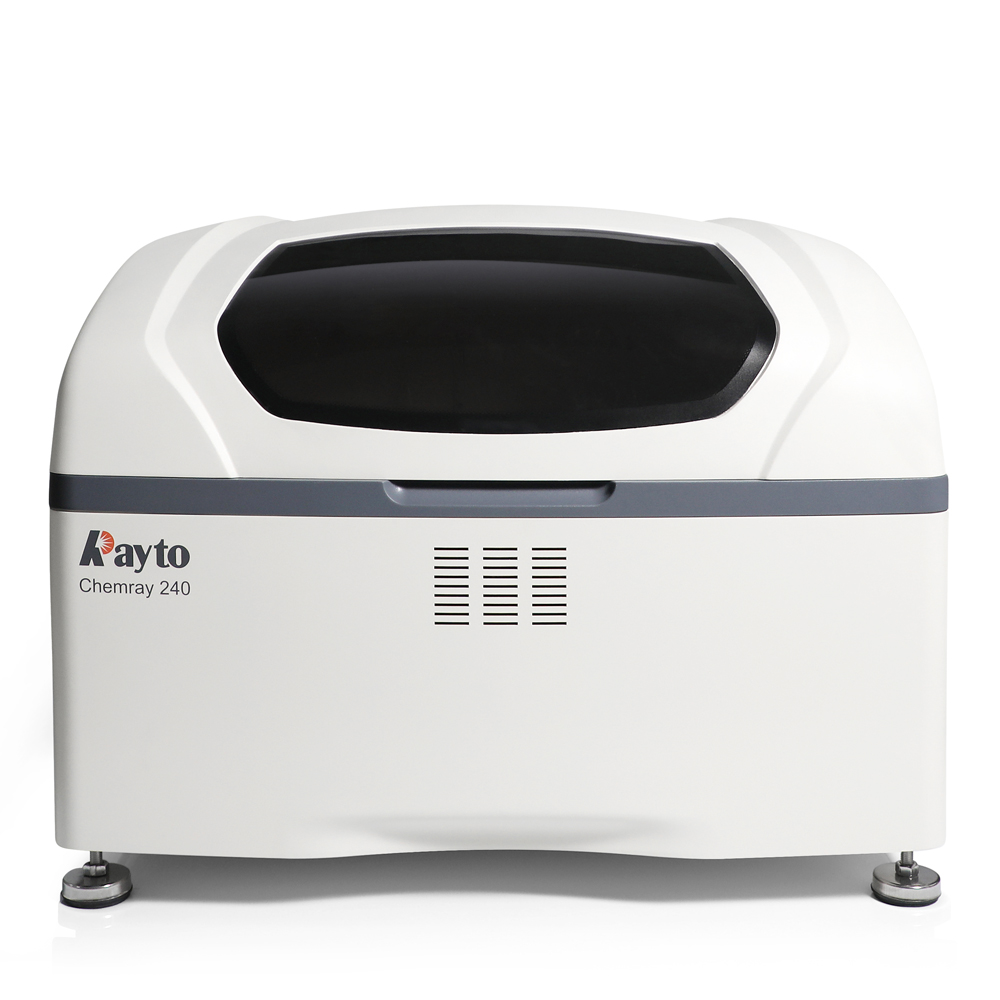

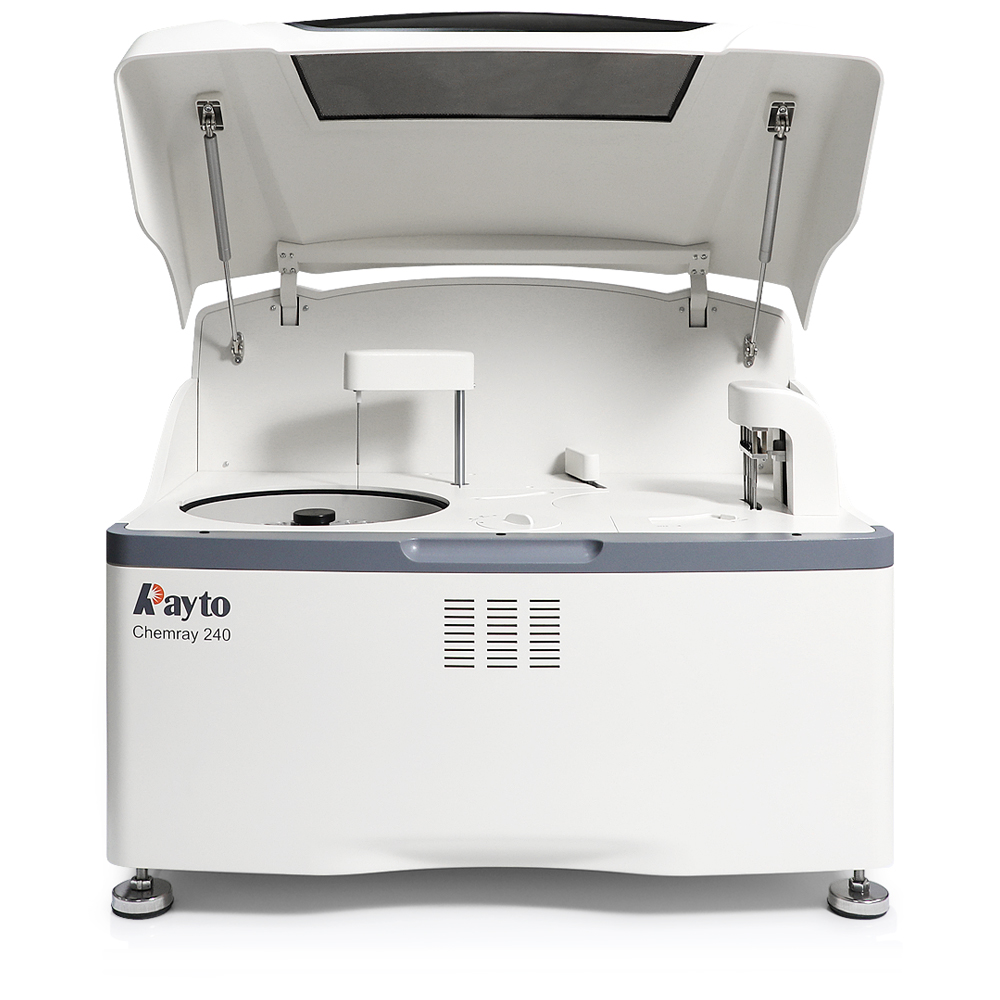

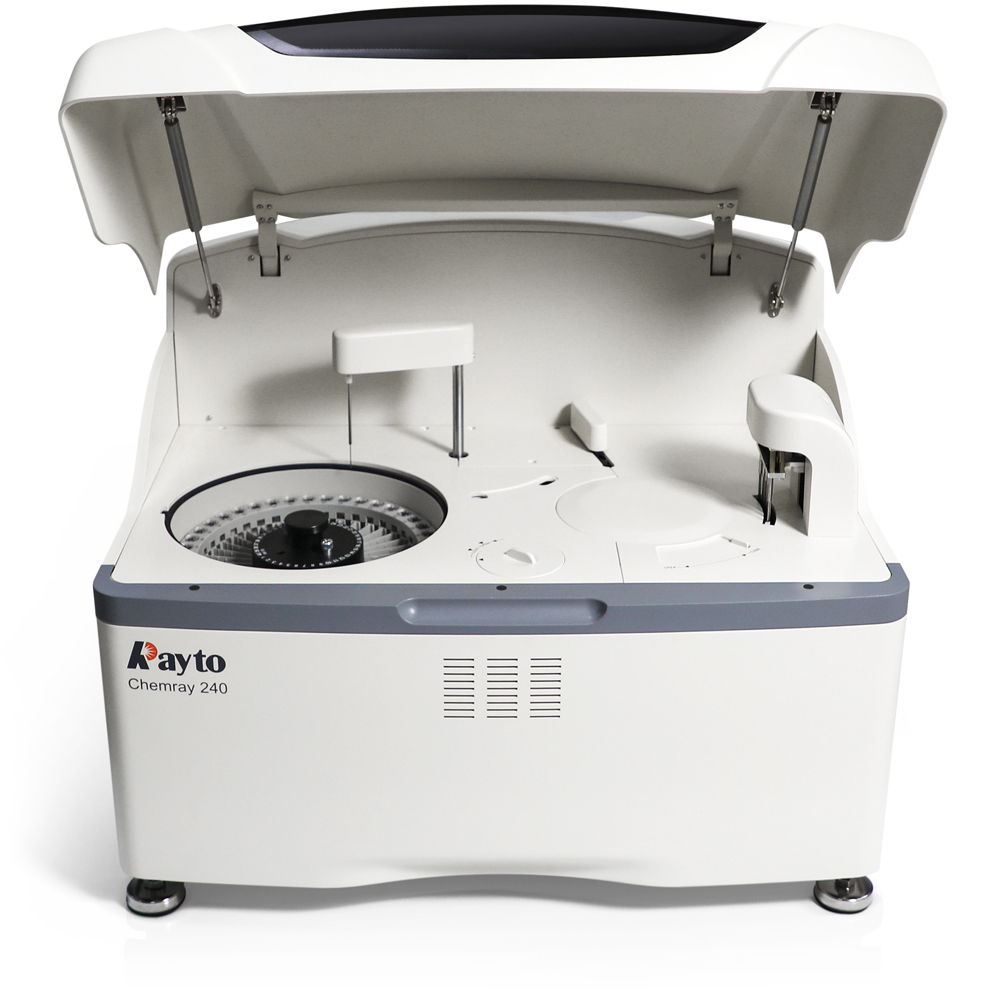

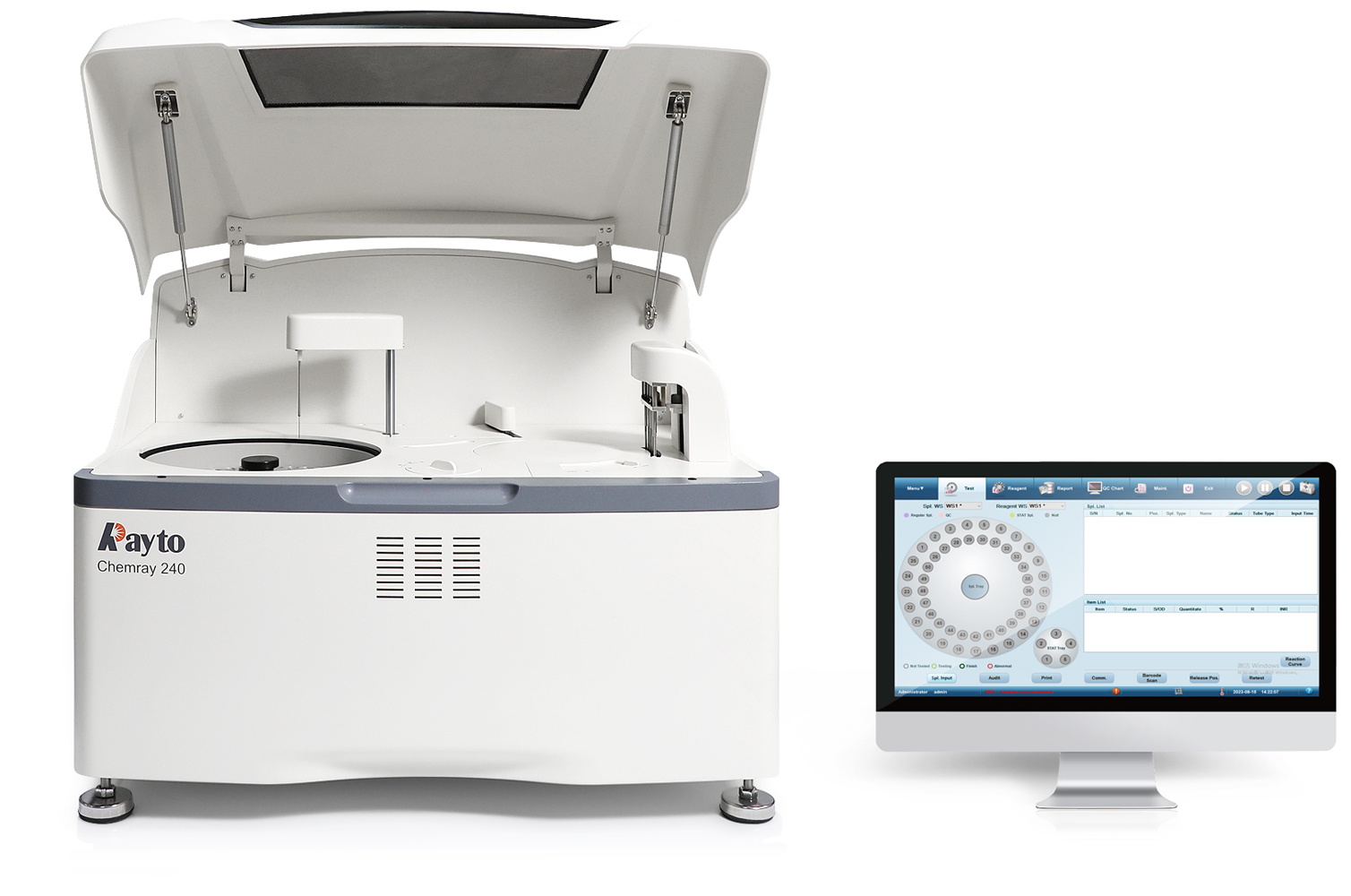

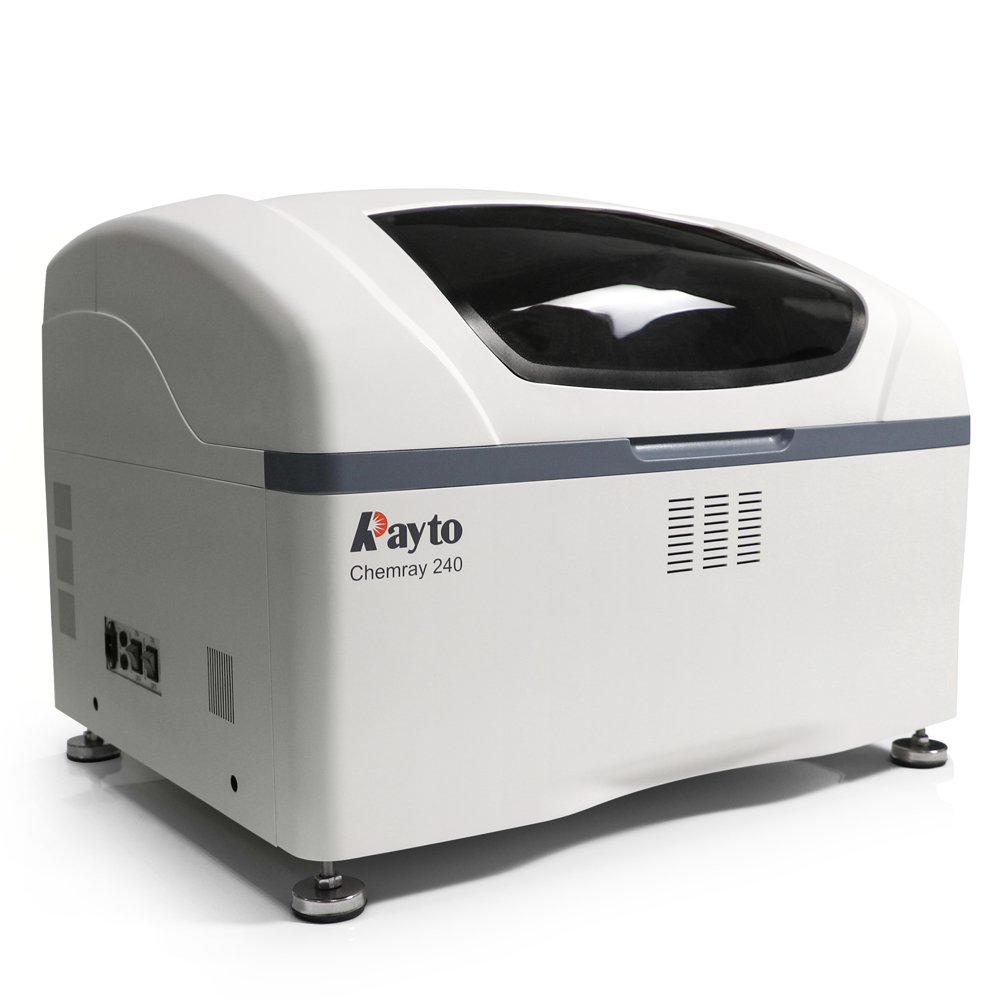

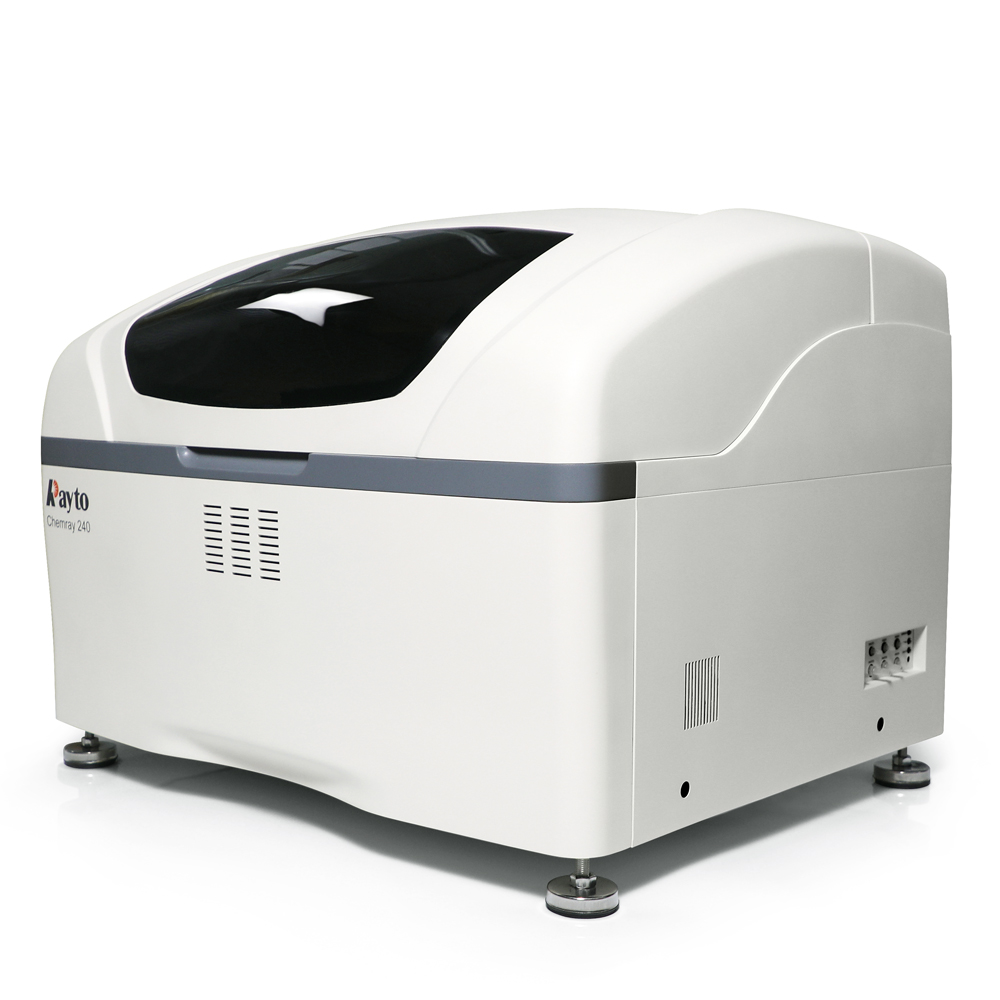

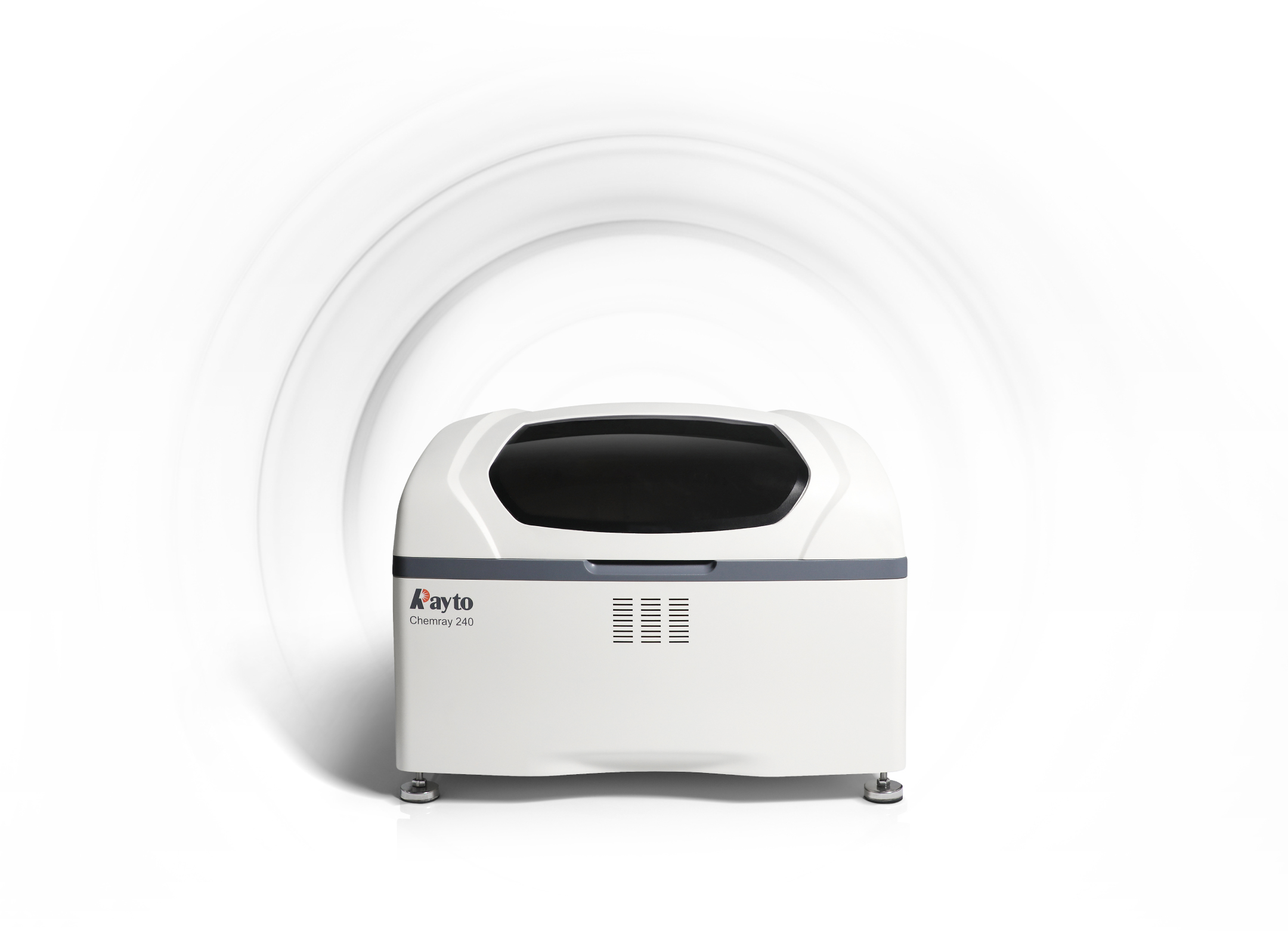

Chemray 240

System function

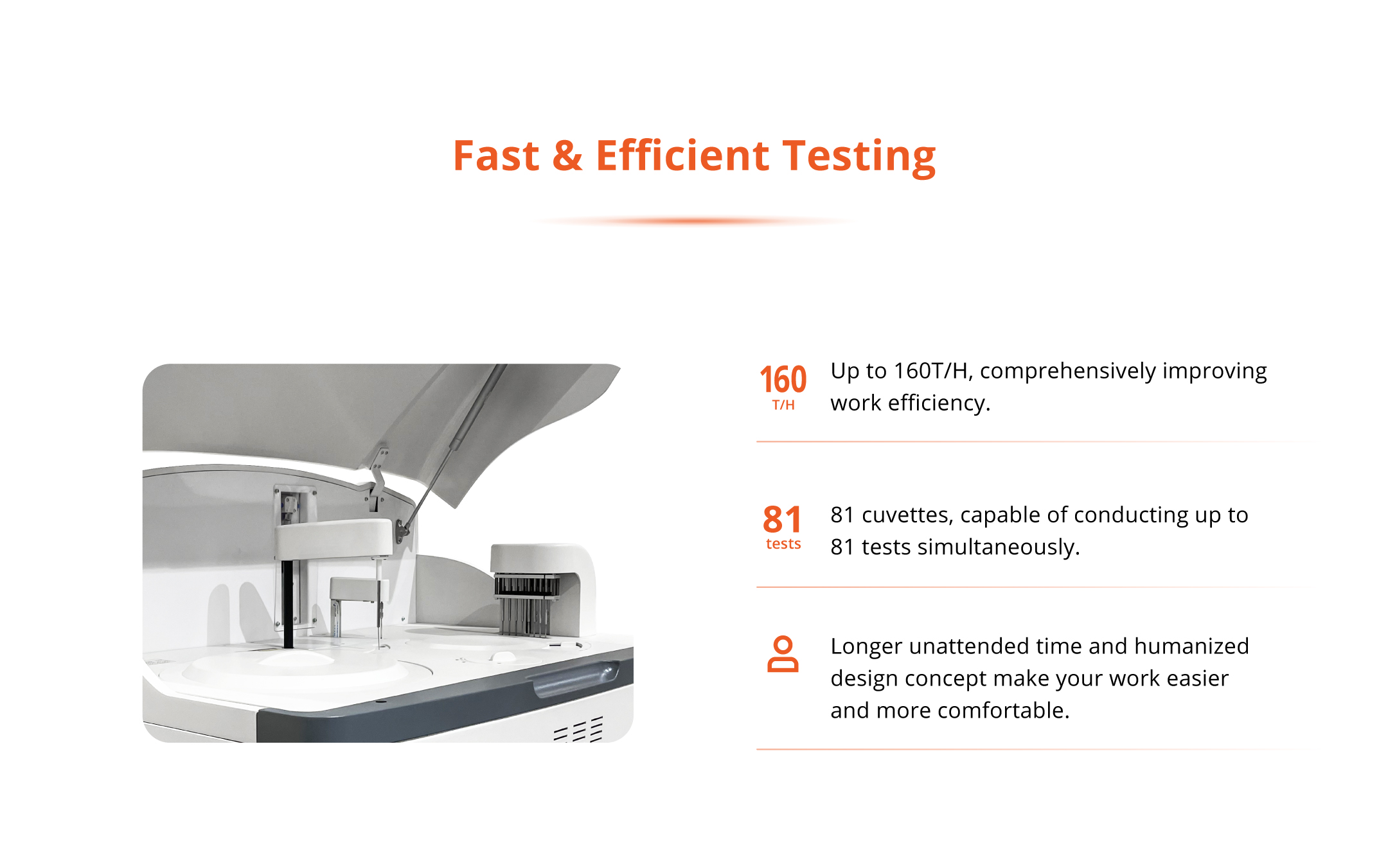

Throughput

Up to 160 tests per hour

Contents of the testing

Immunoturbidimetric / Colorimetric

Analytical modes

End-point, Two-point, Kinetic

Programming

Open system with user defined programs

Automatic, Random Access

STAT sample priority

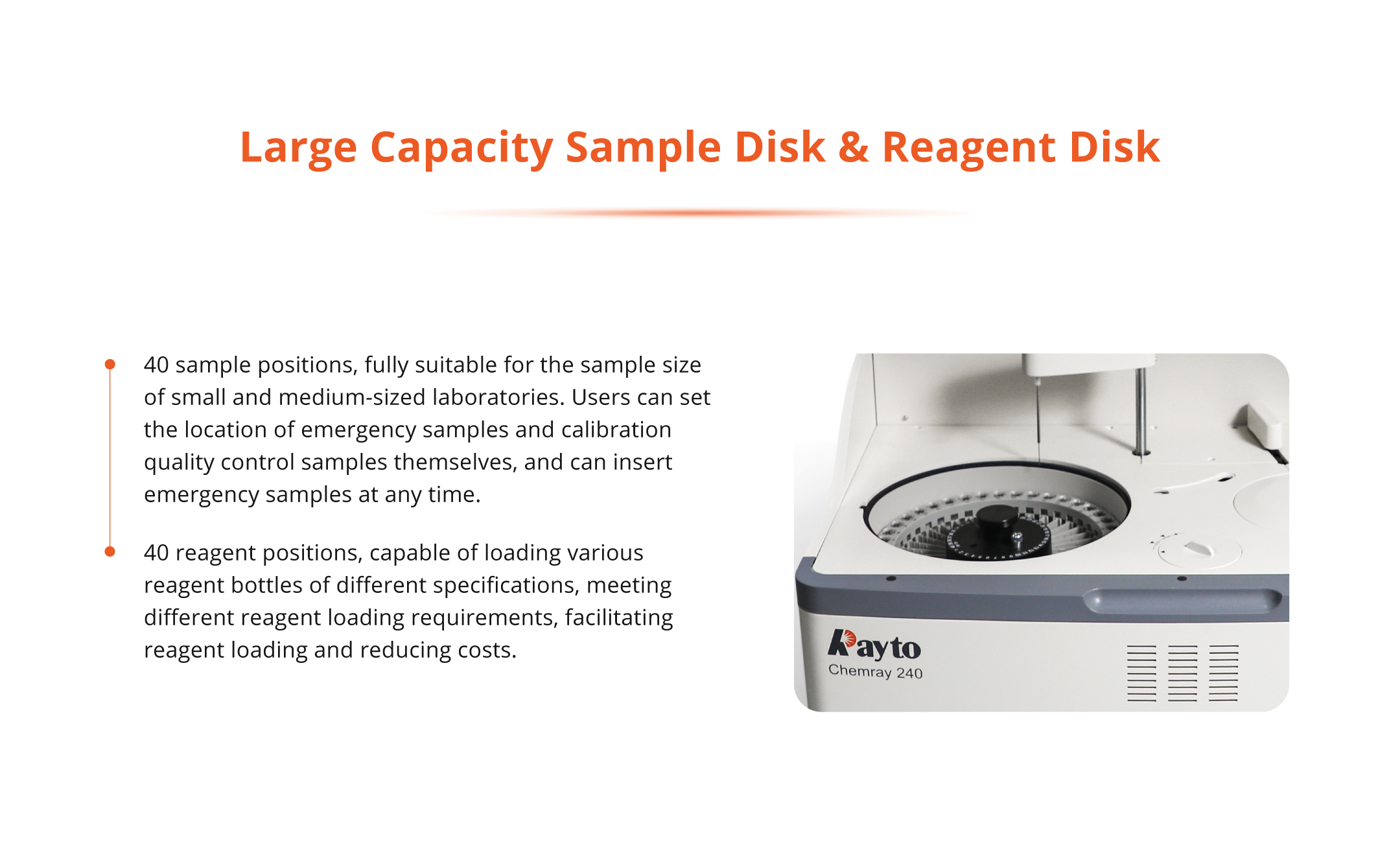

Sample tray

Sample position

40 positions

Sample volume

3～100 μL, 0.5 μL adjustable

Any position for standard and quality control setting

Reagent tray

Reagent position

40 refrigerated positions

Refrigerated temperature

≤ 16 ℃

Reagent volume

R1

R2

180～450 μL, 1 μL adjustable

30～250 μL, 1 μL adjustable

Reaction tray

Reaction positions

81 cuvettes, 9 cuvettes / strip

Reaction volume

180～500 ul

Reaction temperature

37 ℃, fluctuation ± 0.2 ℃

Independent mixing probe

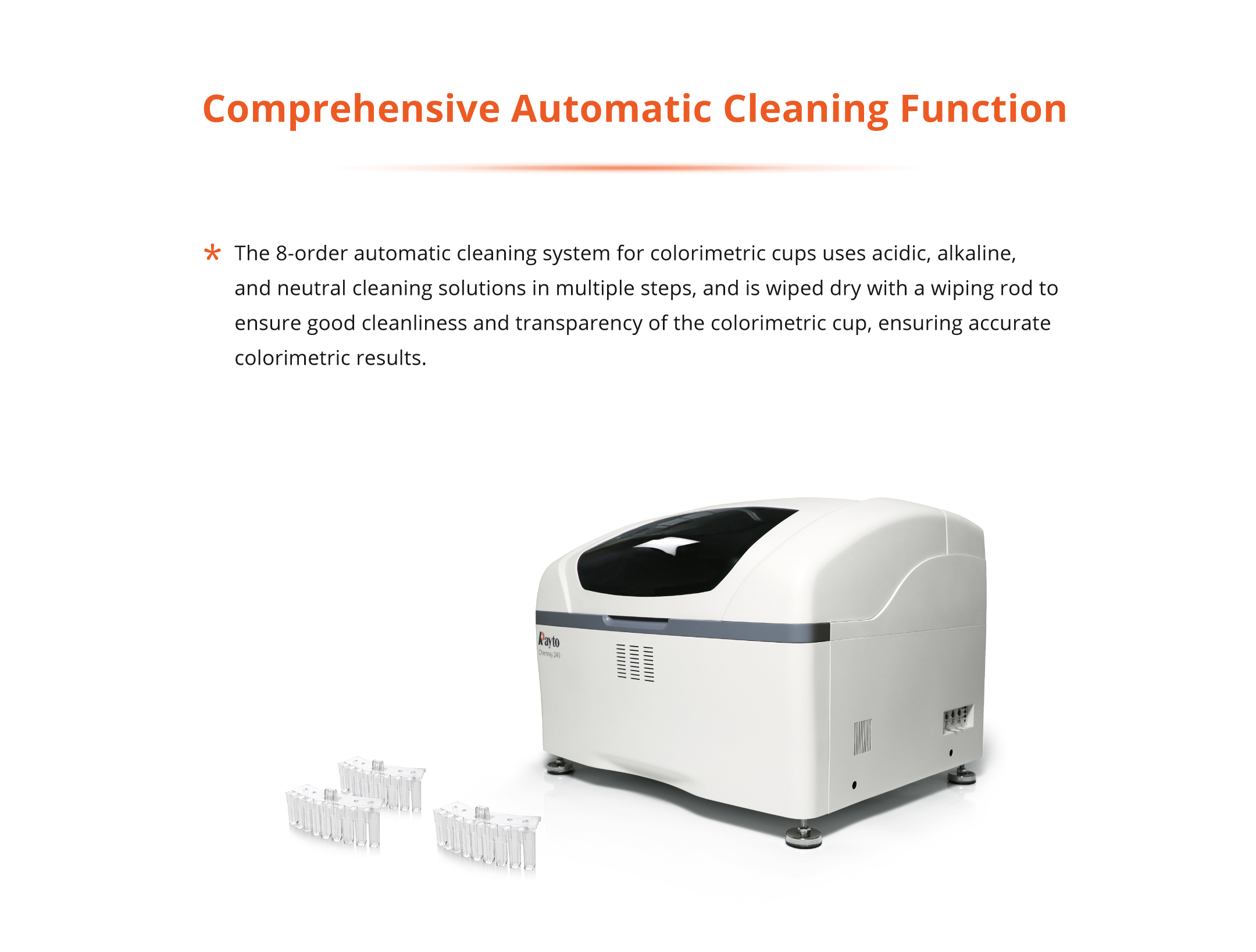

Cuvette washing (optional)

Automatic 8 steps washing system

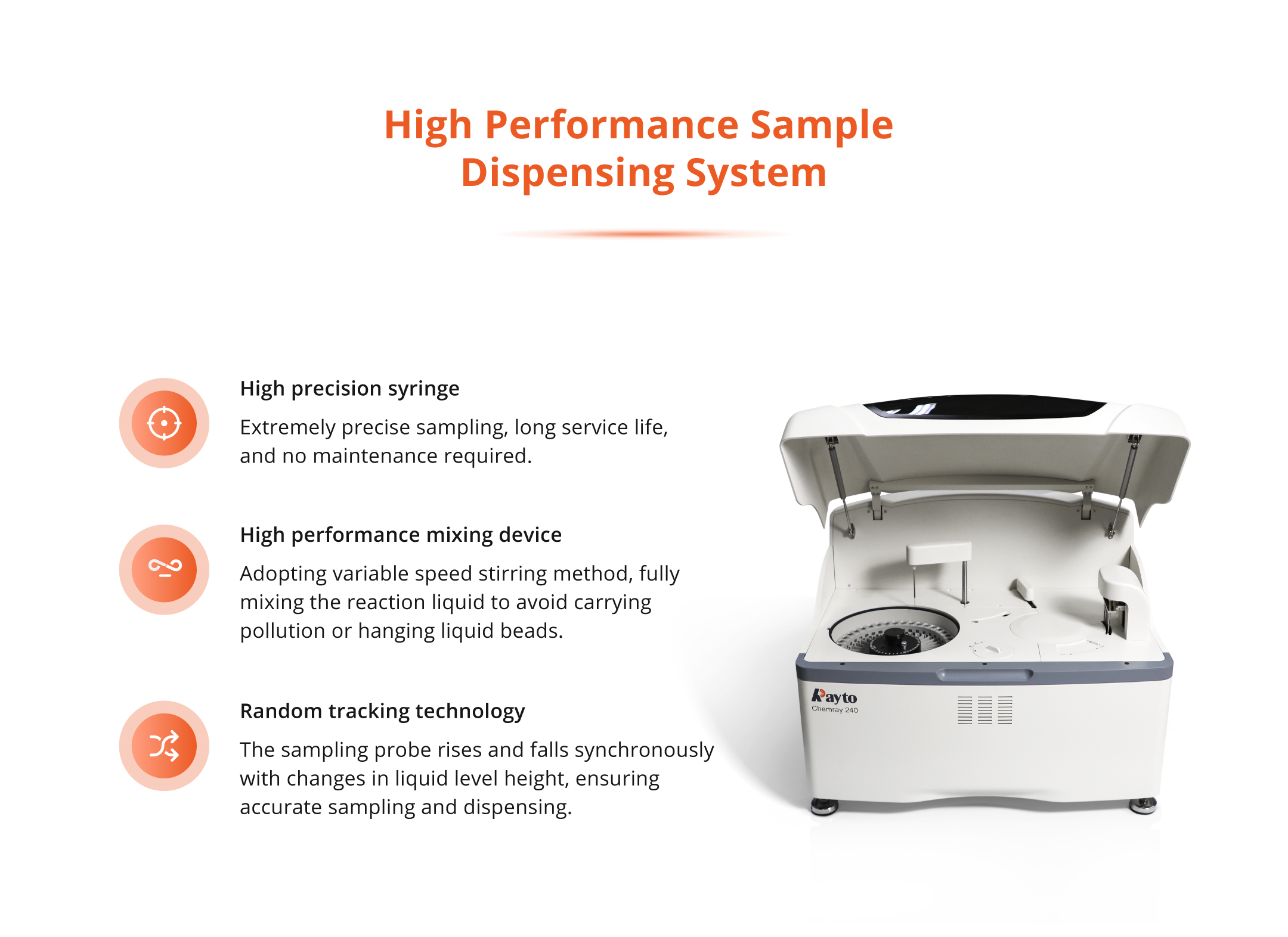

Probe

Pre-heating for reagent

Collision protection, Liquid level detection and Inventory checking

Automatic inner and outer probe washing after every cycle, carry-over ≤ 0.1 %

Measuring & Optic system

Light source

Halogen lamp

Wavelengths

8 wavelengths from 320 ~ 850 nm including
340 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm, 670 nm

Absorption range

0～3.500 Abs ± 1 %

Resolution

0.0001 ABS

Working condition

Power supply

100～240 V, AC 50 / 60 Hz

Temperature

0～40 ℃

Humidity

≤ 80 %

Water consumption

≤ 3 L / hour

Dimension (L*W*H)

810 cm*680 cm*1150 cm
